Crown (Middleby)  |  SKU: DDA-3

Crown (Middleby) DDA-3 Pressure Steamers

$56,118.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Crown steam group letter Installation & operation manual Parts list Warranty sheet
Related Searches
Pressure Steamers Steam Cooking Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Crown “Do-All” Direct-Steam Dual-Pressure Steamer – 3 Compartments, 36" Cabinet Base

Model DDA-3 | cCSAus & NSF Listed

Built for operators who need maximum versatility in a compact footprint, the Crown DDA-3 combines pressure and pressure-less steaming in one powerhouse unit. Three independent 6 psi compartments, an operator-selectable dual-mode top chamber, and rugged all-304 stainless construction let you steam, poach, blanch & re-therm with absolute confidence shift after shift.

Key Features & Benefits

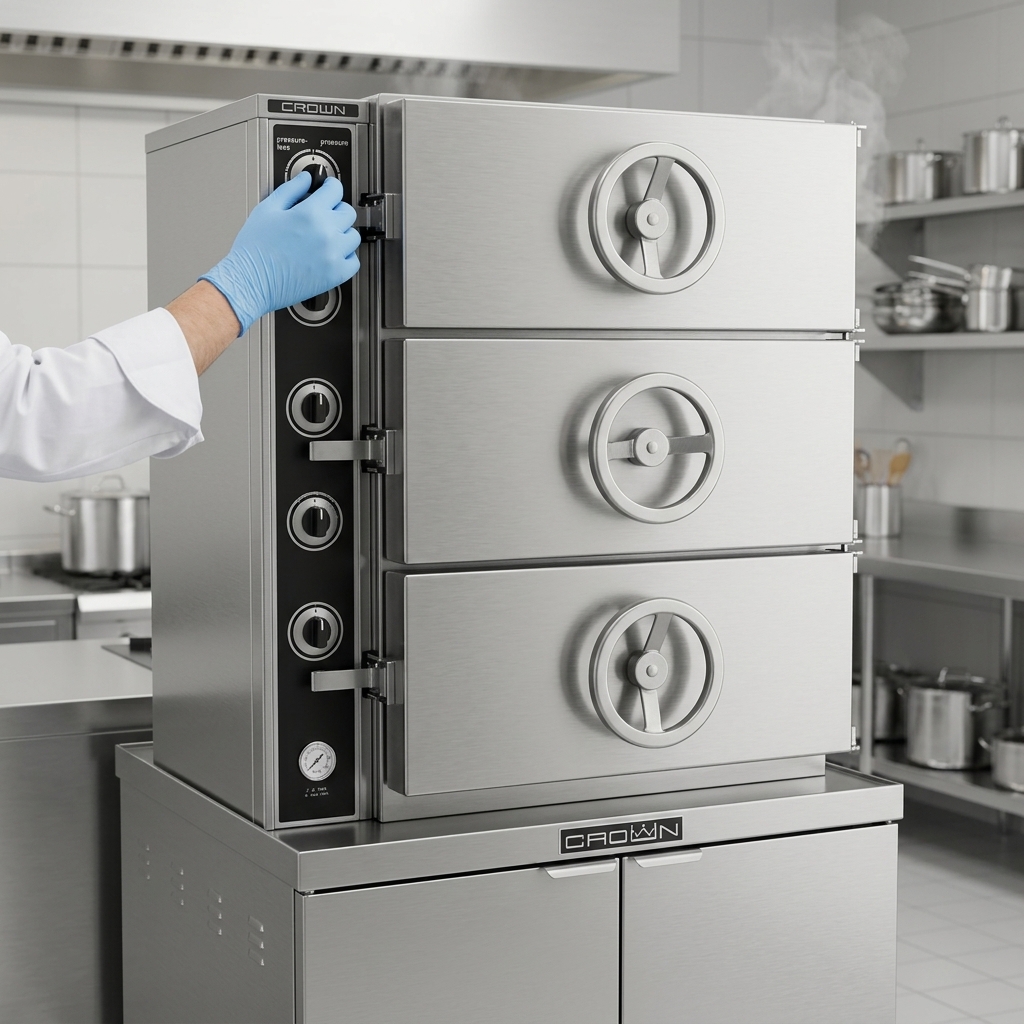

  • Dual-pressure top compartment – switch instantly between pressure-less free-venting or 6 psi pressure cooking.

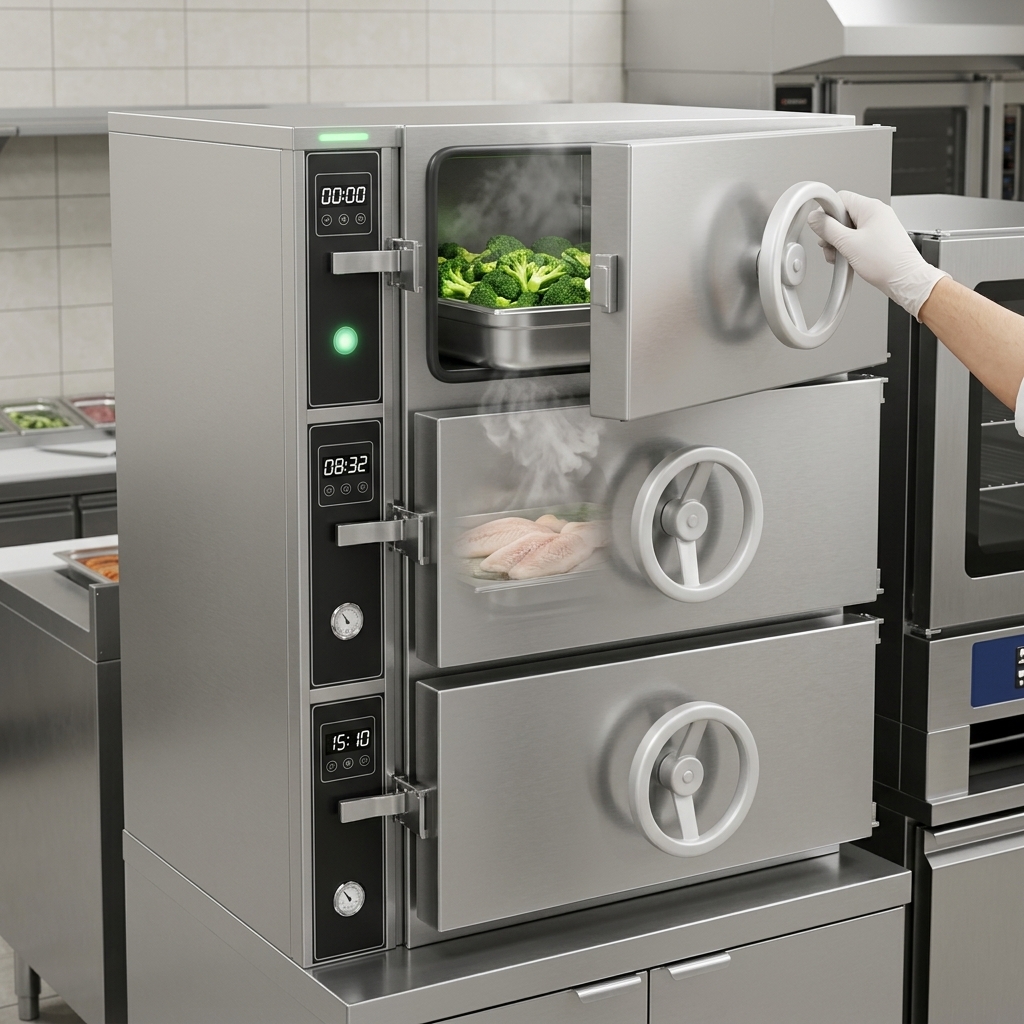

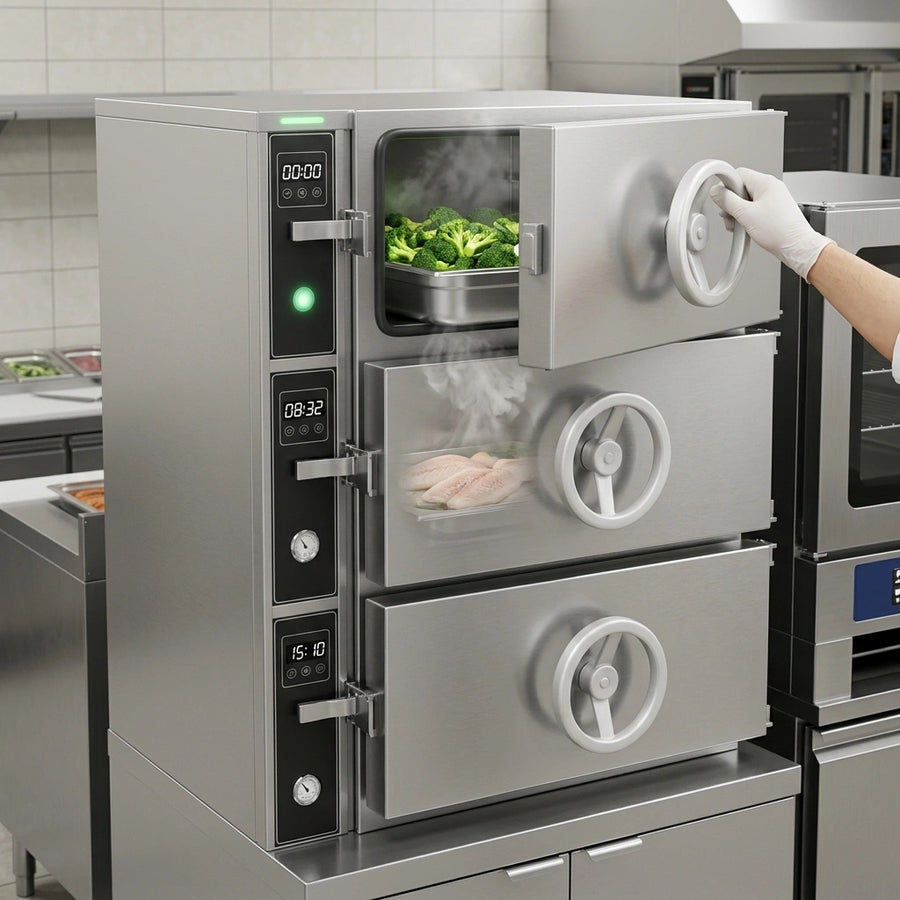

  • Three independent cooking chambers with dedicated manual controls and 60-minute timers.
  • Automatic cycle shut-off & condensate exhaust with audible and visible alarm for hassle-free operation.
  • Universal pan supports handle hotel pans, sheet pans, and inserts without extra hardware.
  • All-welded 304 stainless steel cabinet, doors and control housing for unmatched durability and easy cleanup.
  • Wheel-and-screw door latching system opens 15° on release, keeping operators safe from residual steam.
  • 36" cabinet base with two full-width storage doors keeps cookware close at hand.
  • (4) 6" stainless legs with adjustable flanged feet secure the unit to the floor for rock-solid stability.
Capacities at a Glance
Compartments 3 independent chambers
Pan Capacity 12 – 24 GN 1/1 or 12" × 20" pans (depth dependent)
Operating Pressure 6 psi (41 kPa) max per compartment
Utility Requirements

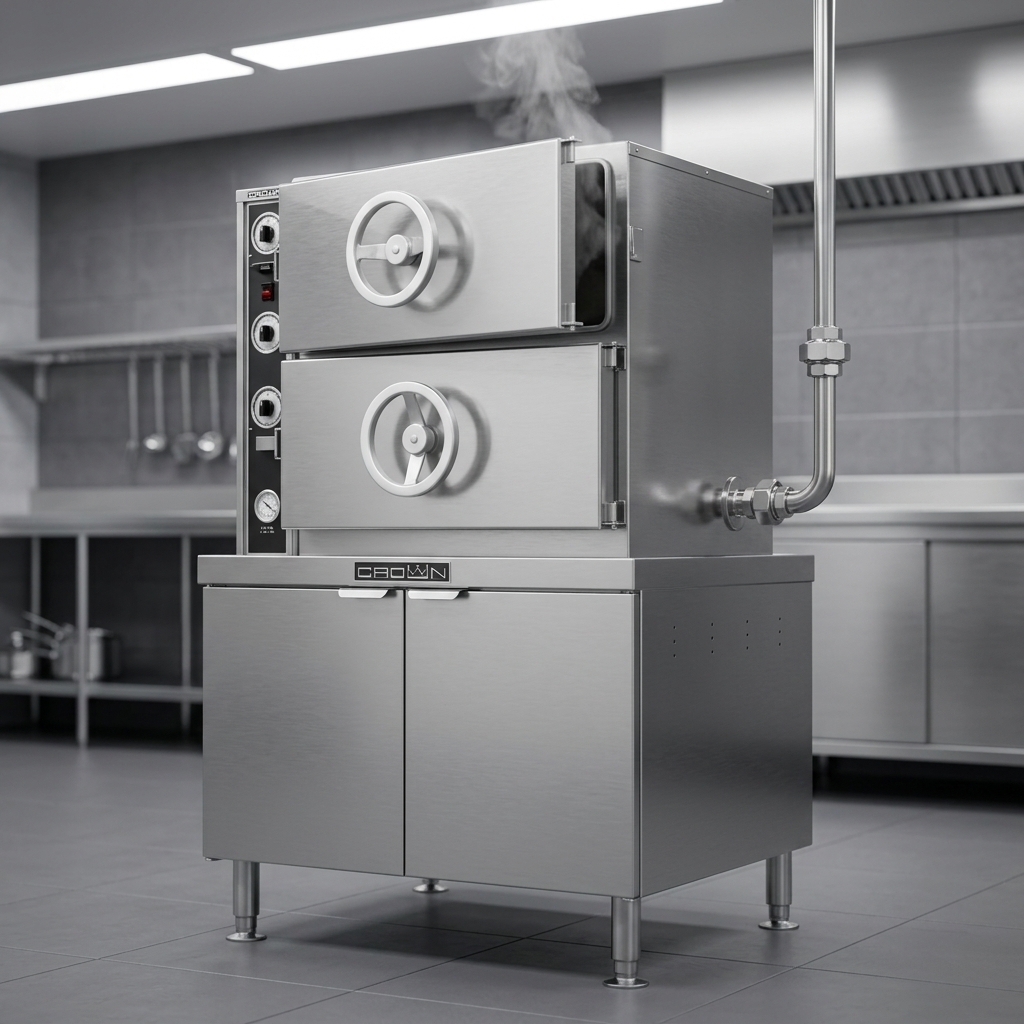

Steam Supply 3/4" IPS, 15 – 50 psi (103 – 345 kPa) direct, non-toxic steam
Drain 2" IPS, vented to open floor drain
Electrical ½" conduit, 115 V, 1 ph, 60 Hz – 2 A per compartment (6 A total)
Optional: 220-240 V, 1 ph (consult factory)
Dimensions & Weight
Width 36"  (914 mm)
Depth 41"  (1 041 mm)
Height 68"  (1 727 mm)
Shipping Weight Contact Crown for current data
Popular Options & Accessories (sold separately)
  • 220-240 VAC control circuit
  • Correctional security package
  • Wire shelf racks or sheet-pan supports
  • Stainless rear panel or stainless frame upgrade
  • Ball-float steam trap
  • Spray-and-rinse assembly for rapid clean-up
Certifications

cCSAus | NSF Listed – designed for continuous commercial use.

Warranty

1-year parts & labor coverage, plus extended protection on select pressure-vessel components. See Crown Steam Group limited warranty for full details.

Important: Water supplied to any steam equipment must not exceed
• Total Dissolved Solids: 60 PPM  • Hardness: 2 grains / 35 PPM  • pH: 6.8 – 7.3.
Poor water quality can damage components and void the manufacturer’s warranty.

Features & Specs

Manufacturer

Crown (Middleby)

Certifications

NSF, cCSAus

Height

68.0in

Width

41.0in

Depth

33.88in

Compartments

3

Pan Capacity per Compartment

(8) 12"x20"x2-1/2" deep

Controls

manual controls

Width (side - side)

36"

Specifications

Do-All Dual-Pressure Steamer, direct steam, (3) compartments, 36" cabinet base with (2) solid hinged doors, pressure/pressure-less top compartment only, manual controls, automatic timer control with visible & audible signal, automatic shut off, pan supports, 304 stainless steel construction, (4) 6" stainless steel legs with adjustable flanged feet, cCSAus, NSF
