Crown (Middleby) DCP-3 Pressure Steamers
Description

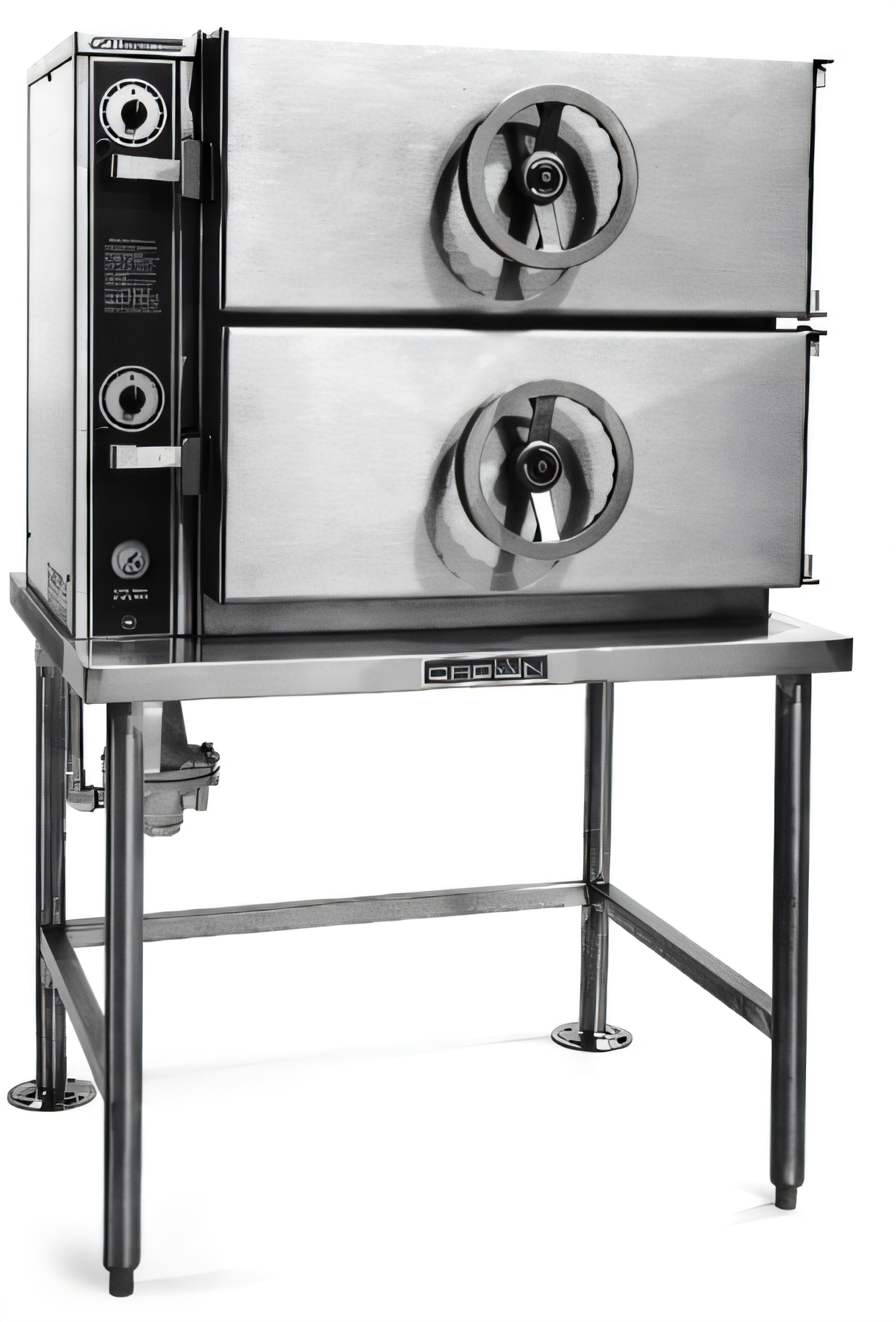

DCP-3 Direct-Steam Pressure Steamer
3 Compartments • 36 in (914 mm) Wide • Pedestal-MountedBuilt for serious, high-volume kitchens, the Crown DCP-3 delivers rapid, uniform steam under pressure across three fully independent compartments. Rugged 304 stainless-steel construction, CSD-1 compliant safety controls and a permanent pedestal base make it the ideal workhorse for schools, healthcare, commissaries and any operation that needs continuous, reliable steam production in a compact footprint.
Why You’ll Love It
- True pressure cooking: compartments operate at 6 psi (41 kPa) for faster cook times and higher yield.
- Three totally independent cavities—each with its own manual timer, visible pilot light and audible buzzer.
- Automatic steam shut-off & exhaust at end of cycle; condensate is drained and the signal sounds until manually reset.
- Direct, non-toxic steam connection (15–45 psi inlet) keeps utilities simple and operating costs low—no boiler to maintain.
- Heavy-duty doors with wheel-&-screw locking mechanism, removable aluminum inner liner and full-perimeter gasket for a lifetime of leak-free service.
- Universal pan supports included—handle everything from hotel pans to sheet-pan inserts (12 – 24 pans total).
- All-welded 304 stainless-steel cabinet with #4 sanitary finish cleans up fast and looks great on the line.
- Meets CSD-1 code; certified cCSAus & NSF for peace of mind and hassle-free inspections.
At-a-Glance Specs
| Cooking Compartments | 3 pressure chambers, 6 psi (41 kPa) each |
|---|---|
| Mounting Style | Stainless-steel pedestal base with bolt-down plate |
| Pan Capacity | 12 – 24 standard 12 × 20 × 2½ in steam table pans |
| Incoming Steam | 3⁄4 in NPT, 15 – 45 psi (103 – 310 kPa) Flow: 150 lb / h (68 kg / h) |
| Electrical | 115 VAC, 1-Phase, 60 Hz, 2 A per compartment (6 A total) |
| Drain | 2 in copper line to open floor drain |
| Overall Dimensions (W×D×H) | 36 × 25½ × 58½ in (914 × 648 × 1486 mm) |
| Construction | All-welded 304 stainless steel, #4 finish |
| Certifications | cCSAus, NSF, CSD-1 compliant |
| Warranty | 1-year parts & labor (see full Limited Warranty) |
Factory Options & Accessories
- 220 / 240 VAC control package
- Ball-float steam trap
- Spray-and-rinse assembly
- Wire shelf racks (SSR-PC)
- Sheet-pan supports (SPS-PC1 / SPS-PC2)
- Correctional security package
This equipment is engineered for professional kitchens and must be installed by qualified personnel in accordance with local codes and the CSD-1 standard.
