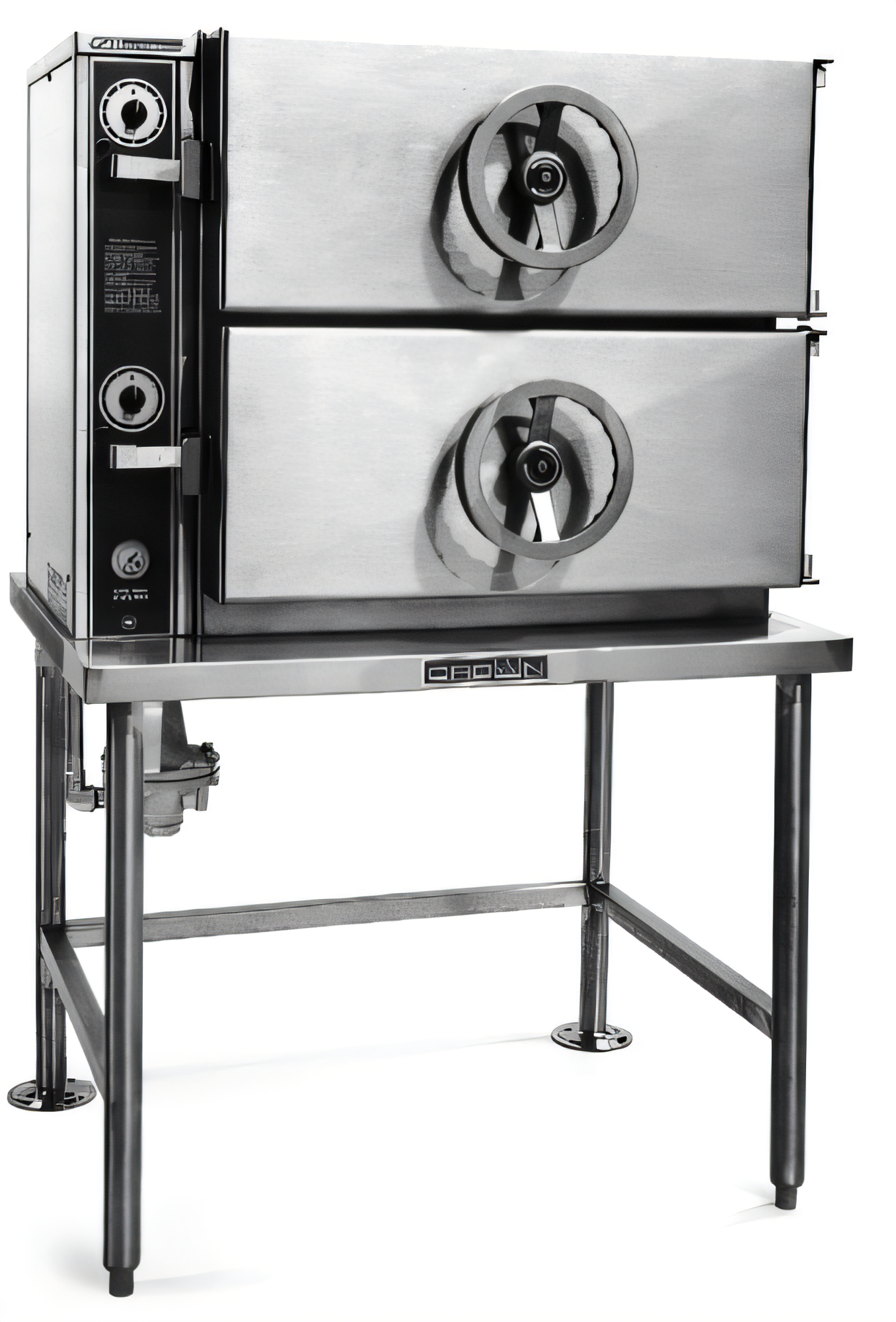

Crown DCP-2 Direct-Steam Pressure Steamer, 2 Compartments, 36"
Pedestal-mount | 304 SS construction | cCSAus & NSFBuilt for high-volume kitchens that already have a central boiler, the Crown DCP-2 delivers fast, high-yield steam cooking in a compact 36" footprint. Two independent pressure compartments, each held at an efficient 6 psi, let you crank out vegetables, proteins and starches simultaneously—without flavour transfer and with minimal water or energy waste.
Why Chefs Choose the DCP-2

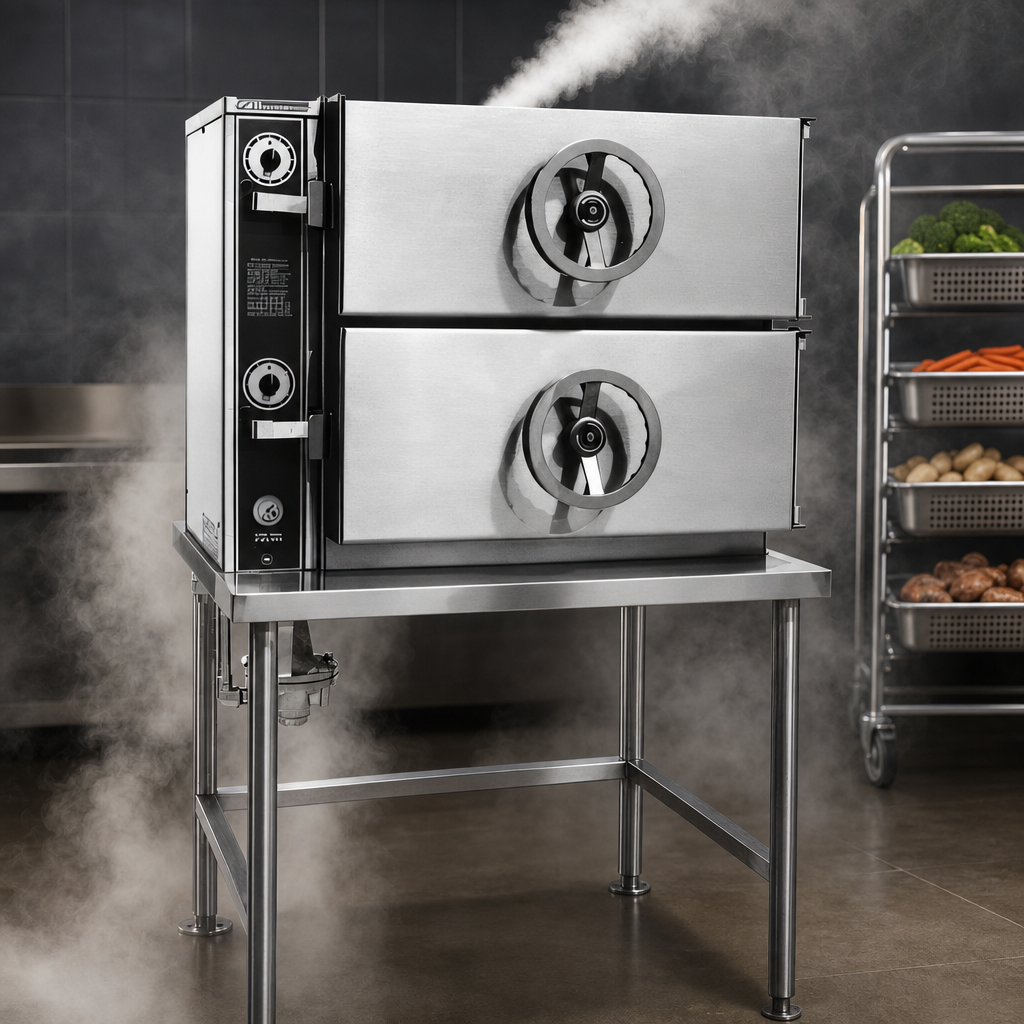

- Direct, non-toxic steam connection (requires 15-45 psi supply) eliminates the need for a built-in boiler.
- Pressure-type cooking at 6 psi for faster cook times and superior nutrient retention.

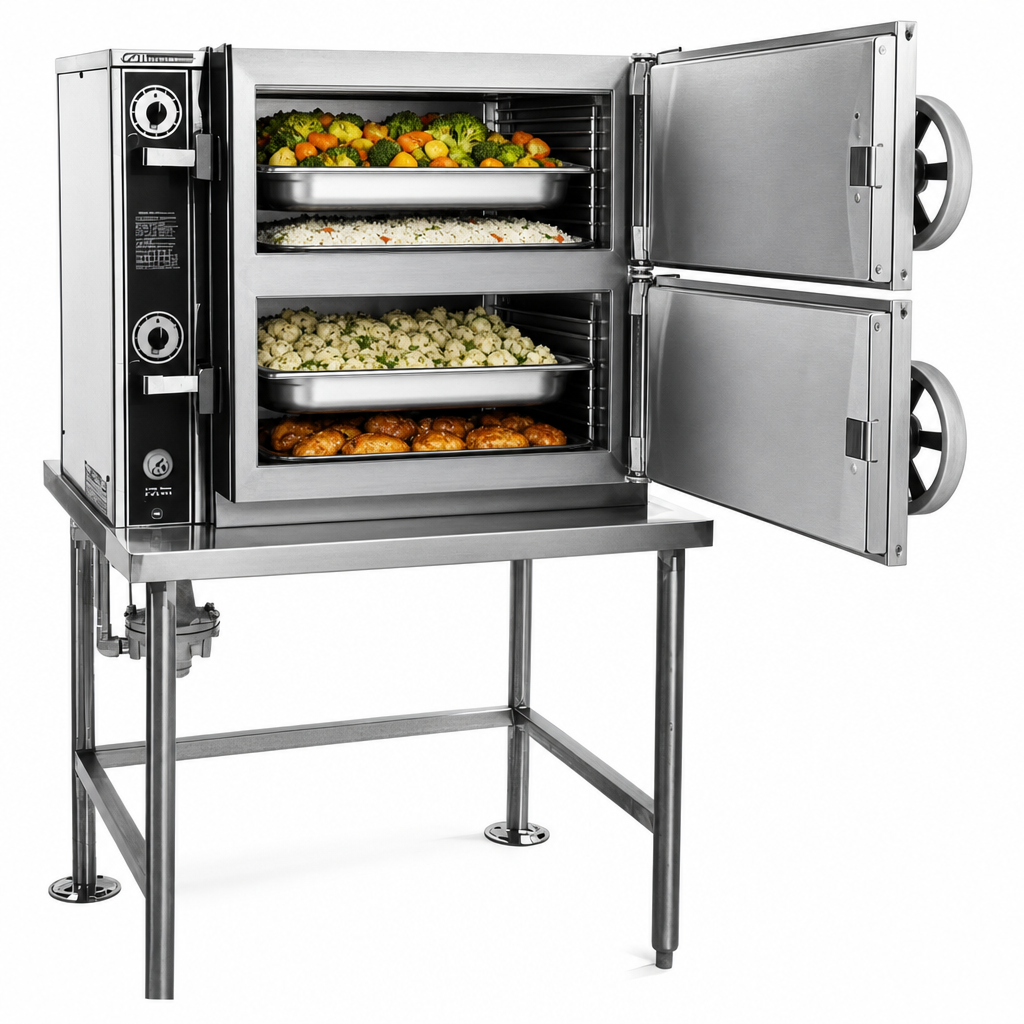

- Two fully independent compartments—each with its own manual control wheel, 60-minute timer, visible pilot lights and audible buzzer.
- Automatic shut-down, steam exhaust and condensate drain at the end of every cycle for worry-free operation.
- Rugged 304 stainless steel cabinet, doors and #4 finish control housing withstand daily commercial abuse.
- Removable aluminium door liner with full-perimeter gasket and 15° safety-pop opening for burn protection.
- Universal pan supports included—holds 8 to 16 full-size (12"x20") steam table pans.
- Factory-supplied CSD-1 safety package plus pressure relief valve for code compliance.
- Low-amp (2 A/compartment) 115 V control circuit—easy to hook up anywhere on the cookline.
- Certified cCSAus & NSF for gas and sanitation standards.
Compartment Capacity
| Compartments | 2 independent pressure cavities |
|---|---|
| Pan Capacity | 8 – 16 full-size (2.5" deep) pans or equivalent hotel/ GN pans |
| Maximum Working Pressure | 6 psi (41 kPa) per compartment |
At-a-Glance Specifications
| Model | Crown DCP-2 (pedestal base, bolt-down) |
|---|---|
| Overall Width | 36" / 914 mm |
| Overall Depth | 40.6" / 1 035 mm |
| Overall Height | 55.8" / 1 416 mm |
| Steam Inlet | ¾" NPT, 15-45 psi supply (pressure-reducing valve included) |
| Drain | 2" copper to open floor drain (no solid connection) |
| Electrical | ½" conduit, 2 A per cavity, 115 V/1 ph/60 Hz (220/240 V optional) |
| Construction | All-welded 304 SS cabinet, pedestal & doors; #4 finish |
| Certifications | cCSAus, NSF, CSD-1 compliant |
| Standard Warranty | 1 year parts & labour |
Popular Options & Accessories (sold separately)
- 220 V or 240 V control circuit (DBVS-1)
- Ball float steam trap (BFT)
- Spray-and-rinse assembly for rapid cavity cleaning
- Wire shelf rack (SSR-PC)
- Sheet-pan supports (SPS-PC1 / SPS-PC2)
- Correctional-grade tamper-resistant package
Important: Manufacturer’s warranty requires incoming water quality
not to exceed 60 ppm Total Dissolved Solids and 2 grains hardness. Use
appropriate filtration or treatment to prevent scale-related damage.
Need financing? Ask about Middleby Equipment Financing for fast approvals and affordable monthly payments.
$41,577.00
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Crown Middleby DCP-2 pressure steamer: 2-compartment, 36" pedestal direct-steam with timer, manual controls, auto shut-down, 304 stainless, NSF/cCSAus.
Manufacturer
Crown (Middleby)
Certifications
NSF, cCSAus
Height
55.75in
Width
36.0in
Depth
28.5in
Width (side - side)
36"
Pan Capacity per Compartment
(8) 12"x20"x2-1/2" deep
Controls
manual controls
Compartments
2
Specifications
Steamer, direct steam, pressure-type, (2) compartments, 36"W, pedestal mount, automatic timer, manual controls per compartment with visible & audible signals, automatic shut-down, CSD-1 code package, 304 stainless steel construction, cCSAus, NSF
