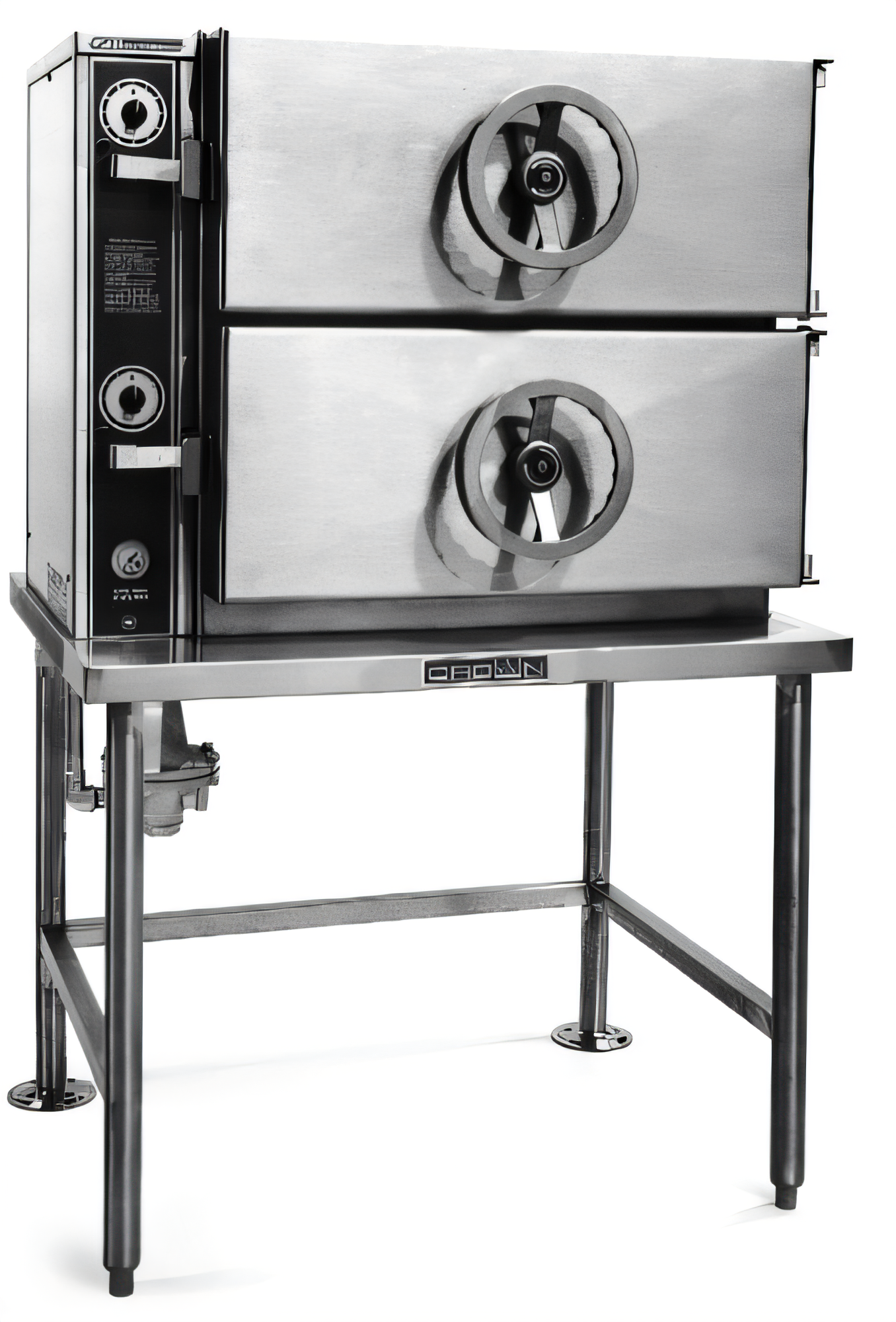

Crown DCL-2 Direct Steam Pressure Steamer – 2-Compartment, Leg Base
304 Stainless Steel • CSD-1 Certified • cCSAus & NSF ListedBuilt for high-volume commercial kitchens that demand speed, consistency and durability, the Crown DCL-2 delivers powerful direct-steam performance in a compact, two-compartment footprint. Each compartment operates independently at a gentle 6 psi, letting you steam vegetables, seafood, starches or proteins simultaneously while preserving food quality and nutrients.
Key benefits
- Two pressure compartments handle up to 16 full-size 12 × 20 pans per batch.
- Direct, non-toxic steam connection (15–45 psi inlet) heats fast and recovers instantly.
- Independent 60-minute manual timers with pilot lights and continuous end-of-cycle buzzers.
- Automatic shutdown, steam exhaust and condensate drain at the end of every cycle.
- Factory-installed CSD-1 code package for pressure-vessel safety compliance.
- All-welded 304 stainless steel cabinet and doors built to withstand heavy commercial use.
- Stainless tubular frame base with four adjustable flanged feet for bolt-down stability.
- Universal pan supports accept hotel pans, GN pans or 18″ × 26″ sheet pans—no extra racks needed.
- Low electrical demand: only 2 A @ 115 V/1 Ø per compartment.
Built to last
- Wheel-and-screw door mechanism delivers a reliable, steam-tight seal.
- Removable aluminum door liner and full-perimeter gasket for quick sanitation.
- 8 psi pressure-relief valve prevents over-pressurization.
- Full-access stainless control housing simplifies service.
- Backed by Crown Steam Group’s 1-year parts & labor warranty.
Specifications
| Model | DCL-2 (leg base) |
|---|---|
| Compartments | 2 – pressure type, 6 psi (41 kPa) |
| Pan capacity | 8–16 full-size 2½″ pans |
| Door opening (W × H) | 10¼″ × 26⅜″ (260 × 670 mm) |
| Exterior dimensions* | Approx. 28″ W × 32″ D × 55¾″ H (711 × 813 × 1416 mm) |
| Electrical | 115 V, 1 Ø, 60 Hz, 2 A per compartment (½″ conduit) |
| Steam inlet | ¾″ NPT, 15–45 psi (103–310 kPa) |
| Drain | 2″ copper to open floor drain |
| Certifications | cCSAus, NSF |
*Allow additional clearances for utilities and door swing. Refer to the installation manual for complete details.
Options & accessories
- 220 / 240 V control circuit (specify voltage)
- Ball-float steam trap (BFT)
- Spray-and-rinse assembly for rapid clean-up
- Wire shelf racks (SSR-PC) or sheet-pan supports (SPS-PC1 / SPS-PC2)
- Correctional-package tamper-resistant hardware
Important: This unit requires a direct, filtered steam supply and must be bolted to the
floor. Incoming steam pressure must not exceed 45 psi; install a pressure-reducing valve if necessary.
Give your kitchen the throughput it needs—choose the Crown DCL-2 and start steaming smarter today.
$27,570.00
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Crown (Middleby) DCL-2 pressure steamer: 36" dual-compartment direct-steam unit, 304 stainless, automatic timer, manual controls, NSF/cCSAus certified.
Manufacturer
Crown (Middleby)
Certifications
NSF, cCSAus
Height
55.75in
Width
36.0in
Depth
28.5in
Pan Capacity per Compartment
(8) 12"x20"x2-1/2" deep
Width (side - side)
36"
Compartments
2
Controls
manual controls
Specifications
Steamer, direct steam, pressure-type, (2) compartments, 36"W, automatic timer, manual controls per compartment with visible & audible signals, automatic shut-down, CSD-1 code package, 304 stainless steel construction, stainless steel tubular frame base, (4) legs with adjustable flanged feet, cCSAus, NSF
