CookTek (Middleby) 661801 CookTek Induction-Based Warming Equipment
Description

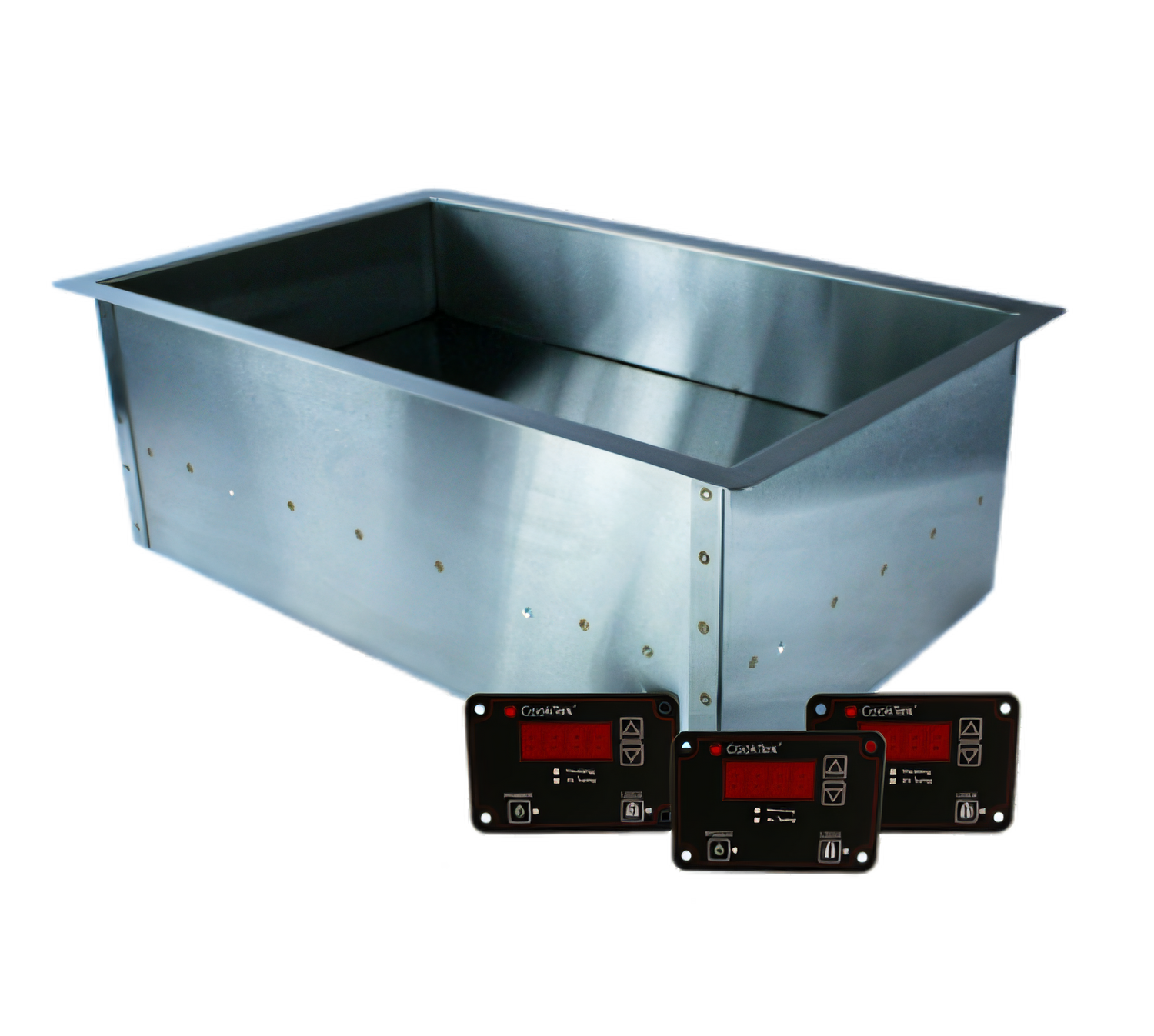

CookTek SinAqua™ Waterless Induction Hot Food Well – 6" Deep, 6-Sensor (IHW061-66)
Drop-in | 100–120 V | NEMA 5-15P | Made in USAGive your buffet or serving line the precision of induction without the hassle of water pans and drains. The CookTek SinAqua™ IHW061-66 keeps foods hot, safe and picture-perfect while using a fraction of the energy of traditional wet wells.
Key advantages

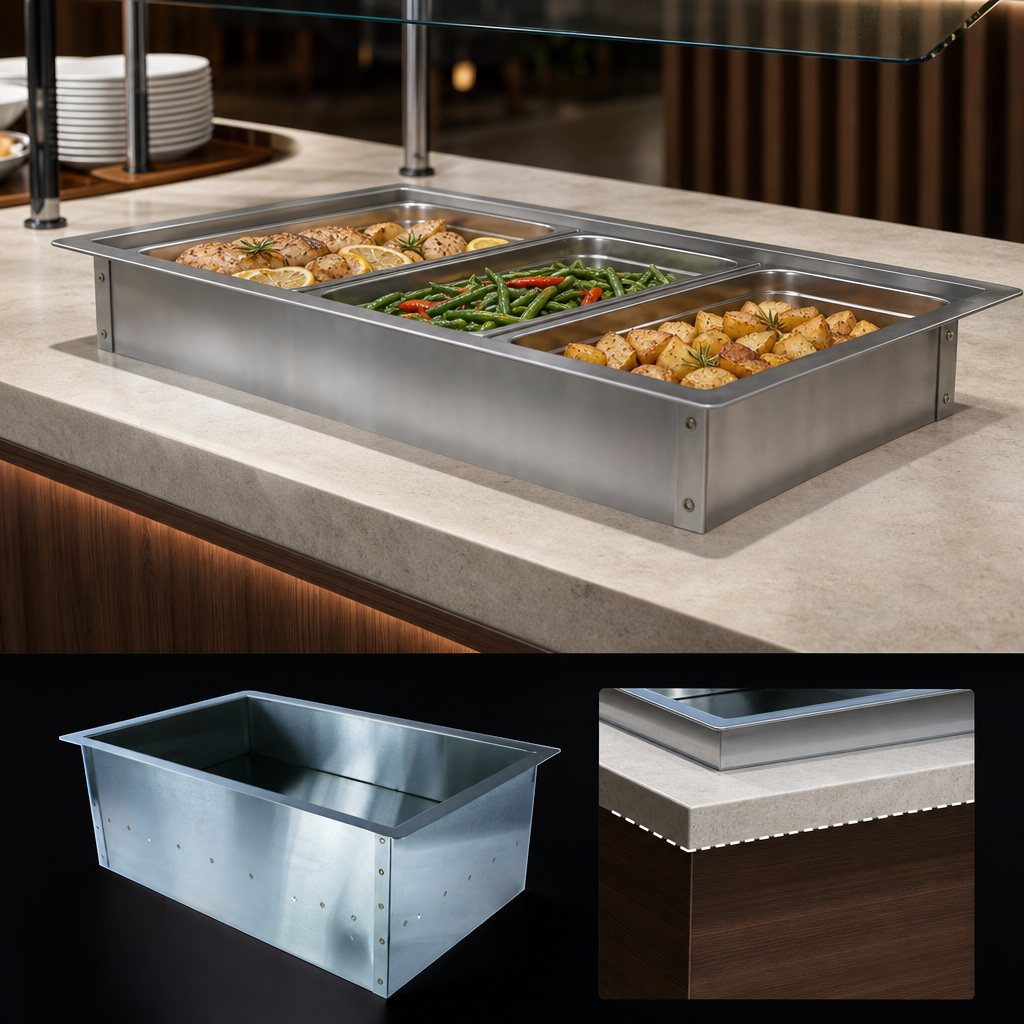

- Waterless operation – no plumbing, drains or deliming required.
- Six independent induction sensors arranged in three temperature zones with their own controllers.
- Flexible pan layout: one full-size hotel / 1-1 GN, three 1-3 GN or six 1-6 GN pans (induction-compatible).
- Four quick-select holding temperatures; additional settings available through the controller.
- Automatic pan detection – energy is supplied only when a pan is present.
- Spring-loaded, sealed temperature probes for fast, accurate feedback.
- Red LED displays with timer and lockout to stop unwanted changes.
- Microprocessor monitoring guards against overheating and power irregularities.
- Durable PPS liner with an aluminum housing built in Chicago, Illinois.
- Includes 6 ft Cat 5e/Cat 6 patch cable for quick plug-and-play installation.
CookTek Advanced Replacement Program
Every SinAqua™ well ships with a standard 1-year parts & labor warranty (U.S. & Canada) and is qualified for CookTek’s lifetime Advanced Replacement Program—so if an issue arises, a pre-tested replacement unit is dispatched within days to keep your service line moving.
Technical specifications
| Model | IHW061-66 |
|---|---|
| Sensors / Zones | 6 sensors / 3 temperature zones (3 control panels) |
| Pan Capacity | (1) 1/1 GN, (3) 1/3 GN or (6) 1/6 GN pans |
| Temperature Settings | 4 presets + adjustable range |
| Total Power | 650 W |
| Electrical | 100–120 V • 50/60 Hz • 1-ph • NEMA 5-15P |
| Construction | PPS interior liner, aluminum exterior housing |
| Overall Dimensions | 13.75" W × 21.75" D × 9.80" H (349 × 552 × 249 mm) |
| Cut-out Required | 12.25" W × 20.25" D (311 × 514 mm) |
| Usable Well Depth | 6" (152 mm) |
| Unit Weight | 17 lb (7.7 kg) |
| Clearances | 2" (51 mm) on all sides • 6" (152 mm) below |
| Certifications | cETLus • NSF • CE |
| Origin | USA |
Use only with induction-compatible (magnetic) pans. A dedicated circuit is recommended for each unit.
