Comstock-Castle FHP36-36T Gas Griddles
Description

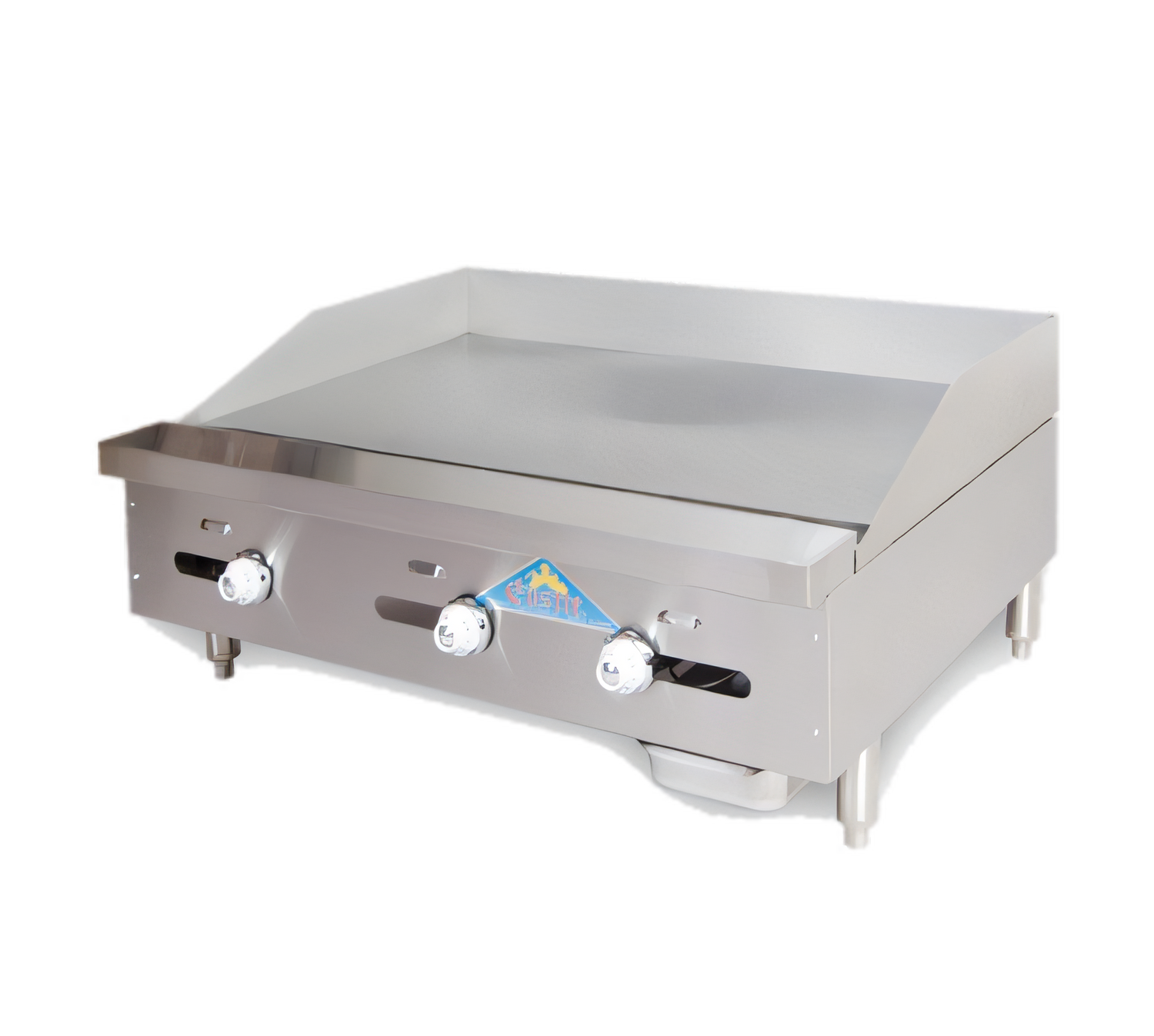

Comstock-Castle 36" Countertop Gas Griddle – Thermostatic, 3-Zone
Model FHP36-36T | 75,000 BTU | NSF & ETL ListedBuilt for high-volume breakfast, lunch and dinner service, the Comstock-Castle FHP36-36T packs three independently controlled cooking zones into a space-saving countertop footprint. A thick, highly polished steel plate delivers even heat retention while the stainless frame and splash guards keep your line clean and cool.
Key advantages

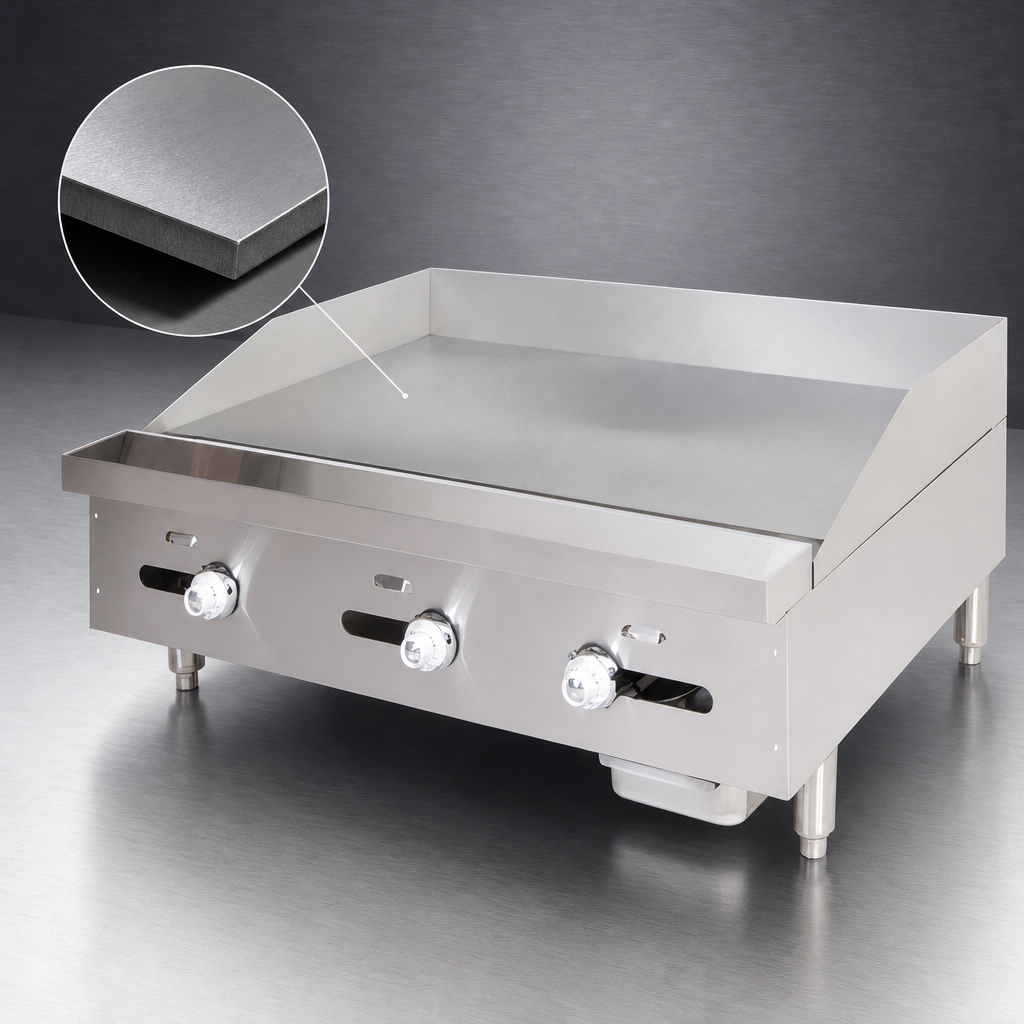

- 3/4" polished steel plate minimizes sticking and eases cleanup.

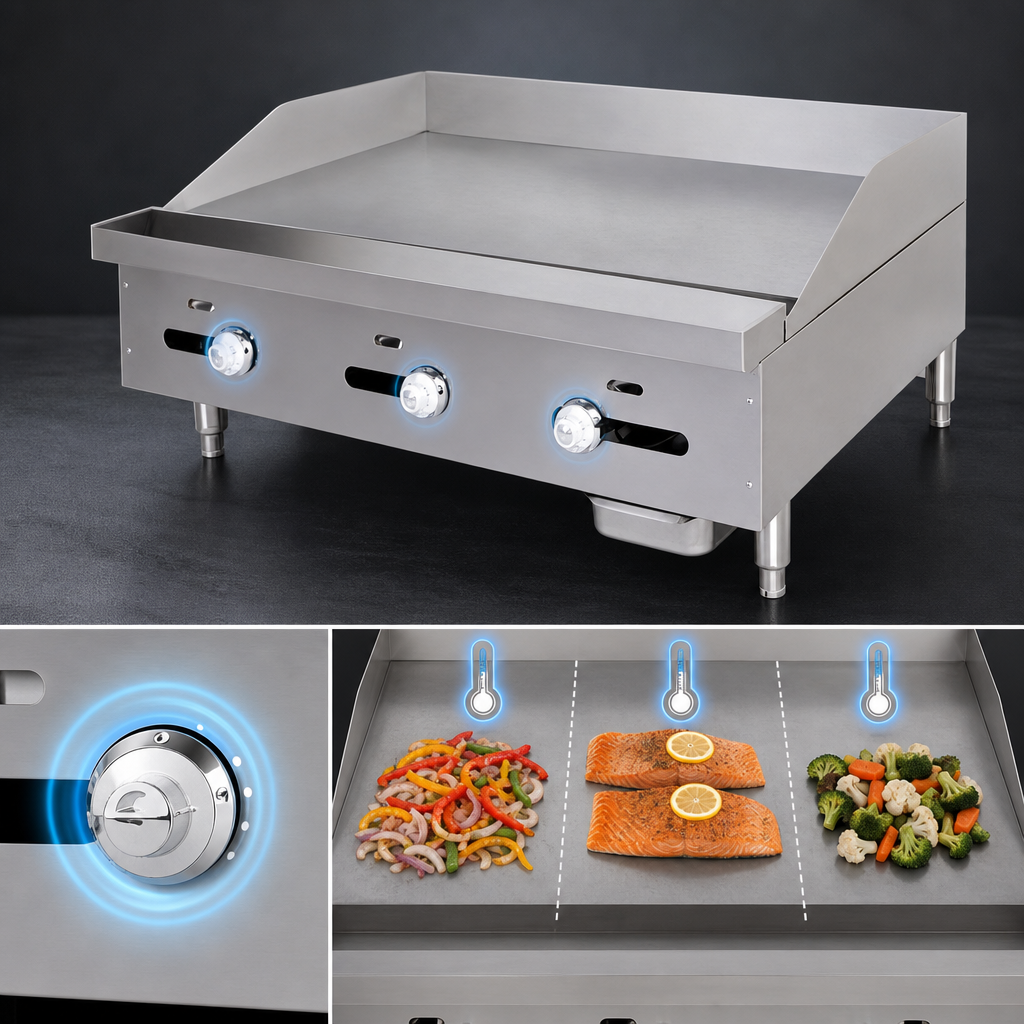

- (3) snap-action thermostats (200–450 °F) for true left / center / right temperature control.
- 75,000 BTU cast-iron “H” burners—one every 12" for even heat distribution.
- 4" rear & end splash guards contain grease splatter.
- Front cold-zone trough with extra-wide 3.5" × 1" drain to a deep, seamless drawer.
- All-stainless exterior, welded angle-iron sub-frame and 4" adjustable pipe legs withstand daily abuse.
- 0" side/rear clearance to non-combustibles speeds installation on countertops or equipment stands.
- Factory-set for natural gas or LP—no risky field conversions.
Technical specifications
| Cooking surface | 36" W × 21" D (765 in² / 0.49 m²) |
|---|---|
| Overall dimensions | 36" W × 28" D × 15 ½" H (with legs) |
| Plate thickness | 3/4" (19 mm) polished steel |
| Heat zones / controls | 3 thermostatic, snap-action |
| Total input | 75,000 BTU/hr |
| Burner type | Cast-iron “H” pattern (one every 12") |
| Gas connection | 3/4" NPT (rear) |
| Manifold pressure | 4" WC Natural • 10" WC LP |
| Certifications | NSF, ETL (US & Canada) |
| Shipping weight | Approx. 285 lb / 130 kg |
| Warranty | 1 year parts & labor (see details below) |
Perfect for
- Breakfast houses & diners
- Burger / sandwich lines
- Hotel buffets & catering kitchens
- Food trucks & concession trailers*
*Mobile/outdoor installs: 60 days labor / 120 days parts warranty.
What’s in the box
- FHP36-36T griddle with factory-installed pressure regulator
- Large removable grease drawer
- (4) 4" adjustable stainless legs
- Installation & operation manual
Comstock-Castle Stove Co. warranties new equipment against defects in materials and workmanship for one (1) year, parts & labor, from the date of installation. Full terms, conditions and exclusions are included with the product.
