Comstock-Castle  |  SKU: EG30

Comstock-Castle EG30 Gas Griddles

$2,695.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Warranty Installation & operation
Related Searches
Gas Griddles Griddles & Flat Tops

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Comstock-Castle EG30 Countertop Gas Griddle

30" W x 20" D Cooking Surface • 64,000 BTU • NSF & ETL Listed

Built for busy diners, food trucks and concession lines, the Comstock-Castle EG30 puts a full 600 in² of evenly-heated cook space on any countertop. Four manual burners, a polished 5/8" steel plate and an oversize grease-management system team up to keep service moving from the first breakfast order to the last late-night smash burger.

Key Features
  • 5/8" highly polished steel griddle plate minimizes sticking and speeds clean-up.

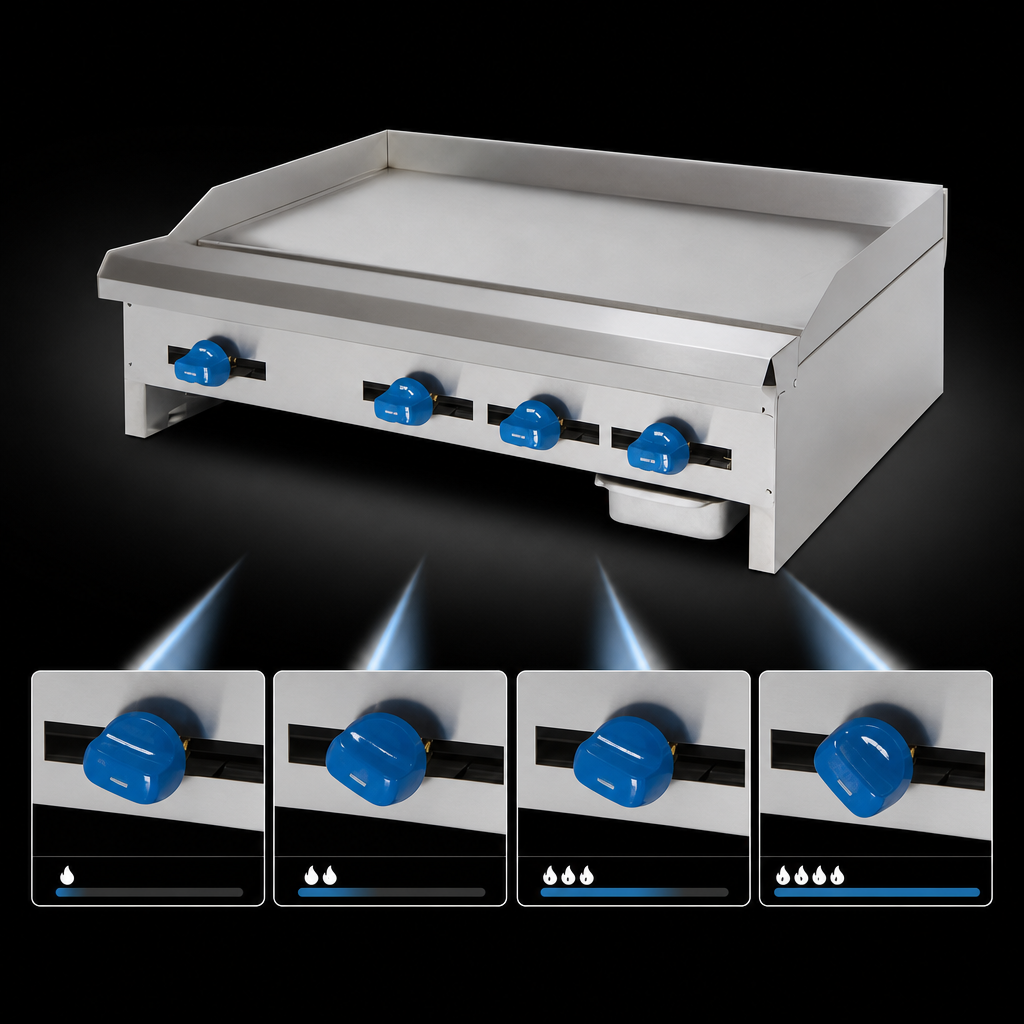

  • 30" wide x 20" deep cooking surface (600 in²) with 4 independent manual controls for true zone cooking.
  • Four 16,000 BTU burners (one every 7.5") deliver a total of 64,000 BTU for rapid recovery.
  • 3" splash guards on back and ends keep grease & debris off surrounding equipment.
  • 4 1/2" wide, front-mounted cold-zone grease trough drains through a 3.5" × 1" slot into a large removable drawer.
  • 3" stainless steel bull-nose landing provides a plating shelf and protects controls.
  • Heavy-gauge welded frame with aluminized steel exterior for long service life.
  • ¾" rear gas connection with factory-installed regulator and standing pilots.
  • 0" clearance to non-combustible surfaces (4" side / 5" rear to combustible).
  • Certified to NSF / ETL standards and backed by a 1-year parts & labor warranty.
Technical Specifications
Model EG30
Cooking surface 30" W × 20" D (600 in²)
Plate thickness 5/8" polished steel (15.9 mm)
Total BTU 64,000 BTU (4 × 16,000)
Frame depth 27 1/2"
Grease trough width 4 1/2"
Gas type Natural gas (field convertible to LP)
Gas connection ¾" NPT (rear)
Approx. weight 175 lb / 80 kg
Certifications NSF, ETL (USA & Canada)
What’s Included
  • Comstock-Castle EG30 manual control griddle
  • Large slide-out grease drawer
  • ¾" regulator (factory installed)
  • Owner’s / installation manual
Popular Accessories (sold separately)
  • 2 ½" or 4" adjustable countertop legs
  • Equipment stands & refrigerated chef bases
  • ¾" & 1" thick or chrome-finished plates
  • Grooved griddle sections for steak & panini
  • Thermostatic or safety-pilot control upgrade kits
  • Gas hoses, grill scrapers & cleaning supplies
Warranty

Comstock-Castle warrants the EG30 free from defects in materials & workmanship for 1 year, parts and labor, when installed by a licensed gas technician.
(Commercial mobile installations: 60 days labor / 120 days parts.)

Installation Notice: A licensed gas professional must perform hookup, pressure regulation and field conversion (if required). Failure to follow local codes and the included checklist will void the warranty and certification.

Features & Specs

Manufacturer

Comstock-Castle

Certifications

NSF, ETL

Height

9.0in

Width

30.0in

Depth

27.5in

Shipping Weight

175.0lbs

Cooking Surface Width (side - side)

25" - 30"

Griddle Plate Finish

smooth steel

Plate Thickness

5/8"

Exterior Finish

aluminized steel exterior

Cooking Surface Depth (front - back)

20" - 23"

Controls

manual controls

Specifications

Griddle, countertop, gas, 27-1/2" deep frame, 30" wide x 20" deep x 5/8" thick highly polished steel griddle plate, (4) manual controls, 3" splash guard on back & ends, 4-1/2" wide front grease trough, large removable grease drawer, aluminized steel exterior finish, 64,000 BTU, NSF, ETL
