Key specifications

Phase
1-Phase or 3-Phase
Dimensions
24.0"W × 29.0"D × 15.4"H
Type
Griddle
Installation Type
Countertop
Material
Stainless Steel
Finish
Smooth Steel
Spec sheet
Comstock-Castle SKU: CS-24EG

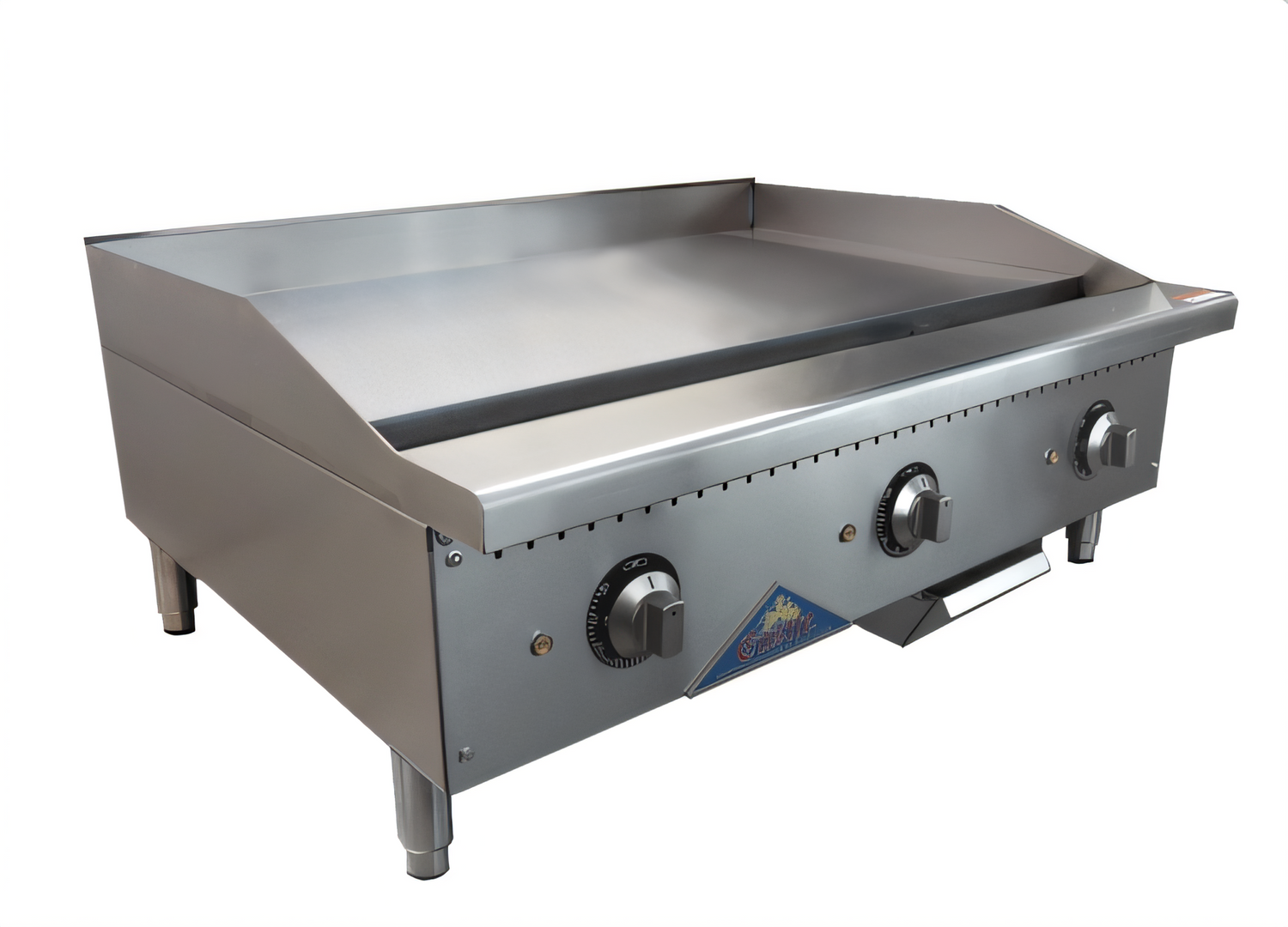

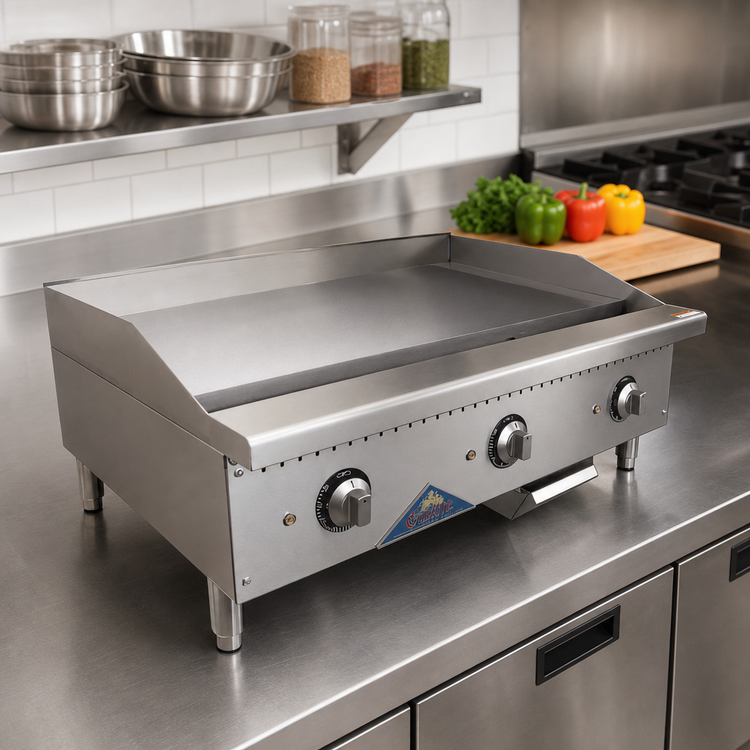

Comstock-Castle CS-24EG 24-Inch Countertop Electric Griddle

$1,644.50
/each
Estimated to ship in 11–14 business days
Width
Included: Comstock-Castle warranty 1-year parts and labor warranty; 60-day labor and 120-day parts warranty for outdoor installations

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $152/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Griddle
Installation Type Countertop
Material Stainless Steel
Finish Smooth Steel
Exterior Finish Stainless Steel Front and Sides
Controls Thermostatic
Temperature Range 150°F to 450°F
Element Count 2
Plate Thickness 1 in
Cooking Surface Depth 20.6 in
Voltage 208/240 Volts
Watts 3,000 Watts at 208 Volts; 4,000 Watts at 240 Volts
Phase 1-Phase or 3-Phase
Electrical Connection Junction Box
Grease Drawer Provided
Leg Type Adjustable Leveling

Description

The Comstock-Castle CS-24EG is a 24-inch countertop electric griddle with a smooth steel plate and stainless steel frame construction.

  • Cooking surface: The 20.6-inch-deep plate is 1 inch thick.
  • Heat control: Two thermostat-controlled elements provide a 150°F to 450°F temperature range.
  • Service features: Adjustable leveling stainless steel legs and a large-capacity grease drawer are provided.
  • Electrical connection: A junction box supports field wiring for 208 or 240 volts and single- or three-phase operation by a licensed electrical technician.

Overall Dimensions:

24.0"W x 29.0"D x 15.4"H

Product Weight:

245.0 lb

Smooth Steel Plate

The cooking plate has a 20.6-inch depth and is 1 inch thick.

Thermostatic Controls

Two thermostat-controlled elements provide a 150°F to 450°F temperature range.

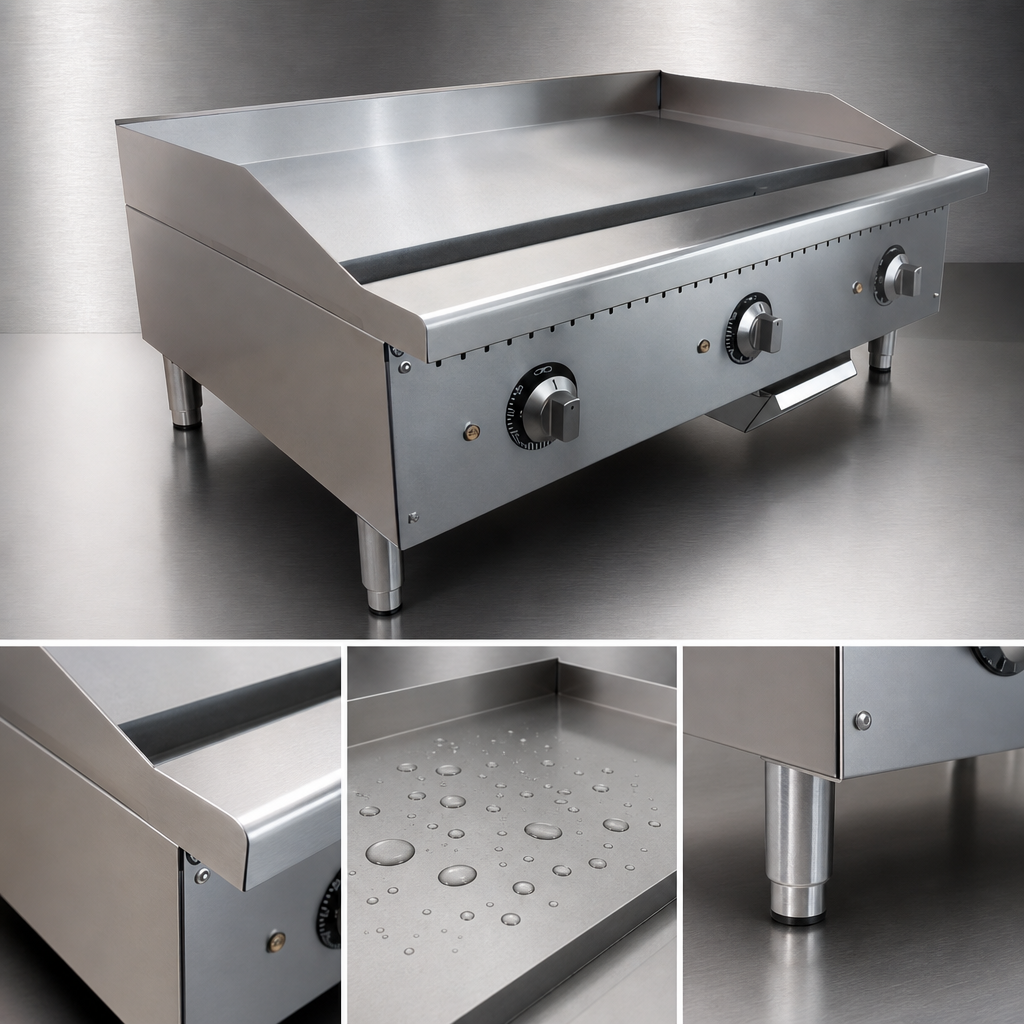

Stainless Steel Construction

The frame is constructed of stainless steel and includes adjustable leveling stainless steel legs.

Grease Drawer

A large-capacity grease drawer is provided.

Field Wiring

A junction box allows wiring on-site for 208 or 240 volts and either single-phase or three-phase operation by a licensed electrical technician.

Proposition 65: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Frequently Asked Questions

The thermostatic controls provide a temperature range of 150°F to 450°F.
It has two thermostat-controlled elements.
The unit is field-wired at its junction box for either 208 or 240 volts and single- or three-phase operation. Power is 3,000 watts at 208 volts or 4,000 watts at 240 volts.
The smooth steel cooking plate is 20.6 inches deep and 1 inch thick.
The overall dimensions are 24 inches wide, 29 inches deep, and 15.4 inches high.
A cord or plug must be provided by the installer to match on-site electrical requirements.
