Comstock-Castle CCHG-48-1 48-Inch Countertop Gas Griddle, Manual Control

120,000 BTU, smooth highly polished steel plate, stainless steel exterior

Built for busy commercial kitchens, this 48-inch gas griddle combines powerful heat, a durable cooking surface, and easy-clean grease management.

  • 48-inch countertop gas griddle designed for commercial cooking applications.
  • Four manual control zones and 120,000 BTU total output provide responsive heat control.
  • 1-inch thick smooth, highly polished steel griddle plate offers a durable cooking surface.
  • 3-inch front grease trough and removable grease drawer help simplify cleanup.
  • Stainless steel exterior, double-wall construction, and 4-inch splash guards improve durability.
  • 3/4-inch gas connection and 4-inch adjustable legs support straightforward installation.

Overall Dimensions:

48.0"W x 31.0"D x 15.25"H

Product Weight:

500.0 lb

1-Inch Thick Steel Griddle Plate

High-polish cold rolled steel plate provides a durable, even-heating cooking surface.

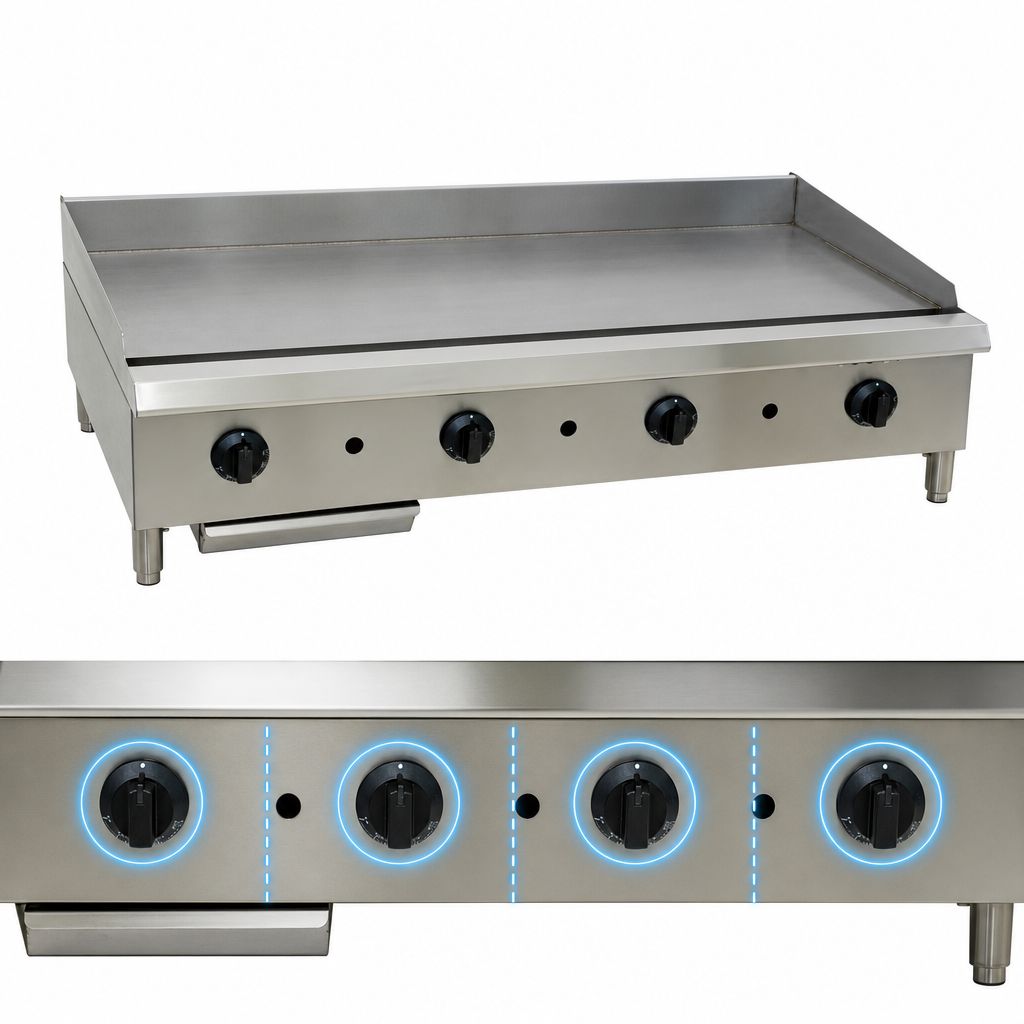

Four Manual Control Zones

Four front-access manual controls let operators manage heat across the full 48-inch width.

120,000 BTU Burner System

Four 30,000 BTU stainless steel U-shaped burners deliver strong, even heat.

Stainless Steel Exterior

Corrosion-resistant exterior is built for commercial kitchen use.

Double-Wall Construction

Adds rigidity and helps retain heat during operation.

Grease Management System

Includes a 3-inch front grease trough and a removable high-capacity stainless steel grease drawer.

Brass Gas Valves and Standing Pilots

Front-access standing pilots, a pressure regulator, and cool-to-the-touch control knobs support reliable operation.

Splash Guards and Bull-Nose Landing

4-inch splash guards on the back and ends plus a 3.5-inch bull-nose landing help contain spills and improve usability.

Adjustable Stainless Steel Legs

4-inch tall adjustable legs help level the griddle on the counter.

Type Griddle
Style Manual Control
Installation Type Countertop
Material Stainless Steel
Finish Smooth Steel
Cooking Surface Width 48 Inches
Cooking Surface Depth 22.5 Inches
BTU 120,000 BTU
Gas Connection Size 3/4 Inch
Controls Manual
Shipping Width 53 Inches
Shipping Depth 35 Inches
Shipping Height 20 Inches
Shipping Weight 500 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed
Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1 year parts and labor.

Documents

PDF Cutsheet PDF Download PDF Warranty PDF Download PDF Installation & operation PDF Download

Frequently Asked Questions

The griddle plate measures 48 inches wide by 22.5 inches deep and 1 inch thick.
The cutsheet lists four 30,000 BTU burners, one per 12-inch increment, for a total of 120,000 BTU.
It includes a 3-inch front grease trough and a removable high-capacity stainless steel grease drawer.
The cutsheet lists a 3/4-inch manifold connection.
The cutsheet lists optimal pressure as 5 inches W.C. for natural gas and 10 inches W.C. for propane.
The warranty is 1 year parts and labor from the original installation, with reduced coverage for food trucks, trailers, tents, or outdoor installations.
