Comstock-Castle CCHG-36-1 Gas Griddles
Description

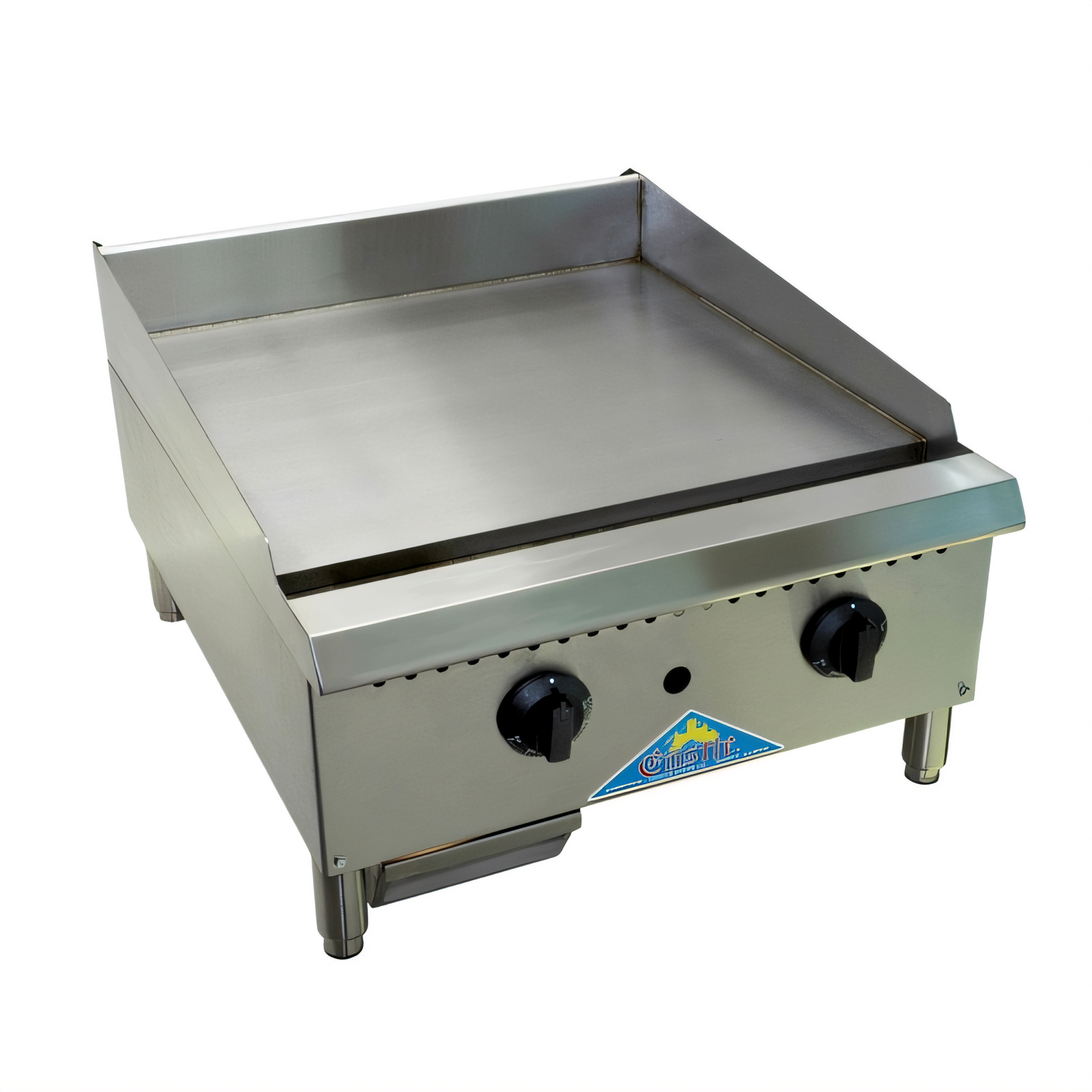

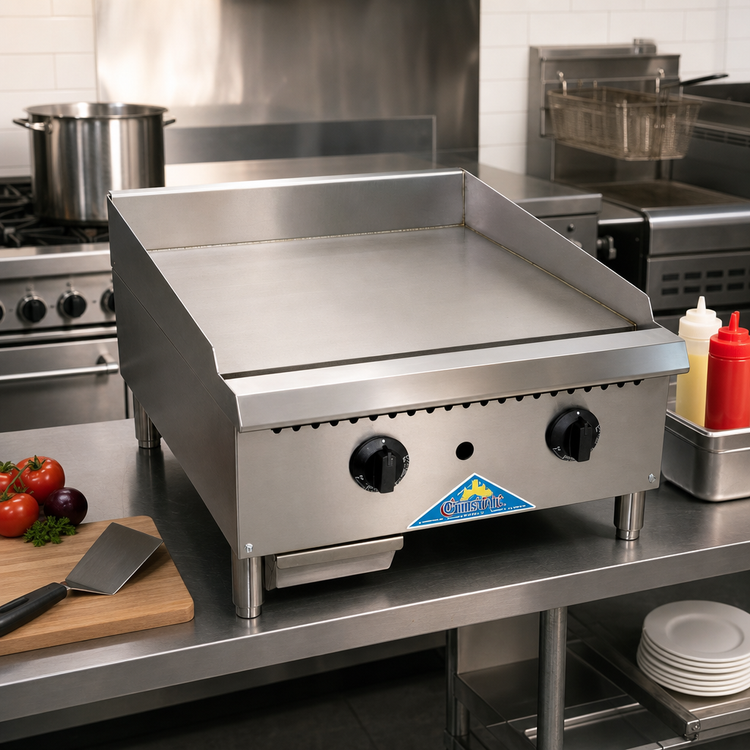

Comstock-Castle CCHG36-1 36" Countertop Gas Griddle
90,000 BTU • Manual Controls • NSF & ETL CertifiedBuilt for the hustle of professional kitchens, the Comstock-Castle CCHG36-1 pairs a heavy 1" steel plate with three powerful U-shaped burners to deliver unbeatable heat consistency and lightning-fast recovery—all in a space-saving countertop design.
Key Features

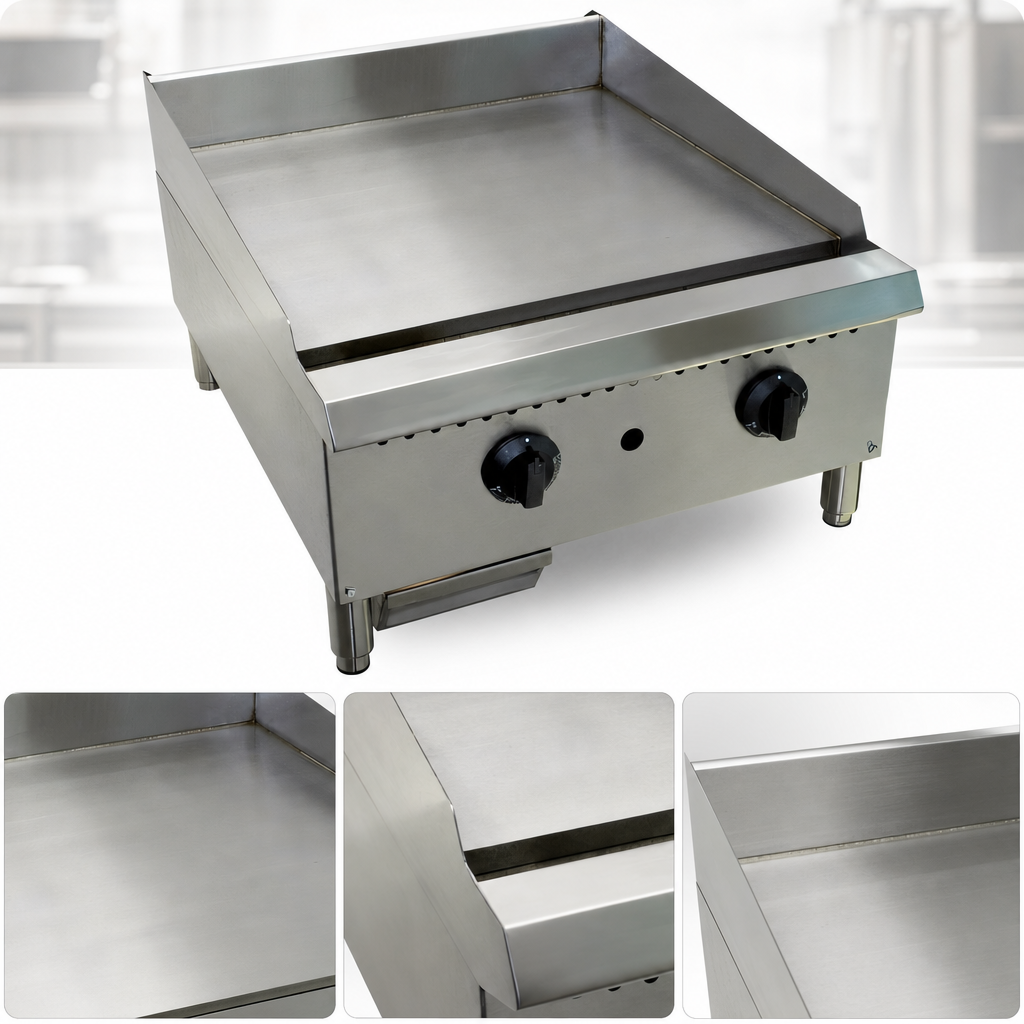

- 36" W × 22.5" D × 1" thick polished steel plate resists warping and seasons beautifully.
- (3) independent 30,000 BTU stainless U-burners (one every 12") for 90,000 BTU total output.
- Manual brass gas valves with cool-touch knobs for precise zone control.
- 4" welded splash guards on rear and sides contain grease splatter.
- Extra-wide 3" front trough and removable stainless steel drawer for quick clean-outs.
- Double-wall stainless steel body with 3-¼" bull-nose landing—tough, easy to wipe down.
- 4" adjustable stainless legs keep the unit level on any prep line.
- Factory-installed 3/4" rear gas regulator and standing pilots for fast, reliable ignition.
- Certified to NSF/ANSI 4, cETLus & ETL-Sanitation standards for food-service safety.
Technical Specifications
| Model | CCHG36-1 |
|---|---|
| Fuel | Natural gas or propane (field convertible) |
| Total BTU | 90,000 BTU/hr (3 × 30,000) |
| Controls | 3 manual gas valves with standing pilots |
| Cooking Surface | 36" W × 22.5" D × 1" thick smooth steel |
| Overall Dimensions | 36" W × 30" D × 15.25" H (with splash & legs) |
| Grease Management | 3" front trough, removable stainless drawer |
| Splash Guard | 4" back & end panels |
| Gas Connection | 3/4" NPT rear manifold, pressure regulator included |
| Construction | All stainless exterior, double-wall chassis, 4" adjustable legs |
| Certifications | NSF, cETLus, ETL-Sanitation |
| Warranty | 1-year parts & labor (commercial use) |
Optimal supply pressure: 5" WC natural gas / 10" WC propane. Professional installation with a calibrated manometer is required for warranty validation.
Perfect For
- Diners, cafés and brunch spots needing a reliable everyday workhorse
- Hotels expanding breakfast service without sacrificing counter space
- Food trucks and caterers demanding quick setup and consistent performance
