Comstock-Castle CCHG-24-1 Gas Griddles
Description

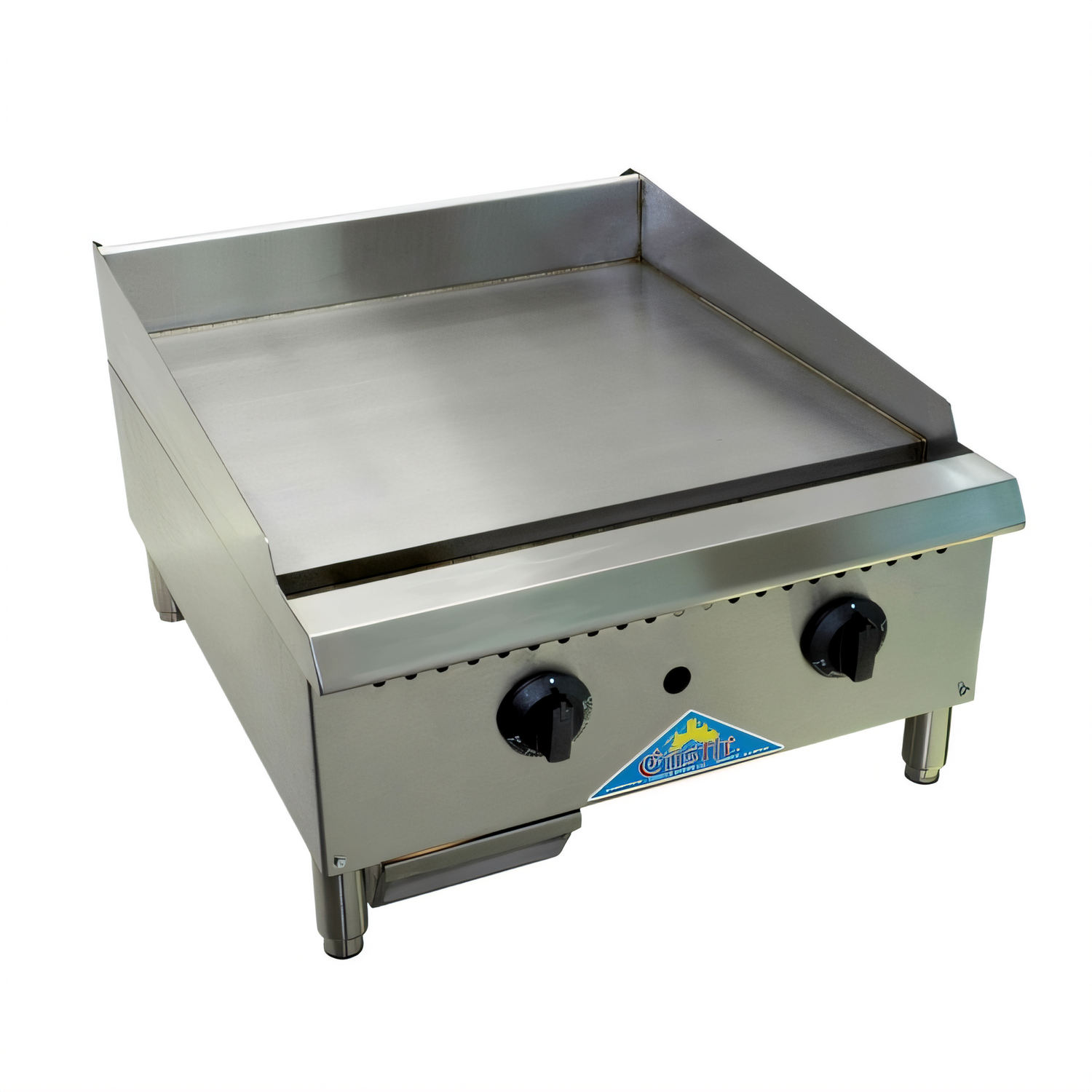

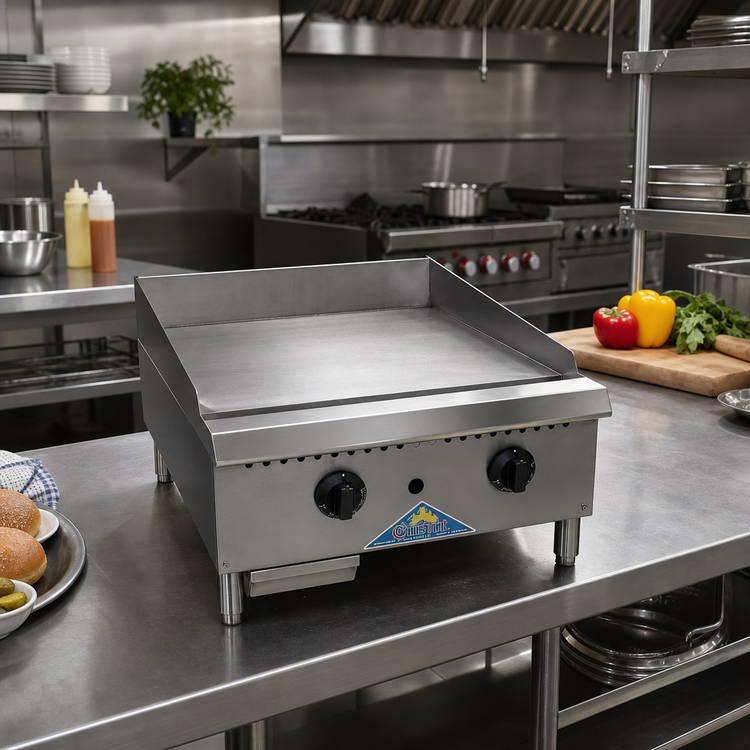

Comstock-Castle CCHG24-1 24" Countertop Gas Griddle
Manual Control | 60,000 BTU | NSF & ETL CertifiedEngineered for demanding commercial kitchens, the Comstock-Castle CCHG24-1 delivers a full 24 inches of intensely even heat on a highly-polished 1" thick steel plate—perfect for breakfast favorites, seared proteins, and short-order classics. Dual manual controls let you create independent cooking zones while the heavy-duty stainless body and extra-deep frame save space on the line without sacrificing durability.
Key Features

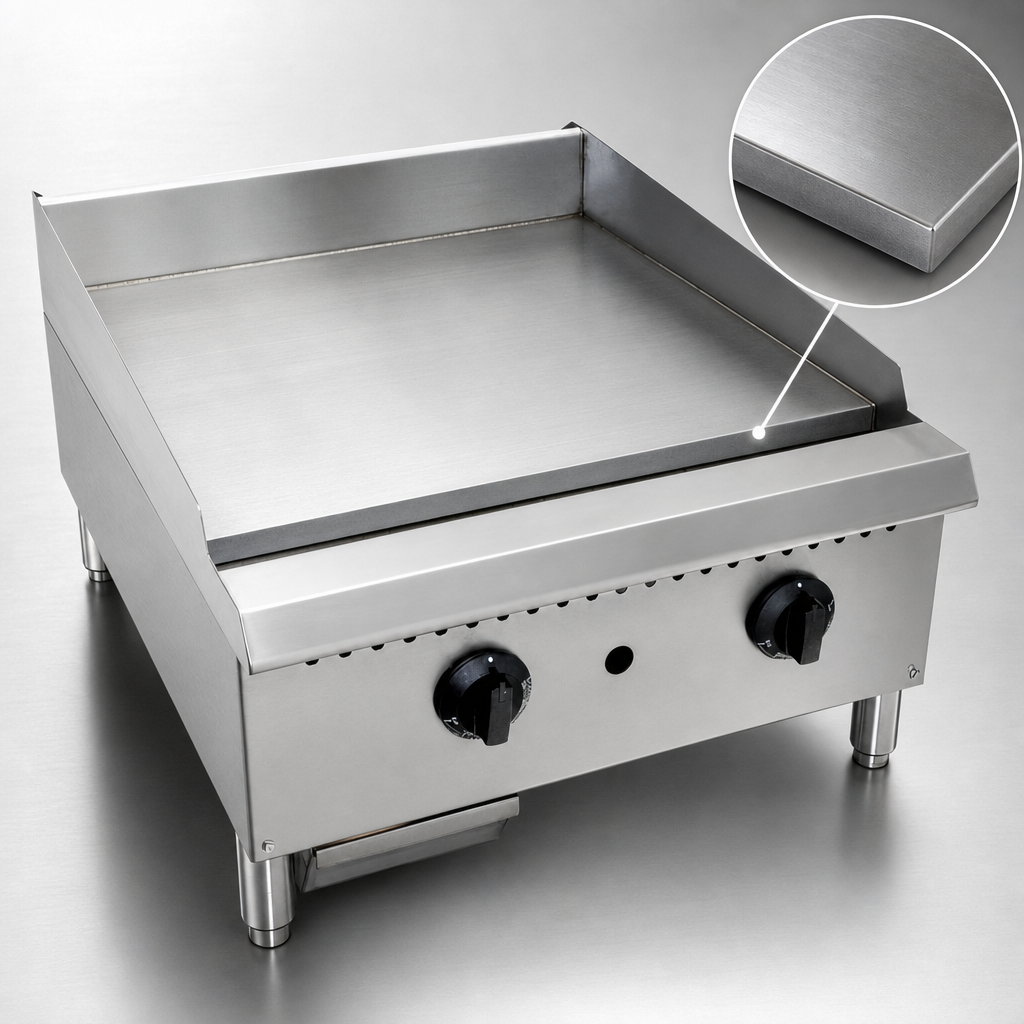

- 24" W x 22.5" D smooth griddle plate, 1" thick cold-rolled steel for superior heat retention & recovery
- (2) stainless “U” burners rated at 30,000 BTU each — total 60,000 BTU/hr

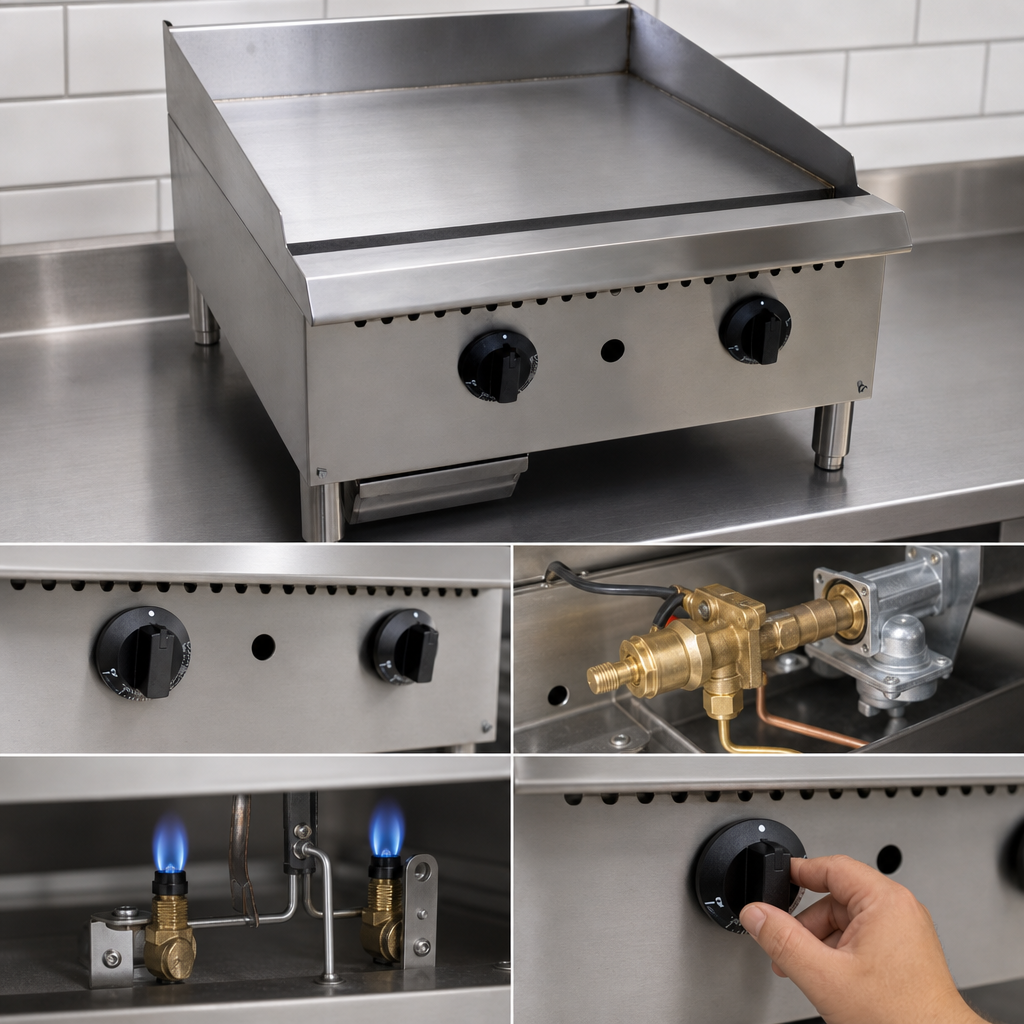

- (2) front-mounted manual brass gas valves with standing pilots for instant ignition
- 4" splash guard (rear & ends) contains mess; 3" wide bull-nose landing with integrated grease trough
- High-capacity removable stainless grease drawer for quick, safe disposal
- Corrosion-resistant stainless steel exterior & double-wall sides for a cooler kitchen
- 4" adjustable stainless steel legs provide a level, NSF-approved working height
- 3/4" NPT rear gas connection with built-in pressure regulator
- Tested & listed: cETLus, ETL-Sanitation (ANSI/NSF 4)
- 1-year parts & labor warranty from Comstock-Castle
Technical Specifications
| Model | CCHG24-1 |
|---|---|
| Cooking surface | 24" W x 22.5" D (540 sq in) |
| Plate thickness | 1" cold-rolled steel, highly polished |
| Overall dimensions | 24" W x 30" D x 15.25" H |
| Burners / Controls | 2 burners / 2 manual valves with pilots |
| Total BTU output | 60,000 BTU/hr (30,000 BTU per burner) |
| Gas connection | 3/4" NPT, rear |
| Manifold pressure | 5" WC Natural | 10" WC LP |
| Grease management | 3" front trough • removable stainless drawer |
| Splash guard height | 4" (back & ends) |
| Construction | Stainless steel exterior, double-wall sides, 3¼" bull-nose |
| Legs | (4) 4" adjustable stainless steel |
| Certifications | NSF, cETLus, ETL-Sanitation |
| Net / Shipping weight | 220 lb • 275 lb (crated) |
| Shipping dimensions | 35" W x 35" D x 20" H |
| Warranty | 1 year parts & labor (see warranty details) |
Images may show optional accessories. Specifications subject to change without notice.
