Comstock-Castle “Diner Series” 72" Countertop Gas Griddle
Model 3872MG | 38 Series – 30" Cook DepthEngineered for round-the-clock service in busy diners, cafés and concession lines, the 72" Comstock-Castle Diner Series griddle pairs brute-force heating power with a rock-solid stainless-steel chassis. Six independent burners blanket a full 2,160 in² of 1" thick cooking surface, giving you all the real estate and recovery time you need to crush the breakfast, lunch and late-night rush.
Key Features
- 72" W × 30" D × 1" polished steel plate – minimizes temperature drop under load.
- Six manual infinite-heat valves (one per 12" zone) for precise, uncomplicated control.
- 180,000 BTU total output for rapid pre-heat and lightning recovery.
- 4" welded splash guards on rear and sides keep grease where it belongs.
- 3½" wide front trough feeds a large, easy-pull grease drawer for fast clean-outs.

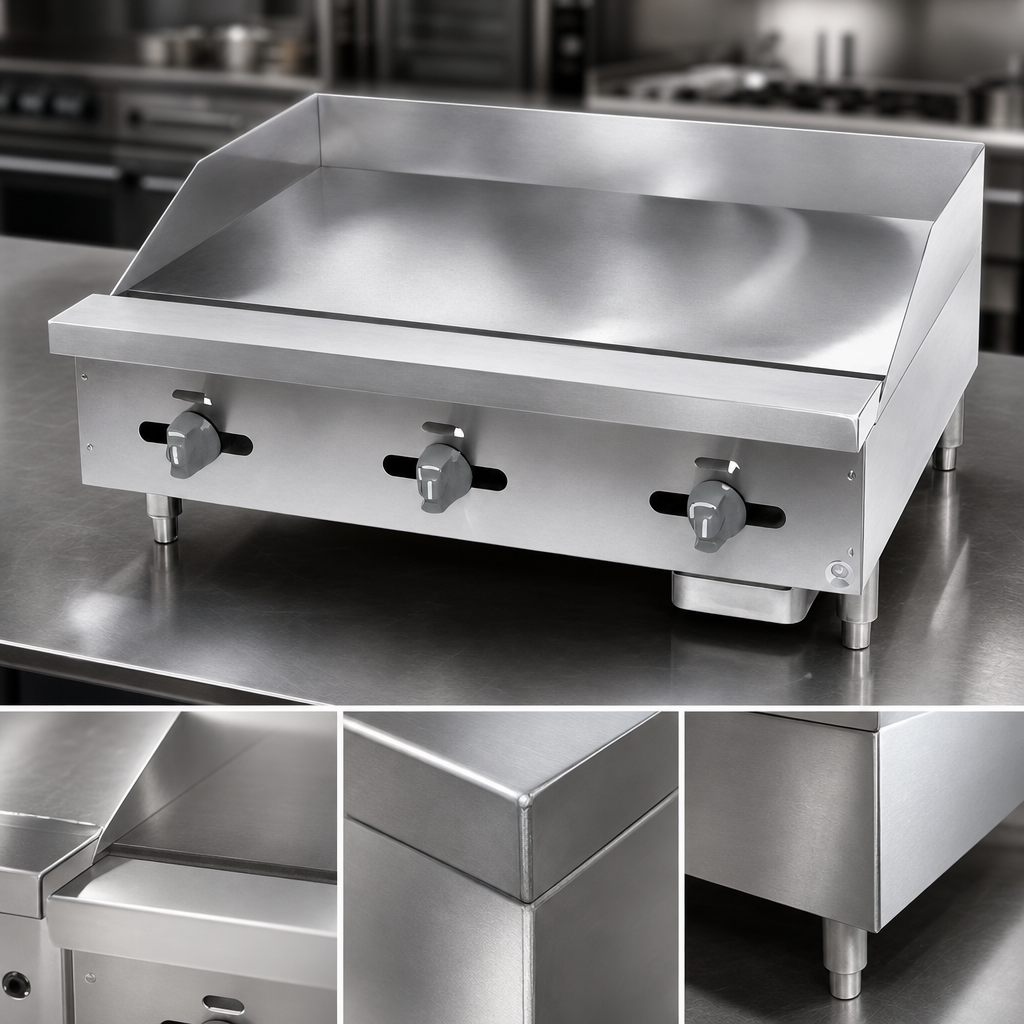

- All-stainless exterior – welded, corrosion-resistant and simple to wipe down.
- ¾" rear gas connection; ships natural gas, field-convertible to LP by a qualified technician.
- NSF listed for continuous commercial duty.
Why Operators Love It
- Full-width landing edge keeps plates and spatulas within easy reach.
- No electronics – manual controls mean fewer parts to fail and lower service costs.
- Low 15" profile (with 6" adjustable legs) saves valuable hood space.
- Welded angle-iron frame resists twisting and bowing during daily high-heat cycles.
Specifications
| Cooking surface | 72" W × 30" D (2,160 in²) |
|---|---|
| Plate thickness | 1" (25 mm) polished steel |
| Overall frame | 72" W × 38" D × 15" H (with 6" legs) |
| Total BTU | 180,000 BTU/hr |
| Controls | 6 manual gas valves (1 per 12" section) |
| Gas inlet | ¾" NPT, rear |
| Grease management | 3½" trough, oversized removable drawer |
| Splash guards | 4" rear & side (integral, welded) |
| Exterior finish | Stainless steel front, sides & backsplash |
| Certification | NSF |
| Approx. ship weight | 477 lb / 216 kg |
What’s in the Box
- Griddle with 6" adjustable stainless legs
- Grease drawer with carrying handles
- Factory-mounted ¾" pressure regulator
- Operator’s manual & lighting instructions
Warranty
1-year limited parts & labor warranty (60 day labor / 120 day parts when mounted in mobile food operations). See enclosed warranty statement for complete terms and conditions.
