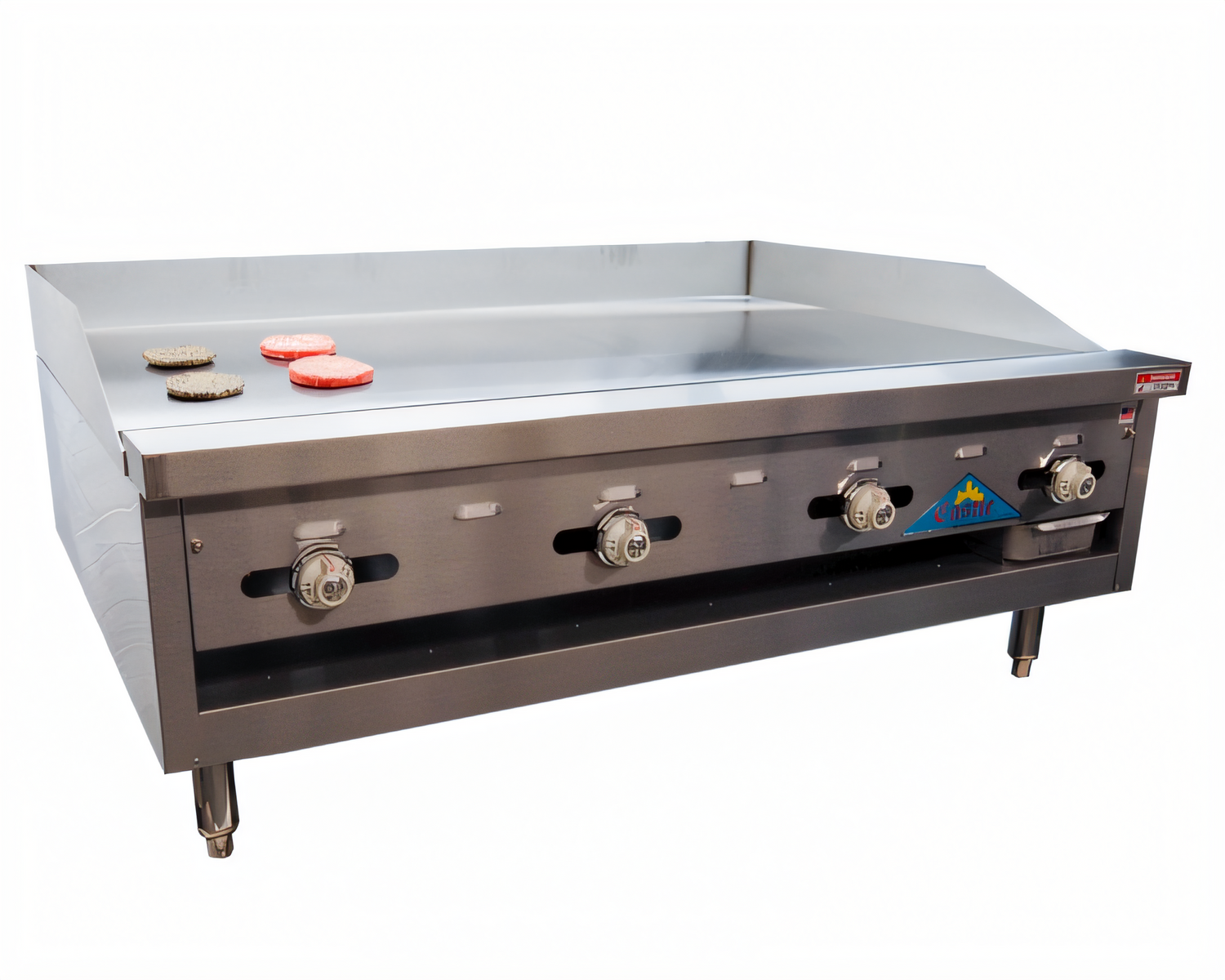

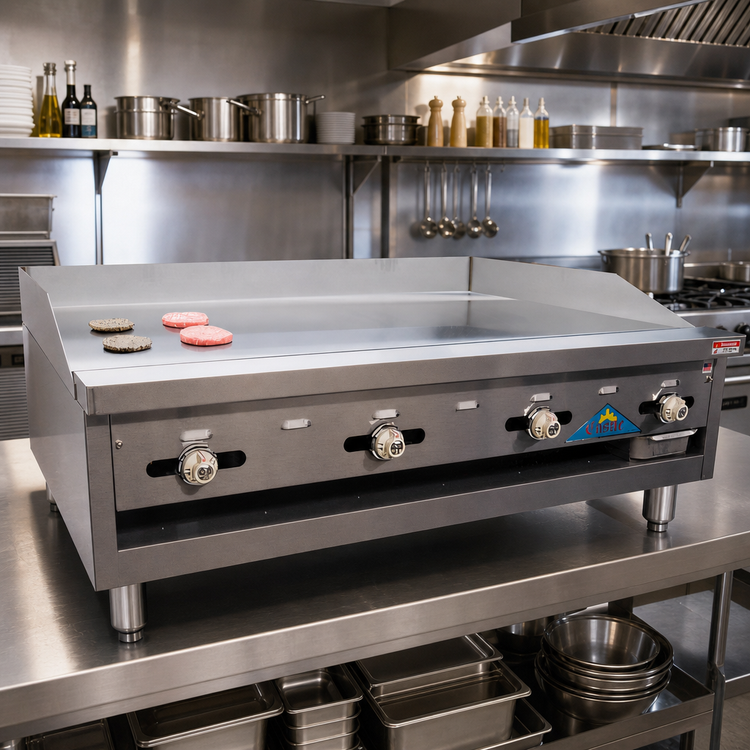

Comstock-Castle “Diner Series” 48" Countertop Gas Griddle
Model 3848TG • 38 Series • 120,000 BTUBuilt to thrive in high-volume diners, food trucks, and short-order kitchens, the Comstock-Castle 48" Diner Series griddle delivers rapid recovery, precise thermostat control, and the rugged durability you expect from America’s oldest stove company.
Key Features & Benefits

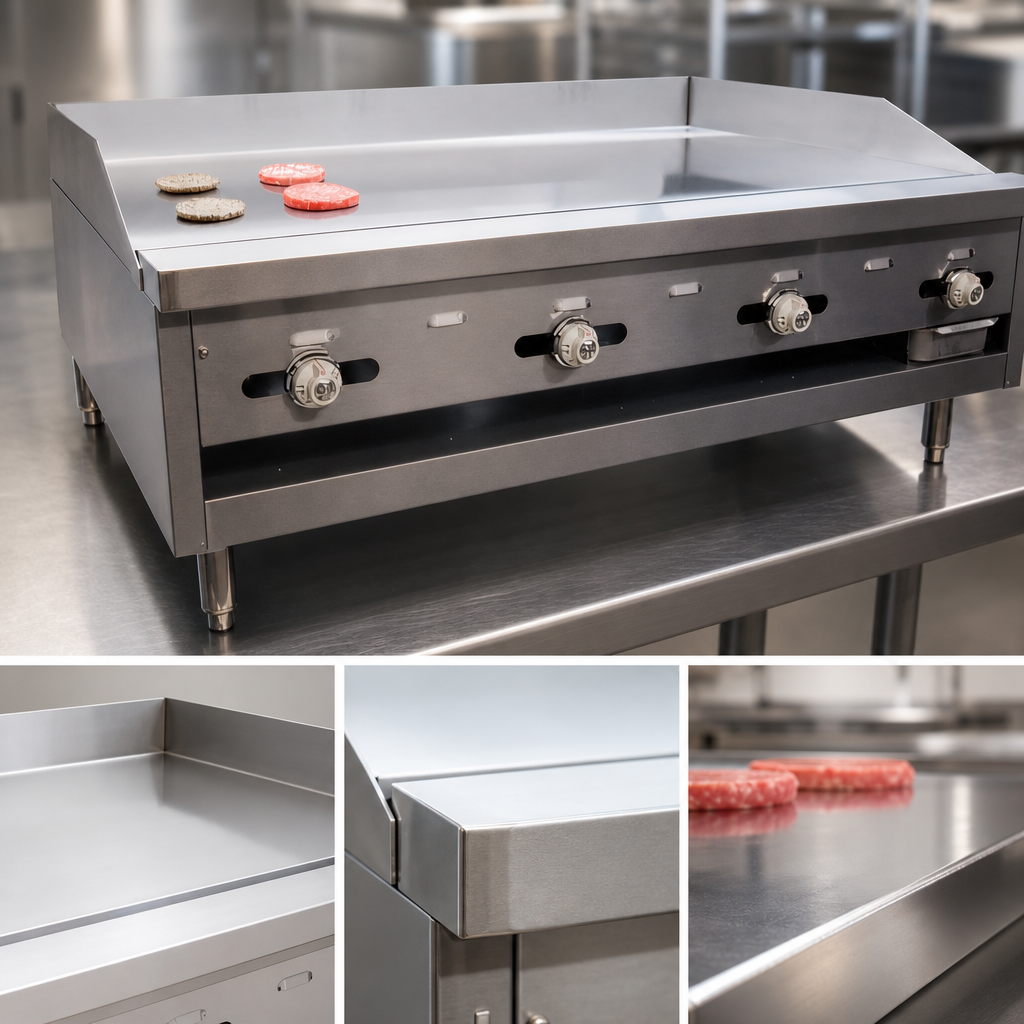

- 1" thick polished steel griddle plate (48" W × 30" D) for superior heat retention and fast recovery.

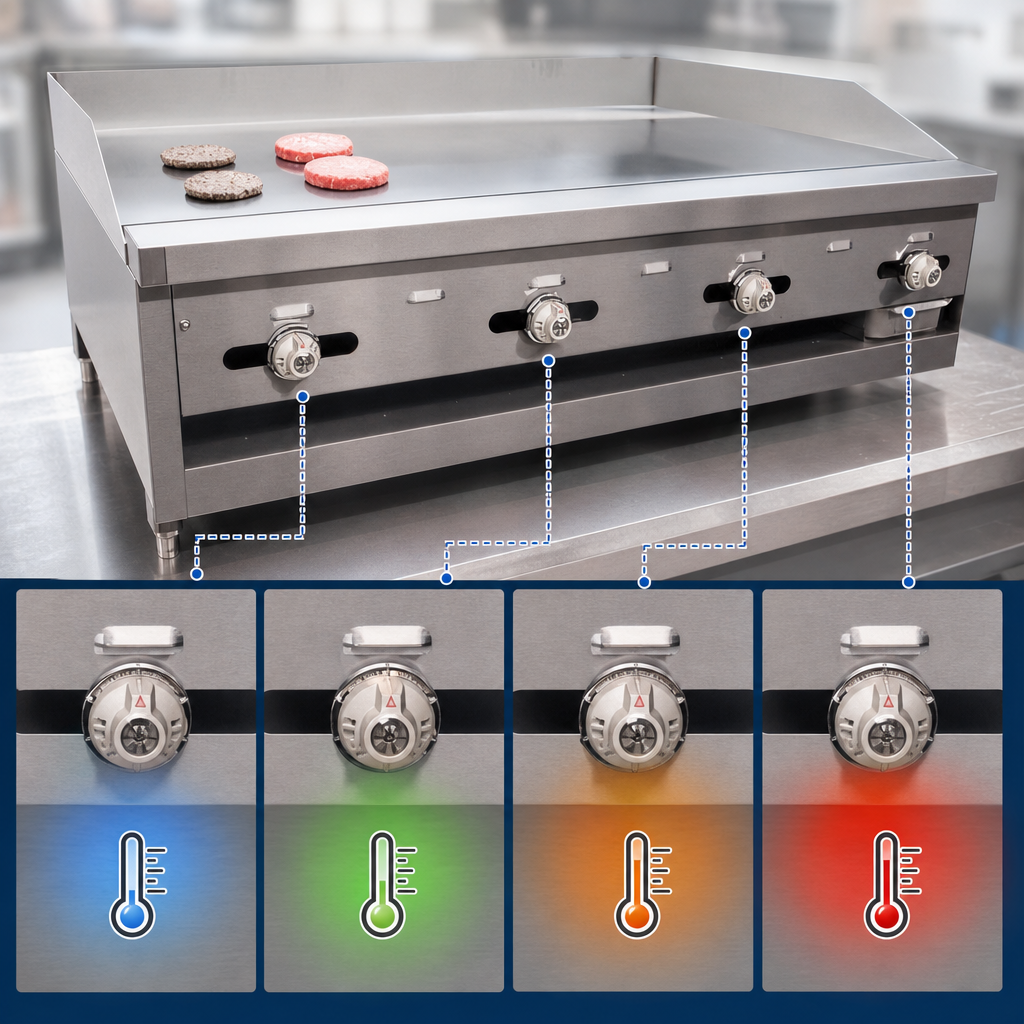

- Four independent throttling thermostats (150 °F – 450 °F) let you zone-cook meats, eggs, pancakes, and veggies simultaneously.
- 4" stainless steel splash guards (back & ends) contain grease and debris.
- 3½" wide front grease trough funnels runoff to an extra-large, removable grease drawer for quick, mess-free clean-up.
- Fully welded, corrosion-resistant stainless steel exterior—easy to wipe down and built for years of commercial abuse.
- Compact countertop frame (48" W × 38" D) maximizes cook surface without sacrificing valuable line space.
- ¾" rear gas connection simplifies installation; factory-rated at 120,000 BTU for powerful, even heating.
- NSF-listed for food-service sanitation compliance.
At-a-Glance Specifications
| Cooking Surface | 48" W × 30" D × 1" T polished steel plate |
|---|---|
| Overall Dimensions | 48" W × 38" D frame (see spec drawing for detailed clearance) |
| Heat Controls | 4 throttling thermostats, 150 °F – 450 °F |
| Total Input | 120,000 BTU (natural or LP—specify at order) |
| Gas Connection | ¾" NPT, rear |
| Splash Guards | 4" back & sides, stainless steel |
| Grease Management | 3½" trough with removable large-capacity drawer |
| Construction | Welded stainless steel frame & side panels |
| Certifications | NSF, CSA Flame |
| Warranty | 1-year parts & labor (see details below) |
Ideal For
- Diners & 24-hour restaurants
- Breakfast bars & cafeterias
- Food trucks, trailers, and concession stands*
- High-volume short-order cooking
Installation Notice: This appliance must be installed and pressure-tested by a licensed gas technician in accordance with local codes. Failure to do so will void the manufacturer warranty.
Comstock-Castle Warranty
New Comstock-Castle equipment is backed by a 1-year parts & labor warranty (60 days labor / 120 days parts when installed on food trucks, trailers, or outdoor setups). Warranty is non-transferable and applies to the original commercial purchaser. Please complete and return the included registration card within 30 days of installation.
$11,550.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Comstock-Castle 3848TG 48" gas diner griddle — 120,000 BTU, 1" polished plate, 4 thermostats, stainless exterior, grease drawer, NSF certified.
Manufacturer
Comstock-Castle
Brand name
Diner Series
Certifications
NSF
Height
15.75in
Width
48.0in
Depth
38.0in
Shipping Weight
700.0lbs
Cooking Surface Width (side - side)
43" - 48"
Exterior Finish
all stainless steel exterior
Controls
thermostat / solid state controls
Plate Thickness
3/4"
Griddle Plate Finish
smooth steel
Cooking Surface Depth (front - back)
30" - 36"
Specifications
Diner Series Griddle, countertop, gas, 48" wide x 38" deep frame, 48" wide x 30" deep x 1" thick polished steel griddle plate, (4) thermostat controls, 4" splash guard on back & ends, 3-1/2" wide front grease trough, large removable grease drawer, stainless steel exterior, 3/4” gas connection, 120,000 BTU, NSF
