Comstock-Castle  |  Diner Series  |  SKU: 3836TG

Comstock-Castle 3836TG Diner Series Gas Griddles

$9,339.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Warranty
Related Searches
Gas Griddles Griddles & Flat Tops

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

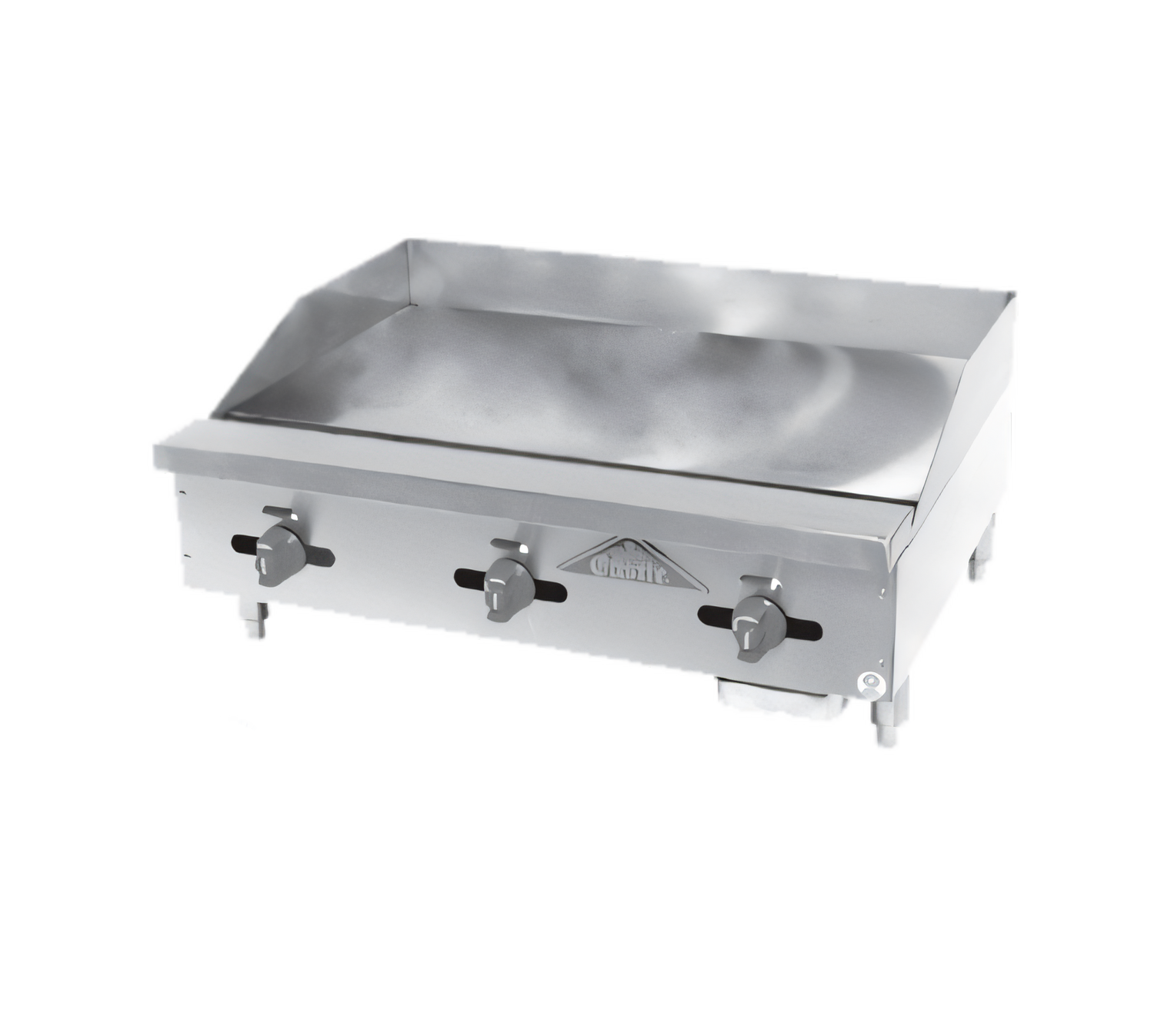

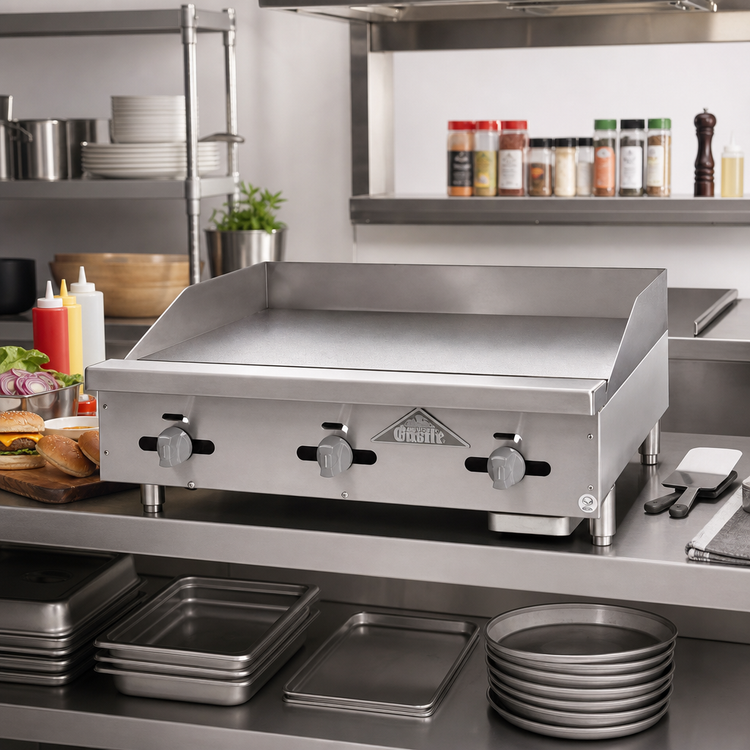

Comstock-Castle “Diner Series” 36″ Countertop Gas Griddle

36″ W cooking surface | 90,000 BTU | NSF Listed

Engineered for round-the-clock short-order service, the Comstock-Castle Diner Series griddle brings legendary Midwestern durability to your cookline. A full-inch thick polished steel plate heats evenly, recovers instantly, and handles everything from hash browns to smash burgers without skipping a beat. Independent thermostats every twelve inches let you dial in exact temps across three zones for true all-day versatility.

Key Features
  • 36″ wide × 30″ deep cooking surface (1,080 in²)

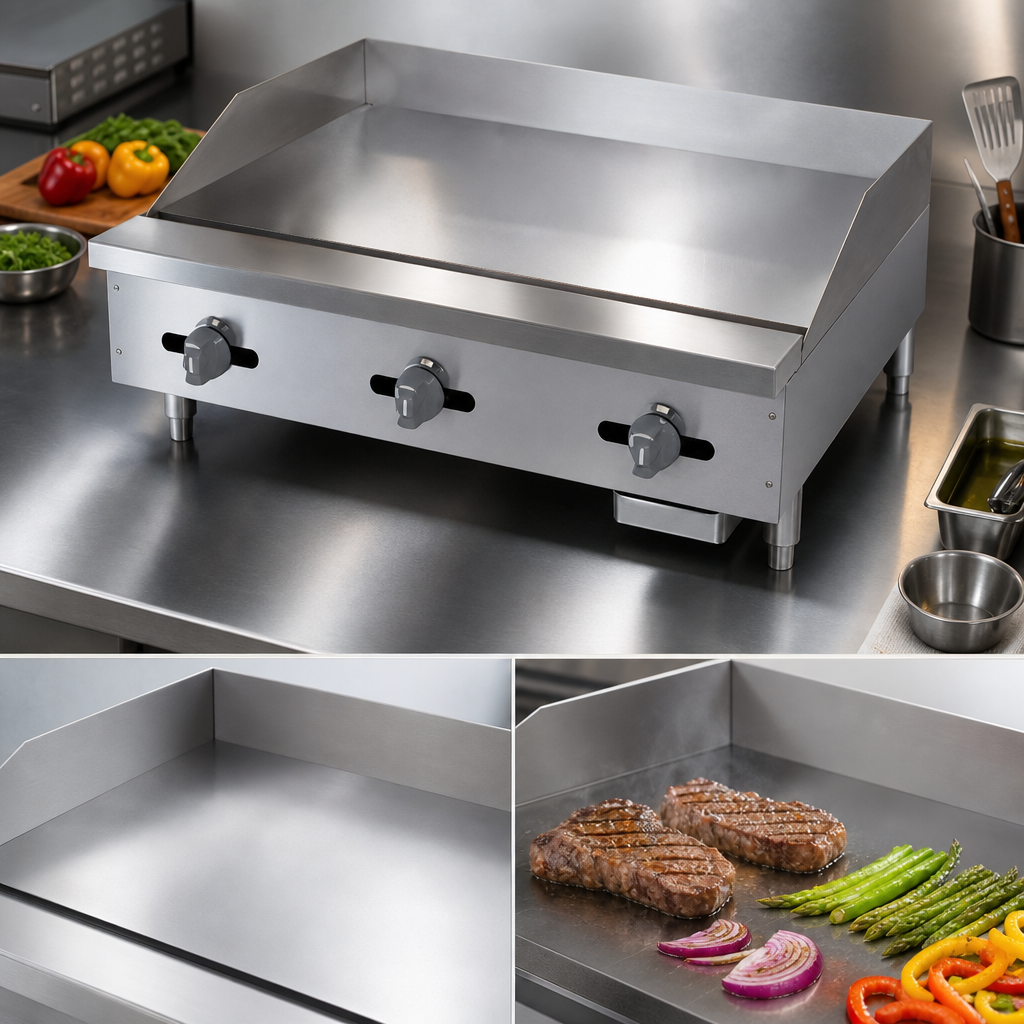

  • 1″ thick highly polished steel plate for superb heat retention & fast recovery

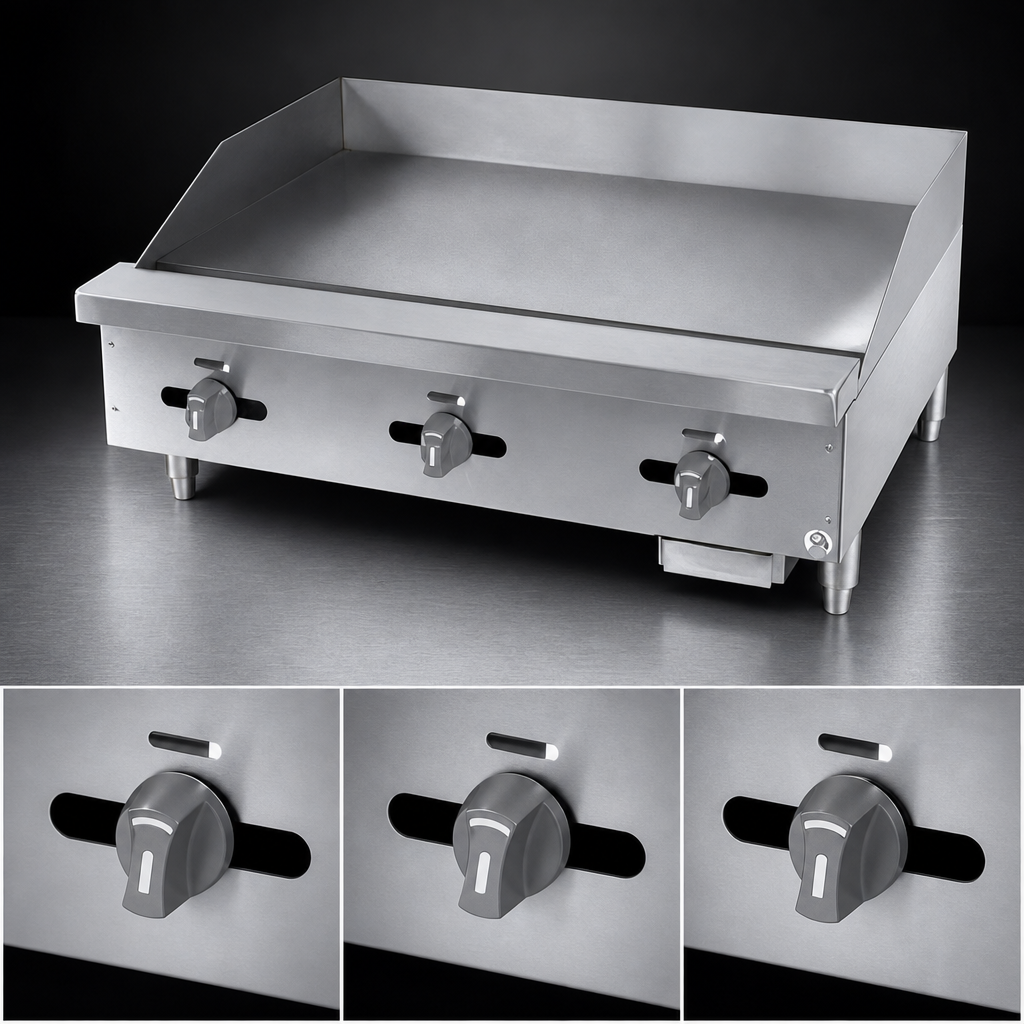

  • Three throttling thermostats, adjustable 150 °F – 450 °F, one per 12″ zone
  • Robust 90,000 BTU total output (3 × 30,000 BTU burners)
  • 4″ welded stainless splash guards on rear & both sides
  • Extra-wide 3 ½″ front trough with large, removable grease drawer
  • All-stainless steel exterior—easy to clean and corrosion-resistant
  • Compact countertop frame: 36″ W × 38″ D overall
  • 3⁄4″ rear gas connection for quick hook-up
  • NSF certified for commercial sanitation standards
Specifications
Cooking surface 36″ W × 30″ D × 1″ thick polished steel
Overall dimensions 36″ W × 38″ D × 15″ H (to top of splash guard)
Heat zones / controls 3 independent thermostats, 150 – 450 °F
Total BTU 90,000 BTU/hr
Gas inlet 3⁄4″ NPT, rear
Grease management 3 ½″ front trough & high-capacity removable drawer
Construction Welded stainless steel front, sides & splash guards
Shipping weight ≈ 500 lb / 227 kg
Warranty 1-year parts & labor (60 day labor / 120 day parts on mobile applications)
Why Operators Choose Comstock-Castle
  • American-made quality from the nation’s oldest stove manufacturer (est. 1838)
  • Factory-tested calibration—ready to cook right out of the crate
  • Seamless landing ledge doubles as a plating and pass-through zone
  • Legendary field service network and readily available replacement parts
Installation note: A licensed gas professional must install and calibrate this appliance. Correct gas pressure (4″ WC natural or 10″ WC LP), leveling, and initial testing are required for warranty coverage.

Need stands, chrome-plated cooking tools, or a quick-disconnect hose? Contact us and we’ll build a custom bundle that ships together.

Features & Specs

Manufacturer

Comstock-Castle

Brand_name

Diner Series

Certifications

NSF

Height

15.75in

Width

36.0in

Depth

38.0in

Shipping Weight

500.0lbs

Cooking Surface Width (side - side)

31" - 36"

Exterior Finish

all stainless steel exterior

Controls

thermostat / solid state controls

Plate Thickness

3/4"

Griddle Plate Finish

smooth steel

Cooking Surface Depth (front - back)

30" - 36"

Specifications

Diner Series Griddle, countertop, gas, 36" wide x 38" deep frame, 36" wide x 30" deep x 1" thick polished steel griddle plate, (3) thermostat controls, 4" splash guard on back & ends, 3-1/2" wide front grease trough, large removable grease drawer, stainless steel exterior, 90,000 BTU, NSF
