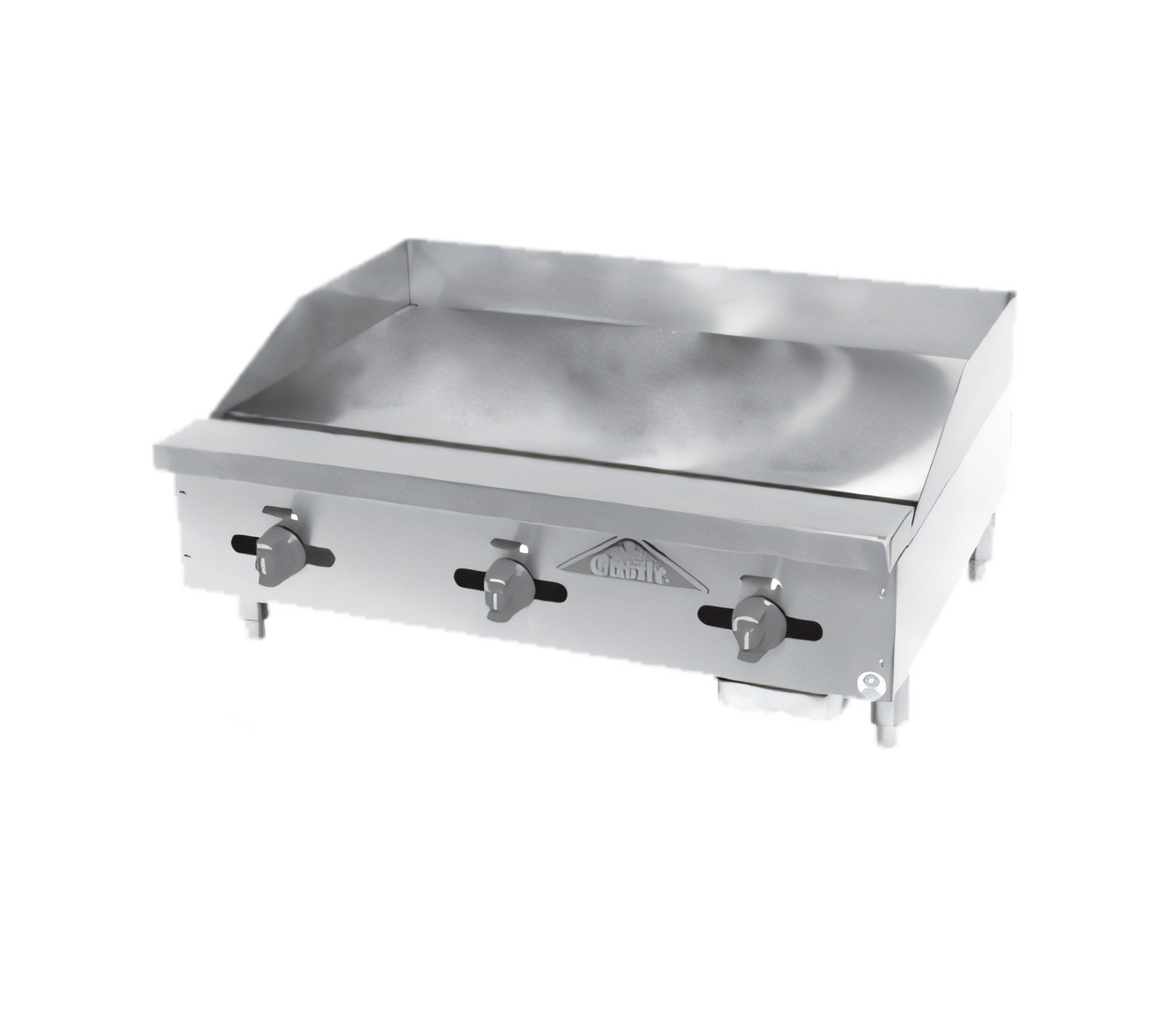

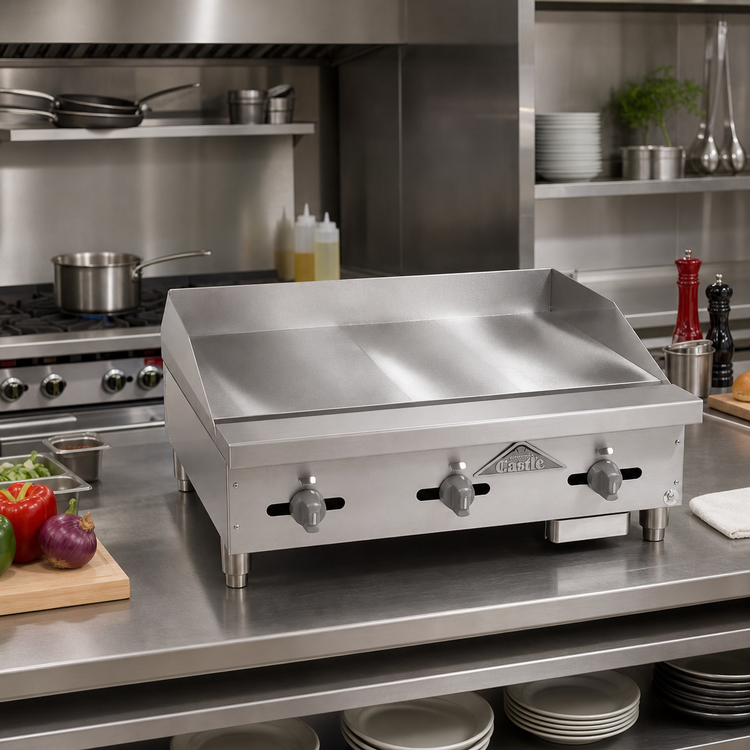

Comstock-Castle Diner Series 36″ Countertop Gas Griddle
Model 3836MG | 90,000 BTU | NSF CertifiedEngineered for short-order speed and long-haul durability, the Diner Series 36″ griddle delivers a full 1,080 in² of precisely controlled cooking space in a space-saving countertop frame— perfect for diners, cafés, food trucks, and ghost kitchens alike.
Key Features

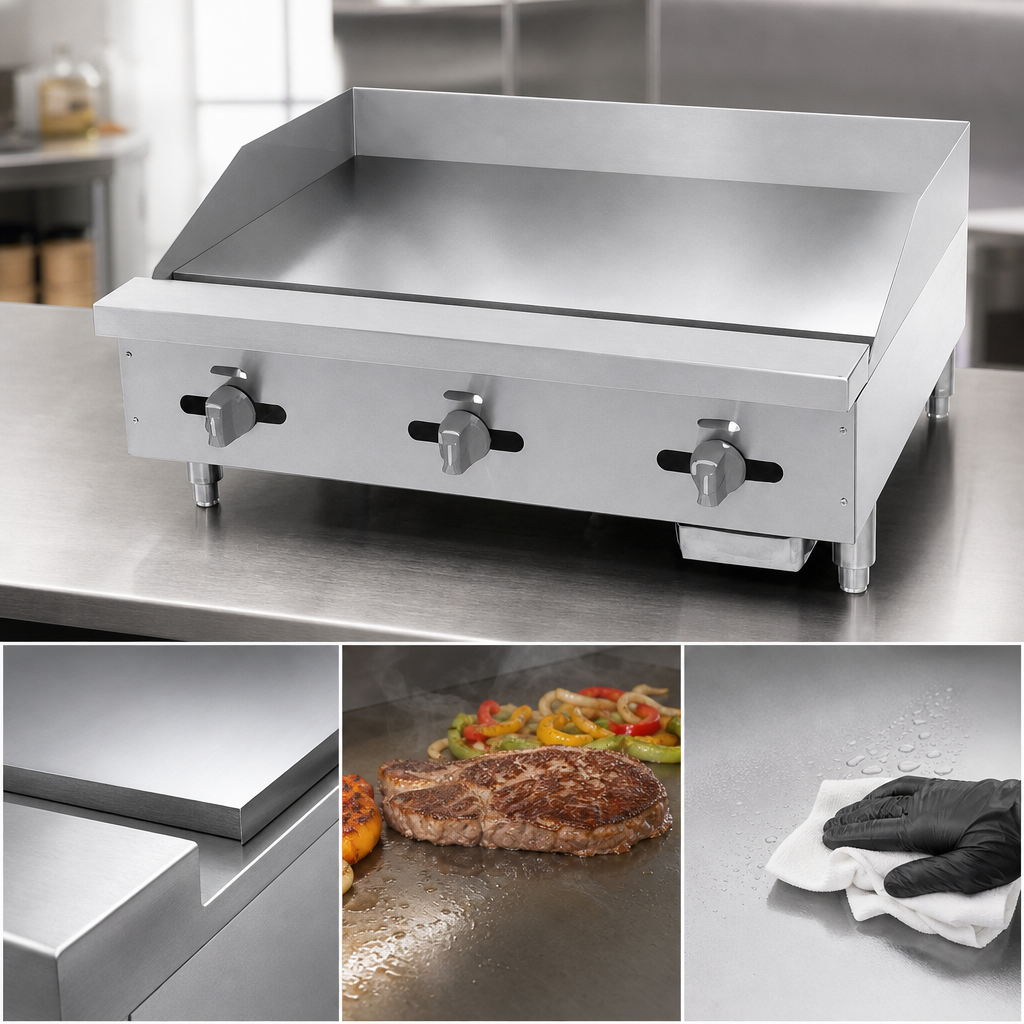

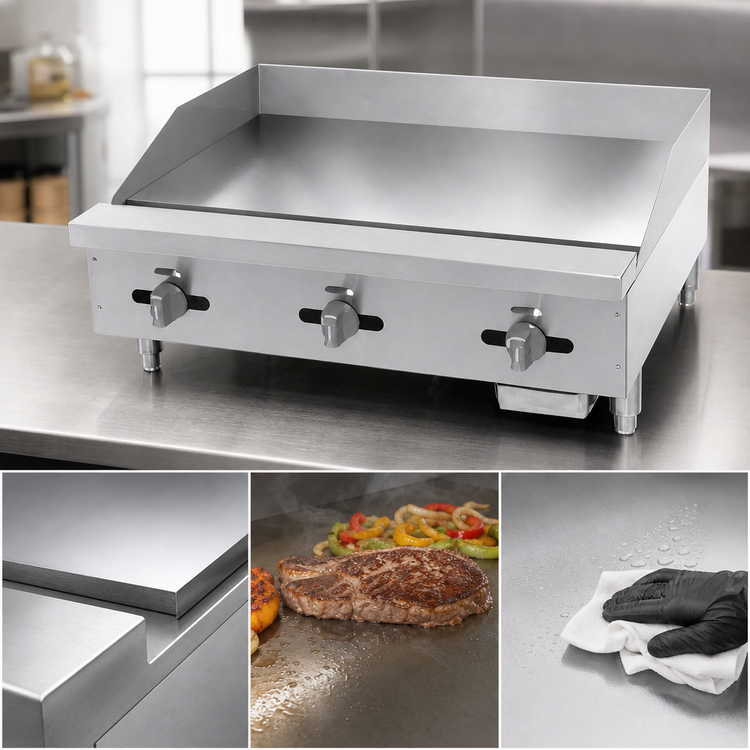

- 36″ W × 30″ D × 1″ polished steel griddle plate for exceptional heat retention & fast recovery
- Three independent manual valves—30,000 BTU burner under each 12″ zone
- 4″ stainless splash guard (rear & ends) contains grease and debris
- 3 ½″ wide front trough plus oversized removable drawer for quick, clean grease management
- Fully welded stainless steel exterior resists corrosion and wipes down in seconds
- 3⁄4″ rear gas connection; shipped natural gas, field convertible to LP (kit sold separately)
- Compact 36″ W × 38″ D frame fits common chef bases and equipment stands
- NSF listed for commercial kitchens throughout the U.S. & Canada
Specifications

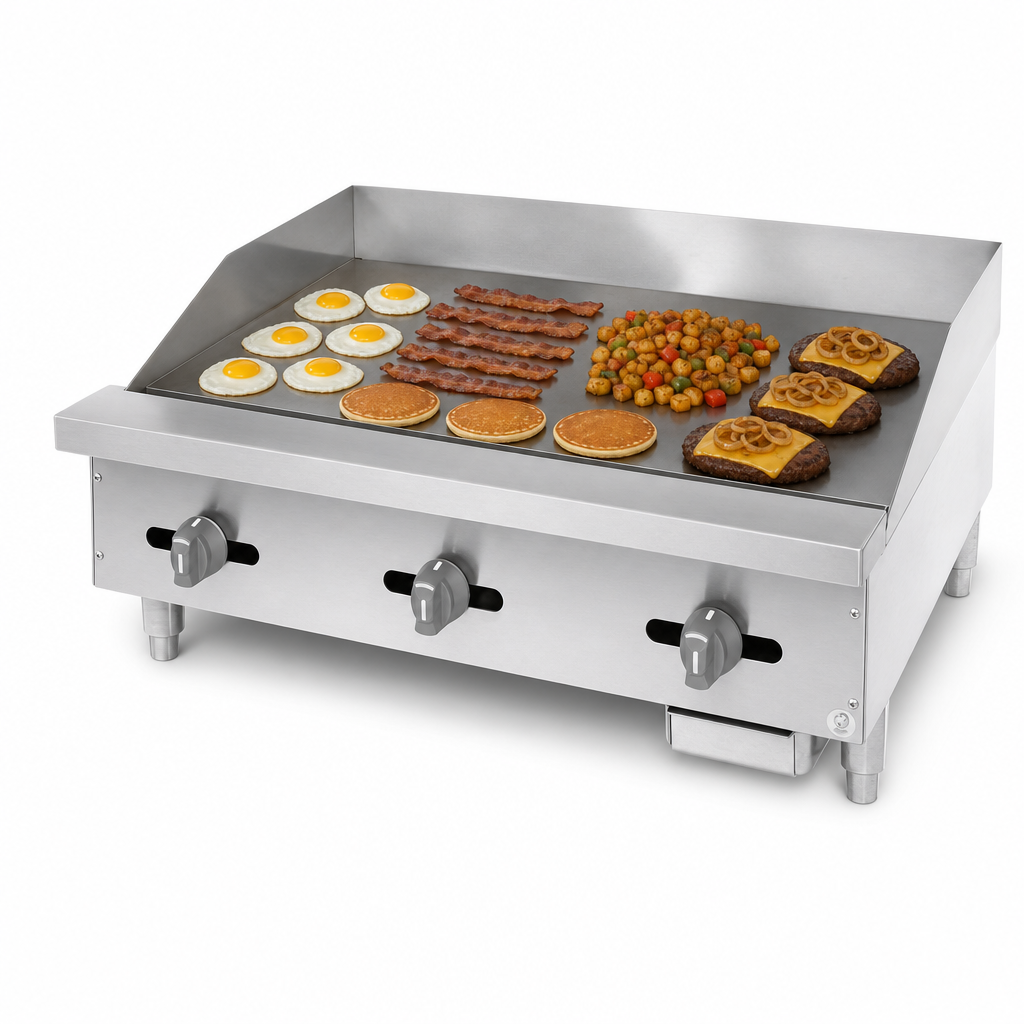

| Cooking surface | 36″ W × 30″ D (1,080 in²) |
|---|---|
| Plate thickness | 1″ polished steel |
| Burners / controls | 3 manual valves |
| Total input | 90,000 BTU/hr (30,000 BTU per burner) |
| Gas connection | 3⁄4″ NPT (rear) |
| Overall dimensions | 36″ W × 38″ D × 15″ H (to top of splash) |
| Grease management | 3 ½″ trough & large removable drawer |
| Exterior | All stainless steel |
| Approx. shipping weight | 227 lb / 103 kg |
| Certifications | NSF, cETLus |
What’s Included
- Factory-installed 4″ splash guard (sides & rear)
- Adjustable 4″ countertop legs
- Operator’s manual & installation checklist
Installation Required:
A licensed gas technician must perform hookup, pressure testing, and calibration.
Failure to do so will void the factory warranty.
Warranty
1-year parts & labor warranty (60 day labor / 120 day parts when installed on food trucks, trailers, tents, or other outdoor venues).
Returns accepted within 90 days of invoice with factory authorization; equipment must be unused and in original packaging (25 % restocking fee applies).
$5,489.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Comstock-Castle 3836MG gas griddle: 36" polished steel plate, 90,000 BTU, stainless countertop, 3 manual controls, large grease drawer, NSF certified.
Manufacturer
Comstock-Castle
Brand name
Diner Series
Certifications
NSF
Height
15.75in
Width
36.0in
Depth
38.0in
Shipping Weight
500.0lbs
Cooking Surface Width (side - side)
31" - 36"
Plate Thickness
3/4"
Cooking Surface Depth (front - back)
30" - 36"
Exterior Finish
all stainless steel exterior
Controls
manual controls
Griddle Plate Finish
smooth steel
Specifications
Diner Series Griddle, countertop, gas, 36" wide x 38" deep frame, 36" wide x 30" deep x 1" thick polished steel griddle plate, (3) manual controls, 4" splash guard on back & ends, 3-1/2" wide front grease trough, large removable grease drawer, stainless steel exterior, 3/4” gas connection, 90,000 BTU, NSF
