Comstock-Castle 3824TG Diner Series Gas Griddles
Comstock-Castle 3824TG Diner Series Gas Griddles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Comstock-Castle 3824TG Diner Series Gas Griddles
Description

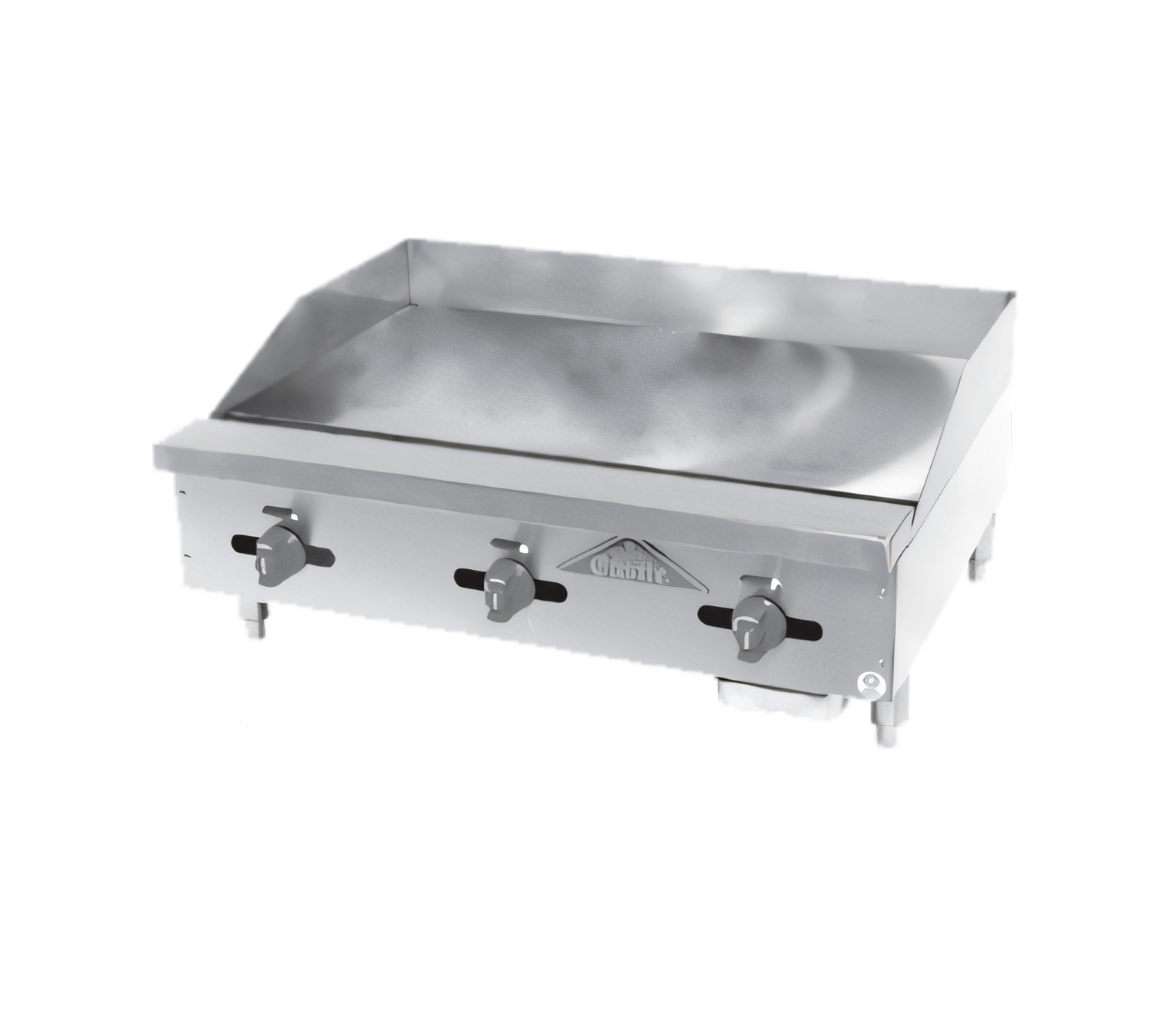

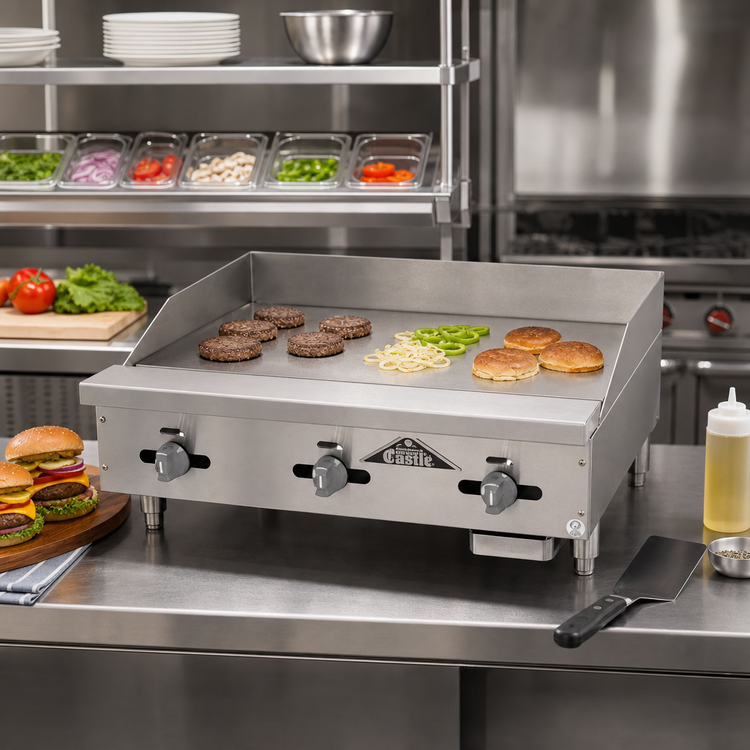

Comstock-Castle “Diner Series” 24" Countertop Gas Griddle
Model 3824MG • 60,000 BTU • 38 Series / 30" Cook DepthBuilt for high-volume breakfast, lunch, and late-night service, the Diner Series delivers the rugged construction, fast recovery, and precise thermostat control that classic diners—and busy kitchens of every kind—depend on every day.
Key Features
- 24" W × 30" D × 1" thick polished steel griddle plate (720 in² of cooking area)
- (2) 30,000 BTU stainless “U” burners – 60,000 BTU total

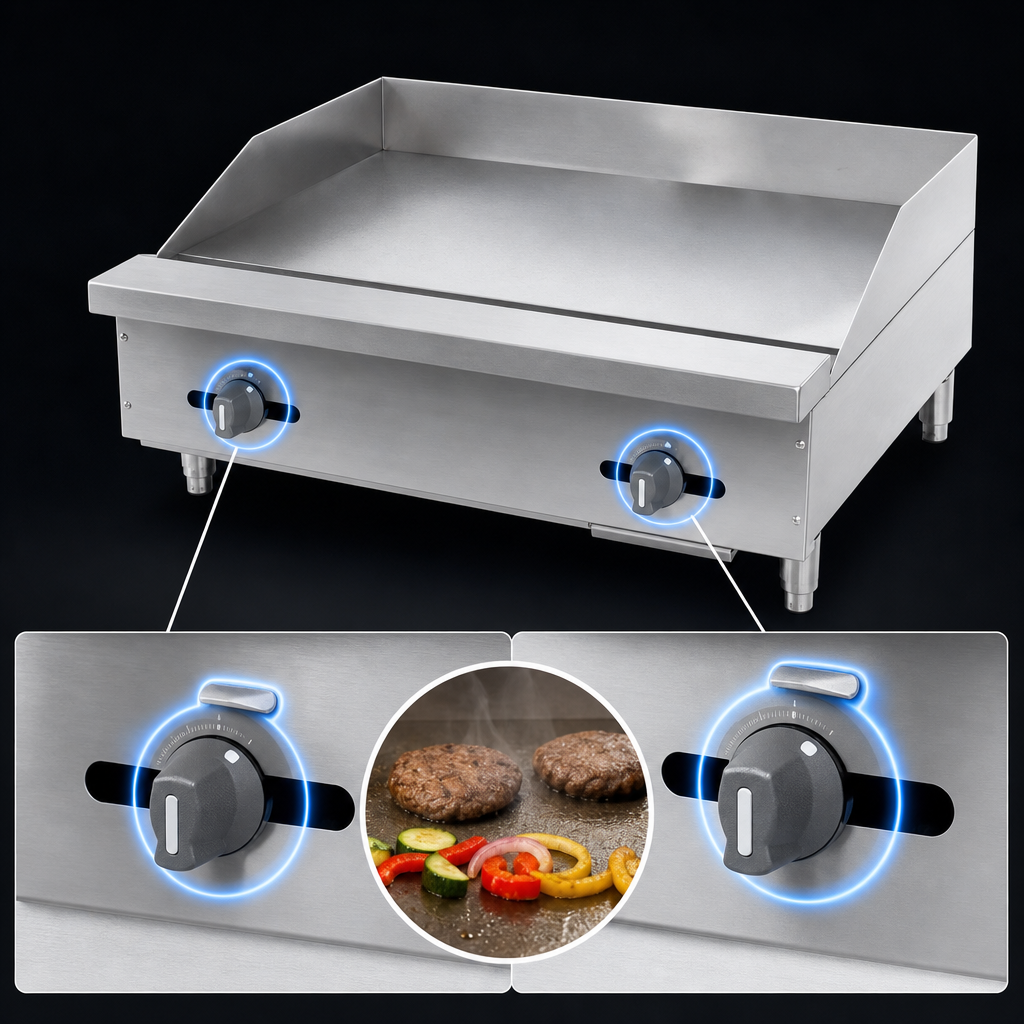

- Independent snap-action thermostats with a 150 – 450 °F operating range
- 4" welded splash guards on the rear and both ends
- Extra-wide 3 ½" front grease trough feeds a large, removable grease drawer
- All-stainless exterior for quick wipe-downs and corrosion resistance
- Fully welded, insulated 38" deep frame keeps surrounding equipment cool
- ¾" NPT rear gas connection (natural gas standard; LP conversion kit available)
- NSF listed • Made in the USA
Specifications
| Cooking surface | 24" W × 30" D (720 in²) |
|---|---|
| Overall dimensions | 24" W × 38" D × 15" H* |
| Griddle plate | 1" thick, polished steel |
| Heat output | 60,000 BTU/hr (two 30,000 BTU burners) |
| Controls | (2) snap-action thermostats, 150–450 °F |
| Splash guards | 4" rear & side, welded stainless |
| Grease management | 3 ½" trough + large removable drawer |
| Gas connection | ¾" NPT (rear) |
| Exterior | Stainless steel front, sides, & control panel |
| Certifications | NSF |
| Approx. ship weight | 300 lb / 136 kg |
*Height to cooking surface; add 4" for splash guards.
Operator Benefits
- 1" thick plate stores heat for steady temps—even during rushes.
- Thermostatic zones let you sear burgers on one side while holding delicate items on the other.
- Wide landing ledge keeps plates, seasoning, and utensils within easy reach.
- Seamless grease drawer lifts straight out—no tools, no mess, faster clean-up.
Warranty
1-Year limited parts & labor warranty (60 day labor / 120 day parts for mobile or outdoor installations). For full details, see the Comstock-Castle Warranty Statement.
