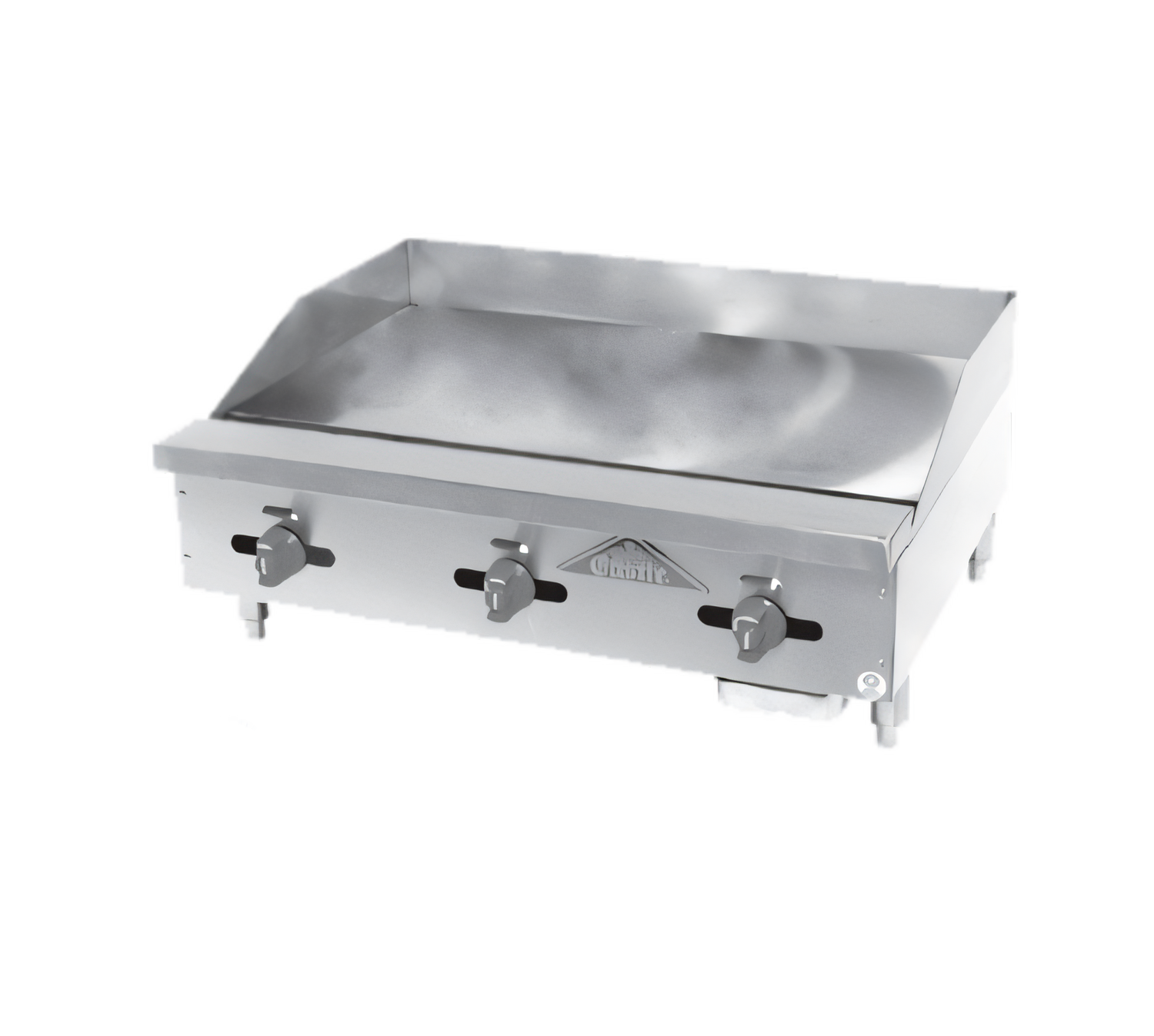

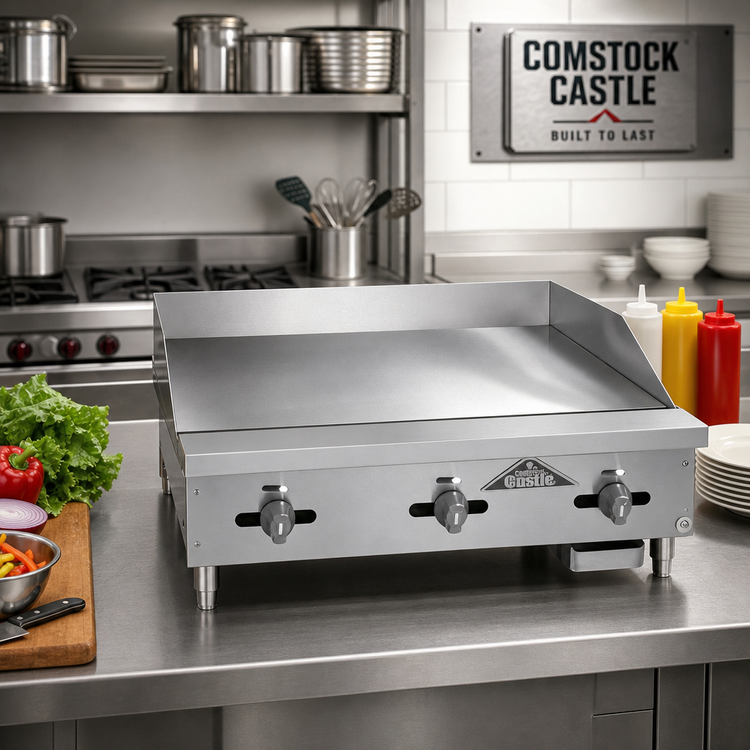

Comstock-Castle “Diner Series” 24" Countertop Gas Griddle
Model 3824MG • 60,000 BTU • NSFBuilt for the non-stop pace of classic American diners, this 24" Diner Series griddle marries old-school durability with modern efficiency. Its 1" thick polished steel plate delivers lightning-quick heat recovery, while an all-stainless chassis stands up to daily abuse, caustic cleaners, and the occasional midnight rush.
Key Features
- 24" W x 30" D x 1" polished steel griddle plate for even heat and superior sear.

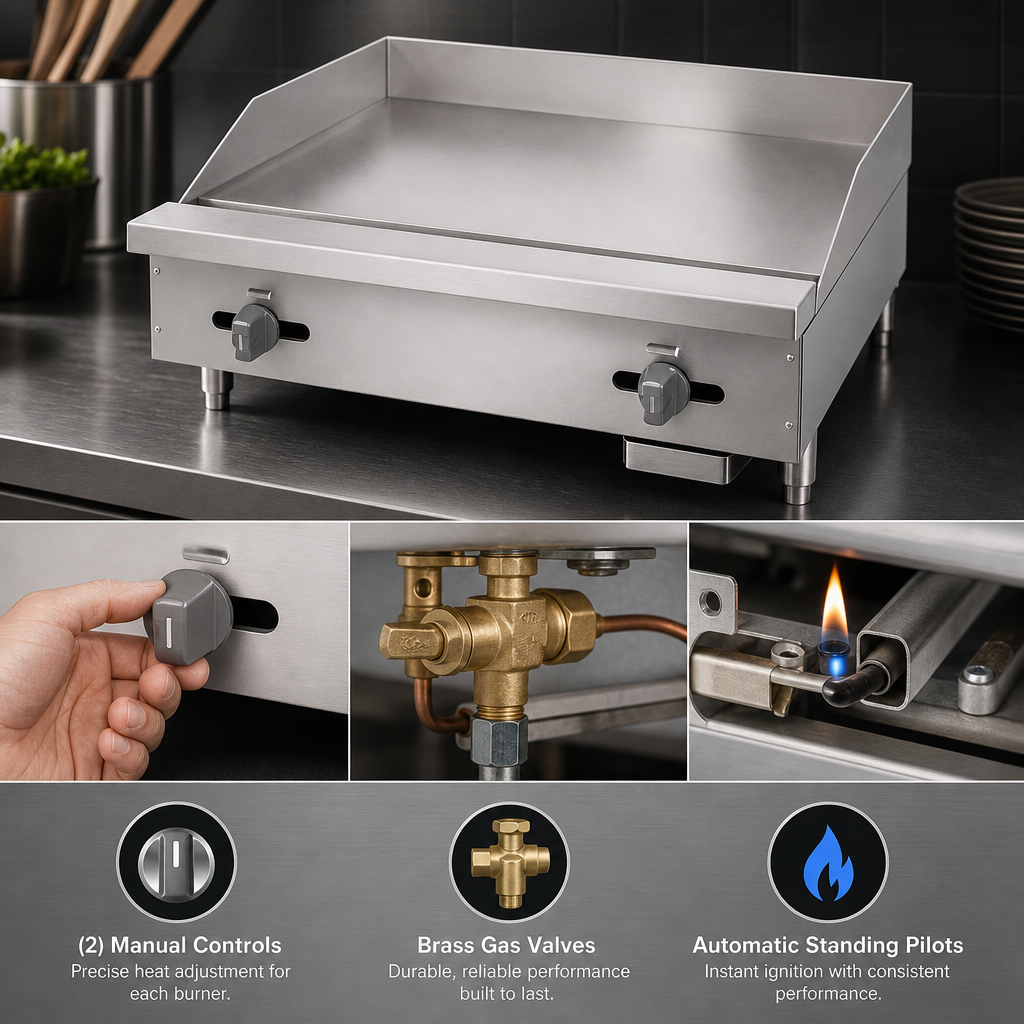

- (2) independent manual brass gas valves—precise left/right zone control.
- High 60,000 BTU input (30,000 BTU per 12" section) for fast recovery.
- 4" stainless splash guards (rear & sides) keep neighboring equipment clean.
- 3-½" extra-wide front trough feeds into an oversized, removable grease drawer.
- Welded angle-iron frame with stainless front & sides for lasting rigidity.
- Compact countertop footprint: 24" W x 38" D frame—fits most equipment stands.
- 3/4" rear gas connection with regulator included.
- NSF-listed for commercial sanitation compliance.
Perfect For
- Diners, cafés & 24/7 breakfast concepts
- Food trucks & concession trailers
- Ghost kitchens & culinary incubators
- Institutional foodservice needing a heavy-duty short-order griddle
Specifications
| Cooking Surface | 24" W x 30" D (720 in²) |
|---|---|
| Plate Thickness | 1" polished steel |
| Controls | (2) manual gas valves |
| Total BTU Input | 60,000 BTU/hr |
| Gas Inlet | 3/4" NPT (rear) |
| Overall Dimensions | 24" W x 38" D x 15" H (to plate) / 17.5" H (to top of splash) |
| Grease Management | 3.5" trough, large removable drawer |
| Exterior Construction | Stainless steel front, sides & splash |
| Approx. Weight | 300 lb |
| Certifications | NSF |
Why Choose the Diner Series?
- 30" cook depth (38-Series chassis) offers 25 % more grilling area than shallow-plate competitors.
- 1" plate minimizes hot spots for uniform caramelization and reduced sticking.
- All-mechanical design—no proprietary electronics—means easy, low-cost serviceability.
- Made in Quincy, Illinois by America’s oldest stove company (Est. 1838).
Installation Required: A licensed gas technician must perform hookup and calibration
with a gas pressure manometer. Failure to do so voids the factory warranty.
Warranty
1-year parts & labor commercial warranty (60-day labor / 120-day parts for mobile or outdoor installations). Refer to the official Comstock-Castle warranty statement for complete terms and exclusions.
$4,125.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Comstock-Castle 3824MG 24" gas diner griddle — 60,000 BTU, polished 1" steel plate, stainless exterior, removable grease drawer, NSF certified.
Manufacturer
Comstock-Castle
Brand name
Diner Series
Certifications
NSF
Height
15.75in
Width
24.0in
Depth
38.0in
Shipping Weight
300.0lbs
Cooking Surface Width (side - side)
19" - 24"
Cooking Surface Depth (front - back)
30" - 36"
Plate Thickness
3/4"
Controls
manual controls
Exterior Finish
all stainless steel exterior
Griddle Plate Finish
smooth steel
Specifications
Diner Series Griddle, countertop, gas, 24" wide x 38" deep frame, 24" wide x 30" deep x 1" thick polished steel griddle plate, (2) manual controls, 4" splash guard on back & ends, 3-1/2" wide front grease trough, large removable grease drawer, stainless steel exterior, 3/4” gas connection, 60,000 BTU, NSF
