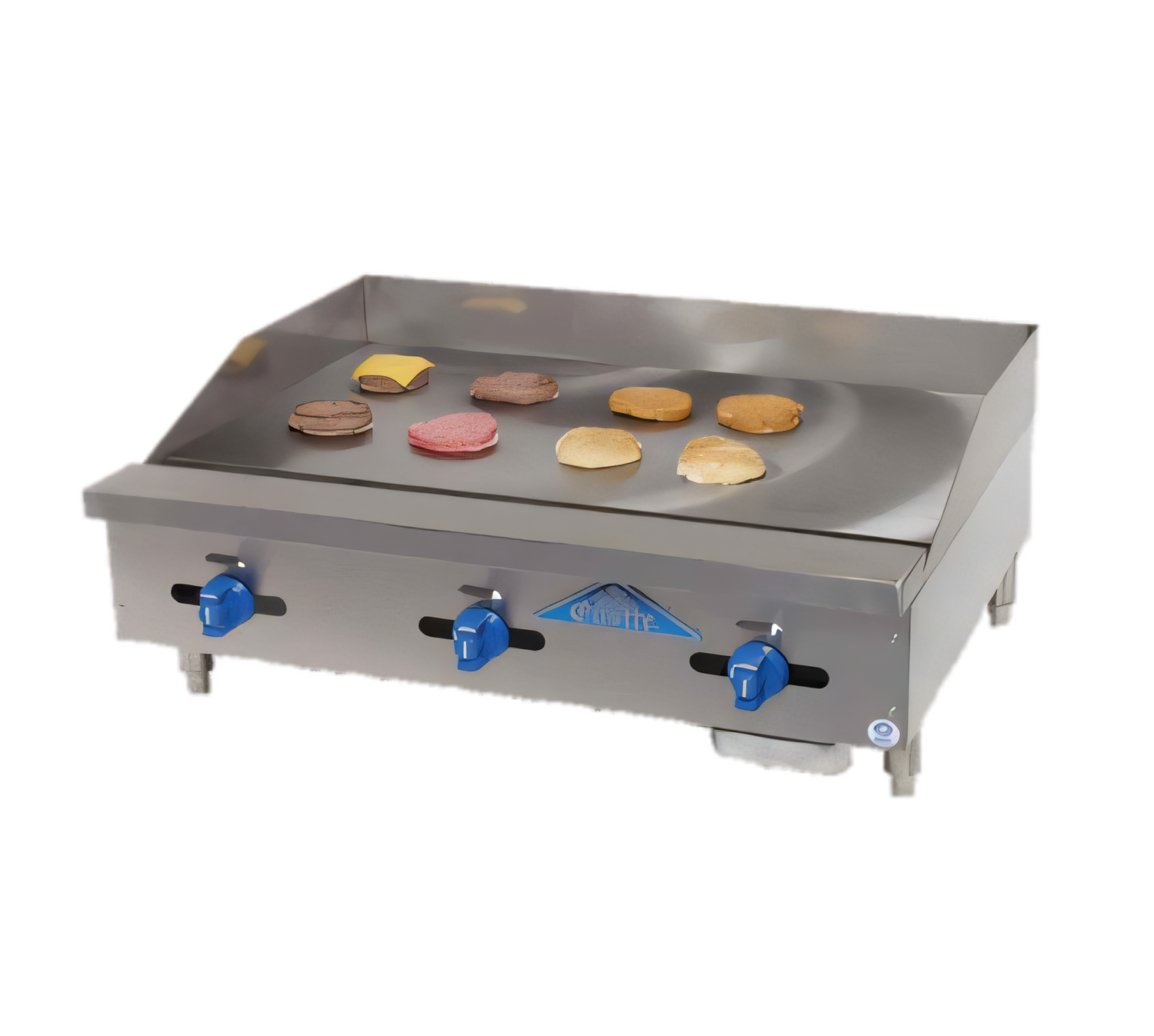

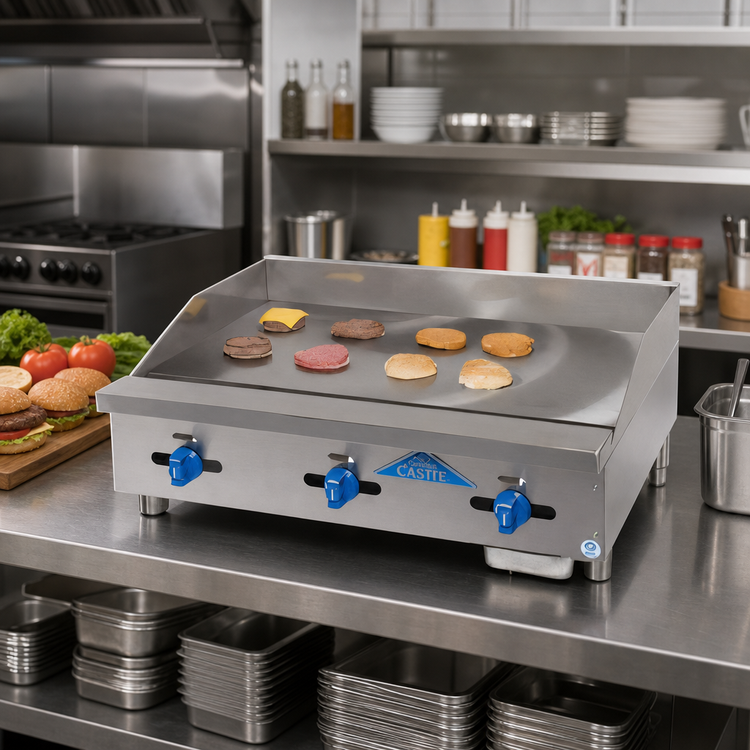

Comstock-Castle “Castle Series” 48" Manual Countertop Gas Griddle
Model #: 3248M-1 | 1" Steel Plate | 100,000 BTUBuilt for busy diners, food trucks and high-volume cooklines, the Castle Series 48" manual griddle pairs old-school durability with modern convenience. A full-inch thick, highly polished steel plate retains heat for rock-steady temperatures while four cast-iron “H” burners deliver a combined 100,000 BTU of searing power. Heavy-duty stainless construction, NSF certification and a generous 24" cook depth make this unit a workhorse you can count on from breakfast rush to late-night service.
Why You’ll Love It

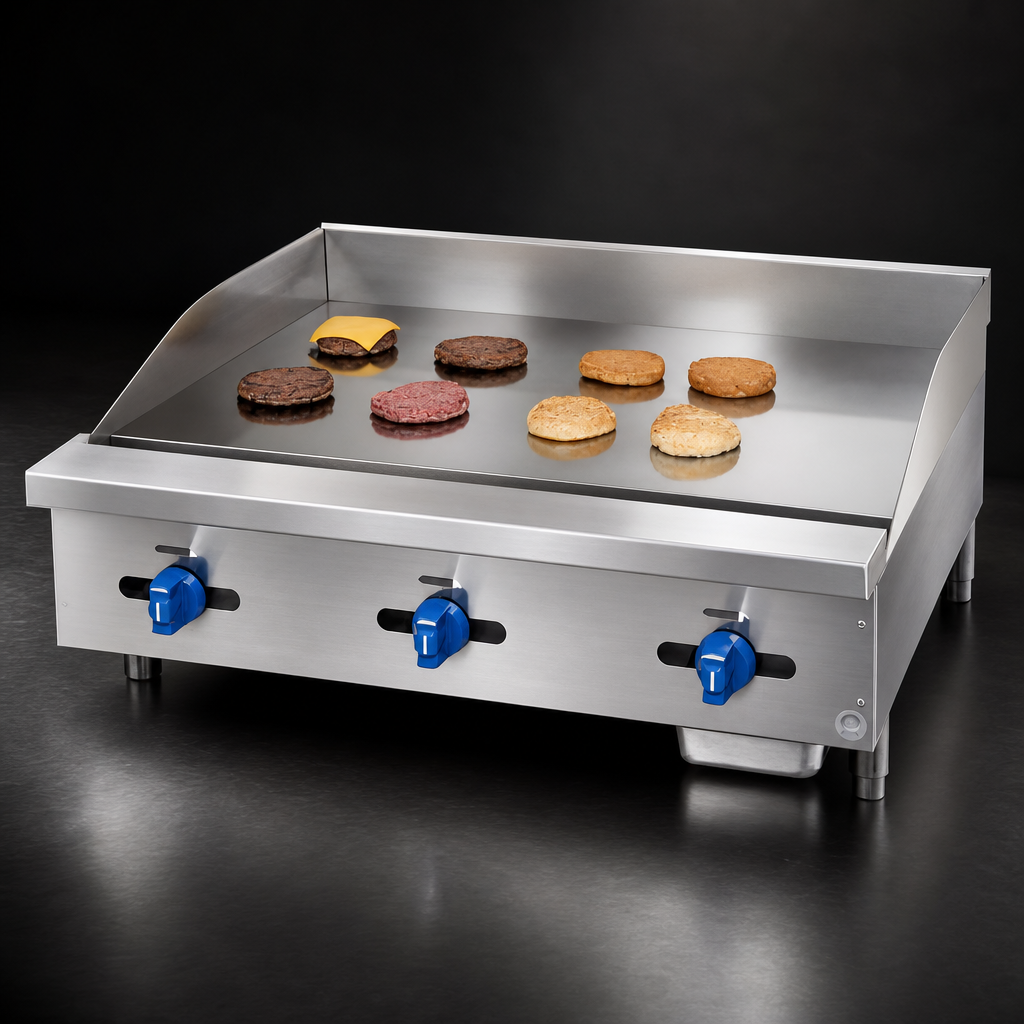

- 1" thick polished steel plate minimizes sticking and recovers heat fast during peak periods.

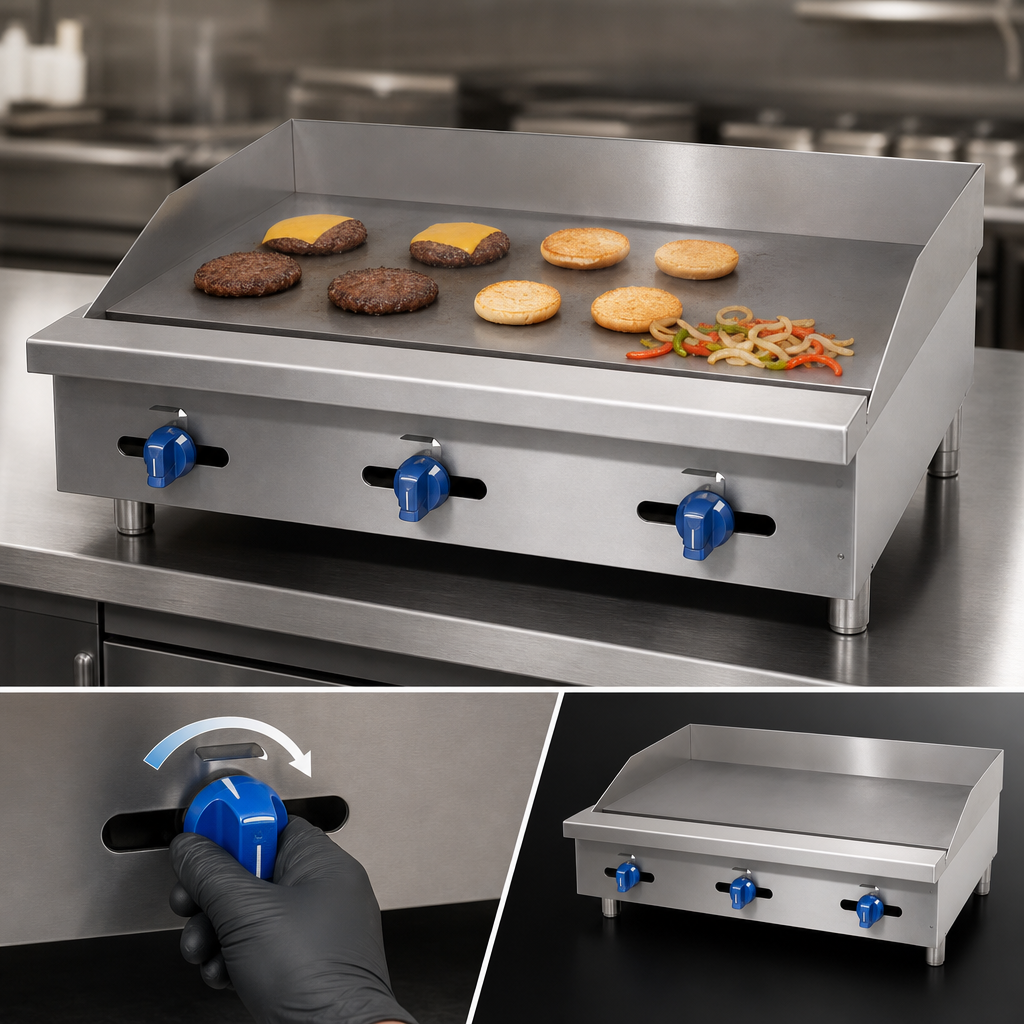

- Four independent manual gas valves—simple, dependable control for zone cooking.
- 48" x 24" cook surface handles up to: 72 pancakes, 40 burgers or 120 strips of bacon at a time (approx.).
- 3" welded splash guards (back & sides) keep grease where it belongs.
- Front cold-zone trough and extra-deep removable drawer simplify cleanup shifts.
- 4" stainless pipe legs with adjustable feet level the unit on any counter.
- Double-wall, fully insulated body stays cooler to the touch—better for staff comfort.
- Factory-installed ¾" pressure regulator; only 0" clearance required to non-combustibles.
Technical Specifications
| Cook surface | 48" W × 24" D × 1" T polished steel |
|---|---|
| Overall frame | 48" W × 32" D (incl. 4" bull-nose landing) |
| Heat output | 100,000 BTU/hr (4 × 25,000 BTU cast-iron “H” burners) |
| Controls | 4 manual brass gas valves with standing pilots |
| Gas connection | ¾" NPT rear manifold | 4" WC Nat. Gas • 10" WC LP |
| Grease management | 3.5" × 1" drain slot to large seamless drawer (front access) |
| Construction | Stainless steel exterior, welded angle-iron & aluminized inner frame |
| Clearances* | 0" sides / rear (non-combustible) • 4" sides / 5" rear (combustible) |
| Certifications | NSF |
| Warranty | 1 year parts & labor (commercial use) |
*Always follow local codes and the installation manual.
What’s in the Box
- Castle Series 48" countertop griddle (pre-assembled)
- Factory-set ¾" gas pressure regulator
- Four 4" adjustable stainless legs
- Owner’s / installation manual & warranty registration card
Ideal Applications
- 24/7 diners & breakfast houses
- High-volume concession stands & food trailers
- Ghost kitchens needing versatile cooking real-estate
- Institutional cafeterias & commissaries
Give your cooks the heat, space and reliability they need—choose the Comstock-Castle Castle Series 48" Gas Griddle and keep your line flowing smoothly service after service.
