Comstock-Castle  |  Castle Series  |  SKU: 3230MG

Comstock-Castle 3230MG Castle Series Gas Griddles

$3,850.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Warranty Installation & operation
Related Searches
Gas Griddles Griddles & Flat Tops

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

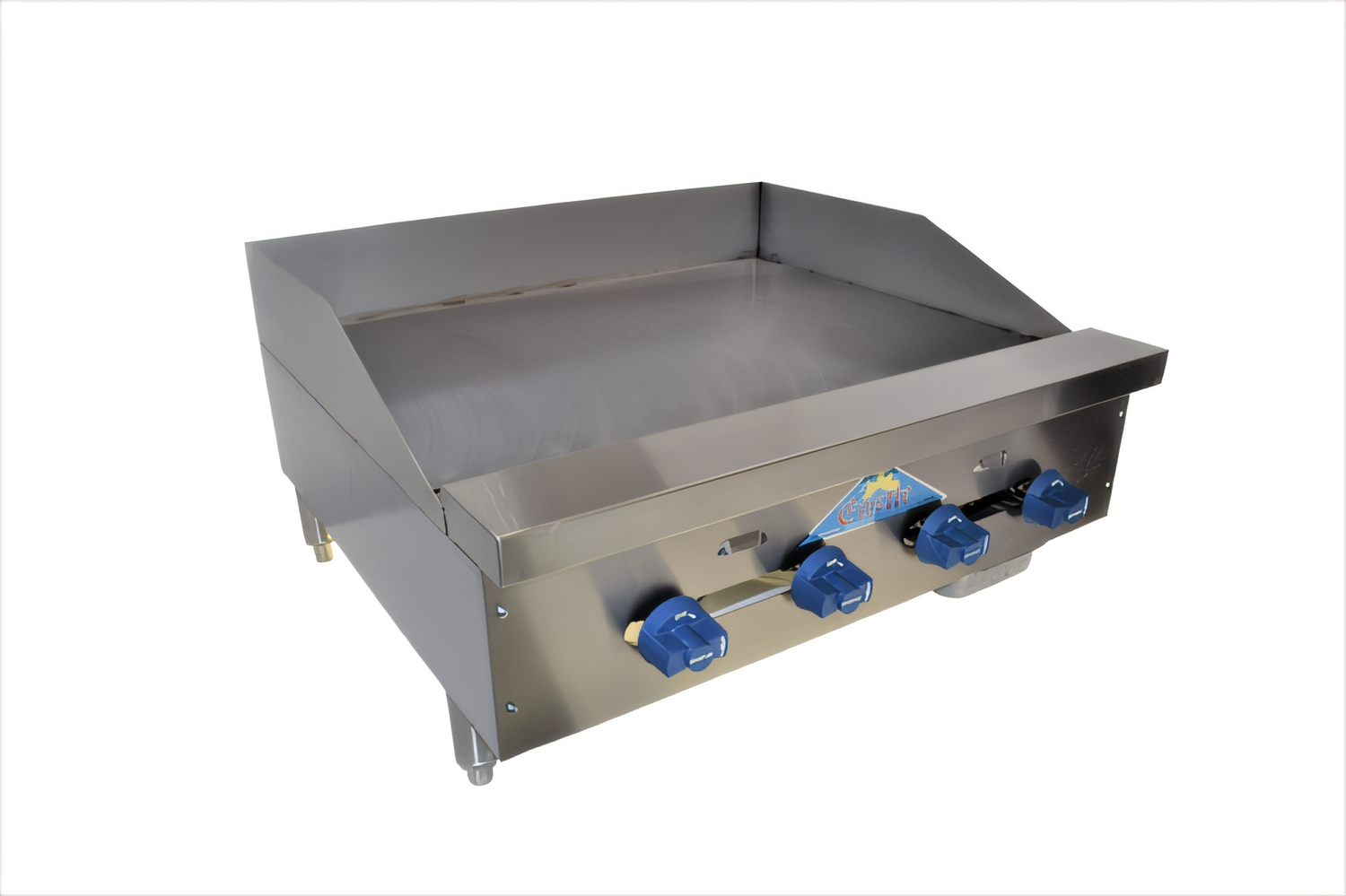

Castle Series Countertop Gas Griddle – 30″

Model 3230MG | Manual Controls | 72,000 BTU

From America’s oldest stove company, this 30-inch Castle Series griddle pairs heavy-duty construction with precision zone control, giving busy kitchens the power and plate space they need without sacrificing countertop real estate.

Key Features & Benefits

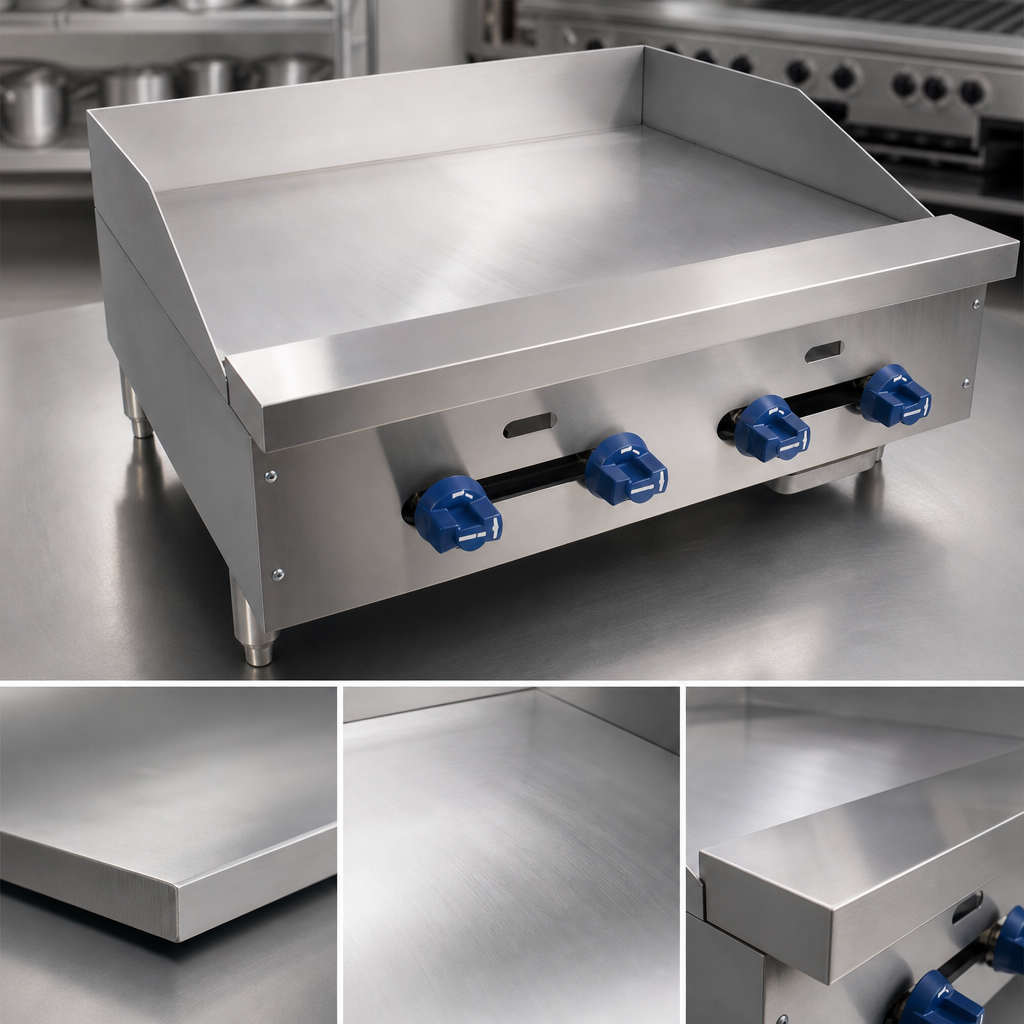

  • 1″ thick, highly polished steel plate retains heat and recovers fast during rush periods.

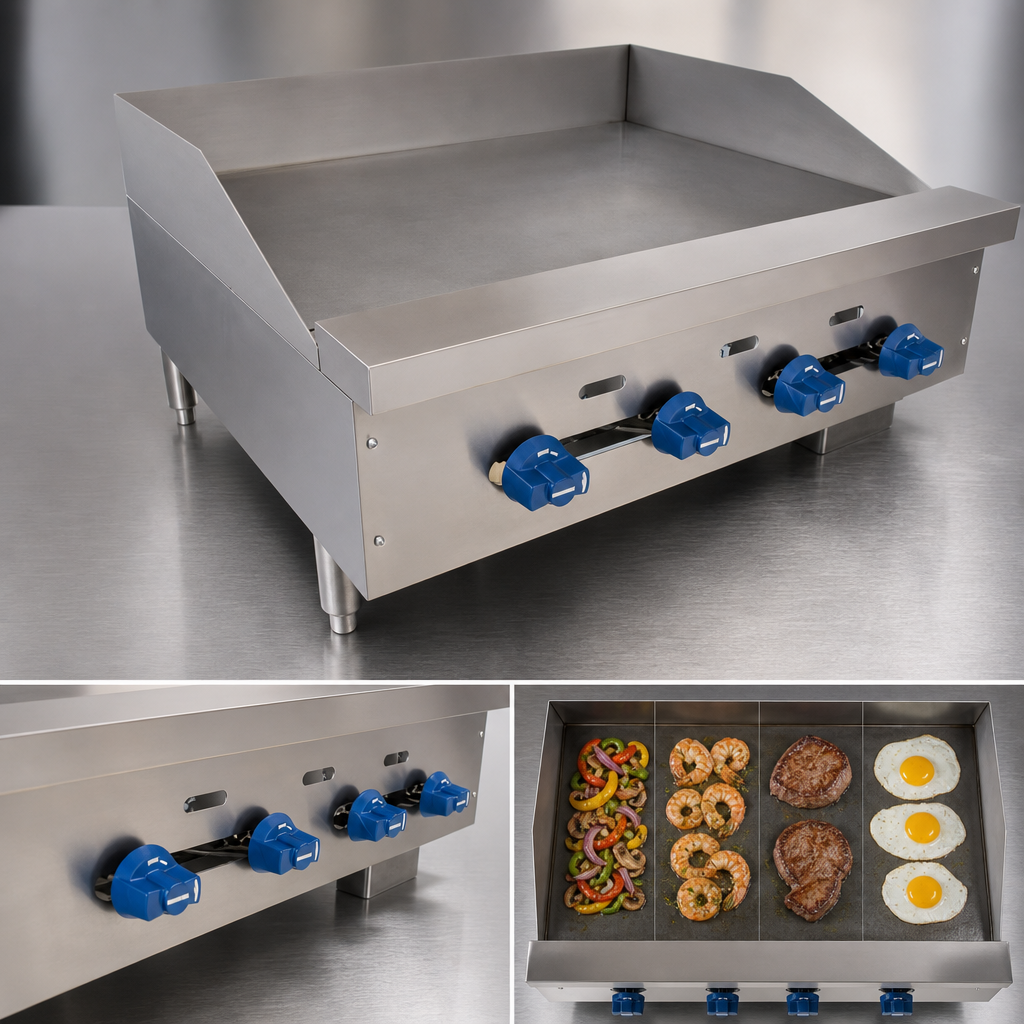

  • Four independent manual brass valves with standing pilots – 18,000 BTU each – let you set up distinct cooking zones.
  • 24″ deep cooking surface delivers 720 sq in of usable space for pancakes, burgers, melts and more.
  • 3″ splash guards (rear & sides) help keep grease where it belongs and protect staff.
  • Front cold-zone trough with extra-wide drain slot funnels runoff into a seamless, oversized grease drawer for quick cleanup.
  • Fully welded stainless-steel exterior and 4″ bull-nose landing shelf stand up to daily commercial abuse.
  • 4″ adjustable stainless legs provide sturdy, level placement on any prep table or equipment stand.
  • Factory-installed ¾″ NPT rear gas connection and pressure regulator for simple hook-up to Natural or LP gas.
  • NSF listed and Prop 65 compliant for peace of mind on your cookline.

Specifications

Cooking surface 30″ W × 24″ D (720 sq in)
Plate thickness 1″ polished steel
Controls (4) manual valves with standing pilots
Total input 72,000 BTU (4 × 18,000 BTU straight burners)
Overall dimensions 30″ W × 32″ D × 15-¾″ H (with legs & splash)
Gas connection ¾″ NPT rear manifold | pressure regulator included
Grease management Front trough & removable deep drawer
Construction Stainless front, sides, splash & bull-nose; aluminized inner frame
Certifications NSF, P65
Approx. ship weight 300 lb / 136 kg

Looking for thermostatic controls, chrome plating or a matching equipment stand? Ask our team—add-on options are available by special order.

Comstock-Castle Advantage

  • American-made quality since 1838.
  • One-year parts & labor warranty backed by a nationwide service network.
  • 0″ side & rear clearance required to non-combustible surfaces—perfect for tight cooklines.
Installation Notice: This appliance must be installed, leveled and gas-pressure tested by a licensed professional. Improper installation or field conversion voids the manufacturer warranty.

Features & Specs

Manufacturer

Comstock-Castle

Brand_name

Castle Series

Certifications

NSF

Height

13.0in

Width

30.0in

Depth

32.0in

Shipping Weight

305.0lbs

Cooking Surface Width (side - side)

25" - 30"

Griddle Plate Finish

smooth steel

Cooking Surface Depth (front - back)

24" - 29"

Controls

manual controls

Exterior Finish

all stainless steel exterior

Plate Thickness

1"

Specifications

Castle Series Griddle, countertop, gas, 30" wide x 32" deep frame, 30" wide x 24" deep x 1" thick polished steel griddle plate, (4) manual controls, 3" splash guard on back & ends, front grease trough, large removable grease drawer, stainless steel exterior, 4" adjustable feet, 72,000 BTU, NSF
