Comstock-Castle 3224TG Castle Series Gas Griddles
Description

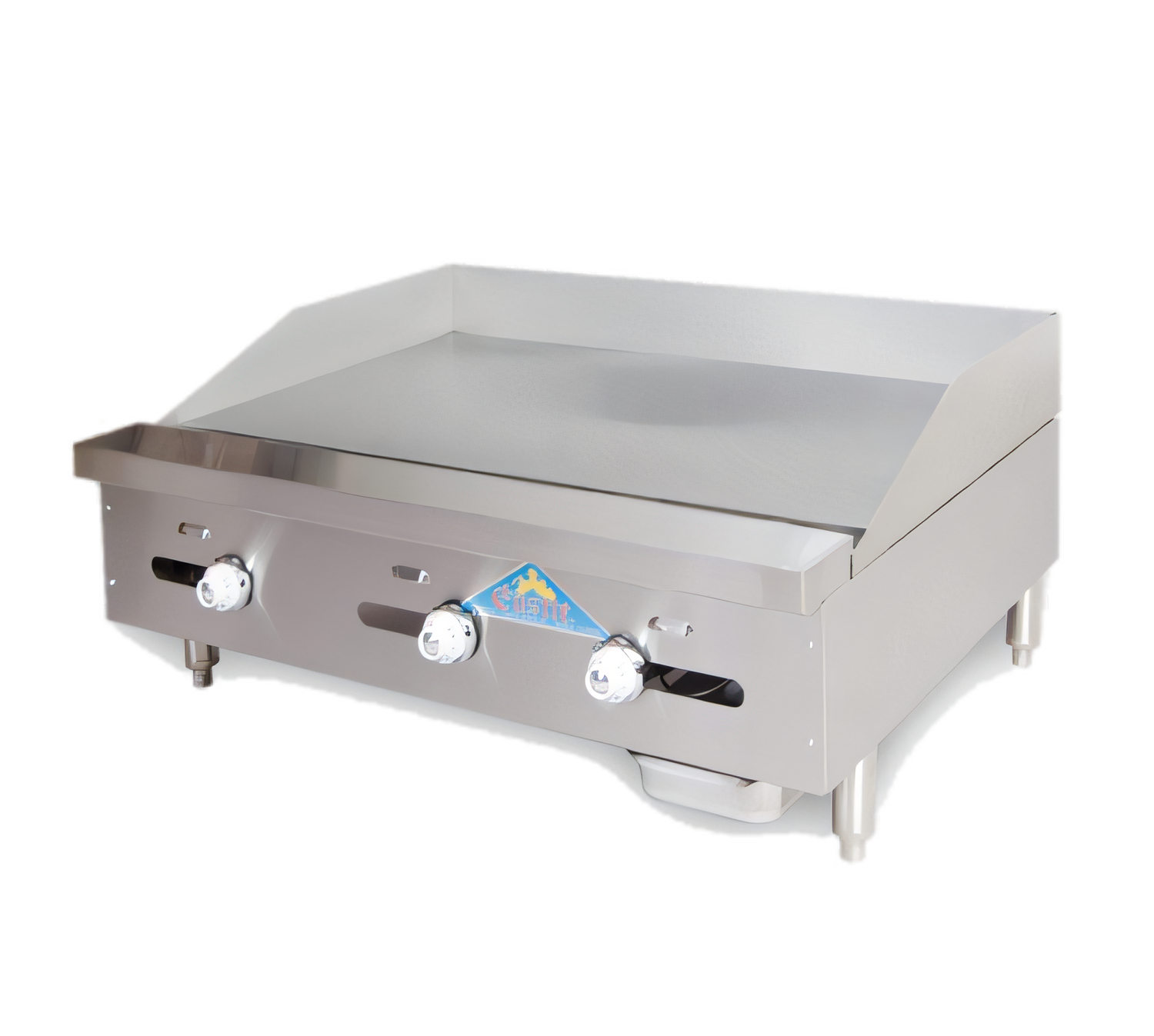

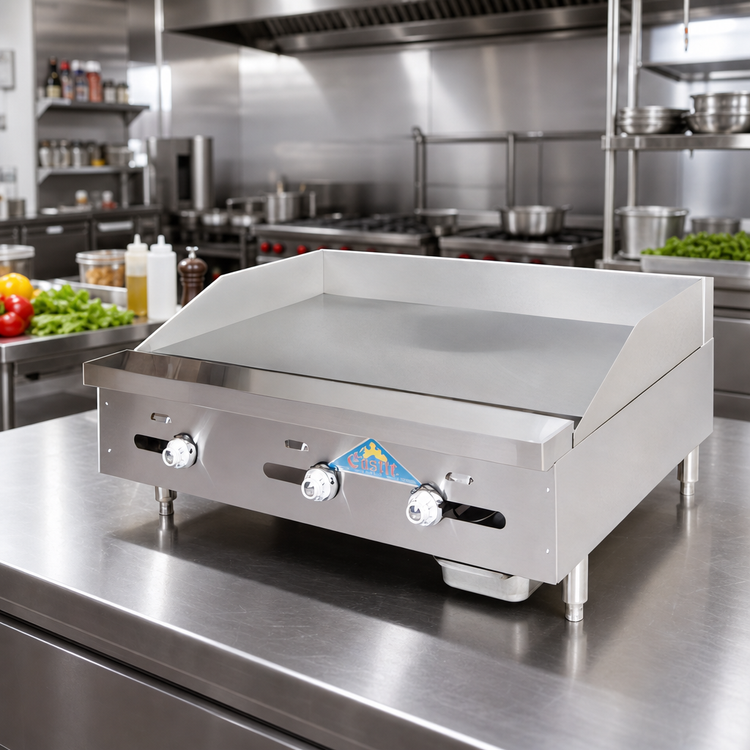

Comstock-Castle 32 Series Countertop Gas Griddle – 24" Wide (Model 3224TG)
High-output, thermostatically-controlled griddle for busy commercial kitchensBuilt by America’s oldest stove company, the Castle 32 Series 24" countertop griddle delivers the power, plate coverage and rugged construction today’s short-order lines demand – all in a compact footprint that drops easily onto any equipment stand or chef’s counter.
Why You’ll Love It
- 50,000 BTU from two 25,000 BTU cast-iron “H” burners – instant recovery during peak rushes.
- Large 24" × 24" cooking surface machined smooth and highly polished to resist sticking.
- 3/4" thick steel plate stores heat evenly for consistent browning and searing.

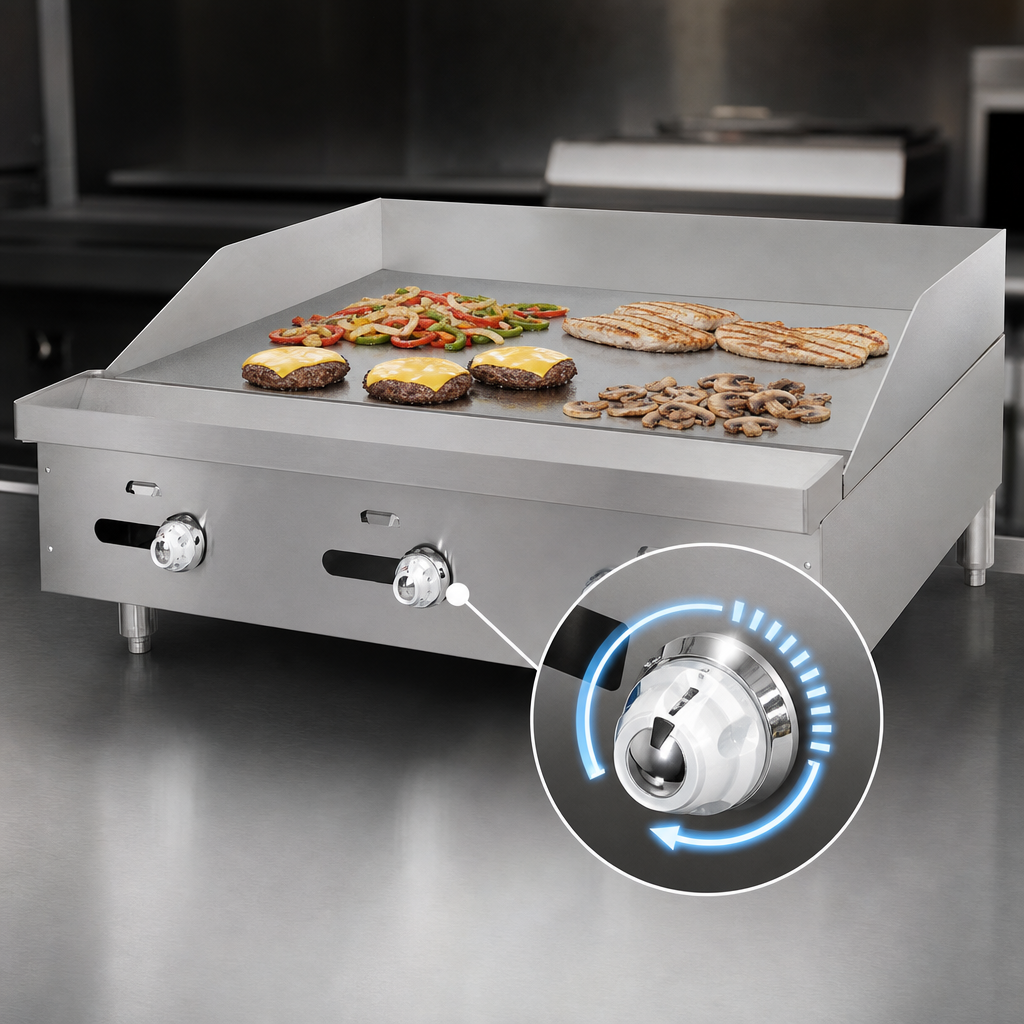

- Snap-action thermostats (one per burner) provide precise temperature control without constant fiddling.
- 3" splash guards on rear & sides keep grease where it belongs and stations spotless.
- Full-width 3.5" × 1" front grease trough feeds an oversized, seamless removable drawer for fast clean-ups.
- Double-wall insulated stainless sides run cooler to the touch and reduce kitchen heat load.
- 5" heavy-duty stainless pipe legs with threaded, adjustable feet for rock-solid leveling.
- NSF listed, factory-set for your choice of Natural or LP gas with ¾" rear NPT connection & regulator.
- Backed by Comstock-Castle’s 1-year parts & labor commercial warranty.
Built for the Long Haul
Every Castle 32 Series appliance is hand-welded from corrosion-resistant stainless steel and reinforced with angle-iron/aluminized inner framing. A 4" wide stainless bull-nose landing shields the controls while doubling as a staging shelf for spatulas, plates and garnishes.
Specifications
| Model | 3224TG |
|---|---|
| Cooking Surface (W × D) | 24" × 24" / 610 mm × 610 mm |
| Overall Frame Footprint | 24" W × 32" D |
| Plate Thickness | ¾" (19 mm) polished steel |
| Heat Output | 50,000 BTU/hr |
| Burners | 2 cast-iron “H” burners (25,000 BTU each) |
| Temperature Control | Thermostatic – one control per 12" zone |
| Gas Inlet | ¾" NPT rear connection (factory-supplied regulator) |
| Clearances | 0" sides & rear (non-combustible); 4" sides / 5" rear (combustible) |
| Overall Height | with 5" adjustable legs: 14.75" |
| Approx. Ship Weight | 250 lb / 114 kg |
| Agency Listings | NSF, ANSI Z83. |
| Warranty | 1-year parts & labor (commercial) |
Included in the Box
- Comstock-Castle 3224TG griddle with 5" legs installed
- Factory-preset gas regulator (Nat or LP as ordered)
- Removable full-width grease drawer
- Owner’s / installation & operation manual
- Warranty registration card & installation checklist
Available Accessories (sold separately)
Ask your sales rep about adding these options to customize your griddle:
- 1" extra-thick plate for maximum heat retention
- Chrome or grooved cooking surfaces
- Safety pilot / flame-failure control systems
- Heavy-duty equipment stands & carrying handles
- Gas quick-disconnect hoses, scrapers & cleaning kits
Need a different width or manual controls? Check out the full Castle 32 Series line-up or talk with our equipment specialists for a perfectly matched cookline.
