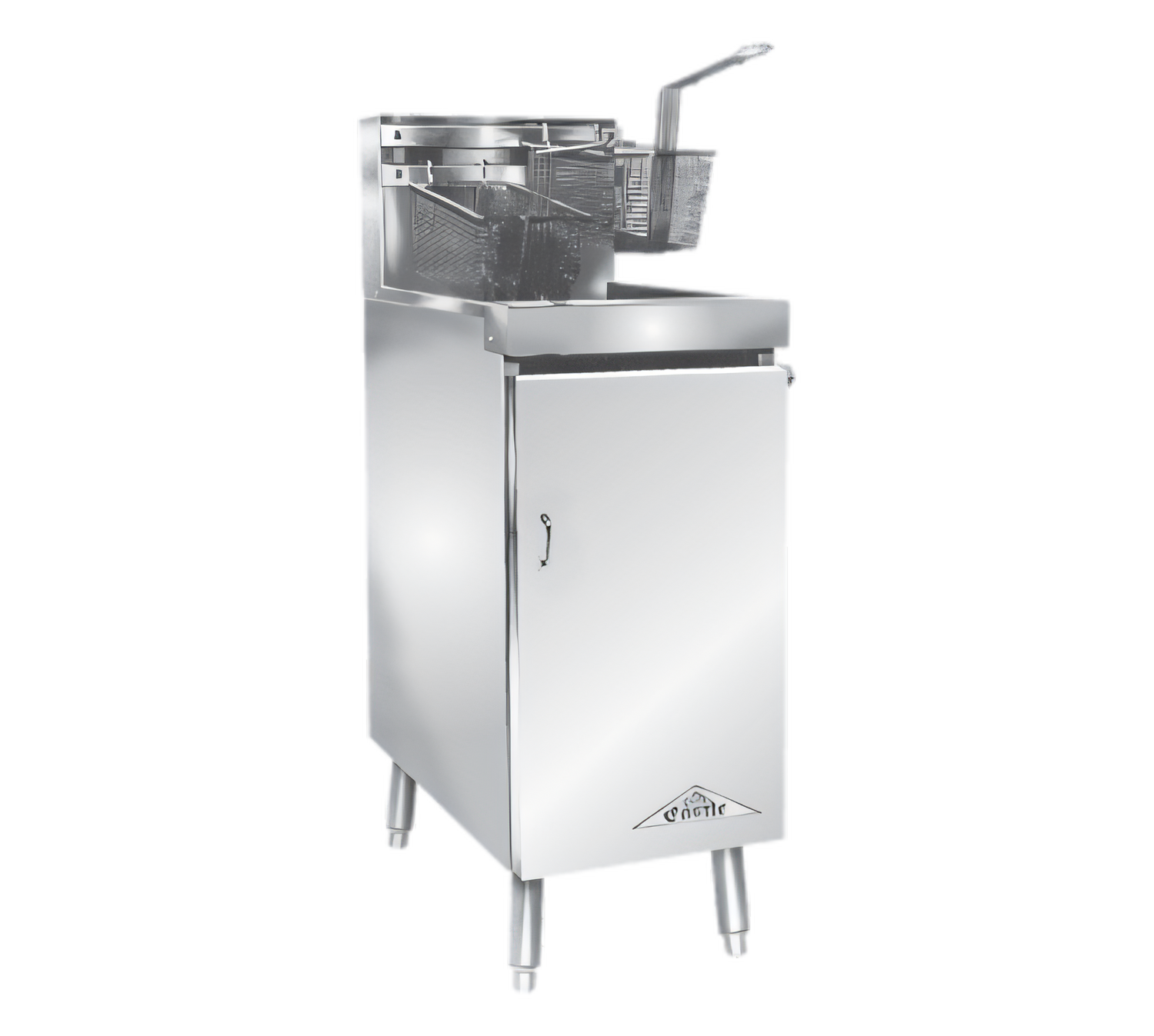

Comstock-Castle 14HF Castle Series Gas Fryers
Description
Comstock-Castle “Castle Series” 15" Gas Floor Fryer – 40 lb Capacity, 90,000 BTU
Model 14HF • Heavy-Duty Tube-Type Fryer • NSFBuilt for the relentless pace of busy kitchens, the Castle Series 14HF delivers rapid recovery, consistent temperature control and rock-solid durability in a space-saving 15 inch footprint. Its stainless-steel tube burner system generates a fierce 90,000 BTU while the deep cold zone and tube radiant inserts protect oil quality for longer fry life and better-tasting food.
Key Features
- 40 lb (≈5 gal) fat capacity – ideal for fries, chicken, seafood & more
- Three stainless-steel tube burners with radiant inserts for maximum heat transfer
- Snap-action thermostat with 100 % safety shut-off and high-limit protection
- Automatic standing pilot for instant start-up
- Stainless-steel fry tank, front, sides & door; welded aluminized inner frame
- 6" adjustable stainless-steel legs for easy leveling
- 1" gate valve drain for fast, mess-free oil removal
- Includes two heavy-duty nickel-plated baskets & removable basket hanger
- NSF listed for commercial sanitation standards
- 1-year parts & labor warranty (USA/Canada commercial installations)
Specifications
| Model | 14HF |
|---|---|
| Oil Capacity | 40 lb / 5 gal (19 L) |
| Overall Width | 15 in (38.1 cm) |
| Overall Depth | 26 in (66 cm) |
| Overall Height | 43.5 in (110.5 cm) with 6" legs |
| Tank Interior (WxLxH) | 14 in × 18 in × 8 in |
| Burners / Type | 3 stainless-steel tubes |
| Total Input | 90,000 BTU/hr |
| Gas Type | Natural 4" WC / Propane 10" WC (field convertible) |
| Gas Connection | ¾" NPT (rear manifold) |
| Clearances | Non-combustible: 2" sides, 6" rear • Combustible: 6" sides & rear |
| Shipping Weight | ≈170 lb (78 kg) |
| Certifications | NSF |
| Warranty | 1 year parts & labor (see warranty terms) |
What’s Included
- (2) Nickel-plated fry baskets with coated handles
- Removable basket hanger rack
- 1" drain valve with extension pipe
- Installation & operation manual
Comstock-Castle continually improves its products; specifications are subject to change without notice.
