Comstock-Castle  |  SKU: 10T40

Comstock-Castle 10T40 Gas Griddles

$4,015.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Warranty Installation & operation
Related Searches
Gas Griddles Griddles & Flat Tops

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

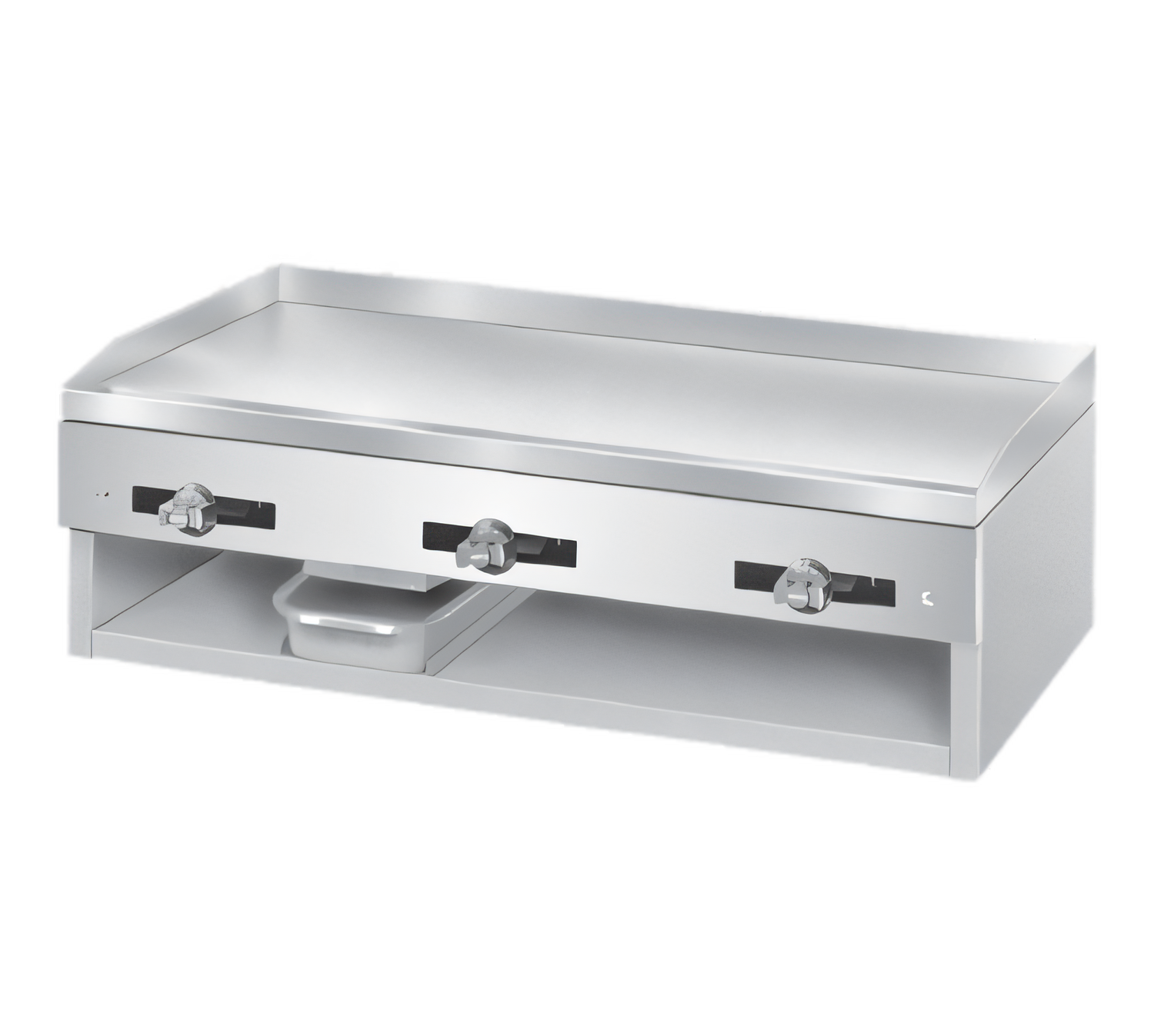

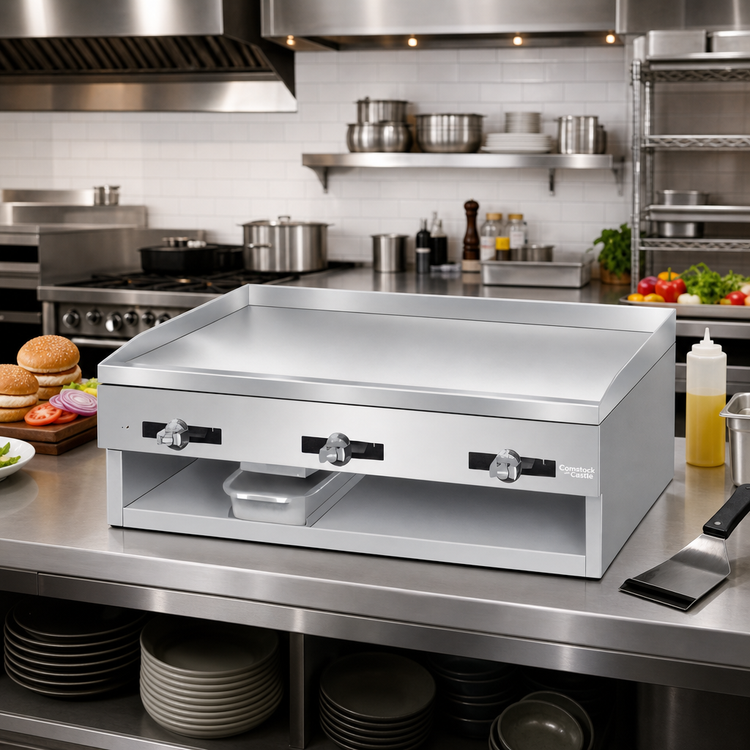

Comstock-Castle 10T40 Countertop Gas Griddle – 40" Wide

20" deep frame | two-zone thermostatic control | 48,000 BTU | NSF

Serve breakfast, lunch and dinner rushes without giving up valuable line space. The Comstock-Castle 10T40 delivers the output of a full-size range in a slim 20"-deep chassis that drops straight onto your countertop, food-truck shelf or concession stand. Precision thermostats, a highly polished ½" plate and a generous 40" x 16" cooking surface make it the perfect workhorse for pancakes, burgers, quesadillas and more.

Key Features

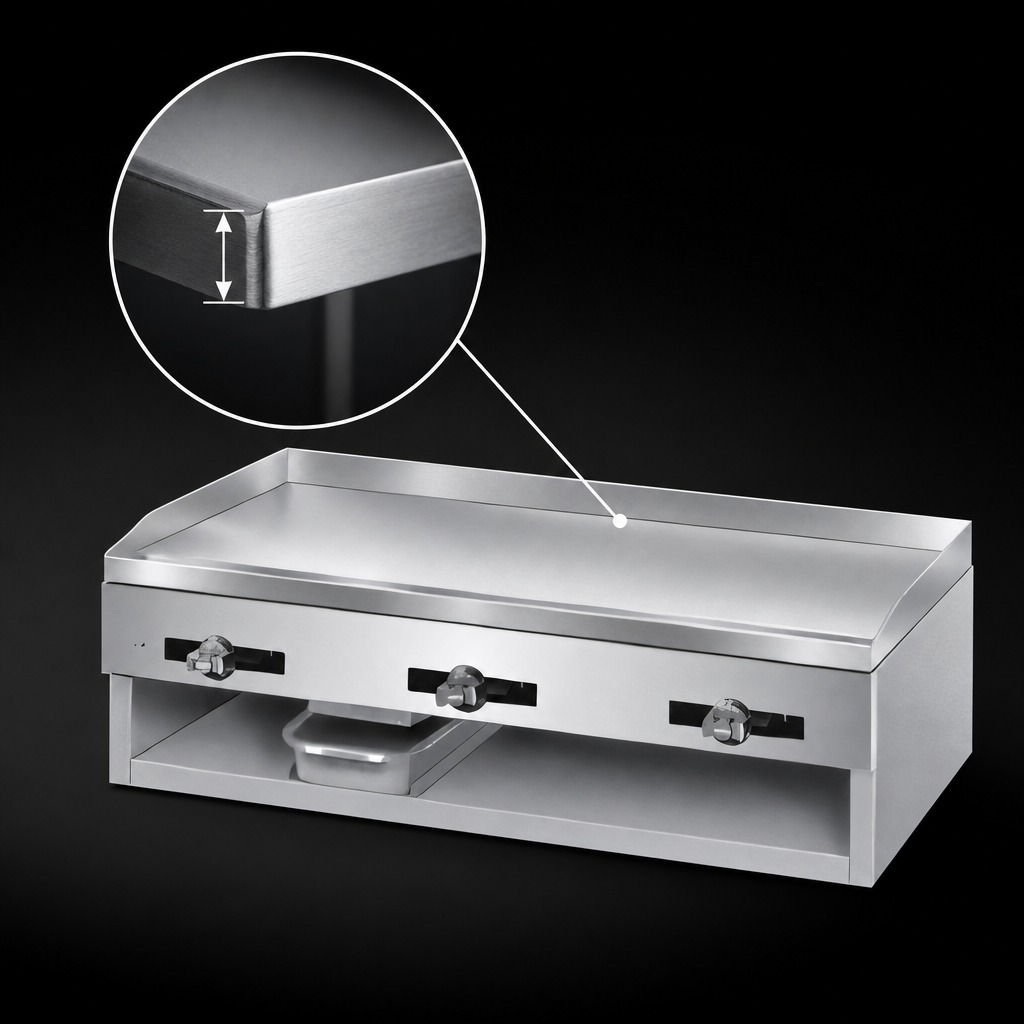

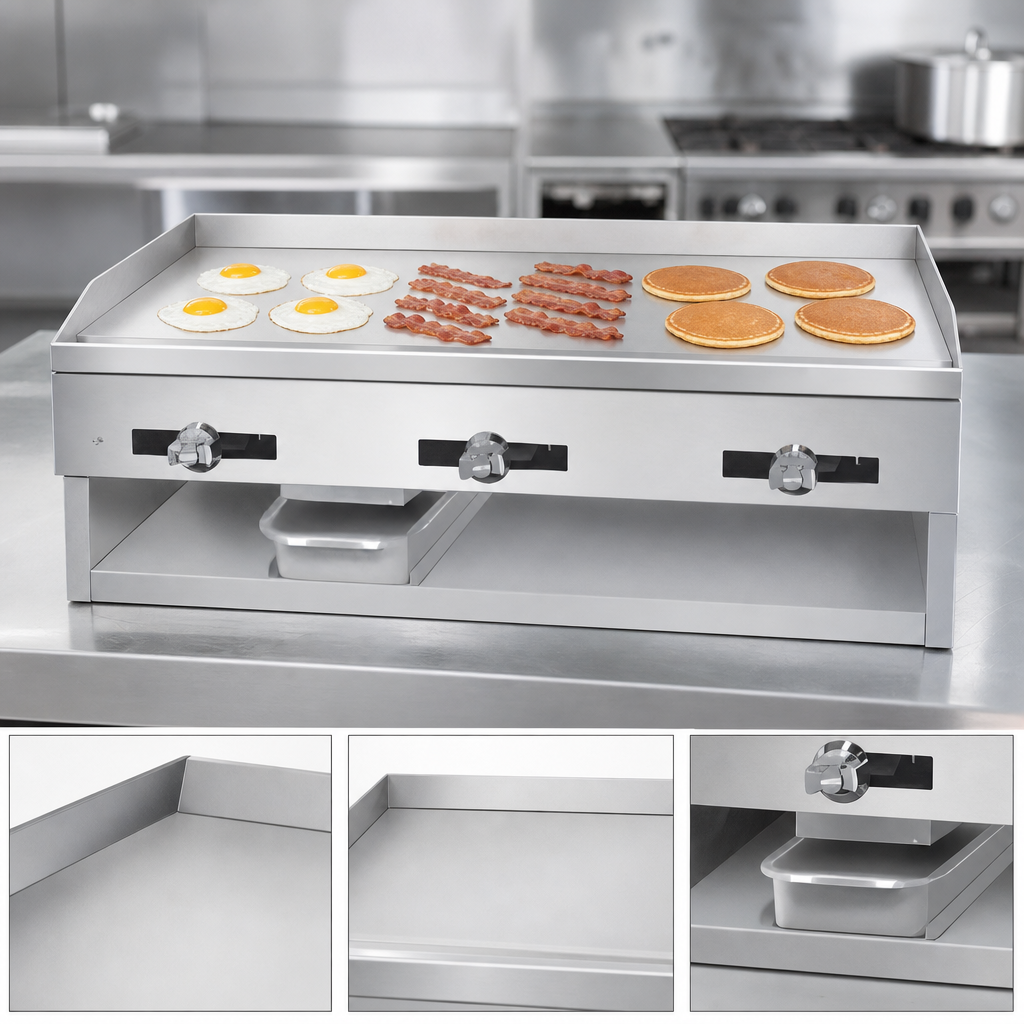

  • 40" x 16" highly polished, ½"-thick steel plate minimises sticking and recovers heat fast.
  • Two independent thermostats (200-450 °F) give you dual cooking zones for maximum menu flexibility.
  • Four cast-iron “H” burners – 12,000 BTU each – deliver a combined 48,000 BTU/hr.
  • Front cold-zone grease trough with extra-wide drain slots feeds a seamless, removable grease drawer.
  • Stainless steel front & sides with a welded frame for easy cleaning and long-term corrosion resistance.
  • 2" high stainless splash guard contains splatter; optional high sides available.
  • ¾" rear NPT gas manifold with factory-set pressure regulator (4" WC Natural, 10" WC LP).
  • Standing pilots for instant ignition; solid brass gas valves for smooth adjustment.
  • NSF listed and built in the USA by America’s oldest stove company (Est. 1838).
Specifications
Model 10T40 (10 Series Thermostatic Griddle)
Cooking surface 40" W x 16" D
Plate thickness ½" (standard); ¾" or 1" optional
Heat zones / controls 2 thermostatic zones, standing pilots
Burners / Output 4 cast-iron “H” burners  |  48,000 BTU/hr total
Overall dimensions (W × D × H) 40" × 20" × 10"
Gas connection ¾" NPT, rear
Shipping weight ≈ 175 lb
Certifications NSF, ETL Sanitation / cETLus
Warranty 1 year parts & labor (commercial use)
Popular Accessories (sold separately)
  • 6" stainless adjustable legs or low-profile feet
  • ¾" or 1" extra-thick plates for heavy-duty searing
  • Chrome-plated cooking surface upgrade
  • Grill scrapers, spatulas & cleaning kits
  • Quick-disconnect gas hoses & carrying handles for mobile setups
Installation notice: To maintain factory warranty and ensure safe operation, this unit must be installed and gas-pressure tested by a licensed commercial appliance technician.

Comstock-Castle reserves the right to modify specifications or design without notice as part of ongoing product improvement.

Features & Specs

Manufacturer

Comstock-Castle

Certifications

NSF

Height

12.0in

Width

40.0in

Depth

20.0in

Shipping Weight

195.0lbs

Cooking Surface Depth (front - back)

15" - 19"

Controls

thermostat / solid state controls

Cooking Surface Width (side - side)

37" - 42"

Plate Thickness

1/2"

Griddle Plate Finish

smooth steel

Exterior Finish

stainless steel front & sides

Specifications

Griddle, 20" deep frame, countertop, gas, (1) 40" wide x 16" deep x 1/2" thick griddle plate, (2) thermostat controls, removable grease drawer, stainless steel front & sides, 48,000 BTU, NSF
