Comstock-Castle  |  SKU: 10T20

Comstock-Castle 10T20 Gas Griddles

$2,640.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Warranty
Related Searches
Gas Griddles Griddles & Flat Tops

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

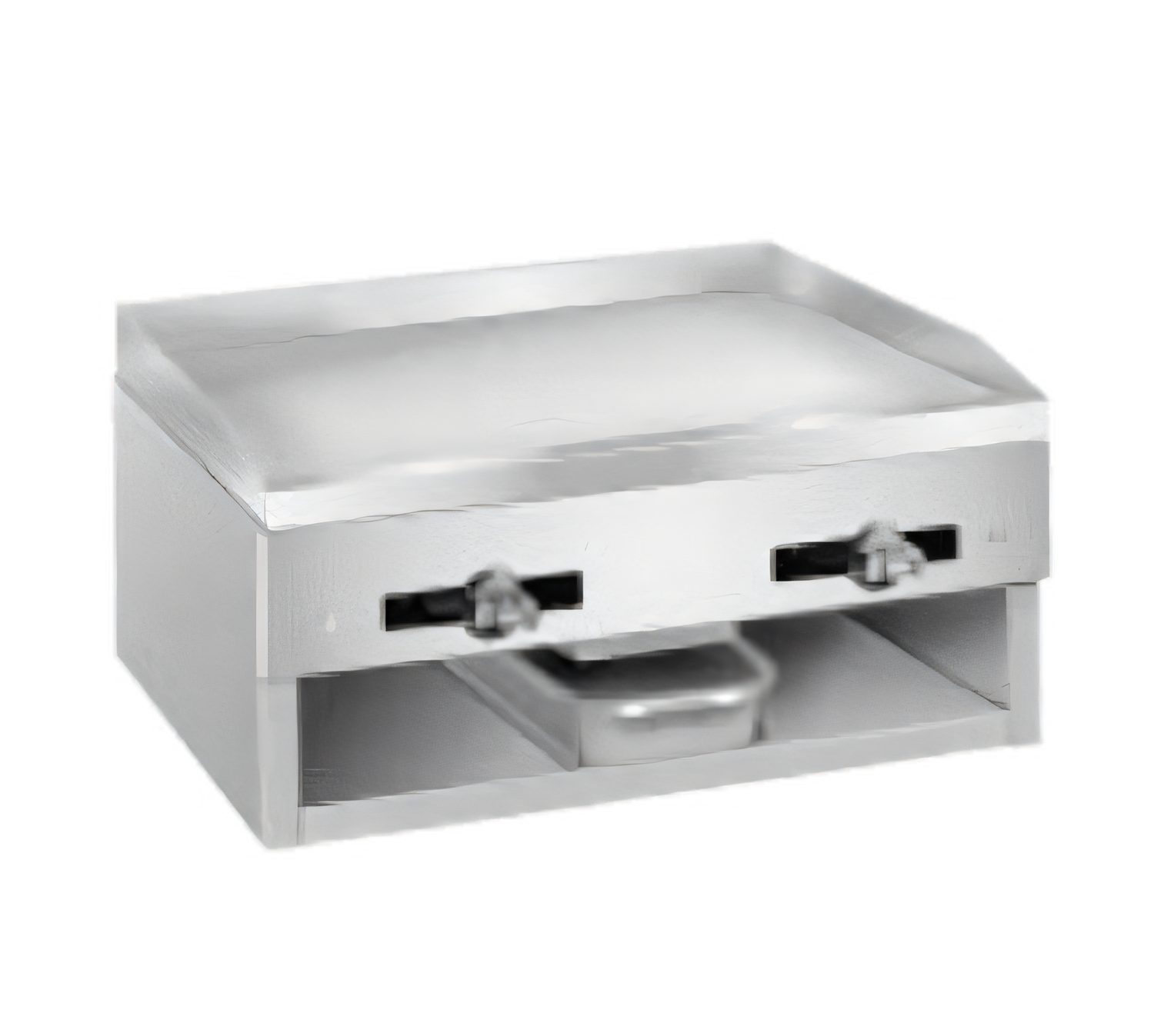

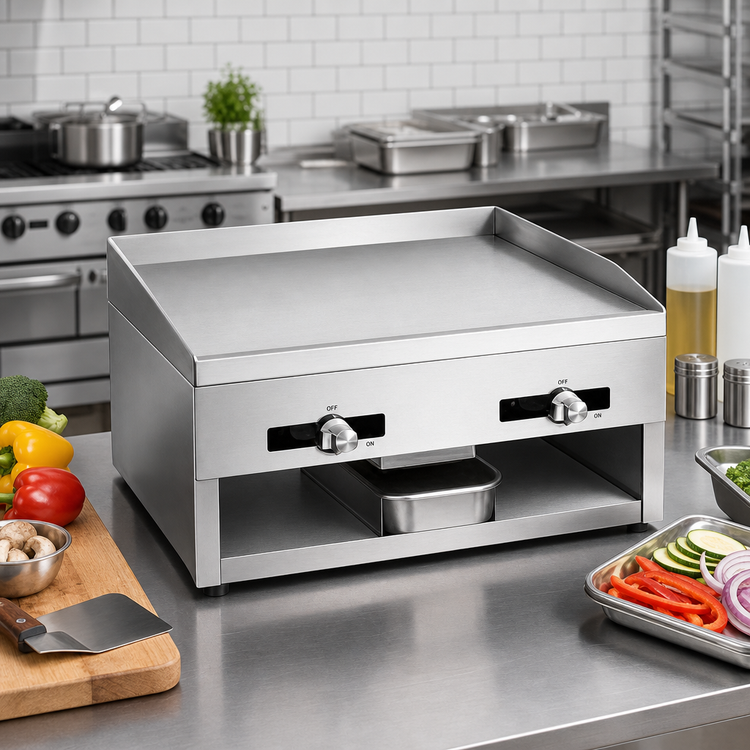

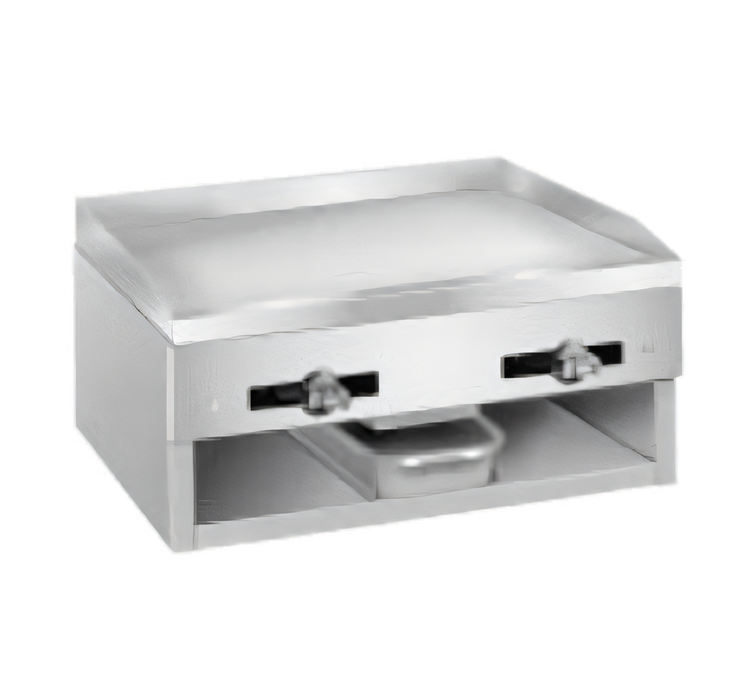

Comstock-Castle 20" Thermostatic Countertop Gas Griddle – 24,000 BTU

Model 10T20 | NSF & ETL Listed

Engineered for cafés, concession stands and food-trucks that run a tight line, this 20-inch Comstock-Castle griddle packs heavy-duty output into a space-saving frame. A polished ½" steel plate, precision thermostat and oversized grease drawer make it the go-to solution for all-day eggs, burgers and quesadillas without the mess.

Key Features

  • Compact 20" wide frame—perfect for crowded cooklines and mobile kitchens.

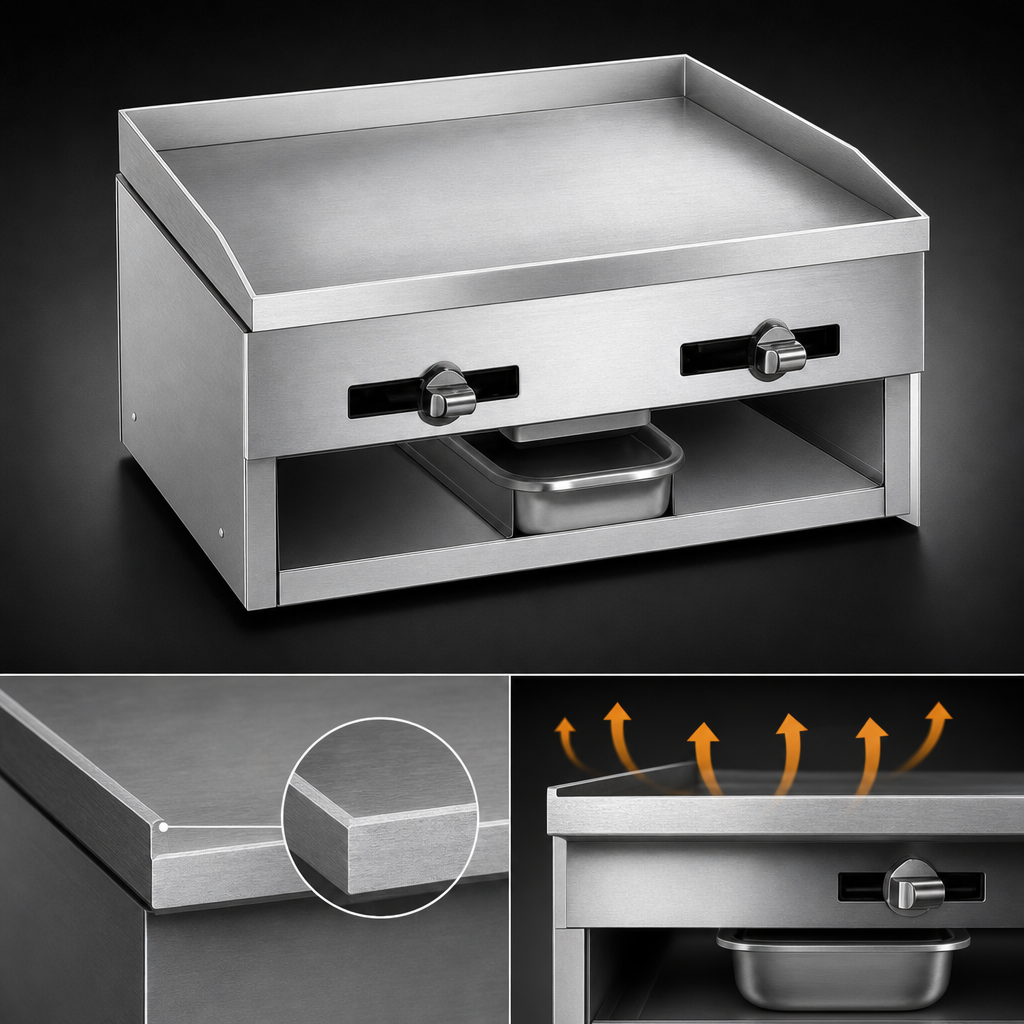

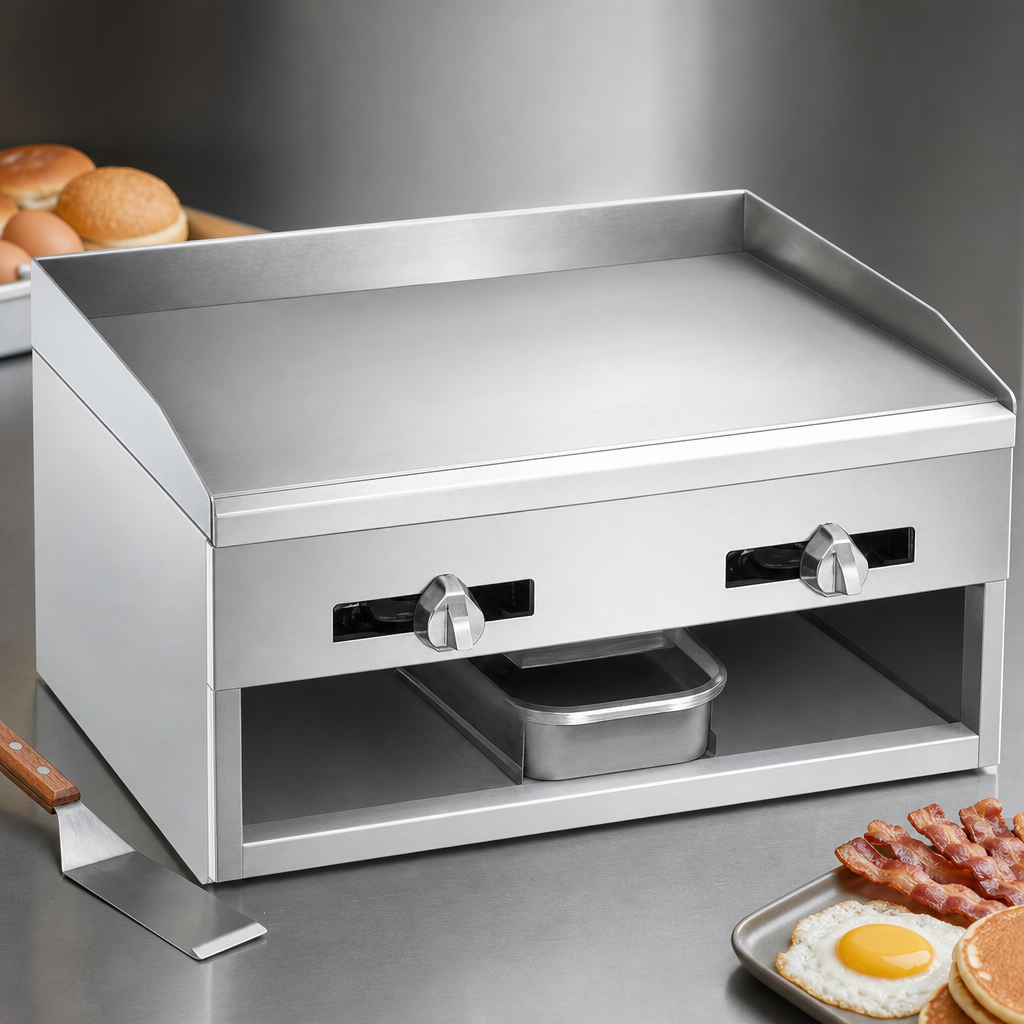

  • Highly polished ½" thick steel plate (20" W × 16" D) delivers fast recovery and minimizes sticking.
  • Single thermostat control (approx. 150-450 °F) for set-and-forget temperature accuracy.
  • Two cast-iron “H” burners at 12,000 BTU each (24,000 BTU total) spread heat evenly across the plate.
  • Front cold-zone grease trough feeds a large, seamless removable drawer—no tools needed for clean-out.
  • 2" high stainless splash guard contains spatters on three sides.
  • Rugged welded construction: stainless steel front & sides, aluminized steel back panel.
  • ¾" rear NPT gas connection with factory-set pressure regulator (4" WC NG / 10" WC LP).
  • Zero-clearance to non-combustible surfaces; only 6" clearance needed for combustibles.
  • NSF sanitation & ETL gas safety certifications—made in the USA.

Specifications

Cooking surface (W × D) 20" × 16"  (508 mm × 406 mm)
Plate thickness ½" (13 mm) polished steel
Controls 1 thermostatic dial, standing pilot ignition
Burners 2 cast-iron “H” burners
Total BTU 24,000 BTU/hr
Gas connection ¾" NPT (rear)  |  Regulator included
Overall dimensions (W × D × H) 20" × 22.5" × 10"  (508 × 572 × 254 mm) incl. splash
Shipping weight Approx. 100 lb (45 kg)
Certifications NSF, ETL Sanitation & ETL US/Canada
Warranty 1 year parts & labor (commercial use)
Looking for a matching charbroiler or hot plate? The 10 Series is designed to line up flush for a seamless cookline.
Installation notice: To keep your warranty intact, have a licensed gas technician install and pressure-test the unit with a manometer.

Features & Specs

Manufacturer

Comstock-Castle

Certifications

NSF

Height

12.0in

Width

20.0in

Depth

20.0in

Shipping Weight

100.0lbs

Griddle Plate Finish

smooth steel

Cooking Surface Depth (front - back)

15" - 19"

Plate Thickness

1/2"

Cooking Surface Width (side - side)

19" - 24"

Controls

thermostat / solid state controls

Exterior Finish

stainless steel front & sides

Specifications

Griddle, 20" deep frame, countertop, gas, 20" wide x 16" deep x 1/2" thick griddle plate, (1) thermostat control, large removable grease drawer, stainless steel front & sides, 24,000 BTU, NSF
