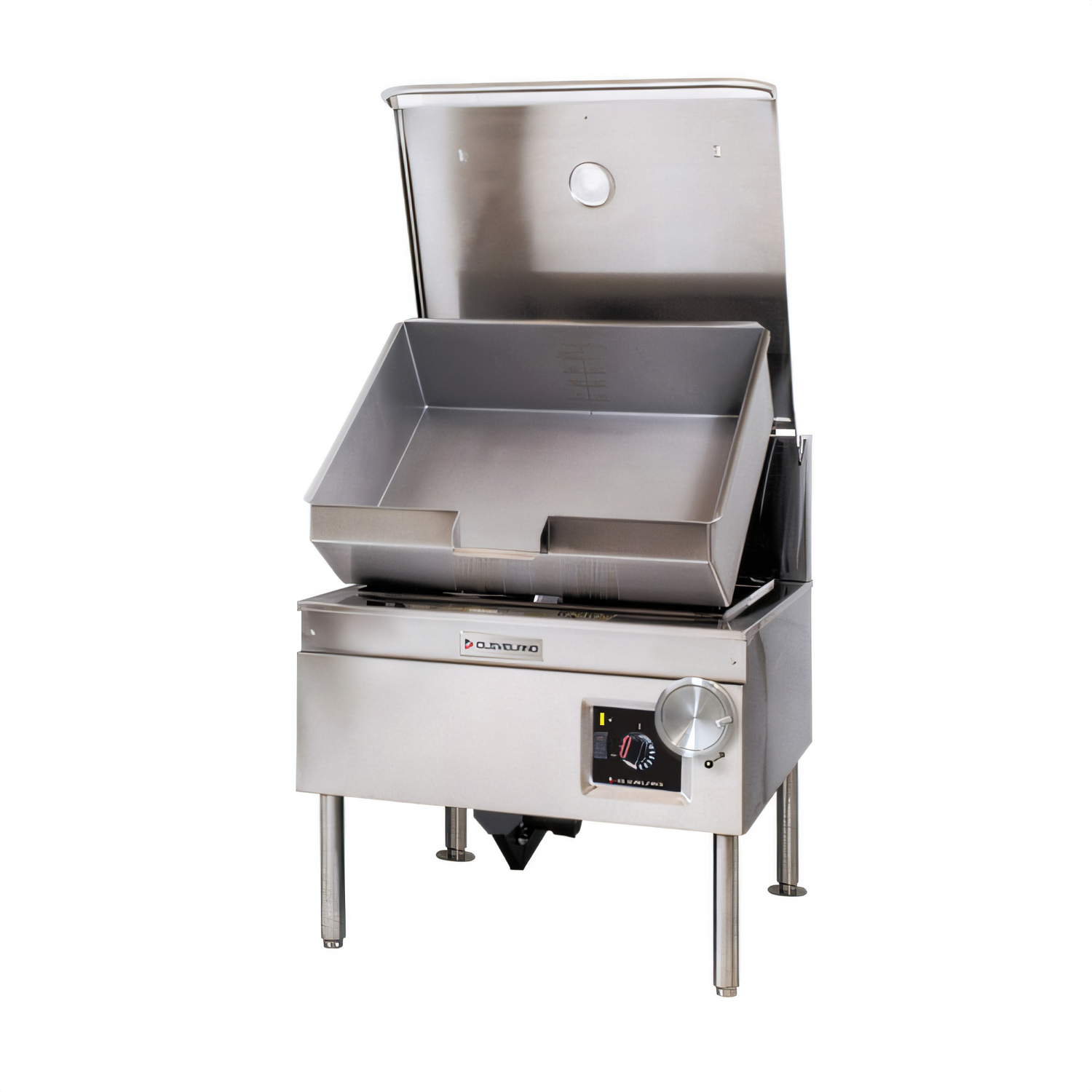

Cleveland DuraPan™ 30-Gallon Gas Tilting Skillet – Model SGL-30-TR
Hydraulic Hand Tilt • 91,000 BTU • IPX6 RatedThe DuraPan™ SGL-30-TR puts 30 gallons of high-performance cooking capacity into a compact, open-base footprint. From searing and braising to steaming, holding, and pan frying, this versatile braising pan delivers the speed, consistency, and durability today’s high-volume kitchens demand.
Why Operators Choose DuraPan™
- Full 30-gal (115 L) capacity turns out up to 960 four-ounce servings in one batch.
- 91,000 BTU high-efficiency burner array and 5/8" stainless-steel clad cooking surface distribute heat evenly and are guaranteed against warping.
- Rapid performance: preheats in 11 minutes and brings a full kettle from cold to boil in about 60 minutes.

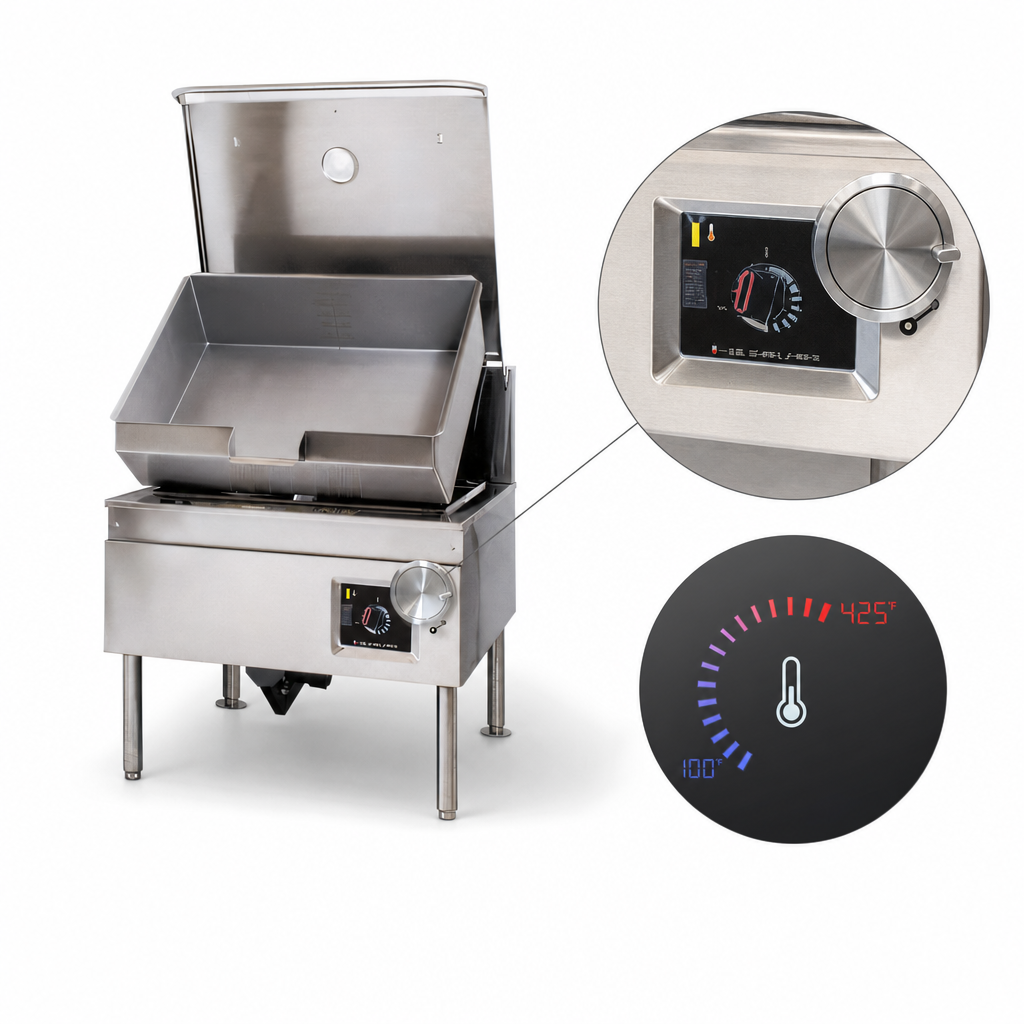

- Electronic thermostat (100 – 425 °F) with electronic spark ignition for precise, reliable control—no standing pilot.

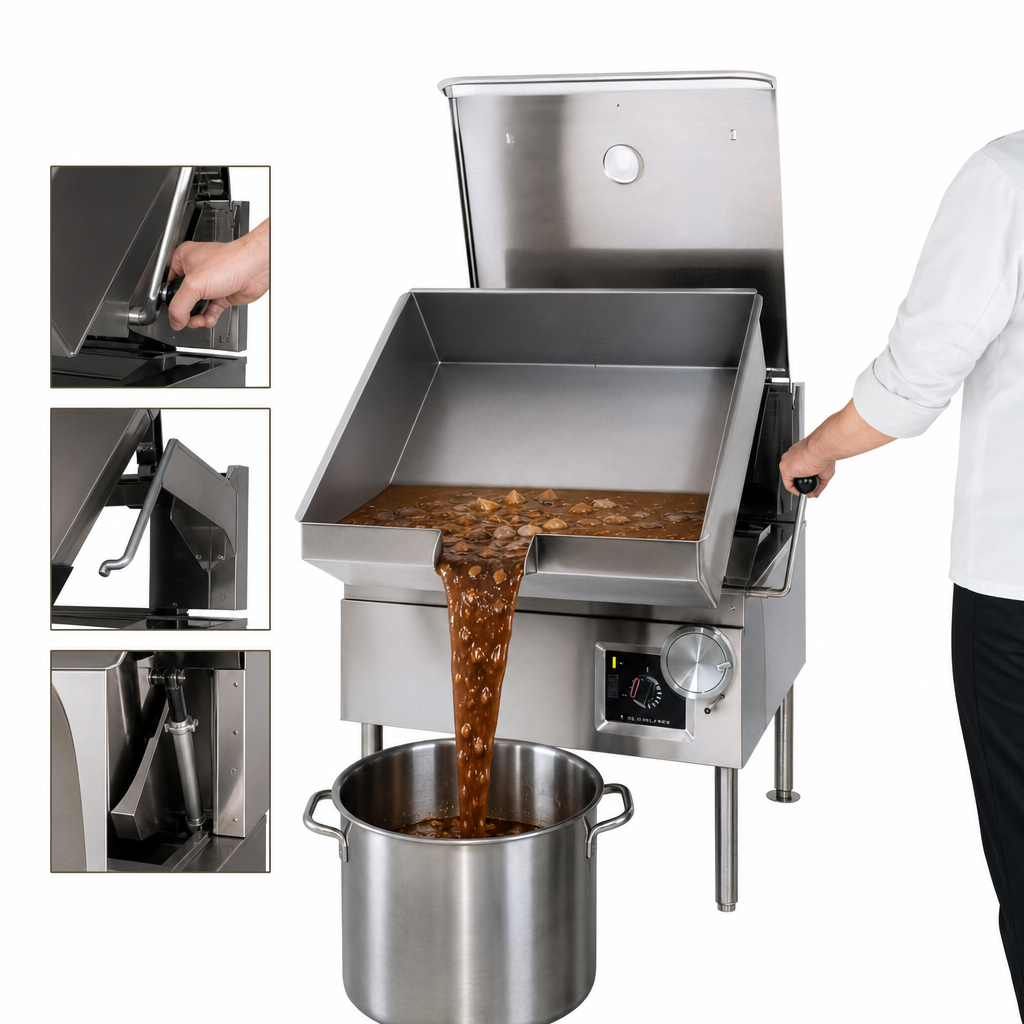

- Hydraulic hand tilt with quick-lowering feature allows smooth, single-operator pouring.
- Spring-assisted stainless-steel cover with adjustable vent retains moisture or encourages reduction on demand.
- Sanitary, coved-corner pan with embossed gallon & litre markings speeds portioning and clean-up.
- Meets IPX6 water-jet standards and is CE and NSF listed for worry-free compliance.
At-a-Glance Specifications
| Model | SGL-30-TR |
|---|---|
| Capacity | 30 gal / 115 L |
| Heat Input | 91,000 BTU/hr (Natural or LP) |
| Temperature Range | 100 – 425 °F (38 – 218 °C) |
| Ignition | Electronic spark (ESS) |
| Tilt Mechanism | Hydraulic hand crank with quick-lowering |
| Cooking Surface | 5/8" stainless-steel clad, anti-warp |
| Gas Connection | 3/4" NPT, 4.5" W.C. NAT / 10.5" W.C. LP |
| Electrical | 120 V, 1 ph, 1.8 A (6 ft cord & plug included) |
| Exterior Dimensions* | 36" W × 32" D × 28" H to pan lip |
| Shipping Weight | Approx. 504 lb (229 kg) |
| Certifications | IPX6 • CE • NSF • AGA/CSA |
| Warranty | 1-year parts & labor with free factory-authorized start-up |
*Shipping crate: 44" W × 44" D × 54" H.
What’s Included
- Spring-assisted stainless-steel cover with adjustable vent and full-width handle
- Four stainless-steel, level-adjustable legs (rear flanged for bolting)
- Embossed gallon & litre markings inside the pan
- Anti-splash pouring lip
- Operator’s manual & start-up voucher
Factory Options & Accessories
- Sliding drain drawer with splash screen (SLD)
- Power tilt with hand-tilt override (PT1)
- Single or double pantry faucets (SPS14 / DPS14) with mounting bracket
- 60" skillet spray/fill hose (SKF-S or DKF-S)
- 2" tangent draw-off valve, left side (TD2)
- Food strainers, vegetable steamers, poaching pans & carriers
- Export voltage kit 220/240 V, 50 Hz (VOSK4)
Installation Note: This gas-fired skillet must be placed under a code-compliant ventilation hood with adequate make-up air. Allow 4 ½" clearance on the right side for optional faucet installation and 6" clearance at the rear from combustible surfaces.
Looking for more capacity? A 40-gallon DuraPan™ model is also available.
$25,560.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Cleveland Range DuraPan 30-gal gas tilting skillet — 91,000 BTU, stainless steel, hydraulic tilt, spring cover, electronic ignition, NSF certified.
Manufacturer
Cleveland Range
Brand name
DuraPan
Certifications
NSF, CE, IPX6
Height
42.0in
Width
36.0in
Depth
40.0in
Shipping Weight
504.0lbs
Tilt
manual tilt
Capacity
30 - 39 gal
Base
modular open
Specifications
DuraPan™ Tilting Skillet, gas, 30-gallon capacity, modular open base, standard with hydraulic hand tilt with quick lowering feature, stainless steel construction, includes spring-assisted cover, gallon markings and electronic spark ignition, stainless steel level adjustable feet, 91,000 BTU, IPX6, CE, NSF
