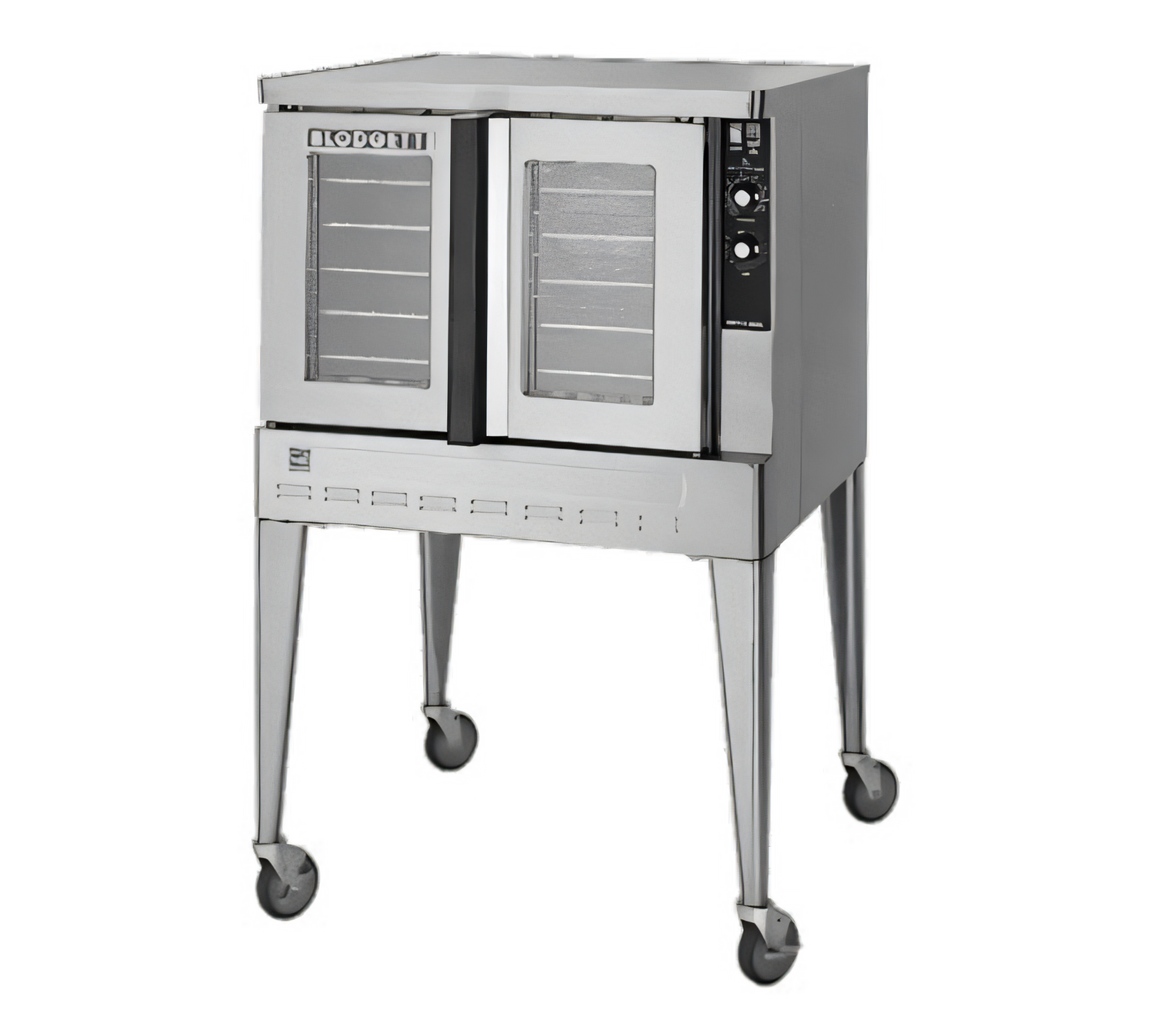

Blodgett (Middleby) ZEPH-200-G SGL Zephaire Series Convection Ovens
Blodgett (Middleby) ZEPH-200-G SGL Zephaire Series Convection Ovens is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Blodgett (Middleby) ZEPH-200-G SGL Zephaire Series Convection Ovens
Description
Blodgett Zephaire-200-G Gas Convection Oven
Full-Size • Bakery Depth • Single DeckDesigned for high-volume bakeries, restaurants and institutions, the Zephaire-200-G delivers the legendary reliability of Blodgett with the performance you need to turn out perfectly baked breads, pastries, roasts and more -- every single shift.
Key Advantages

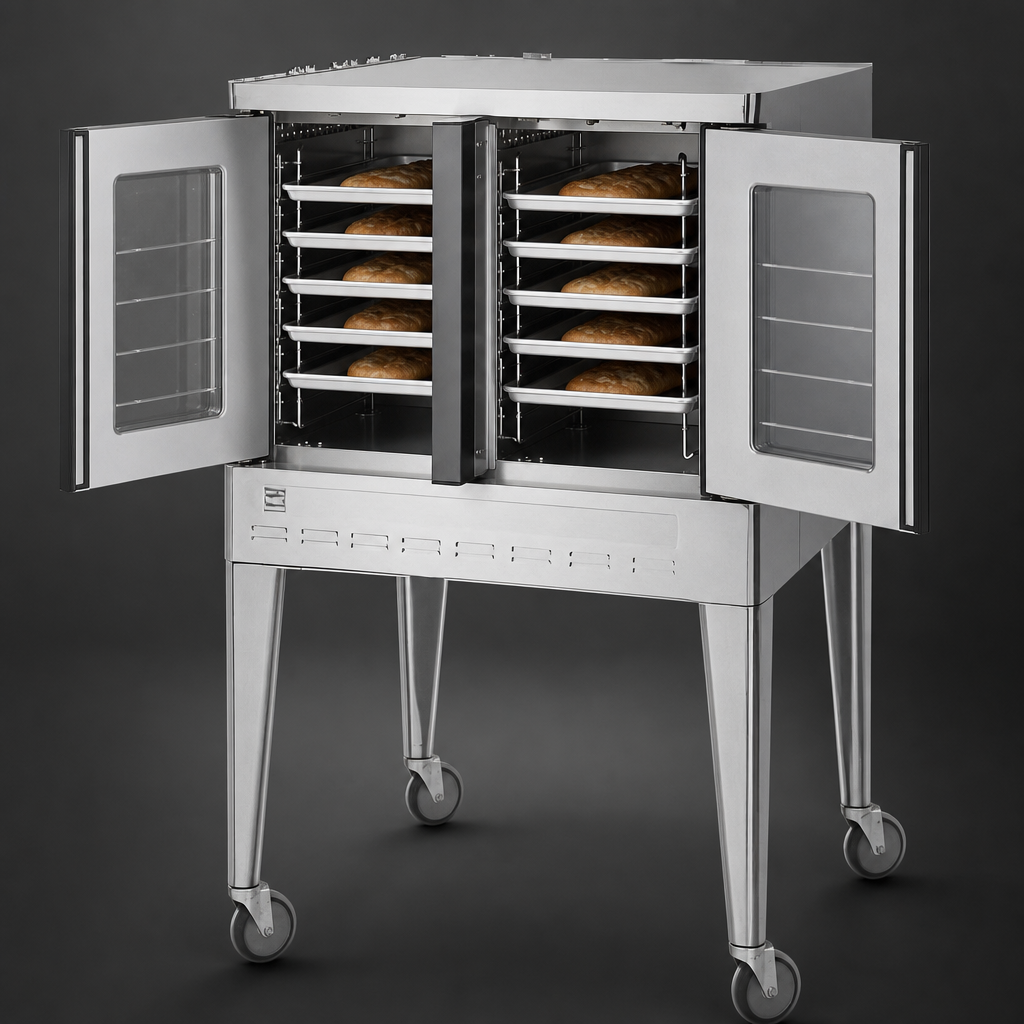

- Bakery-depth cavity accepts five 18" × 26" pans left-to-right or front-to-back.

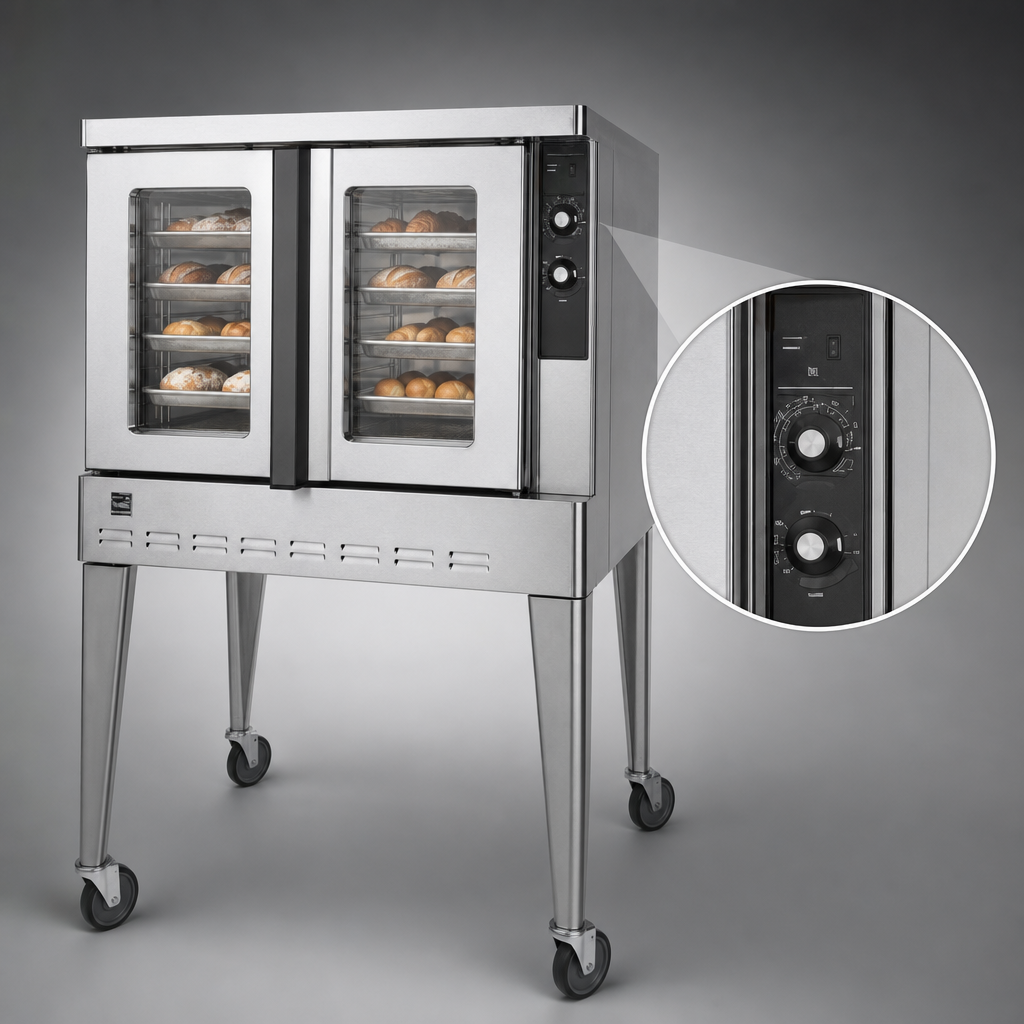

- SSI-M solid state infinite controls with separate thermostat (200-500 °F) & 60-min manual timer.
- Dual-pane glass dependent doors open together with a single, cool-touch handle for quick loading.
- Dual Flow Gas system combines direct + indirect heat for even baking edge-to-edge.
- Two-speed, ½ HP fan and dual-inlet blower wheel keep airflow consistent with delicate or dense items.
- All-stainless exterior and double-sided porcelainized interior liner for unmatched durability and easy clean-up.
- Factory-installed interior lights and five chrome racks (11 positions at 1 5⁄8" spacing).
- 60,000 BTU input with electronic spark ignition; 115 V cord and plug included for the blower motor.
- ETL, CE & NSF certified for worldwide compliance.
Built to Work as Hard as You Do
- Full angle-iron frame resists twisting during daily use and transport.
- Triple-mounted, pressure-lock door design with turnbuckle keeps heat inside the cavity.
- Solid mineral-fiber insulation on all sides maximizes fuel efficiency.
- Removable dual-tube burners and front-access control panel streamline service.
- 25" adjustable stainless steel legs supplied as standard for single-deck installations.
At-a-Glance Specifications
| Capacity | 5 full-size (18" × 26") pans |
|---|---|
| Controls | SSI-M solid state thermostat 200-500 °F / 60-min timer / Cook/Cool mode selector |
| Heat Input | 60,000 BTU/hr (Natural or LP) |
| Fan & Motor | 2-speed, ½ HP with automatic thermal overload protection |
| Interior (WxHxD) | 29" × 20" × 28 ¼" (737 × 508 × 718 mm) |
| Exterior (WxDxH) | 38 ¼" × 36 ⅞" × 57"* (972 × 937 × 1448 mm) *add 12 ¾" for draft diverter |
| Gas Connection | ¾" NPT; NG 7-10.5" W.C. / LP 10.5-13" W.C. |
| Electrical | 115 VAC, 1 ph, 6 A, 60 Hz (cord & NEMA 5-15P plug) |
| Clearances | 6" sides & rear from combustible construction |
| Shipping Weight | Approx. 617 lb (280 kg) |
| Certifications | ETL Sanitation (NSF), ETL, CE |
Popular Factory Options
- 6" seismic or swivel casters for mobility.
- Solid stainless doors.
- Low-profile (4") casters for mobile carts.
- 25" or 29" stainless stands with rack guides.
- SSD digital control package with LED display, Cook & Hold and Pulse Plus® modes.
- Extra oven racks, quick-disconnect gas hose, and extended labor warranty.
Peace-of-Mind Warranty
2-year parts & labor coverage, plus a 3-year limited door warranty -- backed by Blodgett’s worldwide service network.
For commercial use only. Specifications subject to change without notice.
