Blodgett (Middleby) ZEPH-200-G-ES SGL Zephaire Series Convection Ovens
Description
Blodgett Zephaire-200-G-ES Bakery-Depth Gas Convection Oven
Single-Deck | 50,000 BTU | ENERGY STAR®Designed for high-volume bakeries, cafés and commercial kitchens, the Zephaire-200-G-ES delivers rapid, even heat in a compact single-deck footprint. Load up to five full-size sheet pans, set your temperature with straightforward solid-state controls, and let the two-speed fan blanket every rack with consistent convection power—all while cutting operating costs thanks to ENERGY STAR® efficiency.
Performance You Can Taste

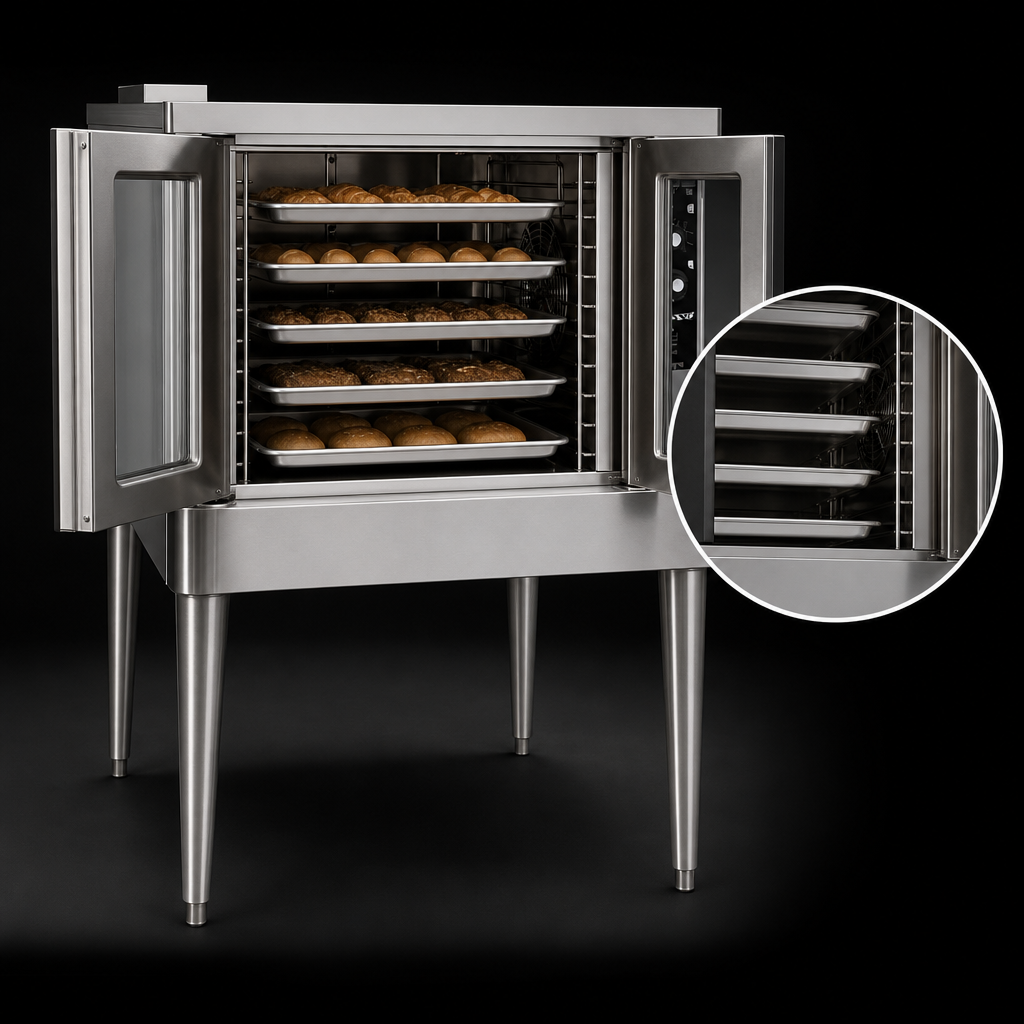

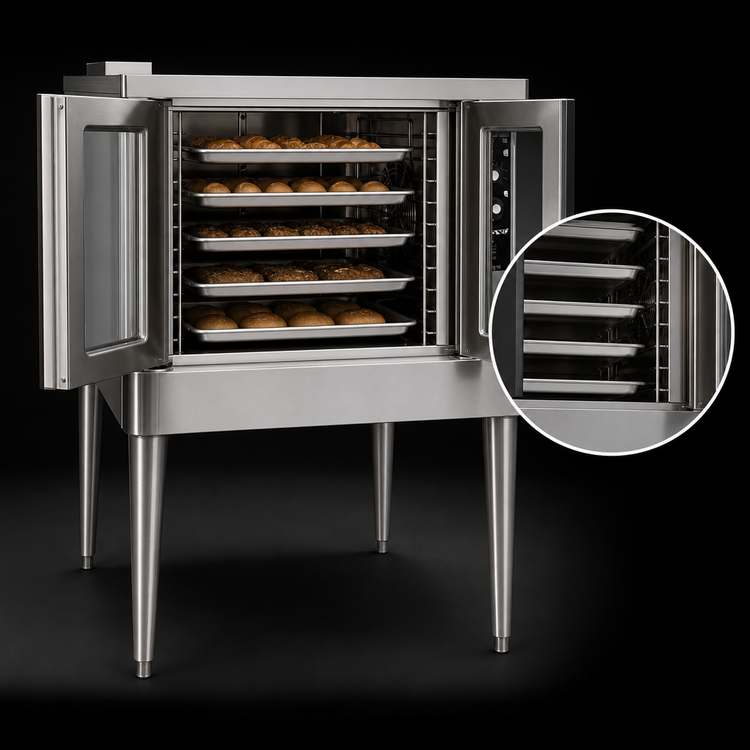

- Bakery-depth cavity holds (5) 18" × 26" pans in either direction.
- 50,000 BTU direct-fired gas system with electronic spark ignition for fast recovery and lower utility bills.

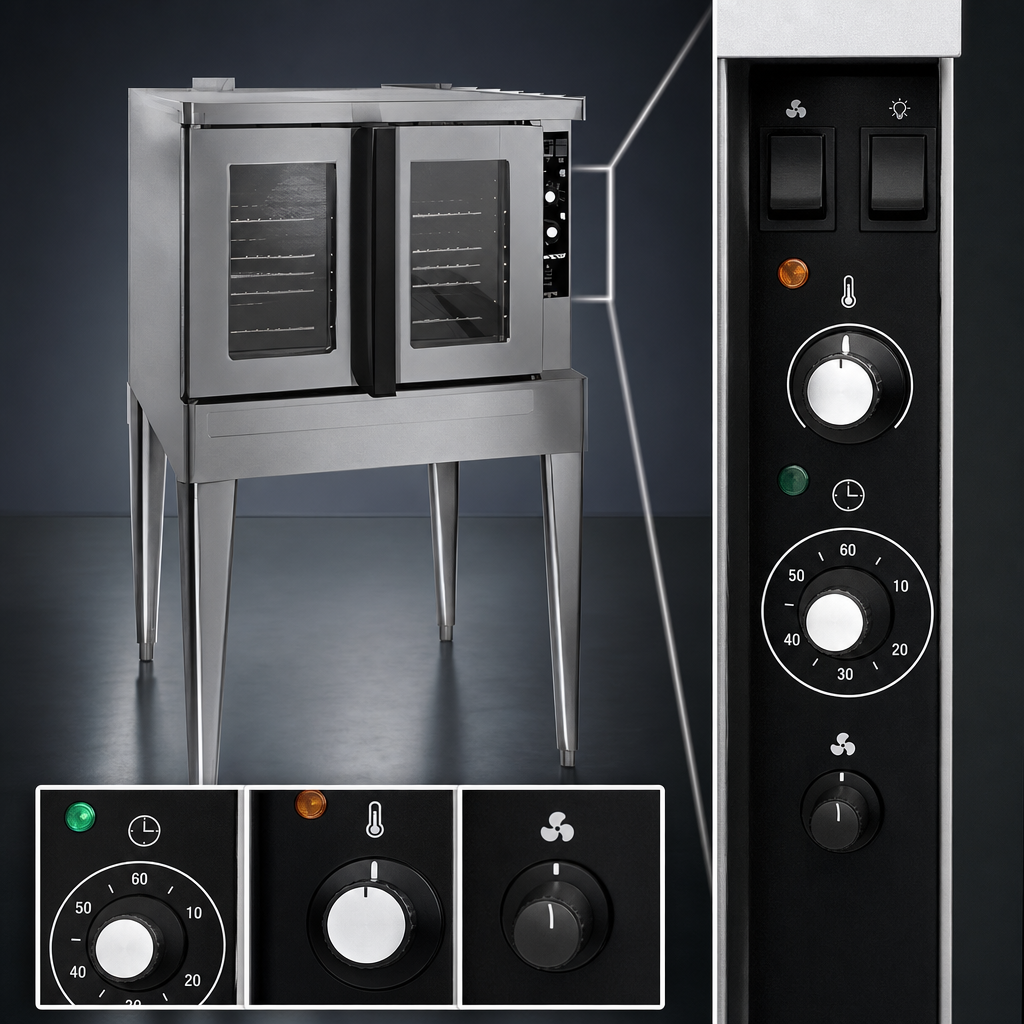

- SSI-M solid-state infinite controls with separate thermostat (200–500 °F) and 60-minute manual timer.
- Two-speed, 3/4 HP fan motor distributes heat evenly for perfect crusts and delicate pastries alike.
- Dual-pane thermal glass dependent doors open together for one-handed loading and a crystal-clear view.
- Bright halogen lighting, 11 rack positions and 5 chrome-plated racks maximize production flexibility.
Built for the Long Haul
- Stainless steel front, sides and top with a full angle-iron frame.
- Double-sided porcelainized liner and 2" of insulation lock in heat and simplify cleaning.
- Triple-mounted, pressure-lock doors with turnbuckle assembly for a lifetime of smooth operation.
- Slide-out control panel and front gas shut-off speed maintenance and service calls.
- Backed by a 2-year parts & labor warranty and a 3-year limited door warranty.
Specifications
| Pan Capacity | (5) full-size 18" × 26" pans |
|---|---|
| Control System | SSI-M solid-state infinite controls & 60-min timer |
| Temperature Range | 200 °F – 500 °F (93 °C – 260 °C) |
| Input Rate | 50,000 BTU/hr (14.6 kW) |
| Gas Connection | 3/4" NPT • NG 7–10.5" W.C. • LP 11–13" W.C. |
| Electrical | 115 V, 1 ph, 60 Hz, 8 A (6' cord & plug included) |
| Fan Motor | 3/4 HP, two-speed (1120 & 1680 RPM) |
| Oven Interior (W×H×D) | 29" × 20" × 28-1/4" (737 × 508 × 718 mm) |
| Overall (W×D×H) | 38-1/4" × 36-7/8" × 70-5/8"* (972 × 937 × 1794 mm) *Height with 25" legs and draft hood. |
| Shipping Weight | Approx. 590 lb (268 kg) |
| Certifications | cETLus, CE, NSF, ENERGY STAR® |
What’s Included
- (5) chrome-plated racks
- (25") adjustable stainless steel legs
- Interior halogen lights
- Operator’s manual
Popular Factory Options
- 6" seismic legs or heavy-duty casters
- Stainless steel open stand with pan supports
- Extra oven racks
- Solid stainless steel doors
- Quick-disconnect gas hose with restraining device
Need professional commissioning? Ask about Blodgett’s Factory Start-Up service for worry-free installation.
Spread out your investment with Middleby Equipment Financing—fast approvals and flexible terms available.
