Blodgett (Middleby) ZEPH-200-E SGL Zephaire Series Convection Ovens
Description
Blodgett Zephaire-200-E Electric Convection Oven
Single Deck • Full-Size Bakery Depth • Ships in 5 DaysBuilt for high-volume bakeries, restaurants and institutions, the Zephaire-200-E delivers legendary Blodgett reliability with ENERGY STAR® efficiency. A rugged angle-iron frame, stainless steel exterior and porcelainized interior liner stand up to daily abuse, while the two-speed fan and three tubular heaters blanket every rack with even heat for flawless results on breads, pastries, roasts and more.
Key Performance Benefits

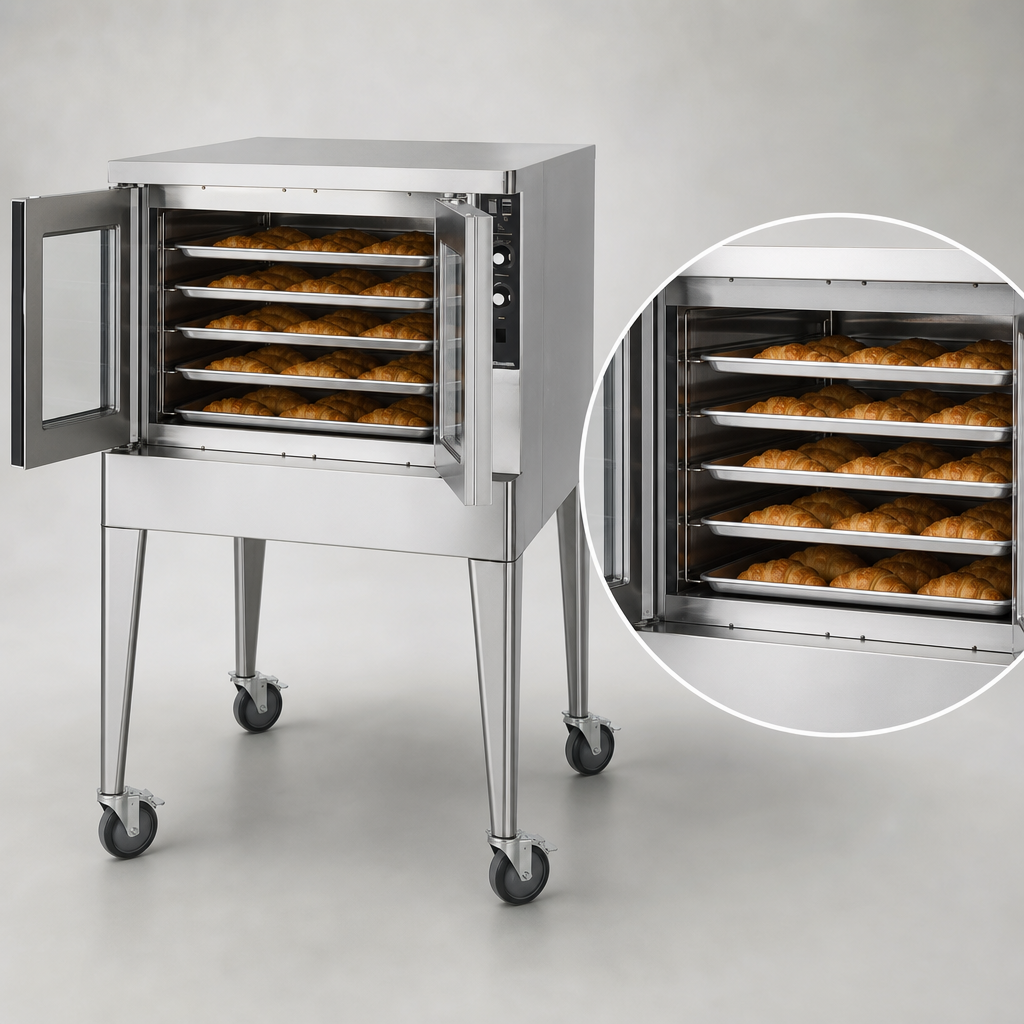

- Bakery-depth cavity fits five 18" x 26" full-size sheet pans in either direction.

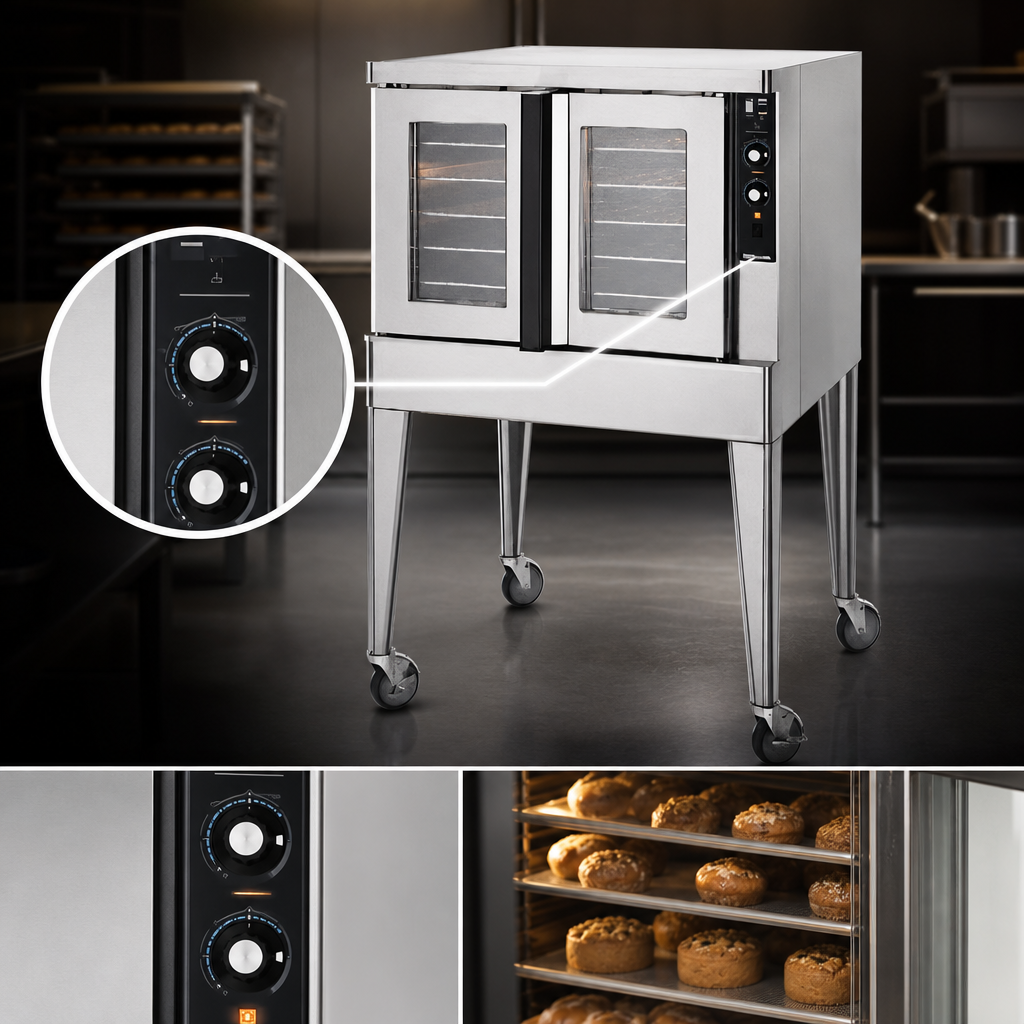

- SSI-M solid-state infinite controls with separate thermostat (200-500 °F) and 60-minute manual timer.
- Two-speed, ½ HP blower motor and aluminized blower wheel for rapid, even heat distribution.
- Dual-pane thermal glass doors open together with a single, powder-coated handle for quick loading.
- Five chrome racks standard; 11 positions spaced at 1-5/8" (41 mm) for maximum flexibility.
- Interior halogen lighting and windowed doors let you check progress without dropping temperature.
- ENERGY STAR® qualified—cut operating costs without sacrificing bake quality.
Built to Last
- Full angle-iron frame resists warping and twisting.
- Stainless steel front, sides and top with solid mineral-fiber insulation on all sides.
- Double-sided 14-gauge porcelainized liner wipes clean fast.
- Removable front control panel and control-area cooling fan for easier service.
- 25" adjustable stainless steel legs included.
Specifications
| Model | Zephaire-200-E (single deck) |
|---|---|
| Capacity | 5 full-size (18" × 26") sheet pans |
| Controls | SSI-M solid-state infinite; 60 min manual timer |
| Temperature Range | 200 °F – 500 °F (93 °C – 260 °C) |
| Fan Speeds | 2 (cool-down mode selectable) |
| Heat Source | Three tubular heaters, 11 kW total |
| Electrical (selectable) |
208 V / 60 Hz / 1 ph – 51 A 208 V / 60 Hz / 3 ph – 31/29/29 A 220/240 V / 60 Hz / 1 ph – 44 A 220/240 V / 60 Hz / 3 ph – 26/24/24 A 440 V / 60 Hz / 3 ph – 15/14/14 A 480 V / 60 Hz / 3 ph – 14/13/13 A |
| Exterior Dimensions (W × D × H) | 38-1/4" × 36-7/8" × 57" (972 mm × 936 mm × 1 448 mm) on 25" legs |
| Interior Dimensions (W × H × D) | 29" × 20" × 28-1/4" (737 mm × 508 mm × 718 mm) |
| Shipping Weight | Approx. 545 lb (247 kg) |
| Clearance | ½" (13 mm) sides & back — combustible or non-combustible |
| Certifications | ETL, NSF, CE, ENERGY STAR® |
Peace-of-Mind Coverage
- 2-year parts & labor warranty.
- 3-year limited door warranty.
- Optional factory start-up available for smooth commissioning.
Popular Options & Accessories (add-on)
- Hoodini VLF ventless hood – zero overhead clearance required.
- 25" open stand with rack guides or 29" fully welded stand.
- 6" seismic legs, 6"/4" casters or low-profile casters.
- SSD digital control with LED display, Cook & Hold and Pulse Plus®.
- Solid stainless steel doors, extra oven racks, vent connector & 480 V power configuration.
- Extended warranty and Middleby equipment financing.
Lead Time: Standard configuration ships within 5 business days.
Always verify electrical specifications and local code requirements prior to ordering.
