Blodgett (Middleby)  |  Zephaire Series  |  SKU: ZEPH-200-E BASE

Blodgett (Middleby) ZEPH-200-E BASE Zephaire Series Convection Ovens

$6,799.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Installation & operation Start up doc French manual Middleby financial flyer Warranty sheet
Related Searches
Convection Ovens Ovens

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

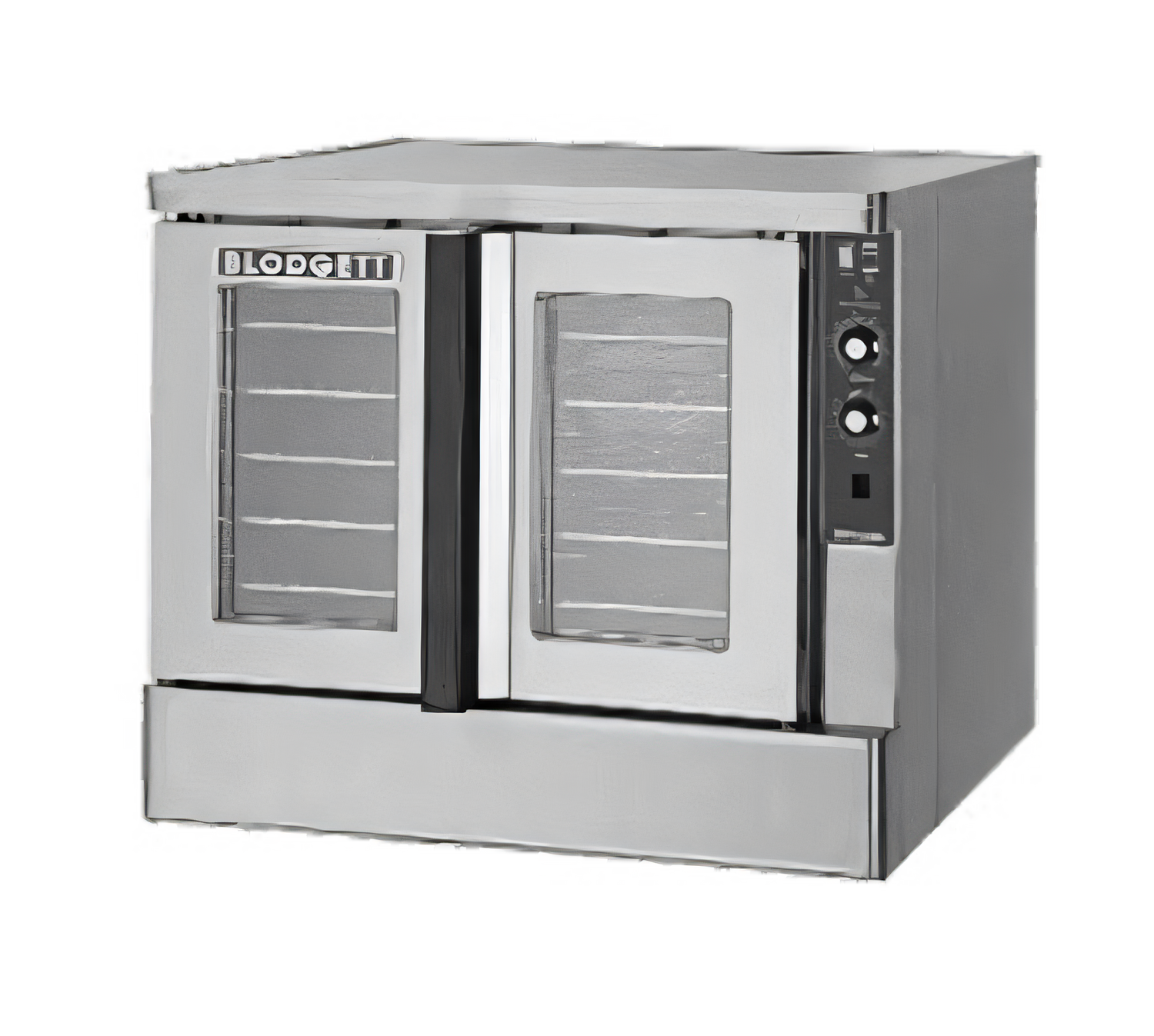

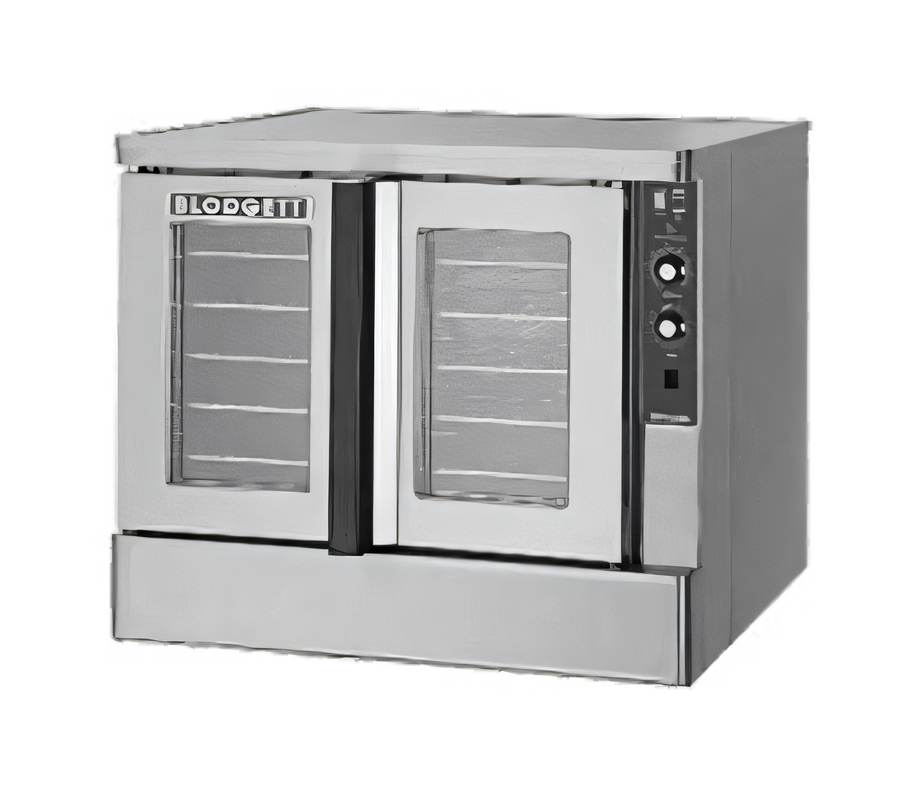

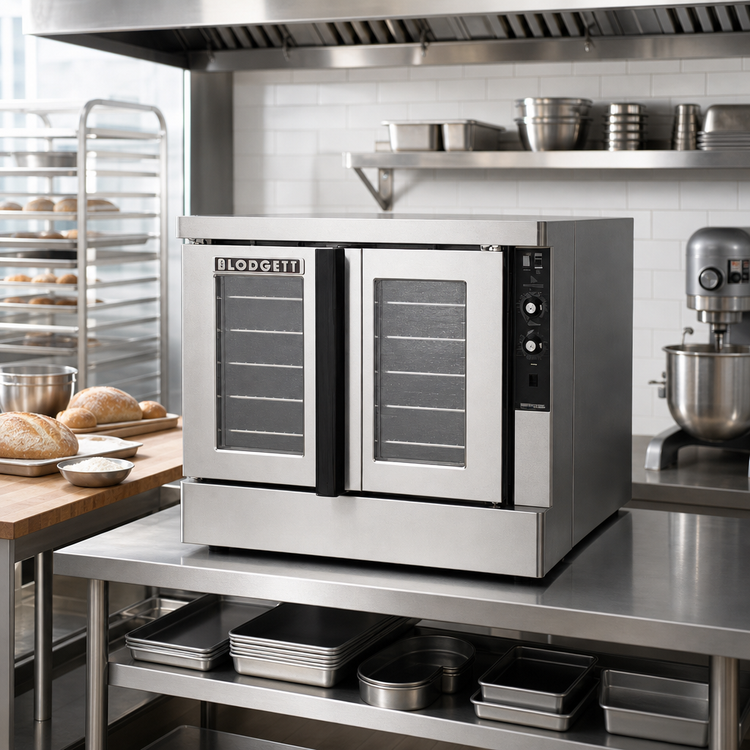

Blodgett Zephaire-200-E Convection Oven

Single-Deck • Electric • Full-Size Bakery Depth

Built for busy bakeries, restaurants and institutional kitchens, the Zephaire-200-E delivers industry-leading performance in a compact, energy-saving footprint. Five full-size sheet pans slide in left-to-right or front-to-back, while Blodgett’s rugged construction and ENERGY STAR® efficiency keep profits rising batch after batch.

Key Performance Features

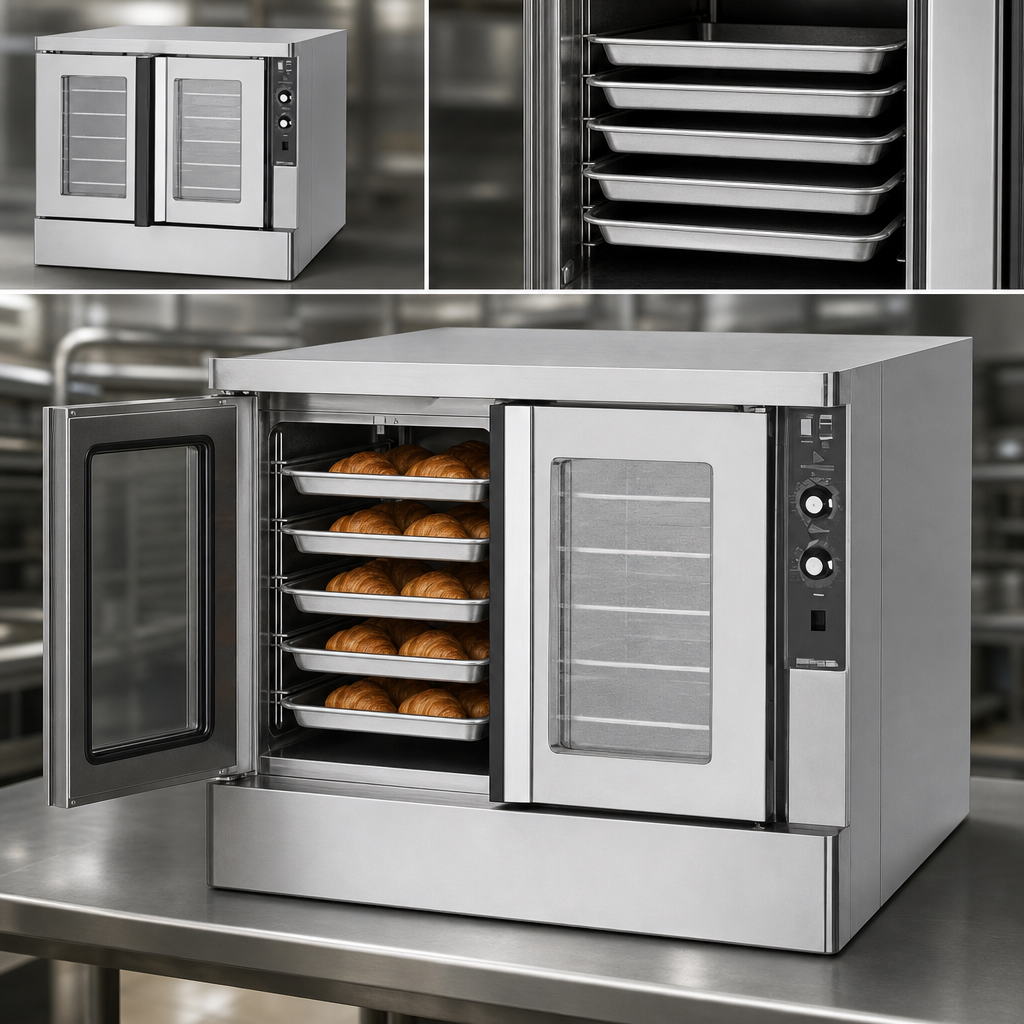

  • Bakery-depth cavity holds (5) 18" × 26" pans on 11 position rack guides (includes 5 chrome racks).

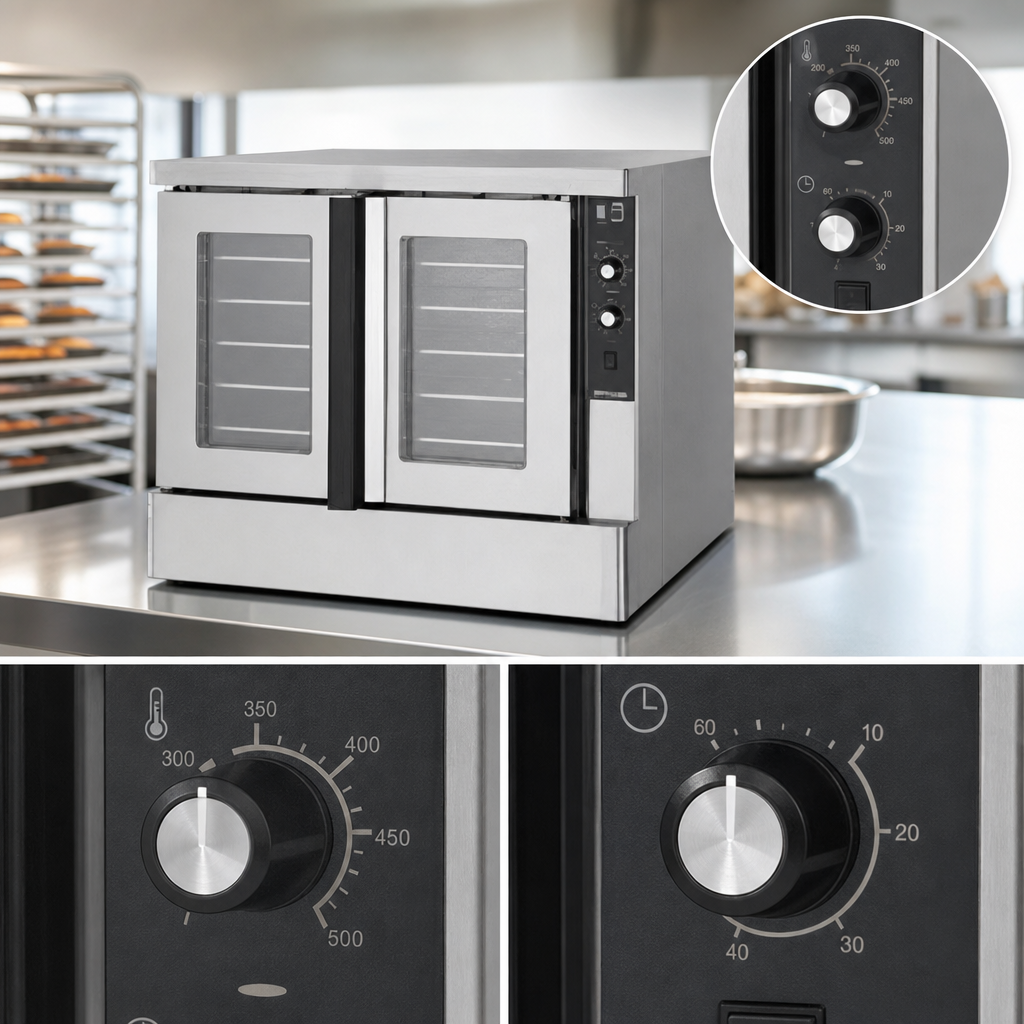

  • SSI-M solid-state infinite controls with separate dials for thermostat (200-500 °F) and 60-minute timer.
  • Two-speed, ½ HP fan and three tubular heaters ensure fast, even heat distribution.
  • Cook / Cool-Down selector protects delicate baked goods and speeds turnover between batches.
  • Dependent glass doors with single, powder-coated handle open simultaneously for one-handed operation.
  • Dual-pane thermal windows and full mineral-fiber insulation lock heat inside—cutting energy costs.
  • Interior lights and recessed control panel increase visibility and operator safety.
  • ENERGY STAR®, ETL, CE & NSF listed for maximum efficiency and code compliance.

Built to Last

  • Full angle-iron frame supports heavy commercial use.
  • Stainless steel front, top & sides resist corrosion and simplify cleaning.
  • 14-gauge double-sided porcelainized liner wipes clean and won’t flake or chip.
  • Triple-mounted pressure-lock door design with turnbuckle assembly minimizes heat loss.

Specifications

Pan Capacity (5) full-size 18" × 26" sheet pans
Interior Dimensions 29" W × 20" H × 28-1/4" D
Overall Footprint 38-1/4" W × 36-7/8" D × 57" H * (with 25" legs)
Electrical 11 kW • 208/220/240/440/480 V available • 1- or 3-phase (see cut-sheet for amperage)
Motor ½ HP, two-speed (1120 & 1710 RPM) with thermal overload protection
Shipping Weight Approx. 545 lb (247 kg)
Clearances ½" (13 mm) sides & rear from combustible or non-combustible construction

*Height decreases by 4-½" when mounted on casters; consult spec sheet for additional configurations.

Included & Optional Accessories

  • Standard: (5) chrome racks, 25" adjustable stainless legs, two interior lights.
  • Optional (extra cost):
    • Stainless open or welded stands
    • 6" seismic legs or casters (standard or low-profile)
    • SSD digital control with LED display, Cook & Hold, Pulse Plus®
    • Ventless hood, vent connector, extra oven racks, 480 V configuration & more

Warranty & Factory Start-Up

  • 2-Year parts & labor warranty
  • 3-Year limited oven door warranty
  • Factory start-up program available—ensure optimal performance from day one (contact Blodgett Service)
Note: This equipment is engineered for commercial use only. Installation must comply with all local codes. Electrical service should be confirmed prior to ordering.

Features & Specs

Manufacturer

Blodgett (Middleby)

Brand_name

Zephaire Series

Certifications

NSF, CE, ETL, ENERGY STAR

Height

32.0in

Width

38.25in

Depth

36.88in

Shipping Weight

545.0lbs

Energy Efficiency

ENERGY STAR®

Size

deep/bakery size

Interior Finish

porcelain interior

Type

standard

Exterior Finish

stainless steel front & sides

Deck Qty

1 deck

Capacity per Compartment

5 pan capacity, per compartment

kW (per deck)

11.0 - 15.99 kW

Base

legs not included

Control Type

solid state controls

Specifications

Zephaire Convection Oven, electric, (base oven only) single-deck, bakery depth, capacity (5) 18" x 26" pans, (SSI-M) solid state infinite controls with 60 min. manual timer, two speed fan, dependent glass doors, interior light, stainless steel front, sides and top, ETL, CE, NSF, ENERGY STAR®
