Description

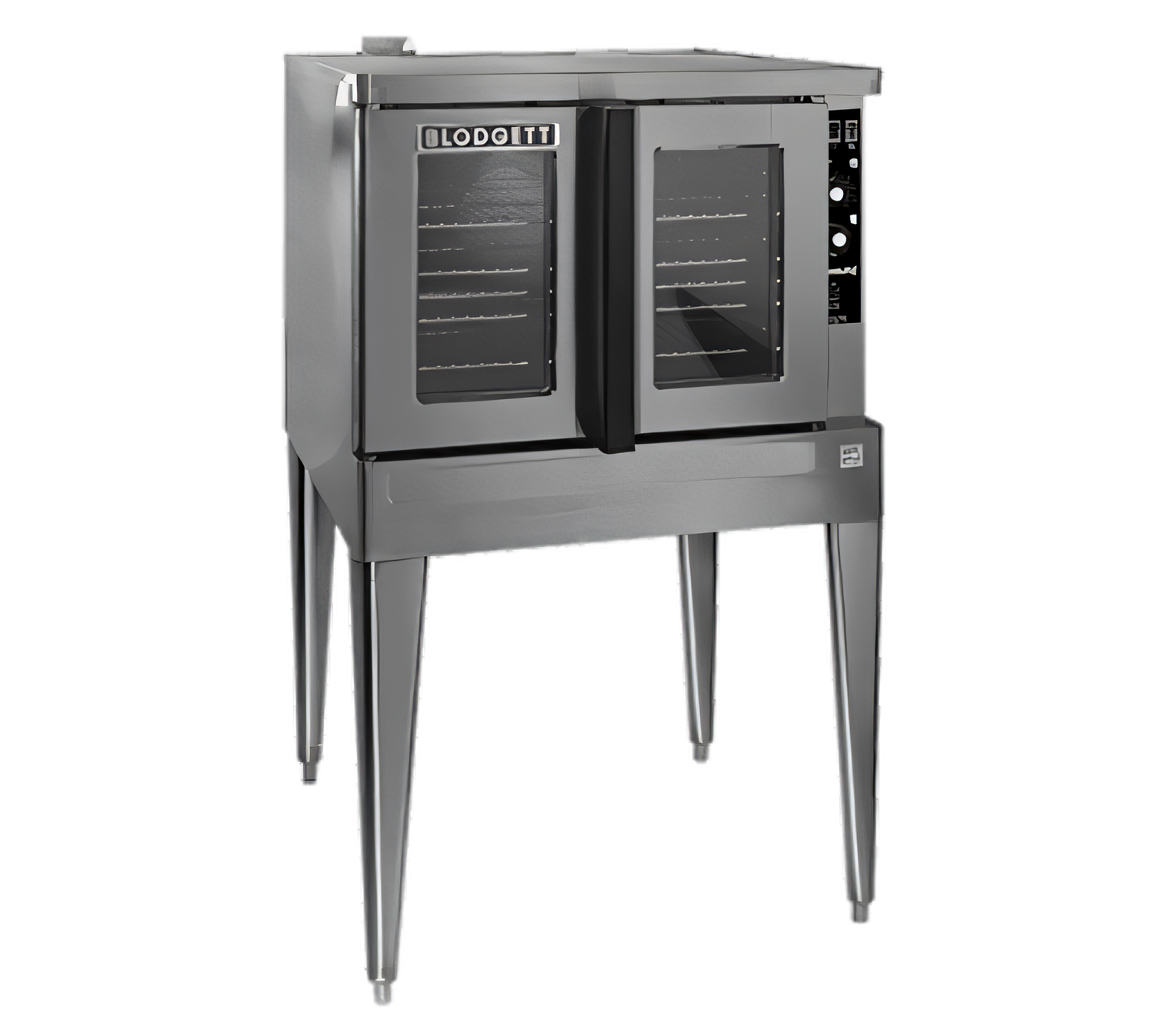

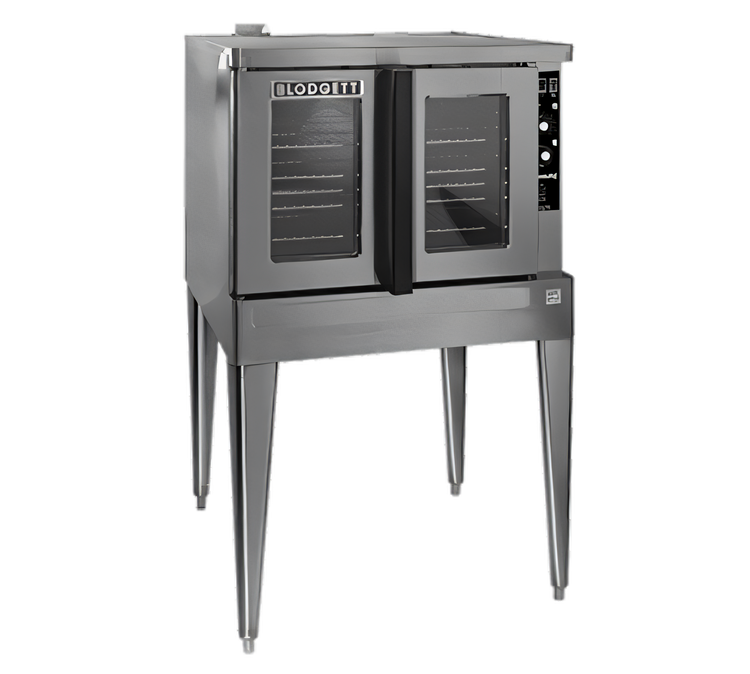

Blodgett Zephaire-100-G-ES Gas Convection Oven – Single Deck, Standard Depth
45,000 BTU • 5 Full-Size Pan Capacity • ENERGY STAR® CertifiedBuilt for high-volume kitchens that demand consistency, the Zephaire Series pairs Blodgett’s legendary durability with exceptional energy efficiency. Whether you’re baking pastries, roasting proteins, or finishing sides, this oven delivers fast, even results every time.
Key Performance Benefits

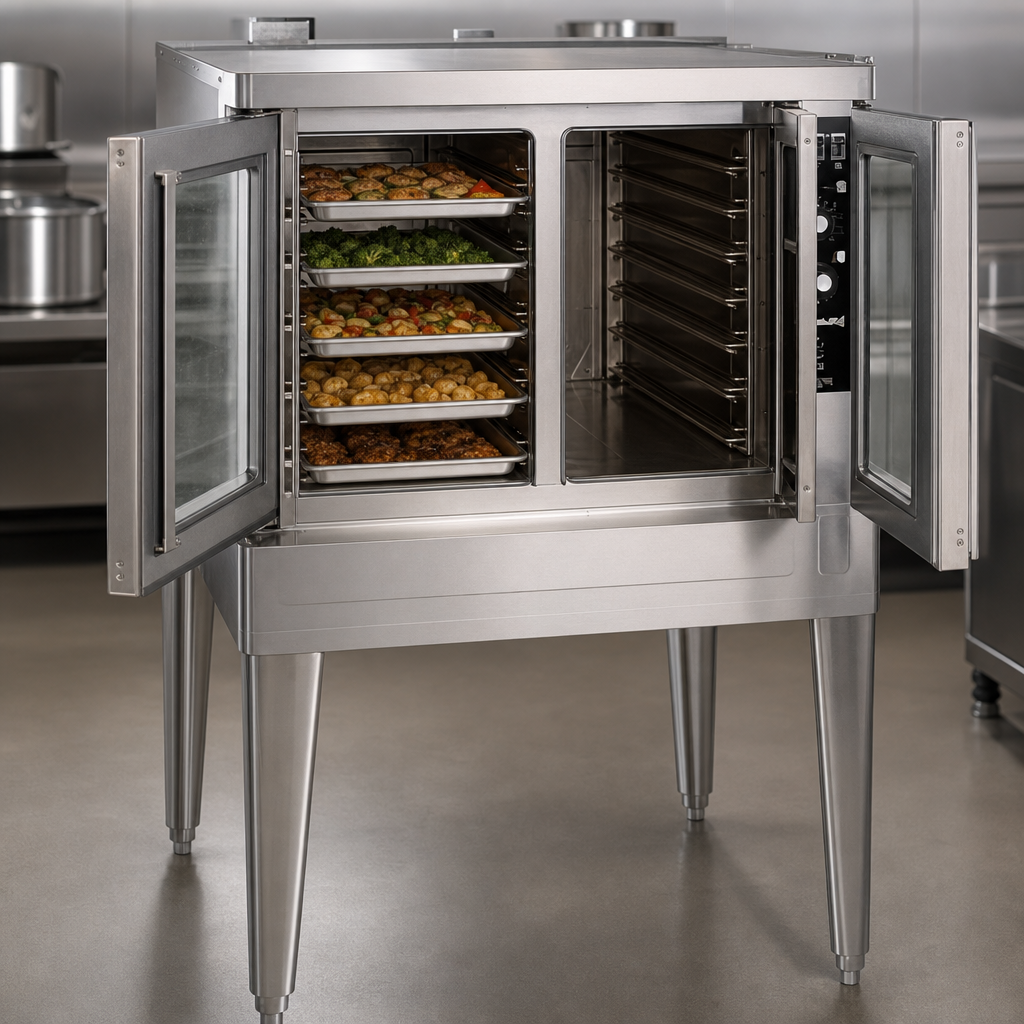

- Handles five 18" × 26" full-size pans on 11 rack positions—maximize production without taking extra space.

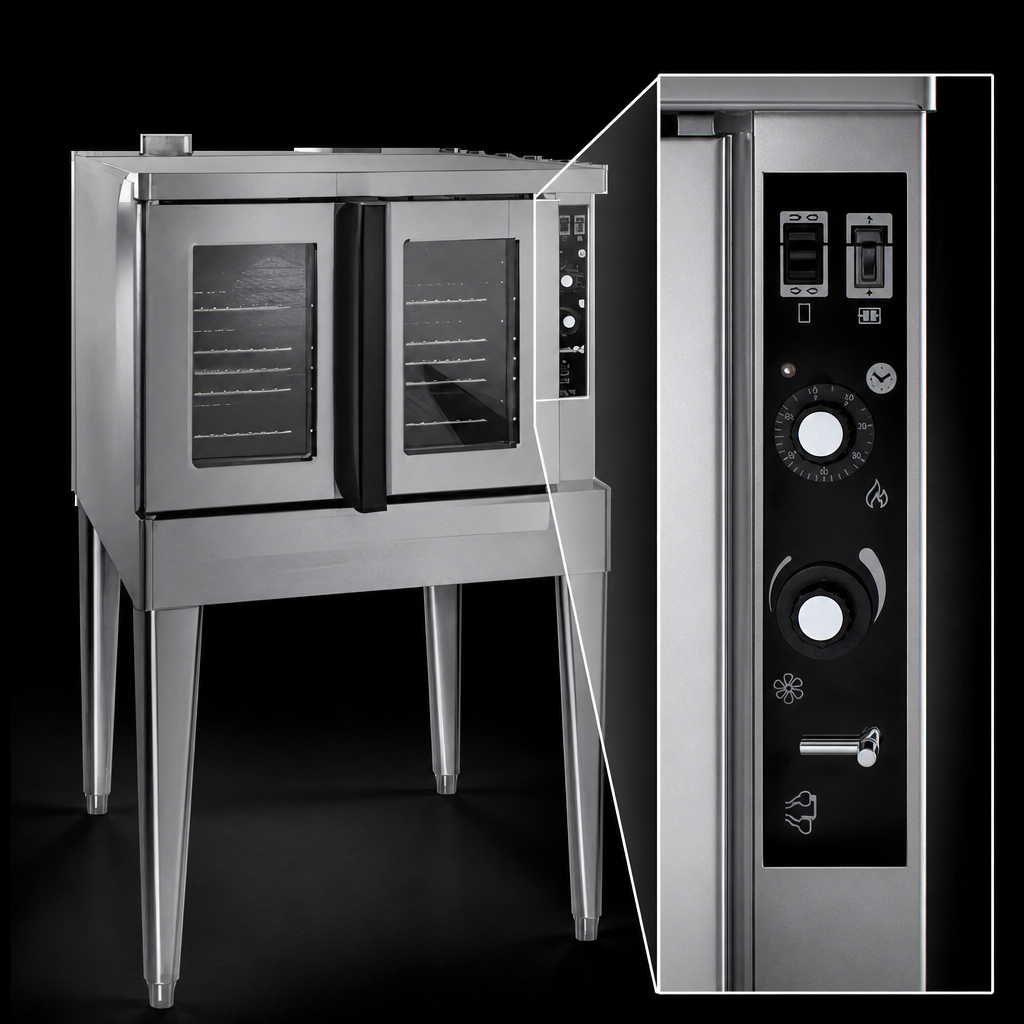

- SSI-M solid state infinite controls with independent thermostat (200–500 °F) and 60-minute manual timer for simple, reliable operation.
- Two-speed, 3⁄4 HP fan motor and single-inlet blower wheel blanket every rack with consistent airflow.
- Direct-fired 45,000 BTU burner lights instantly via electronic spark ignition and recovers rapidly between loads.
- ENERGY STAR® recognition helps rein in utility costs while shrinking your kitchen’s carbon footprint.
Construction Advantages
- Full angle-iron frame and stainless-steel front, sides, and top stand up to years of commercial abuse.
- Dependent dual-pane glass doors open together with one powder-coated handle for safe, one-hand loading.
- Double-sided 16-gauge porcelainized liner cleans up fast and resists corrosion.
- 2" of high-density insulation keeps heat where it belongs—inside the cavity, not your kitchen.
- Interior lighting and five chrome racks included right out of the crate.
Specifications
Model | Zephaire-100-G-ES (Single Deck) |
---|---|
Capacity | (5) 18" × 26" full-size sheet pans |
Control System | SSI-M solid state infinite controls with 60-min timer |
Temperature Range | 200 °F – 500 °F (93 °C – 260 °C) |
Heat Source | Direct-fired gas, 45,000 BTU/h |
Fan | Two-speed, 3⁄4 HP motor |
Interior (W×H×D) | 29" × 20" × 24-1/4" |
Footprint (W×D) | 38-1/4" × 36-7/8" |
Height (with 25" legs) | Approx. 57-1/16" |
Gas Connection | 3/4" NPT – Natural 7–10.5" W.C. / LP 11–13" W.C. |
Electrical | 115 V, 1-ph, 8 A, 60 Hz (cord & plug included) |
Shipping Weight | 590 lb (268 kg) |
Certifications | cETLus, NSF, ENERGY STAR®, CE |
Warranty | 2-year parts & labor, 3-year limited door |
What’s Included
- (5) chrome-plated racks
- 25" adjustable stainless-steel legs
- User, installation, and maintenance documentation
