Blodgett Zephaire-100-G Gas Convection Oven
Single-Deck • Standard Depth • 5 full-size pans • 50,000 BTUBuilt to thrive in the busiest commercial kitchens, the Zephaire-100-G delivers fast, even baking in a rock-solid stainless-steel package. Blodgett’s Dual-Flow gas system, powerful two-speed fan, and solid-state infinite controls give you the precision you need—whether you’re turning out delicate pastries or high-volume entrées.
Why You’ll Love It
- Accepts (5) 18" × 26" full-size sheet pans, loaded left-to-right

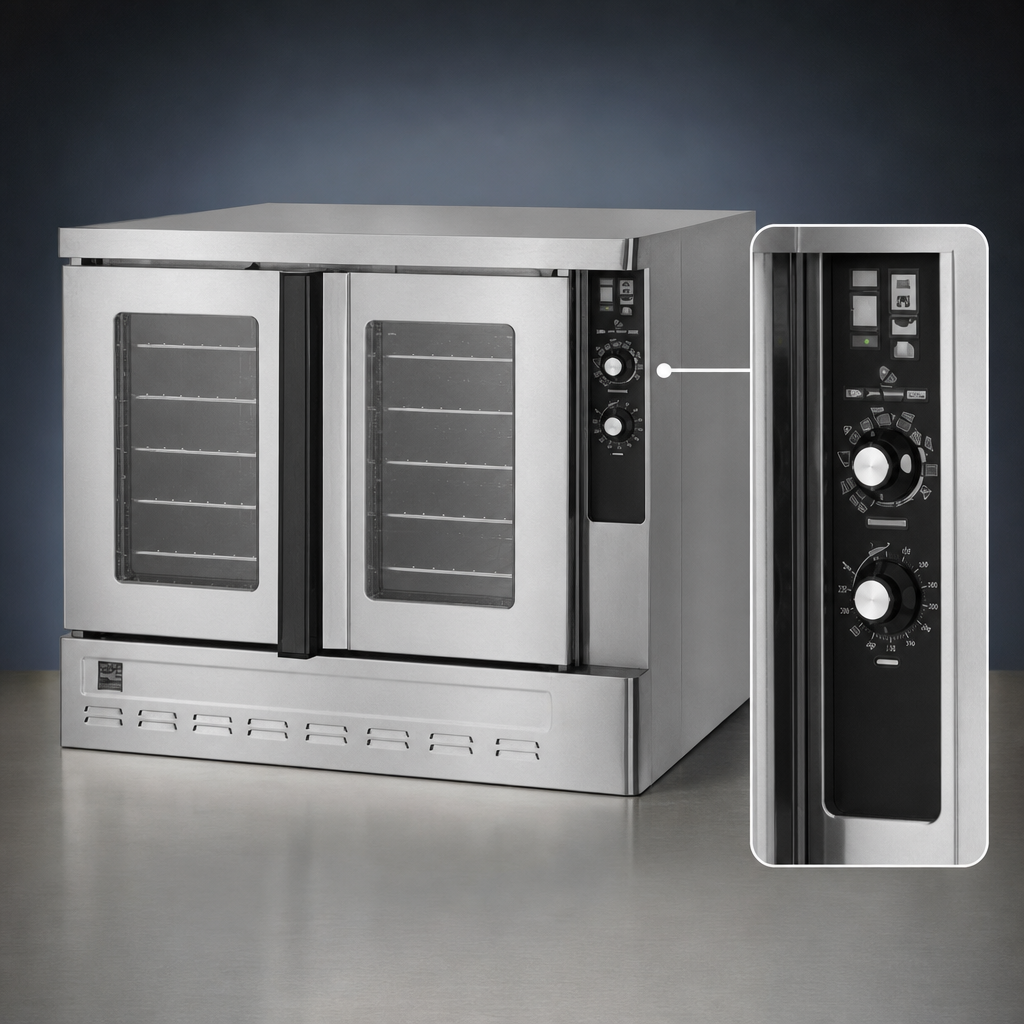

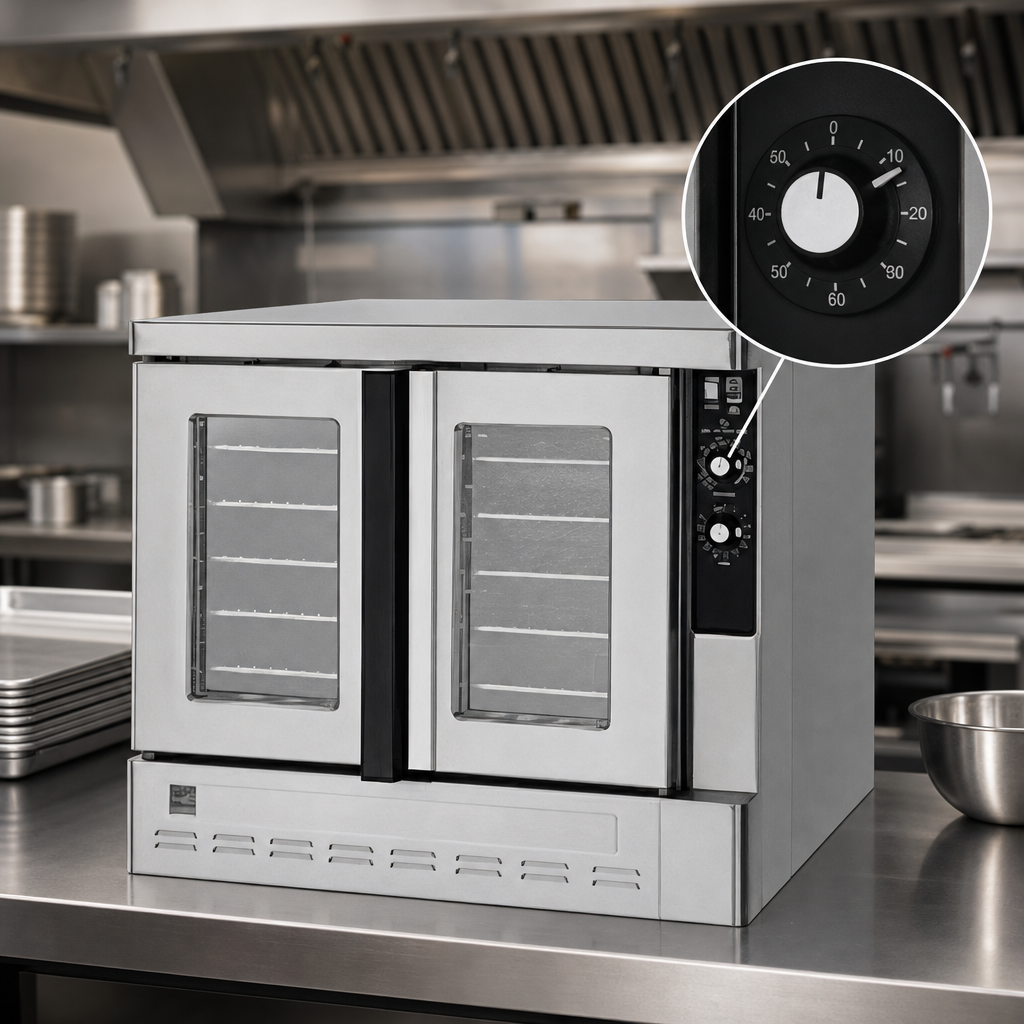

- SSI-M solid-state infinite controls with 60-minute manual timer
- Two-speed, ½ HP blower motor for gentle or high-velocity airflow
- Dual-pane thermal glass doors with single, powder-coated handle (dependent open)
- Dual-Flow gas heat: combination of direct & indirect heat for superior consistency
- Electronic spark ignition for quick, reliable start-ups
- Five chrome-plated racks, 11 positions on 1⅝" centers
- Interior halogen lighting for easy product monitoring
- Stainless-steel front, sides & top with fully welded angle-iron frame
- ETL & NSF listed for safety and sanitation
At-a-Glance Specs
| Capacity | (5) full-size (18" × 26") pans |
|---|---|
| Controls | SSI-M solid-state infinite, 200–500 °F, 60-min timer |
| Heat Input | 50,000 BTU/hr (natural or propane) |
| Gas Connection | ¾" NPT – Natural 7–10.5" W.C. | LP 10.5–13" W.C. |
| Electrical | 115 V, 1-phase, 6 A, cord & plug included |
| Exterior Dimensions* | 38.25" W × 36.88" D × 57.06" H |
| Interior Dimensions | 29" W × 20" H × 24.25" D |
| Shipping Weight | ≈ 535 lb (243 kg) |
| Certifications | ETL (US & Canada), NSF |
*Height shown with standard 25" adjustable legs. Optional stands & casters available.
Clearances & Utilities
- Sides: 2" from combustible or non-combustible surfaces
- Back: 0" clearance required
- Minimum entry width: 32-1/16"
- Factory-installed 6' power cord set
Popular Options & Accessories
- 6" adjustable seismic legs or heavy-duty casters
- Stainless-steel open stand with pan supports
- Solid stainless-steel doors
- Additional oven racks
- Draft hood or draft diverter (select during ordering)
- Factory start-up service (additional charge)
Warranty & Support
Every Zephaire oven is backed by Blodgett’s 2-year parts & labor warranty and a 3-year limited door warranty. Optional extended labor coverage and factory start-up service are available—ask your sales rep for details.
For commercial use only. Specifications are subject to change without notice. Always consult the installation manual and local codes before ordering or installing.
