Blodgett (Middleby) ZEPH-100-E DBL Zephaire Series Convection Ovens
$13,598.00
Unit price
/
Unavailable
Description

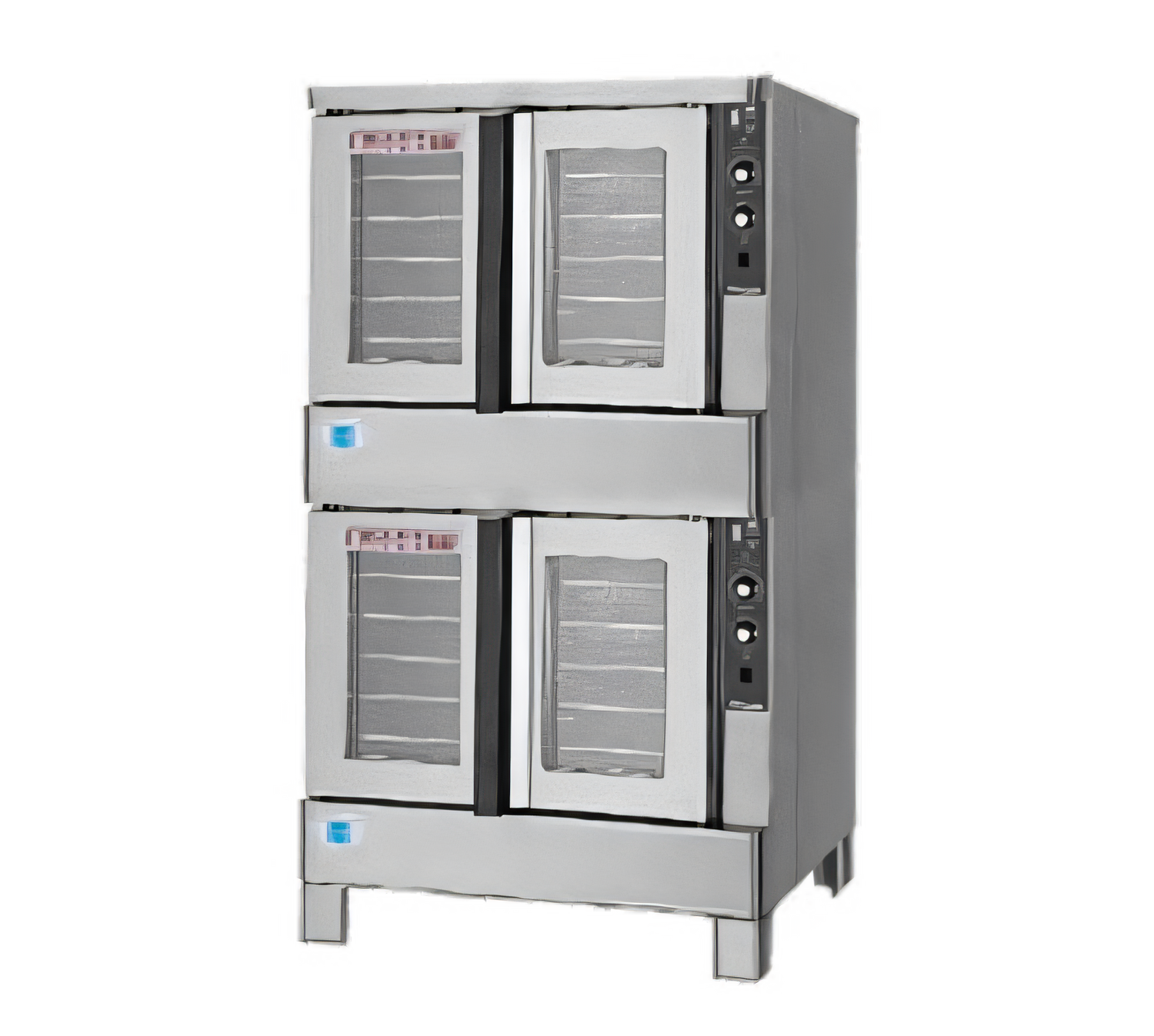

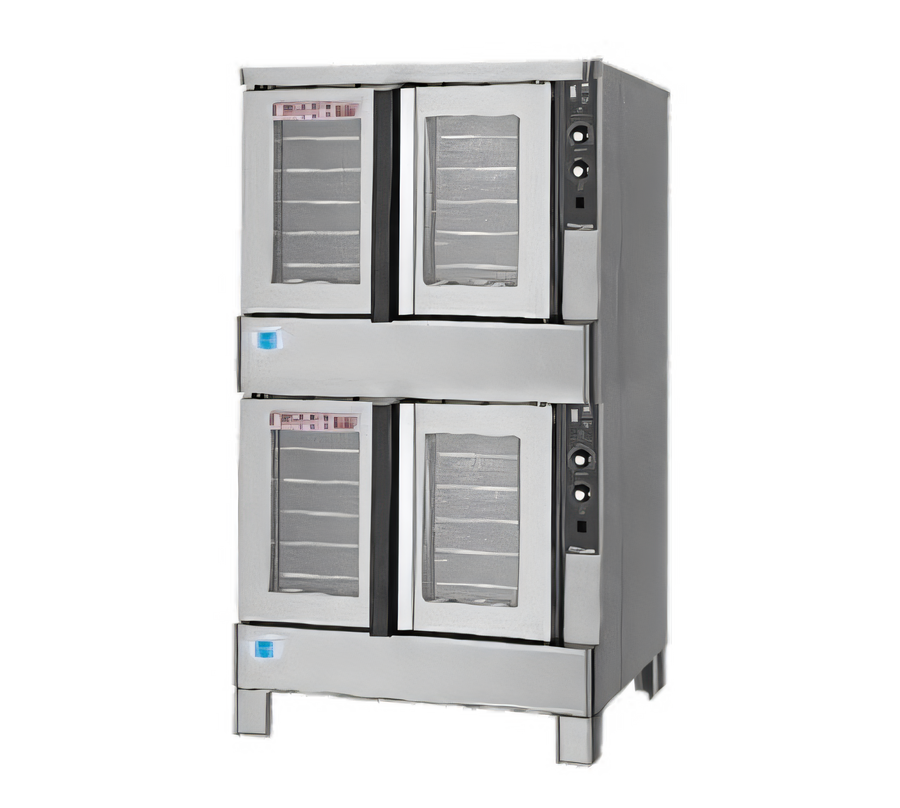

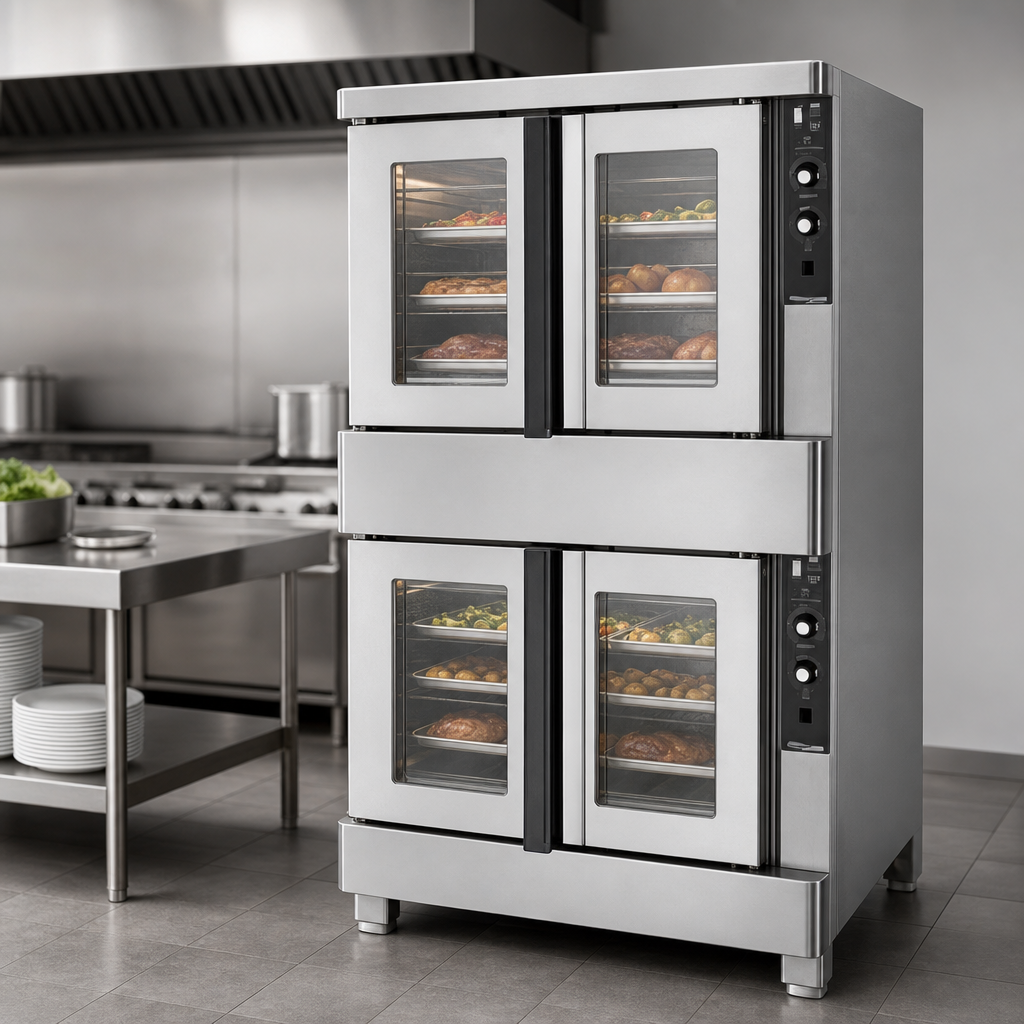

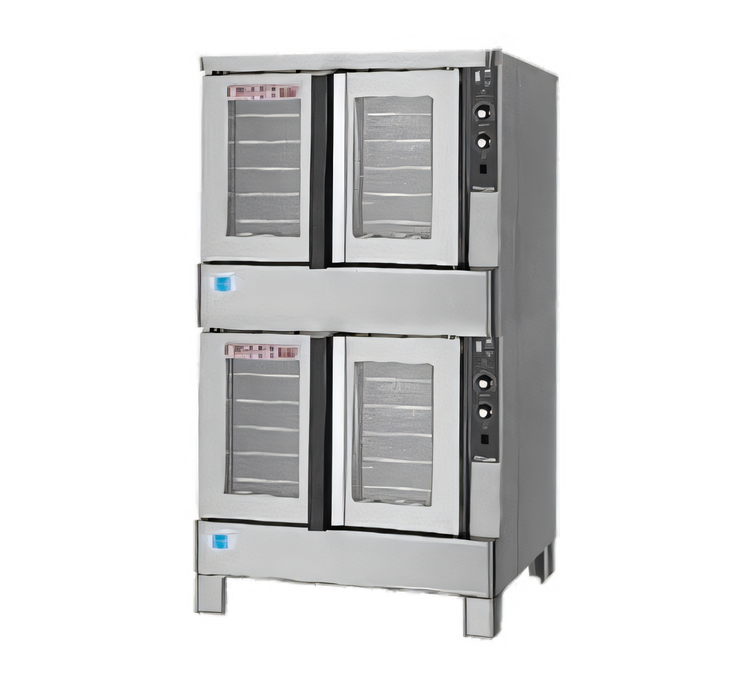

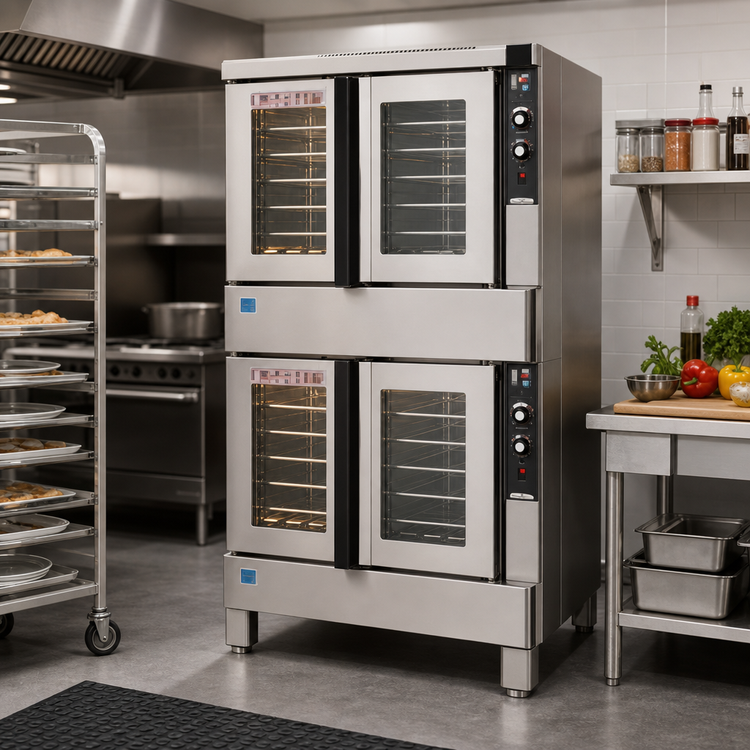

Blodgett Zephaire-100-E Double-Deck Electric Convection Oven
Standard Depth • Full-Size Pans • ENERGY STAR® QualifiedDeliver consistent, bakery-quality results in any high-volume kitchen with the Blodgett Zephaire-100-E. This factory-stacked, two-compartment oven combines the brand’s legendary build quality with quick-ship availability—so you can start cooking (and saving energy) in as little as 5 days.
Key Benefits

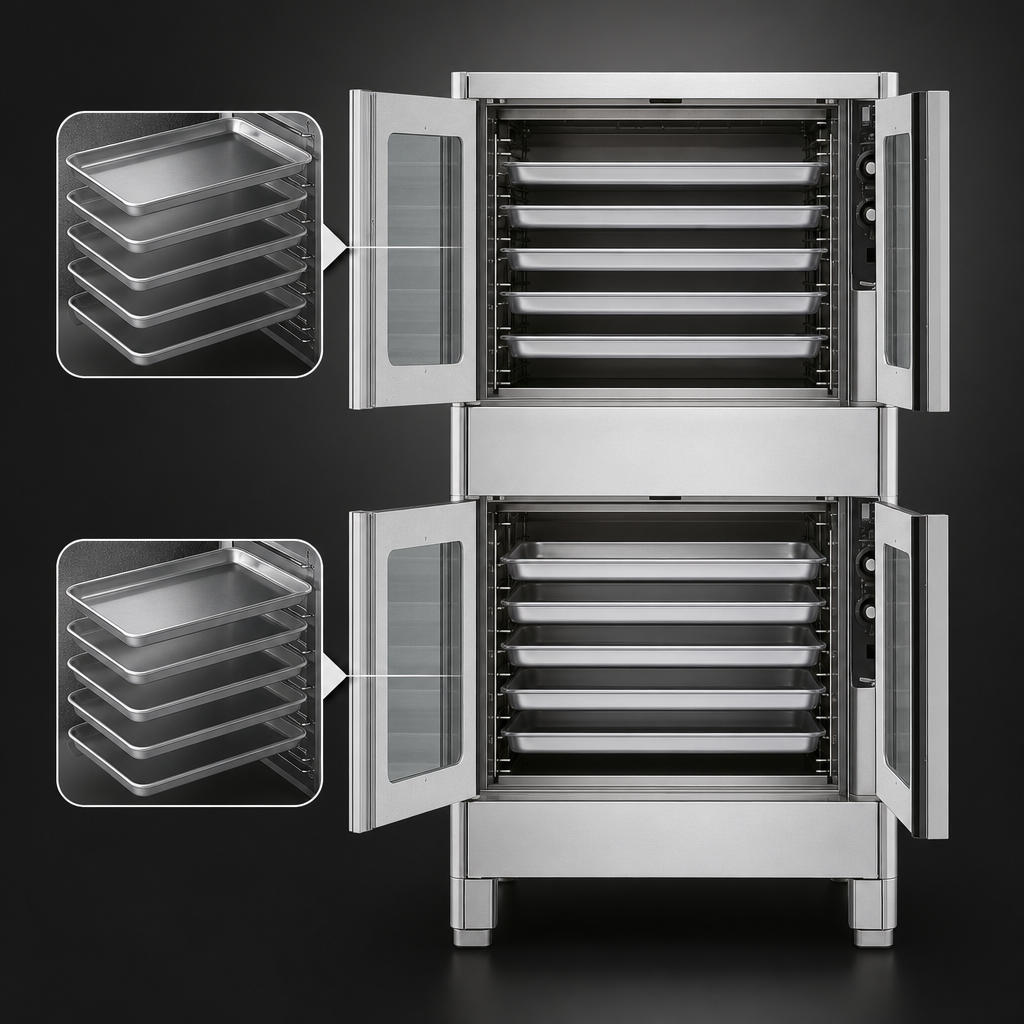

- Holds 10 full-size (18" × 26") sheet pans—5 per cavity.
- SSI-M solid-state infinite controls with independent 60-minute timers.
- Two-speed ½ HP fan in each deck for delicate bakes or rapid roasting.
- Dual-pane glass doors open together via a single, stay-cool handle.
- Full stainless-steel front, sides and top plus rugged angle-iron frame.
- ENERGY STAR® & ETL Sanitation listed for lower utilities and easy code approval.
- Quick-Ship program—unit leaves the factory within 5 business days.
Built to Perform Shift After Shift
- 200 – 500 °F (93 – 260 °C) thermostat suits everything from cookies to casseroles.
- Five chrome racks & 11 rack positions per compartment (1-5/8" spacing).
- 14-gauge, double-sided porcelainized liners wipe clean in seconds.
- Control-area cooling fan and motor thermal overload protection extend component life.
- Factory-installed vent connector; compatible with the optional Hoodini ventless hood when traditional ventilation isn’t available.
- Interior lights keep staff in control without opening the doors and dropping temp.
Technical Specifications
| Model | Zephaire-100-E Double-Deck |
|---|---|
| Oven type | Full-size, standard depth electric convection |
| Pans per deck | 5 (18" × 26") |
| Total capacity | 10 pans |
| Temperature range | 200 – 500 °F / 93 – 260 °C |
| Controls | SSI-M solid-state infinite + 60-min timer (per deck) |
| Fan motor | ½ HP, two-speed (per deck) |
| Heating elements | 11 kW per deck (22 kW total) |
| Electrical | 208 V or 240 V 1- or 3-phase standard; 440/480 V 3-ph optional |
| Exterior (W × D) | 38.25" × 36.88" |
| Exterior height | 65.25" to top of oven / 70.63" to top of flue (on 6" legs) |
| Clearance | ½" sides & rear from combustible construction |
| Ship weight | ≈ 960 lb / 435 kg |
| Certifications | ETL, NSF, CE, ENERGY STAR® |
What’s in the Box
- (2) Oven cavities with 5 chrome racks each
- 6" adjustable stainless-steel legs
- Vent connector & hardware
- Installation & operator manuals
Popular Add-Ons
- Hoodini VLF ventless hood (UL KNLZ) for hood-restricted sites
- Extra oven racks
- Seismic legs, low-profile casters or open stand
- Solid stainless-steel doors or SSD digital controls with Cook & Hold
Professional Start-Up Available:
Add a factory start-up to have a certified Blodgett technician commission your oven
(travel up to 100 mi included). Schedule at least 5 days in advance.
Two-year parts & labor warranty • Three-year limited door warranty • Extended coverage available.
Features & Specs
Features & Specs
Manufacturer
Blodgett (Middleby)
Brand_name
Zephaire Series
Certifications
NSF, ETL, ENERGY STAR
Height
70.63in
Width
38.25in
Depth
36.88in
Shipping Weight
960.0lbs
Size
full/standard size
Exterior Finish
all stainless steel exterior
Type
standard
Energy Efficiency
ENERGY STAR®
kW (per deck)
11.0 - 15.99 kW
Deck Qty
2 decks
Control Type
solid state controls
Base
legs
Interior Finish
porcelain interior
Capacity per Compartment
5 pan capacity, per compartment
Specifications
Zephaire Convection Oven, electric, double-deck, standard depth, capacity (5) 18" x 26" pans per compartment, (SSI-M) solid state infinite controls with 60 min. manual timer, two speed fan, vent connector, dependent glass doors, interior light, stainless steel front, sides and top, 6" stainless steel legs, ETL, NSF, ENERGY STAR® (Ships within 5 days)
