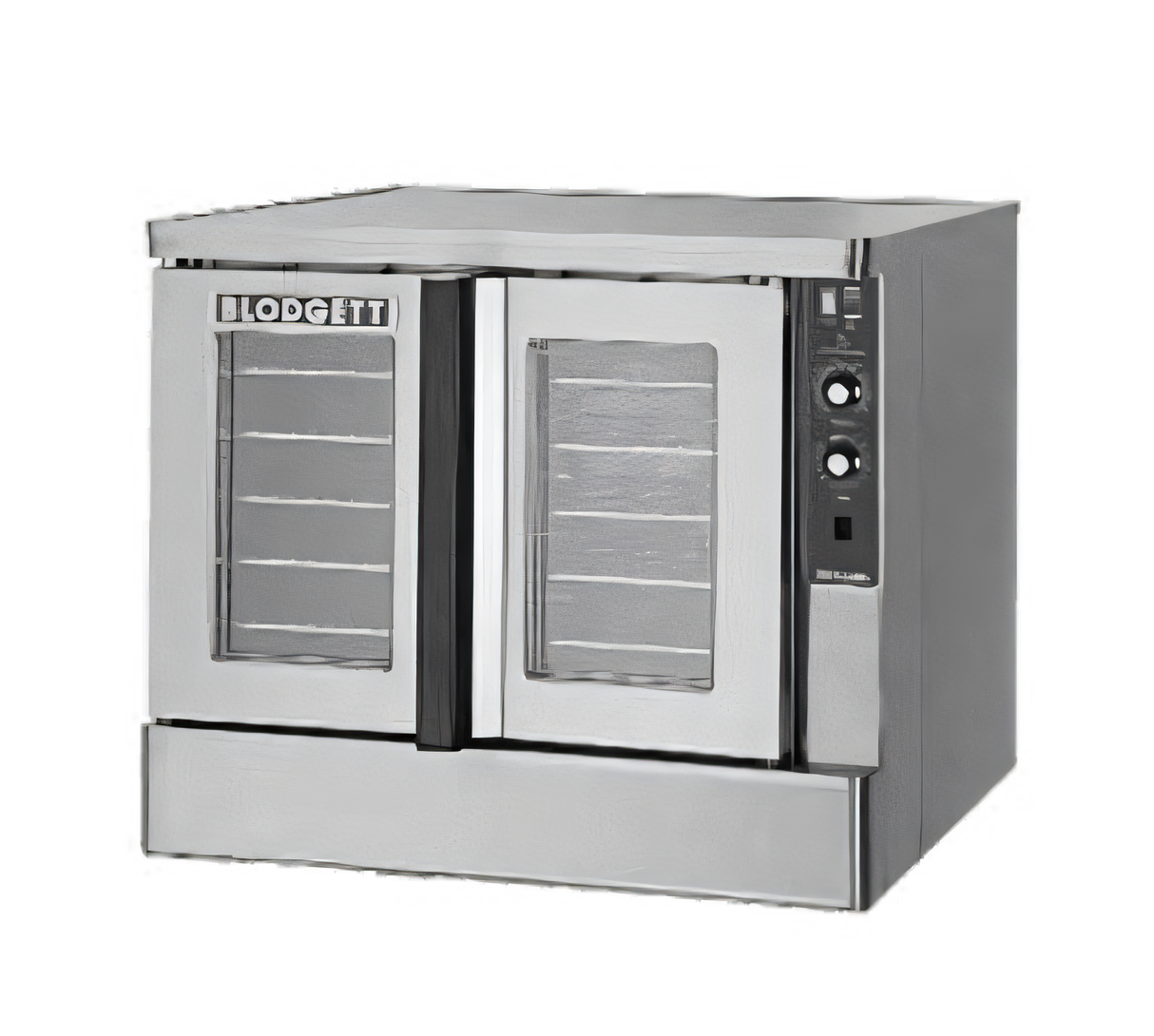

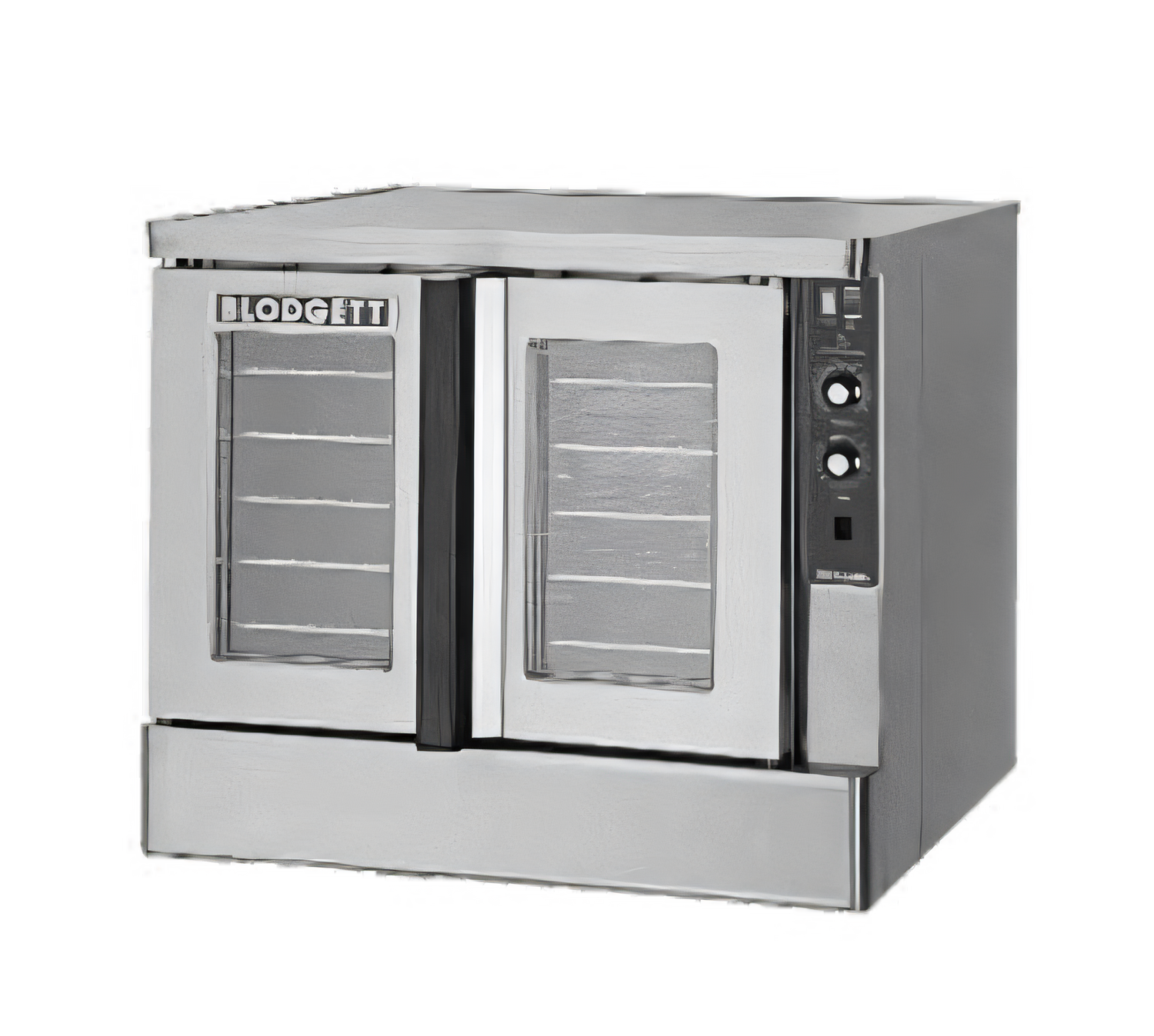

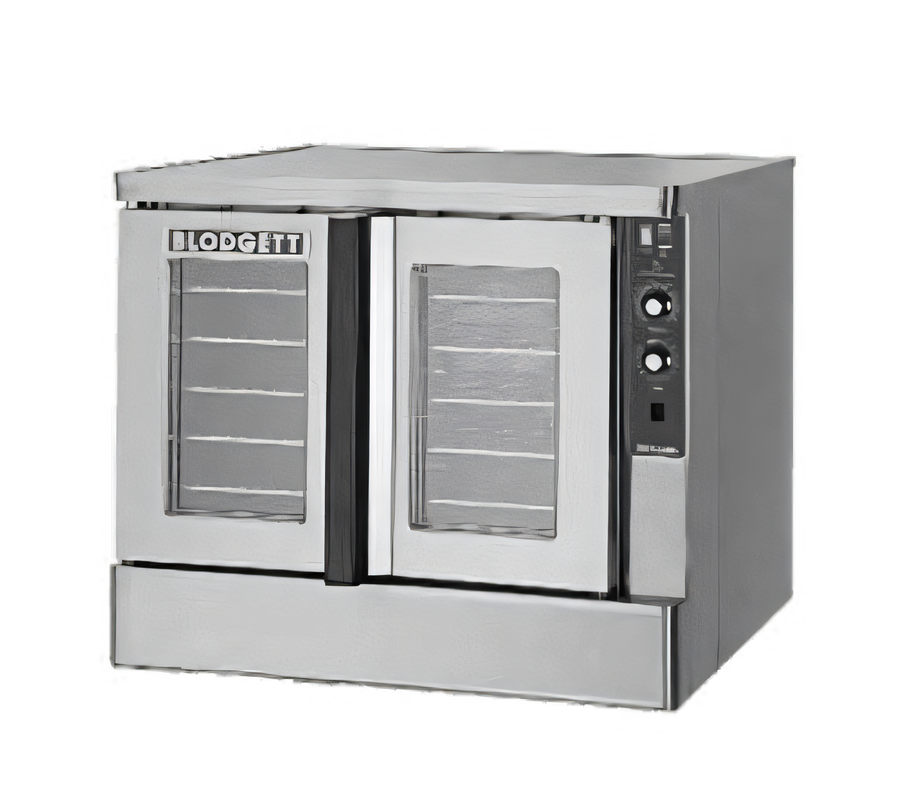

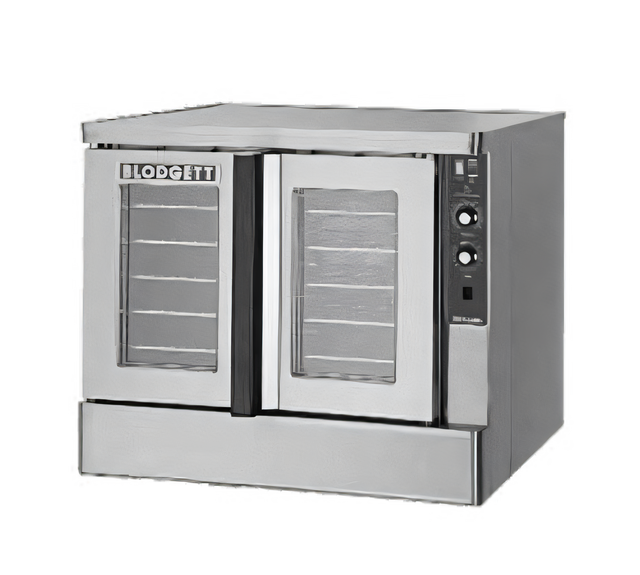

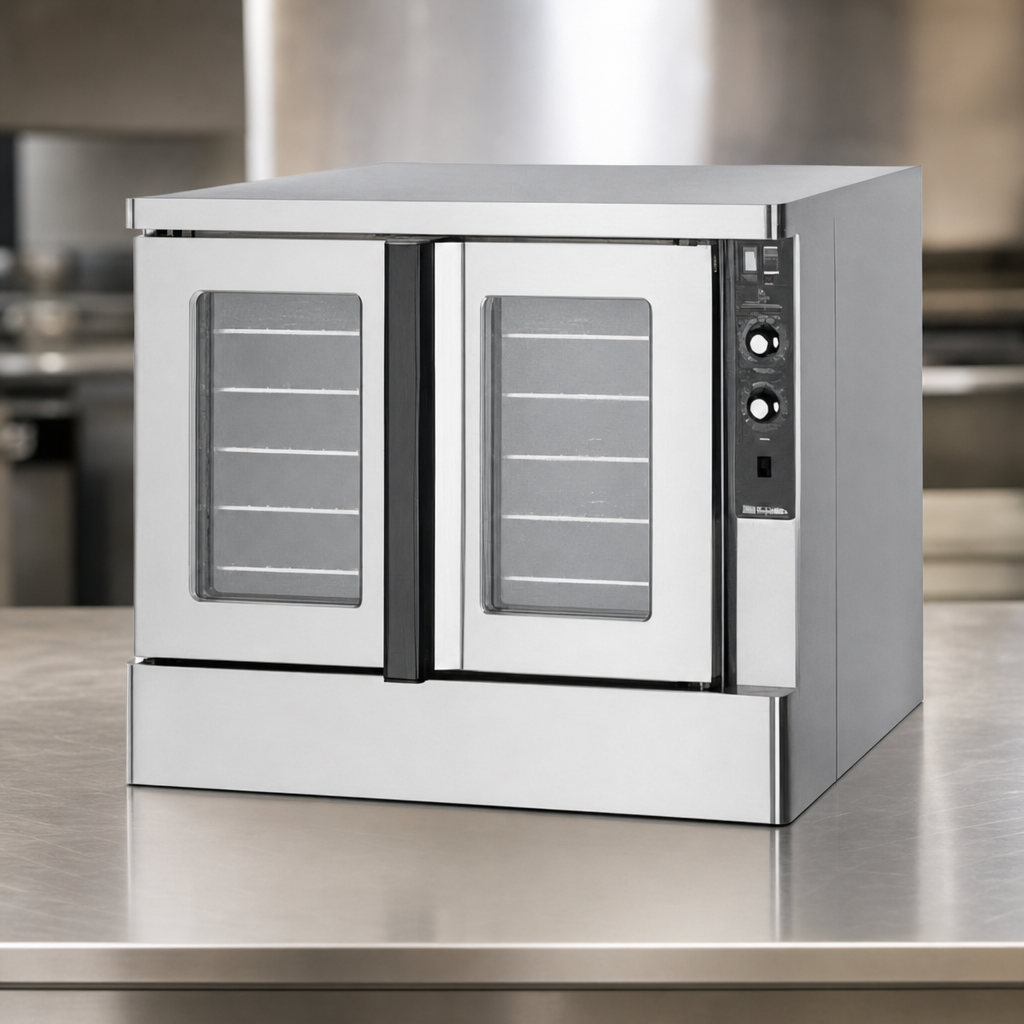

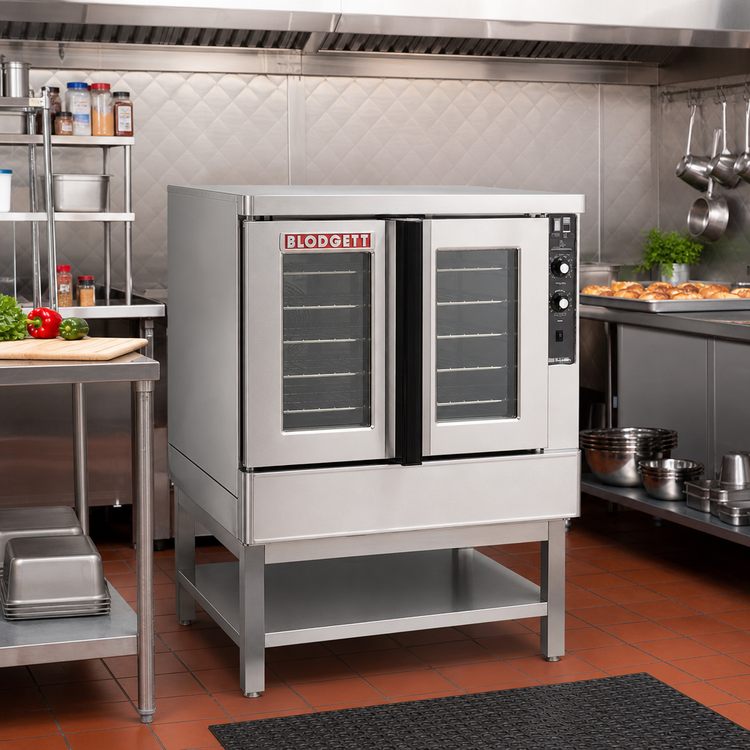

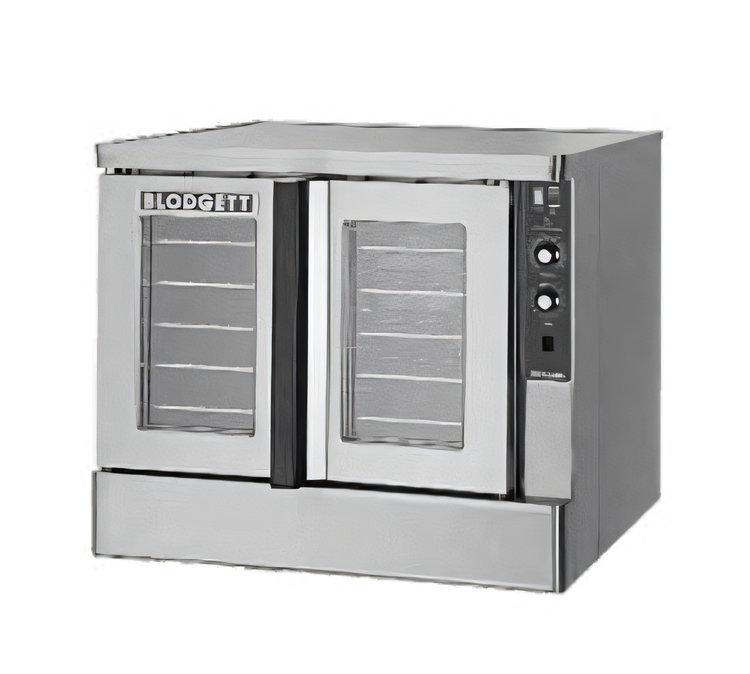

Blodgett Zephaire-100-E Electric Convection Oven
Single Deck • Full-Size • Standard Depth • ENERGY STAR®Engineered for high-volume kitchens that refuse to compromise on quality, the Zephaire-100-E pairs Blodgett’s legendary durability with energy-saving performance. This single-deck oven accepts five full-size sheet pans, delivers fast, even baking with a two-speed fan system, and ships with user-friendly SSI-M controls that make training a breeze.
Performance & Efficiency
- 11 kW electric heat driven by three rapid-response tubular elements.
- Two-speed, ½ HP fan and aluminized blower wheel for uniform air circulation.
- Solid-state thermostat (200 °F – 500 °F) plus 60-minute manual timer.
- Cook / Cool-Down selector protects product quality between batches.
- ENERGY STAR® certification keeps utility costs under control.
Built to Last
- Full angle-iron frame resists warping under heavy loads.
- Stainless-steel front, sides & top for superior corrosion resistance.
- Triple-mounted pressure-lock doors with dual-pane thermal glass.
- Double-sided 14-ga porcelainized liner cleans up quickly and won’t flake.
- Five chrome racks, 11 positions, 1-5/8" spacing handle any menu mix.
Operator-Friendly Details
- SSI-M solid-state infinite controls—separate dials for temperature & timer.
- Cool-touch door handle opens both doors simultaneously.
- Bright interior lights and full-view windows for easy product monitoring.
- Removable front control panel & cooling fan simplify maintenance.
Key Specifications
| Model | Zephaire-100-E (Single Deck) |
|---|---|

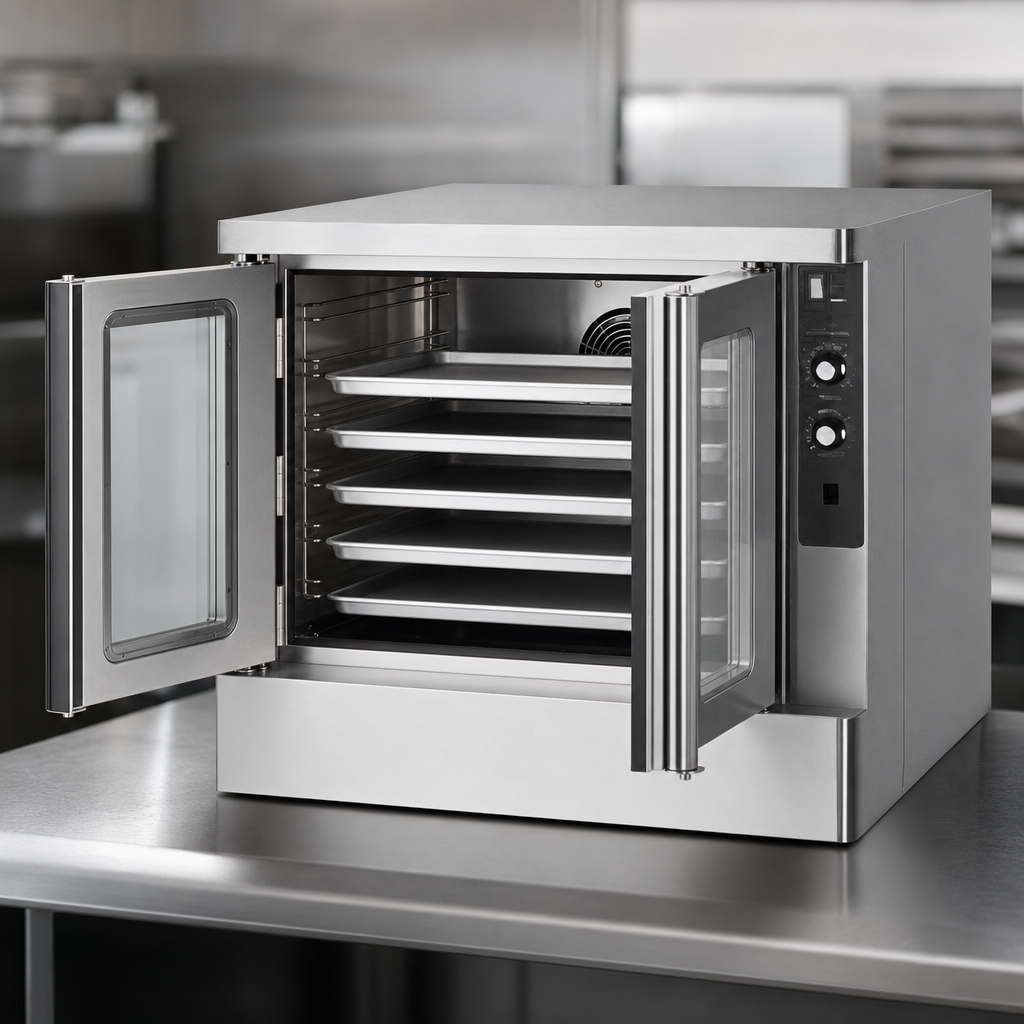

| Pan Capacity | 5 full-size 18" × 26" pans, left-to-right |
| Interior (W × H × D) | 29" × 20" × 24-1/4" |
| Overall (W × D × H) | 38-1/4" × 36-7/8" × 57"* |
| Electrical | 11 kW, 208–240 V, 1 or 3 ph (other voltages available) |
| Fan Motor | ½ HP, two-speed (1120 & 1710 RPM) |
| Shipping Weight | Approx. 480 lb |
| Certifications | ETL, NSF, ENERGY STAR® |
| Warranty | 2-year parts & labor • 3-year limited door |
*Height shown with 25" adjustable stainless-steel legs. Alternate legs, casters, and stands sold separately.
What’s Included
- (5) chrome racks
- (25") adjustable stainless-steel legs
- SSI-M control package
- (2) interior halogen lights
- Installation & operation manual
Popular Options & Accessories
- 6" adjustable or seismic legs, standard & low-profile casters
- Solid stainless-steel doors
- SSD digital control with LED display, Cook & Hold & Pulse Plus®
- Ventless hood (VLF) or vent connector
- Open or welded stainless-steel pan stands
- 480 V, 3-phase configuration
Factory Start-Up Available: Blodgett will arrange one professional on-site start-up visit when purchased with the oven (additional fee applies). All utilities must be in place before scheduling.
Elevate your kitchen’s throughput with the reliability chefs have trusted since 1848—add the Blodgett Zephaire-100-E to your line-up today.
Blodgett (Middleby)
Blodgett (Middleby) ZEPH-100-E BASE Zephaire Series Convection Ovens
SKU: ZEPH-100-E BASE
$15,568.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Blodgett ZEPH-100-E electric convection oven: 1-deck, holds five 18x26 pans, solid-state controls, two-speed fan, stainless, ENERGY STAR efficiency.
Manufacturer
Blodgett (Middleby)
Brand name
Zephaire Series
Certifications
NSF, ETL, ENERGY STAR
Height
32.0in
Width
38.25in
Depth
36.88in
Shipping Weight
480.0lbs
Size
full/standard size
Energy Efficiency
ENERGY STAR®
Type
standard
Interior Finish
porcelain interior
Deck Qty
1 deck
Exterior Finish
stainless steel front & sides
Control Type
solid state controls
Capacity per Compartment
5 pan capacity, per compartment
kW (per deck)
11.0 - 15.99 kW
Base
legs not included
Specifications
Zephaire Convection Oven, electric, (base oven only) single-deck, standard depth, capacity (5) 18" x 26" pans, (SSI-M) solid state infinite controls with 60 min. manual timer, two speed fan, dependent glass doors, interior light, stainless steel front, sides and top, ETL, NSF, ENERGY STAR®
