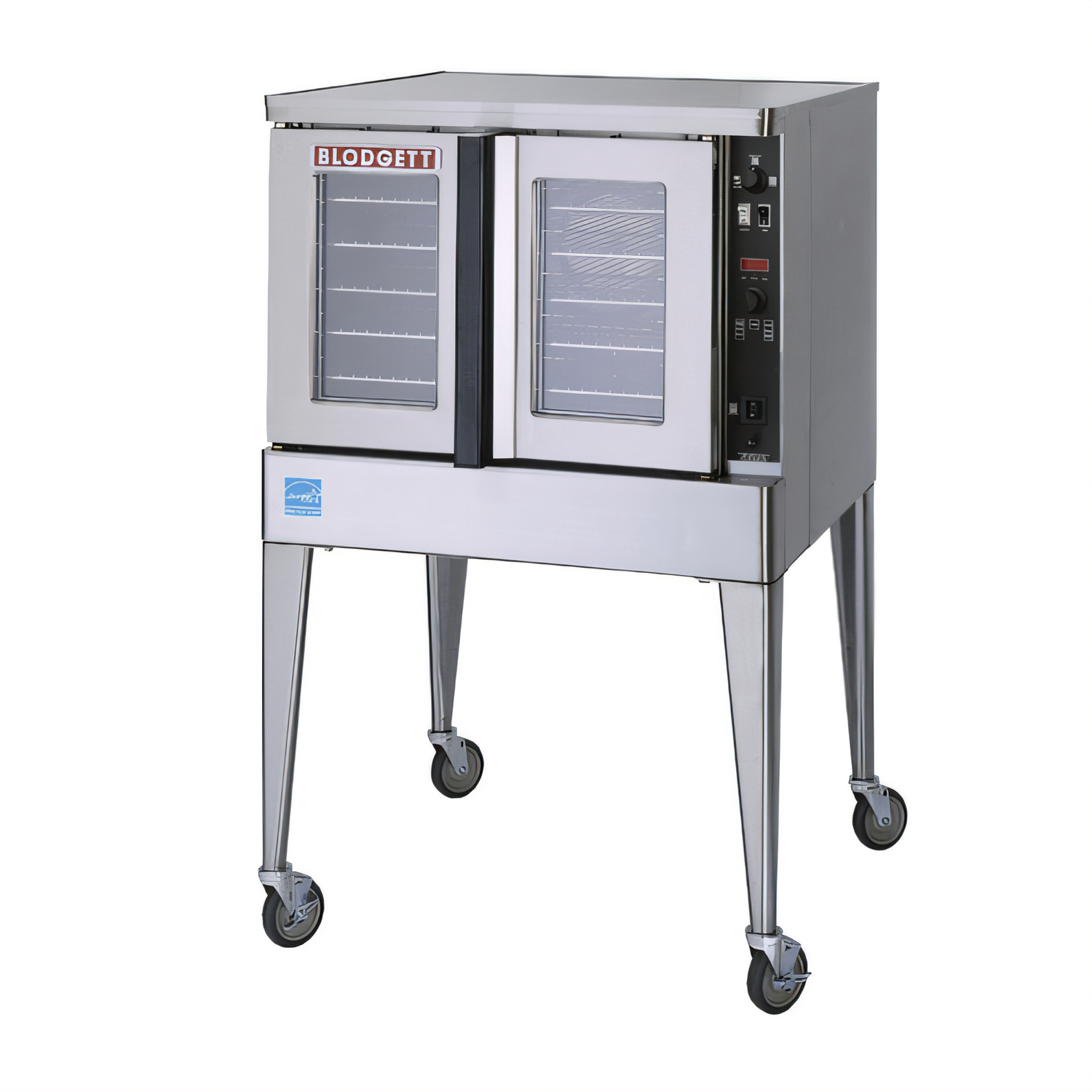

Blodgett (Middleby) MARK V-200 BASE Premium Series Convection Ovens
$16,281.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Blodgett (Middleby) MARK V-200 BASE Premium Series Convection Ovens is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Blodgett (Middleby) MARK V-200 BASE Premium Series Convection Ovens
$16,281.00
Unit price
/
Unavailable
Description
Premium Series Bakery-Depth Electric Convection Oven – Single Deck
Blodgett MARK V-200 | base oven onlyGive every batch the artisan touch. Blodgett’s Premium Series single-deck convection oven bakes, roasts and finishes with the consistency busy kitchens demand while its ENERGY STAR® efficiency protects your bottom line.
Why you’ll love it
- Bakery-depth cavity holds five 18" × 26" full-size sheet pans loaded front-to-back or left-to-right.

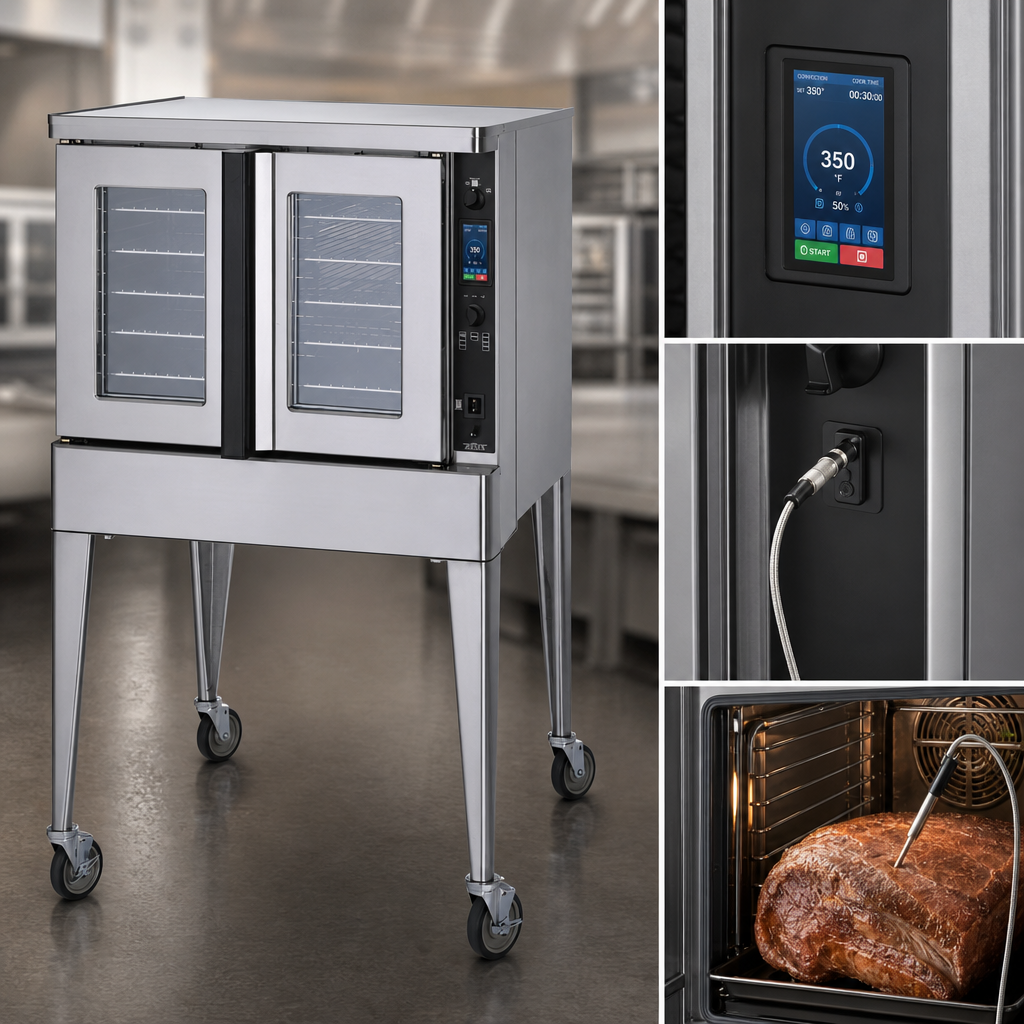

- Artisan Touchscreen Control with core-temp meat probe delivers Manual or Recipe cooking, Cook & Hold, Fan Delay/Pulse and stores HACCP data.
- Oleophobic 14 ga liner repels grease and sugars – wipes clean in seconds and shrugs off heavy use.
- 2-speed fan + 1/3 HP motor moves air evenly for beautiful color and uniform rise, even on delicate pastries.
- Simultaneous doors with dual-pane thermal glass keep heat in and let staff check progress without opening.
- Full stainless steel front, sides & top on a rugged angle-iron frame – built for decades of service.
- ENERGY STAR®, cETLus, NSF & CE listed for efficiency, safety and code compliance.
At-a-Glance Specifications
| Capacity | (5) 18" × 26" full-size pans |
|---|---|
| Decks / Sections | 1 (base oven only) |
| Control Type | Artisan touchscreen with recipe storage & meat probe |
| Temperature Range | 200 °F – 500 °F (93 °C – 260 °C) |
| Fan | 2-speed, 1/3 HP |

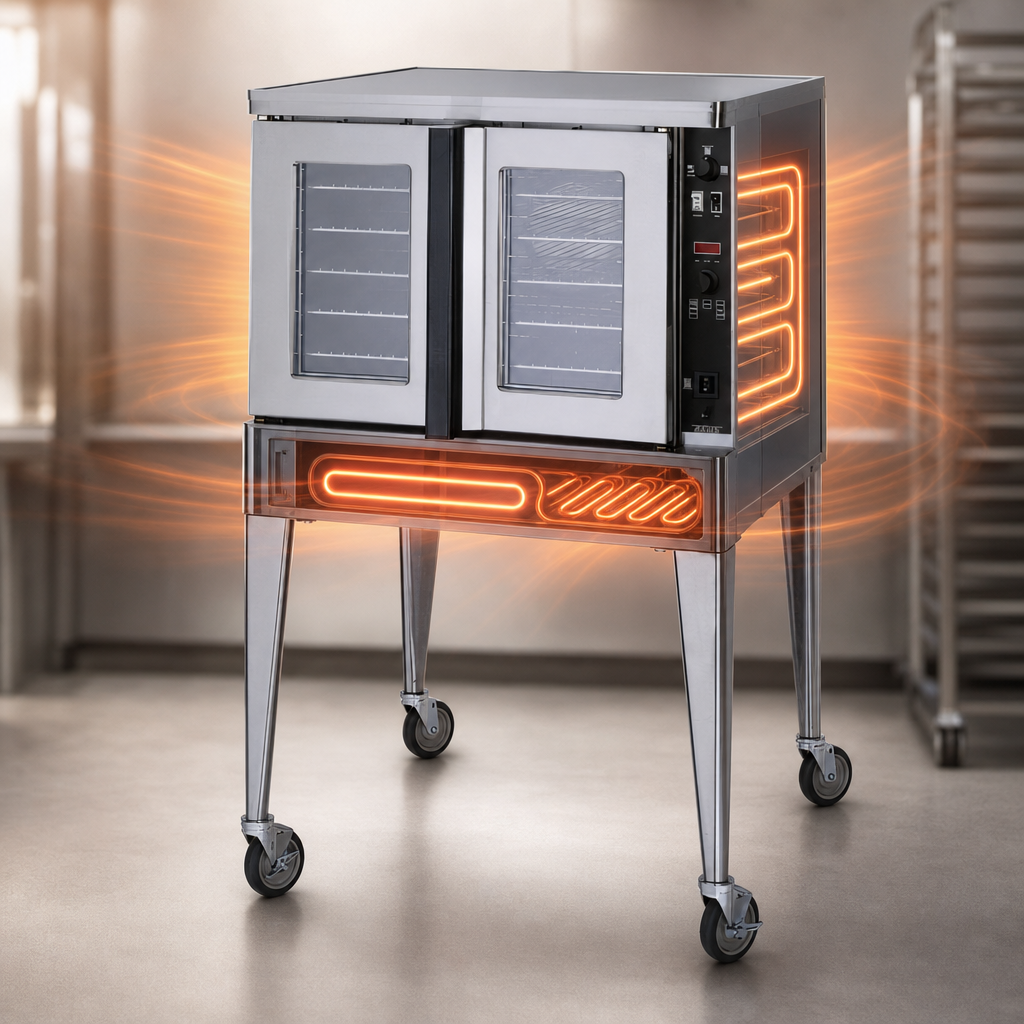

| Heat Source | Electric – 3 tubular elements, 11 kW total |
| Interior Dimensions | 29"W × 20"H × 28-1/4"D (737 × 508 × 718 mm) |
| Exterior Footprint | 38-1/4"W × 36-7/8"D × 57"H* (972 × 936 × 1448 mm) *height includes 25" adjustable legs |
| Electrical (per oven) | 208–240 V, 1 or 3 ph, 60 Hz • 11 kW (see amperage below) |
| Typical Amperage |
208 V 1 ph 51 A | 208 V 3 ph 31/29/29 A 240 V 1 ph 44 A | 240 V 3 ph 26/24/24 A |
| Shipping Weight | ≈ 545 lb (247 kg) |
| Certifications | ENERGY STAR®, cETLus, CE, NSF |
| Warranty | 3 yr parts / 2 yr labor • 5 yr limited door |
What’s included
- Five chrome-plated racks, 11 positions on 1-5/8" centers
- Dual interior halogen lights
- Stainless steel front-mounted control panel – slides out for service
- Curved, ergonomically balanced aluminum door handle
- 25" adjustable stainless steel legs
- Factory Start-Up program (additional charge – ask your sales rep)
Popular options (factory fit)
- Seismic or caster bases (6" or low-profile)
- Fully welded open stand with pan supports
- Ventless hood (VLF)
- Extra oven racks or solid stainless steel doors
- 480 V, 3-phase configuration
Installation note: Unit requires a dedicated 11 kW electrical connection. Maintain 1/2" clearance from
combustible and non-combustible construction. Factory Start-Up must be scheduled after the oven and all required
utilities are in place.
Blodgett reserves the right to change specifications without notice. For complete installation instructions, consult the owner’s manual or contact our technical service team.
Features & Specs
Features & Specs
Manufacturer
Blodgett (Middleby)
Brand_name
Premium Series
Certifications
NSF, CE, cETL, ENERGY STAR
Height
30.13in
Width
38.25in
Depth
36.88in
Shipping Weight
545.0lbs
Type
standard
Interior Finish
porcelain interior
Size
deep/bakery size
Energy Efficiency
ENERGY STAR®
kW (per deck)
11.0 - 15.99 kW
Capacity per Compartment
5 pan capacity, per compartment
Control Type
digital controls
Exterior Finish
stainless steel front & sides
Deck Qty
1 deck
Base
legs not included
Specifications
Convection Oven, electric, (base oven only) single-deck, bakery depth, capacity (5) 18" x 26" pans per compartment, Artisan touchscreen controls with meat probe, 2-speed fan, Olephobic baking compartment liner, interior light, simultaneous operated doors with dual pane thermal glass windows sealed in stainless steel door frames and ergonomically friendly curved aluminum door handle, stainless steel front, sides & top, 11.0kW, 1/3 hp, cETL, CE, NSF, ENERGY STAR®
