Blodgett (Middleby)

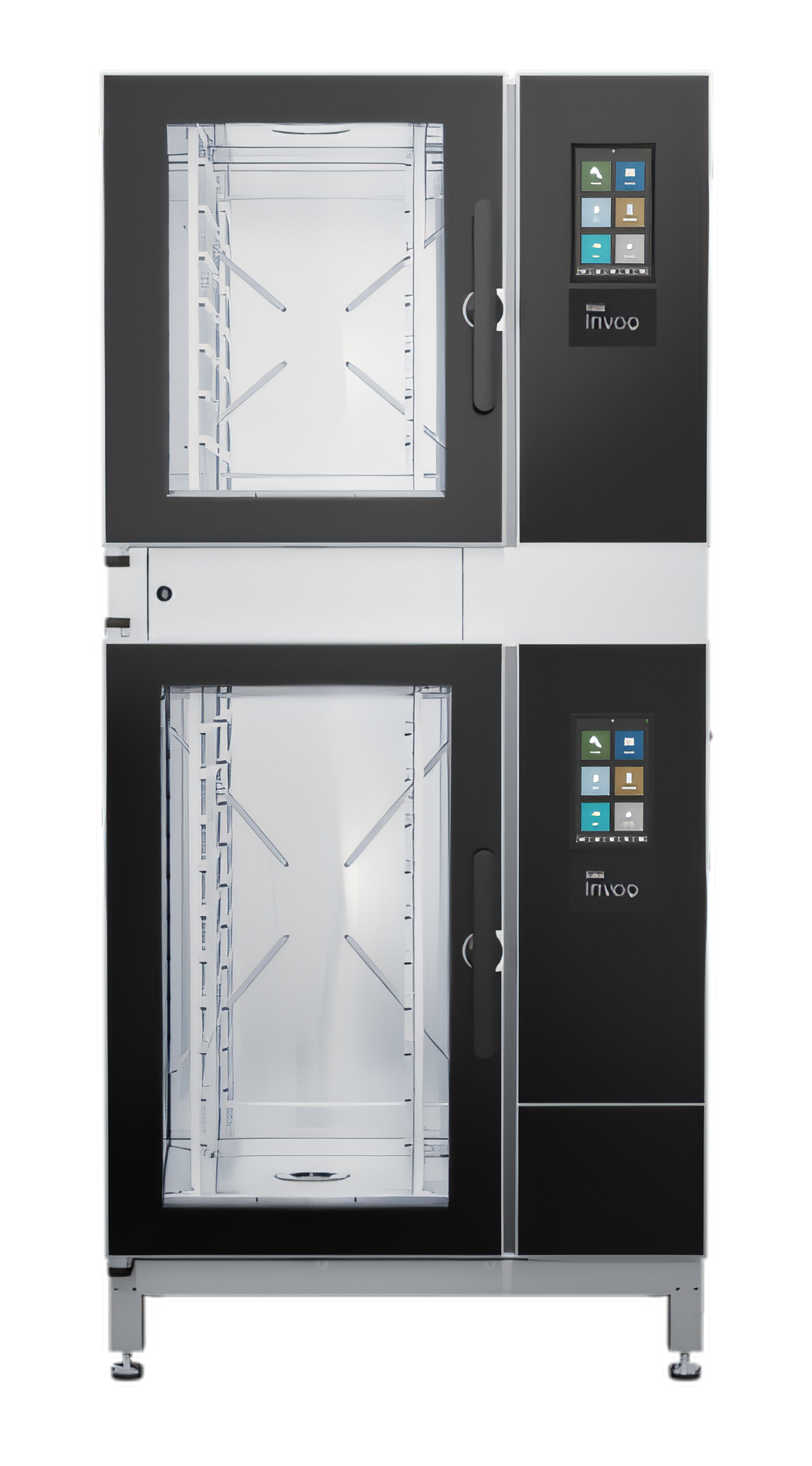

Blodgett Invoq Stackit Double Stacked Electric Boilerless Combi Oven Steamer, 6-1/1 GN Top / 10-1/1 GN Bottom

SKU: INVOQ 61BLE/101BLE
$31,067.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Blodgett Invoq Stackit Double Stacked Electric Boilerless Combi Oven Steamer, 6-1/1 GN Top / 10-1/1 GN Bottom

Programmable Touchscreen Controls, Included Stacking Kit, 17-Pan Capacity

Double your production in the same footprint with a smart, boilerless combi stack that automates cooking, cleaning, and recipe management.

  • Double-stacked 6-1/1 GN over 10-1/1 GN design increases output without taking more floor space.
  • Boilerless injection steam supports convection, steam, combi, proofing, Delta-T, and Cook & Hold cooking.
  • Touchscreen Android 9 controls include SmartChef, MenuPlanner, CombiSense, and CombiSpeed functions.
  • Stores up to 1,500 recipes with up to 15 steps per recipe for consistent repeatable production.
  • CareCycle automatic tablet-based cleaning helps simplify end-of-day maintenance.
  • Built-in hand shower, external core probe, USB, LAN, and Wi-Fi upgrade support easier operation and connectivity.
  • Stainless steel construction, triple-pane glass door, and energy-efficient design support durability and performance.

Overall Dimensions:

36.9"W x 35.7"D x 78.5"H

Product Weight:

830.0 lb

Double-Stacked Footprint Efficiency

Stacks a 6-1/1 GN oven over a 10-1/1 GN oven to maximize production in a compact footprint.

Boilerless Injection Steam

Uses injection steam technology to generate fast, efficient steam without a boiler.

Touchscreen Android 9 Controller

Capacitive 7-inch color touchscreen provides intuitive, smartphone-style operation.

SmartChef and MenuPlanner

Automated cooking guidance and drag-and-drop recipe management help standardize results and streamline production.

ClimateControl, CombiSense, and CombiSpeed

Intelligent humidity and cooking control help optimize results for both high- and low-temperature applications.

1,500-Recipe Memory

Stores up to 1,500 recipes, with up to 15 steps per recipe.

CareCycle Automatic Cleaning

Recirculating tablet-based cleaning system with seven cycles, scheduled cleaning, and automatic rinse after interruptions.

Built-In Hand Shower and External Probe

Includes a built-in hand shower and external multipoint core temperature probe for easier operation and cleanup.

Connectivity and HACCP Support

USB, LAN, and Wi-Fi support Open Kitchen connectivity, recipe transfer, and HACCP documentation.

Stainless Steel Construction

Stainless steel interior and exterior with a triple-pane glass door for durability, heat protection, and easier cleaning.

Included Stacking Kit and Racks

Stacking kit is included, along with side racks with non-tilt support rails and stainless steel wire racks.

Energy-Efficient Operation

Designed to reduce energy and water use while maintaining consistent cooking performance.

Type Double Stacked Combi Oven Steamer
Style Boilerless
Installation Type Floor Model
Controls Programmable Touch Screen
Pan Capacity 17 Pans
Pan Size 18 x 13 Inches Half Size Sheet Pans / 12 x 20 Inches Full Size Hotel Pans (GN 1/1)
Material Stainless Steel
Interior Finish 304 Stainless Steel
Finish Stainless Steel
Voltage 208/240/440/480 Volts
Phase 3-Phase
Hertz 60 Hz
Amps 208 Volts: 31/56 Amps; 240 Volts: 28/49 Amps; 440 Volts: 18/30 Amps; 480 Volts: 17/28 Amps
Watts 10.3 kW Top / 19.3 kW Bottom
Water Inlet Size 3/4 Inch
Drain Connection Size 50 Millimeters
Shipping Width 37 Inches
Shipping Depth 36 Inches
Shipping Height 79 Inches
Shipping Weight 830 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1 year parts and labor; 6 month limited warranty on gaskets.

Frequently Asked Questions

It uses boilerless injection steam.
It can store up to 1,500 recipes, with up to 15 steps per recipe.
Convection is 85°-572°F, steam is 85°-265°F, and CombiSense/CombiSpeed are 85°-480°F.
It requires a 3/4-inch water connection, a 50 mm drain connection, and 3-phase electric service with 208, 240, 440, or 480 volt options at 60 Hz.
Yes. Left- or right-hinged door options are available.
Yes. The documentation recommends water treatment for optimal operation and provides incoming water quality guidelines.
