Blodgett (Middleby) CTBR ADDL Premium Series Convection Ovens
Description
Blodgett “Premium Series” Half-Size Electric Convection Oven – Right-Hinged
Model CTBR-SSM • Single Deck • 5-Pan CapacityBuilt on Blodgett’s legendary CTBR chassis, the Premium Series gives demanding commercial kitchens a compact, rock-solid performer that bakes, roasts and re-thermalizes with unbeatable consistency. A rugged, all-stainless exterior, porcelainized bake chamber and two-speed air circulation deliver even color and higher yields—shift after shift.
Why You’ll Love It

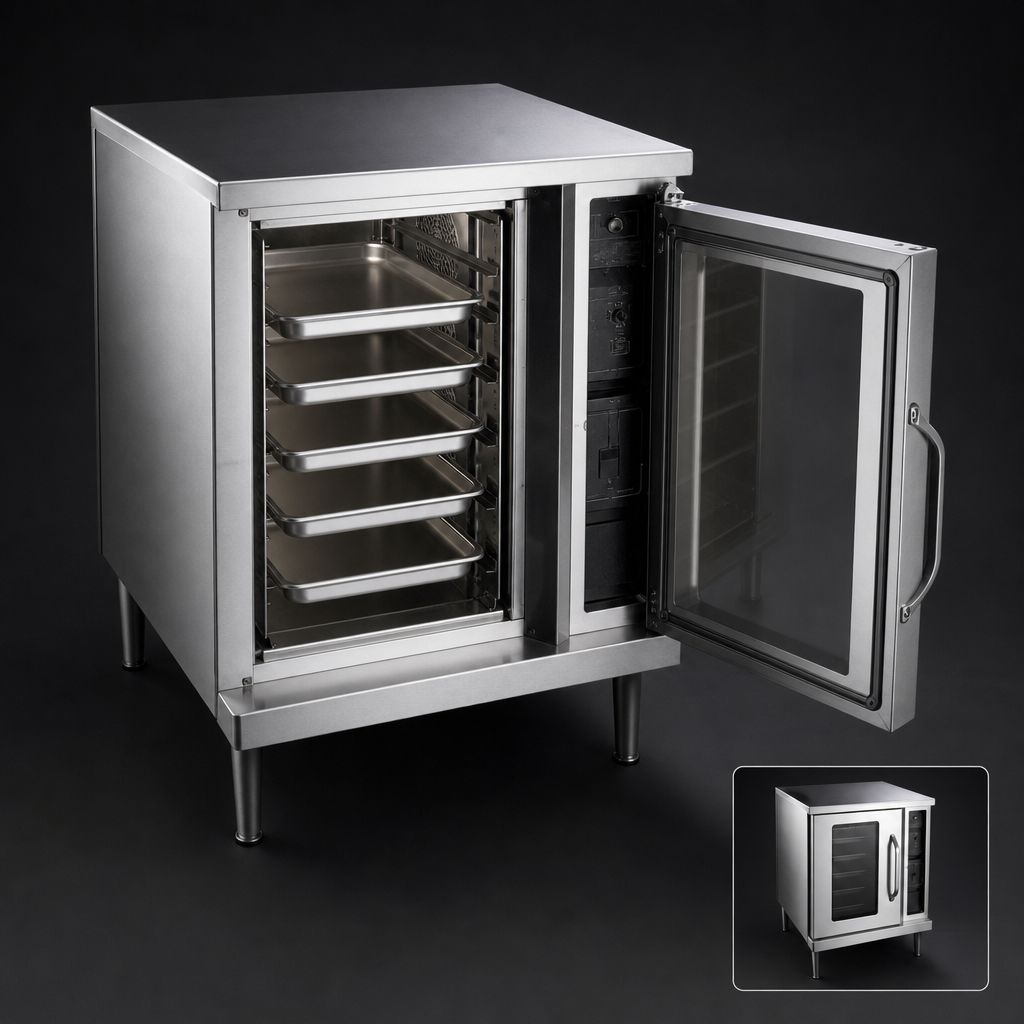

- Holds (5) 13 × 18 in half-size sheet pans on 5 chrome racks | 9 positions

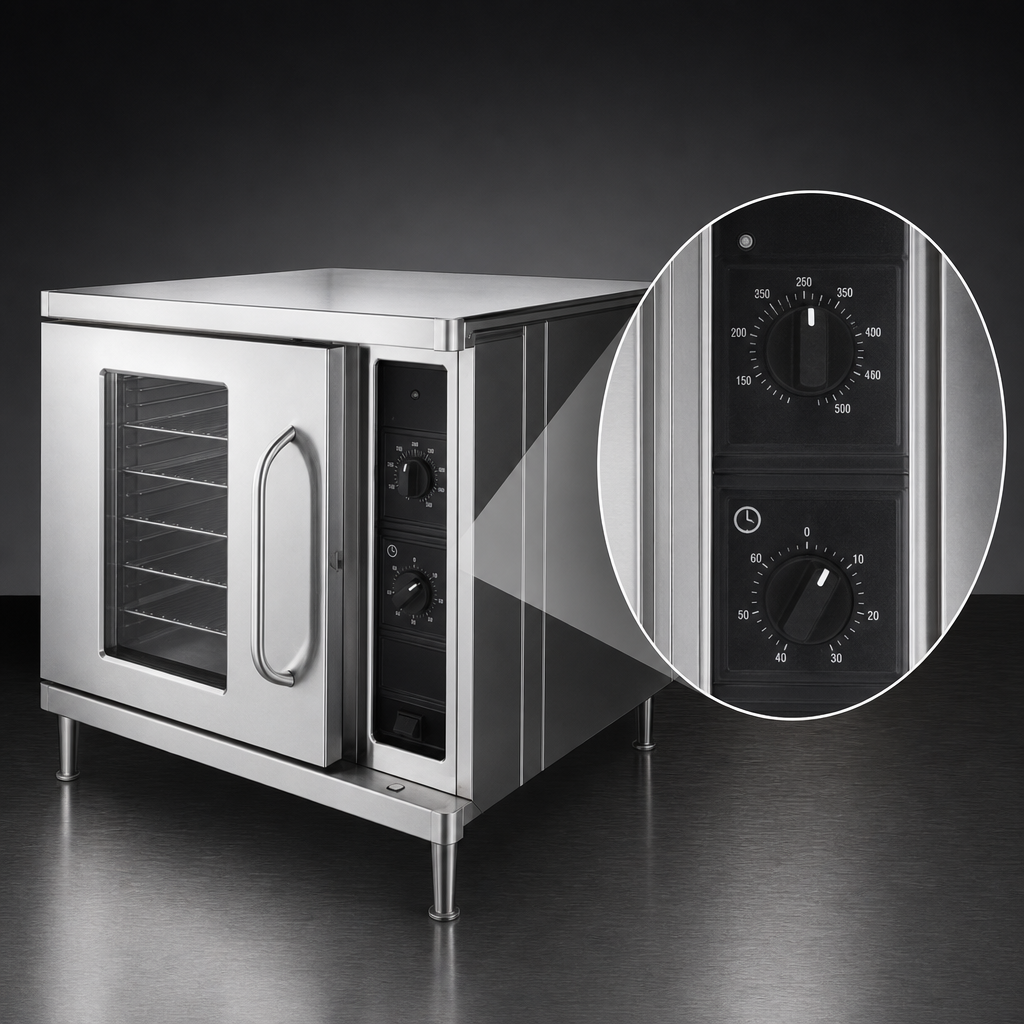

- S.S.M. solid-state manual controls – independent dials for temperature & 60-min timer
- 200–500 °F (93–260 °C) operating range with fast recovery from twin 5 kW tubular heaters
- High / Low, 2-speed fan plus Cook/Cool-Down selector for delicate or high-volume items
- Single right-hinged door with dual-pane thermal glass window & chrome handle
- Full angle-iron frame and stainless steel front, sides, top & back for maximum durability
- Double-sided porcelainized 14-gauge oven liner resists corrosion and simplifies clean-up
- 1/4 HP blower motor with automatic thermal overload protection
- Factory-installed stainless vent riser keeps hot air away from operators
- NSF, ETL & CE listed – ready for use in the most regulated kitchens
At-a-Glance Specs
| Pan Capacity | (5) half-size 13 × 18 in pans |
|---|---|
| Interior (W × H × D) | 15-1/4 × 20 × 21 in (387 × 508 × 533 mm) |
| Exterior Footprint | 30-1/4 × 25-1/8 in (768 × 638 mm) |
| Electrical (standard) |
208 / 220-240 V, 1 or 3 ph, 5.6 kW, 27–24 A (see manual for full amperage chart) |
| Heating Elements | (2) tubular, 5 kW total • 7.5 kW upgrade available |
| Fan Motor | 1/4 HP, 2-speed (1140 & 1725 RPM) |
| Clearances | 0 in to combustible or non-combustible construction |
| Certifications | NSF, ETL, CE, ENERGY STAR® |
| Warranty | 3 yr parts / 2 yr labor • 5 yr limited door |
Popular Factory Options & Accessories
- 4 in legs, 6 in casters, or stainless stands from 6 – 33 in with optional rack shelf
- 7.5 kW high-output elements
- Extra chrome oven racks
- Stainless steel oven liner upgrade
- VLH ventless hood – eliminates the need for a traditional canopy (local code permitting)
- Factory Start-Up service for worry-free commissioning (USA/Canada)
Electrical ratings, installation clearances and certification marks vary by voltage and regional requirements. Always consult the installation manual and local codes before ordering.
