Blodgett (Middleby) CTB DBL Premium Series Convection Ovens
Description

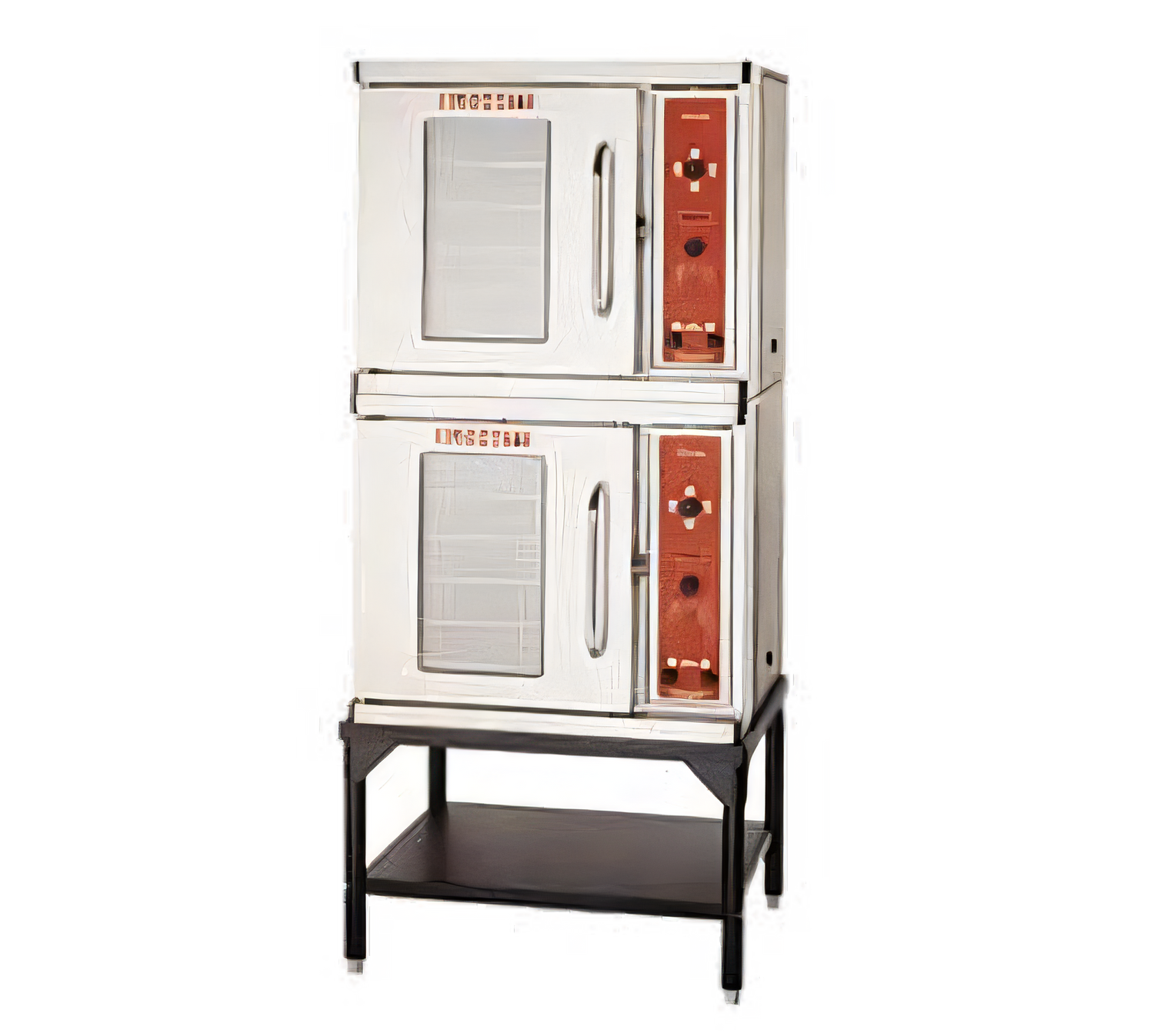

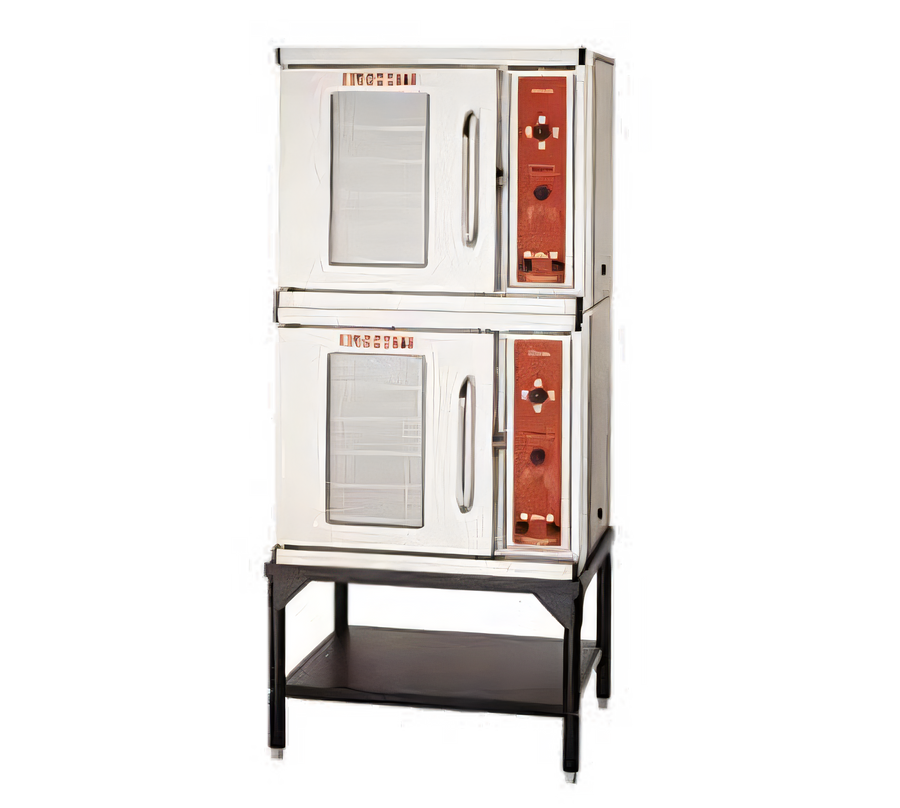

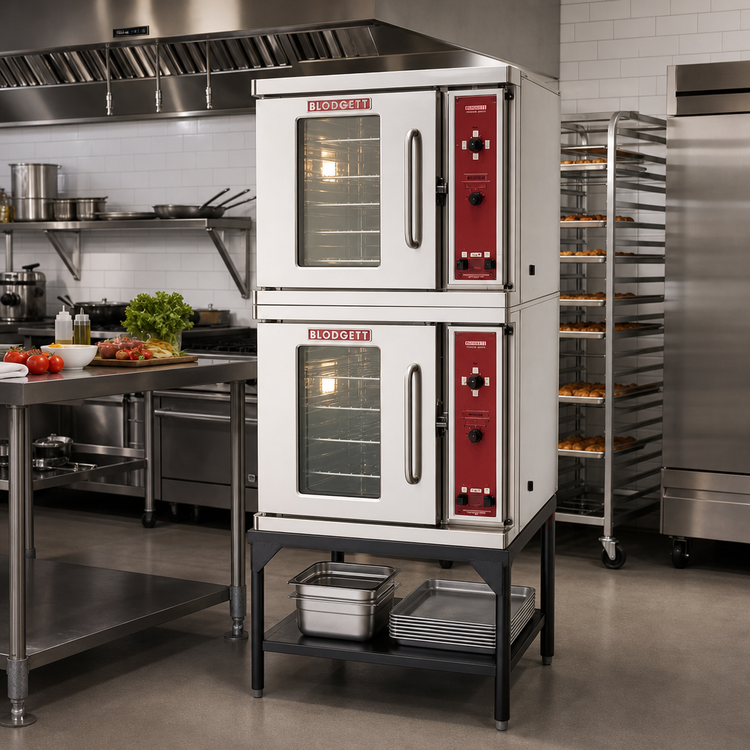

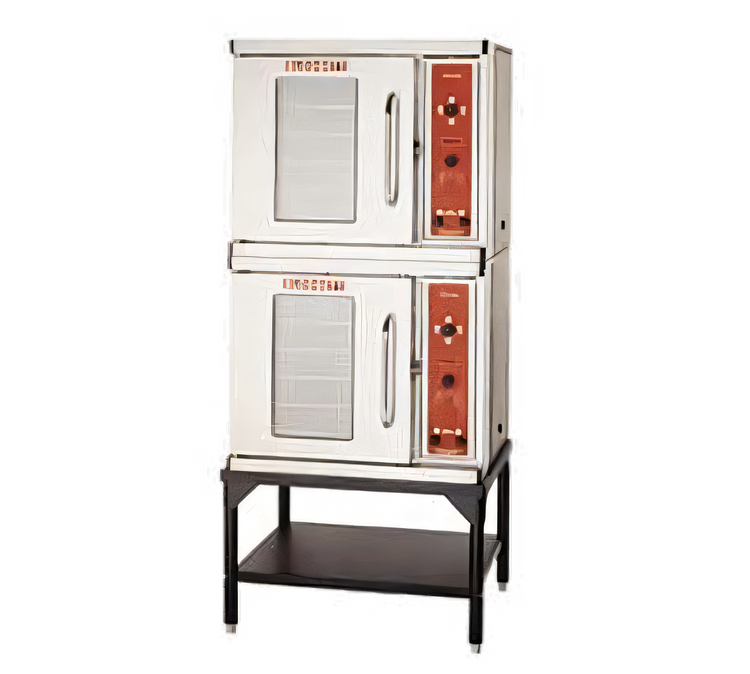

Blodgett Premium Series Half-Size Electric Convection Oven – Double Deck

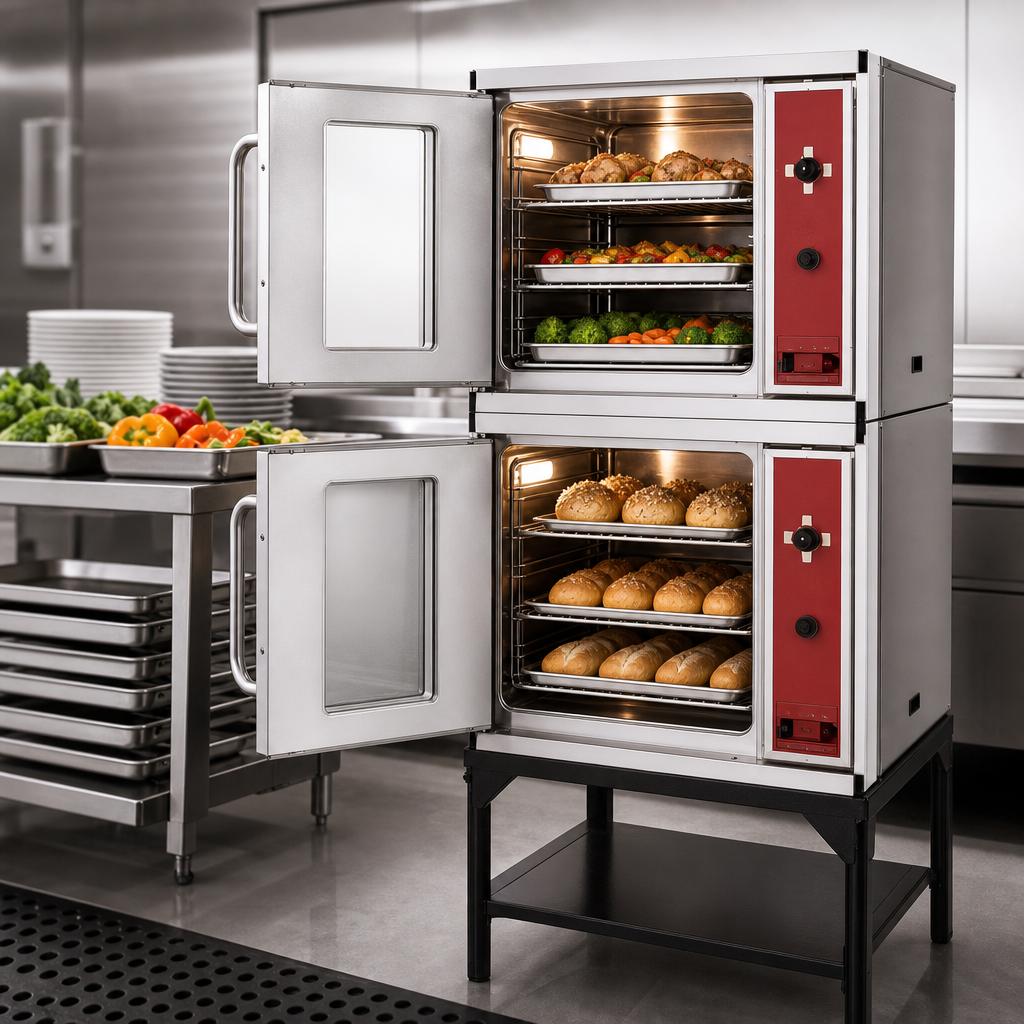

Model CTB Premium • Left-hinged doors • Solid State Manual ControlsTwice the capacity, same compact footprint. The Blodgett Premium Series double-deck convection oven combines rugged stainless-steel construction with the precise baking performance chefs demand. Independent controls on each deck let you tackle different menu items simultaneously while the powerful two-speed fan guarantees even, mouth-watering results every time.
Key Features

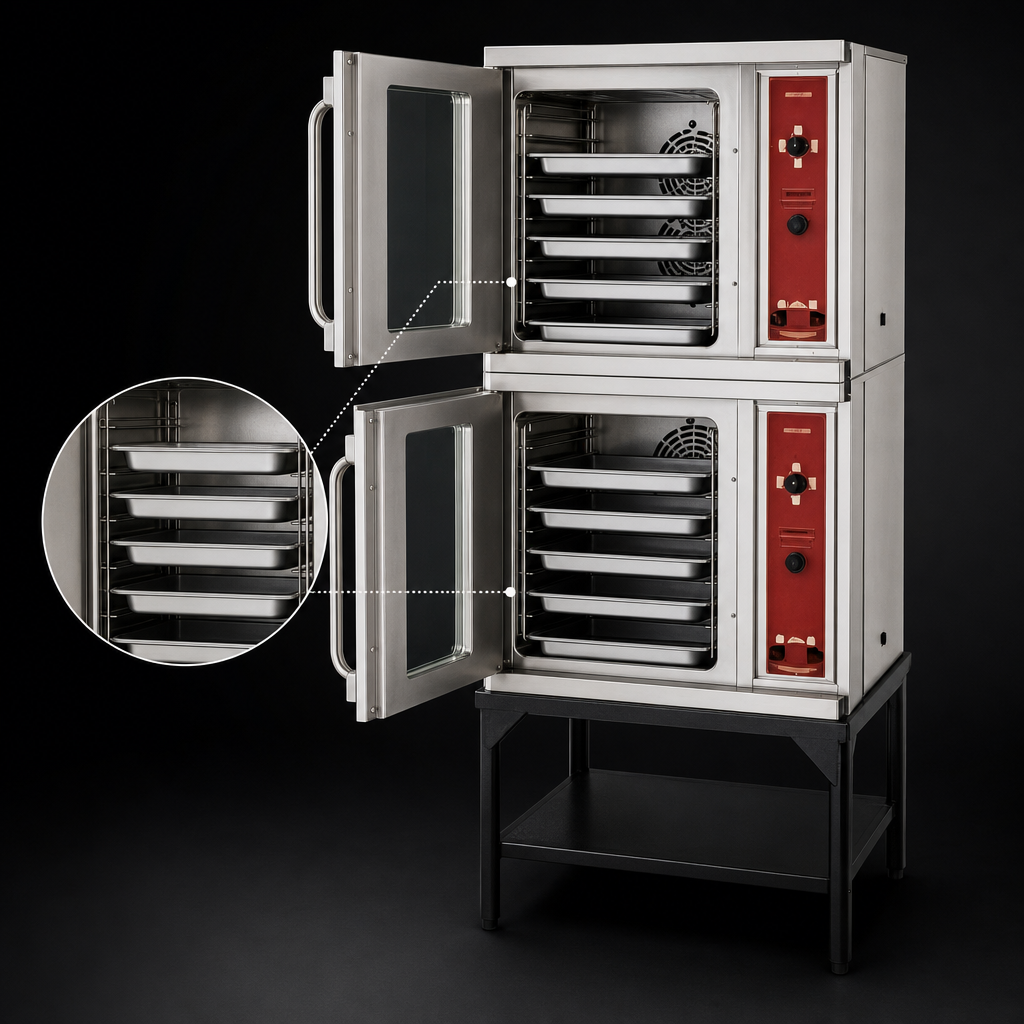

- 10-pan capacity – five 13 × 18 -inch half-size pans per deck.
- Solid State Manual (SSM) controls with separate thermostat (200 °F–500 °F) and 60-minute timer.
- Two 5 kW tubular heating elements in each deck for quick recovery and consistent heat.
- Two-speed ¼ HP fan motor with automatic thermal overload protection.
- Dual-pane thermal glass windows for energy savings and product visibility.
- Left-hinged single door per deck with chrome-plated handle for one-hand operation.
- Five chrome racks & nine rack positions (1 ⅝ " spacing) in a porcelainized 14-gauge liner.
- Full stainless steel front, sides, top & back wrapped around a rigid angle-iron frame.
- Factory-installed stainless steel vent riser for easy hood connection.
- NSF, ETL & CE listed – ready for use worldwide.
Technical Specifications
| Decks | 2 |
|---|---|
| Pan Capacity | 5 half-size pans per deck (10 total) |
| Interior (per deck) | 15 ¼" W × 20" H × 21" D |
| Exterior (overall) | 30 ¼" W × 25 ⅛" D × 61 ⅞" H* |
| Temperature Range | 200 °F – 500 °F (93 °C – 260 °C) |
| Heating Elements | 5 kW tubular (per deck) |
| Electrical | 208–240 V, 1 or 3 Ph, 5.6 kW per deck (11.2 kW total)** |
| Fan Motor | ¼ HP, two-speed (1,140 & 1,725 RPM) |
| Shipping Weight | Approx. 595 lb (270 kg) |
| Warranty | 3 yr parts / 2 yr labor + 5 yr limited door warranty |
| Certifications | NSF • ETL • CE |
*Height varies with stand or casters.
**Refer to spec sheet for detailed amp draw per voltage and phase.
What’s Included
- (10) Chrome-plated racks – five per deck
- Stainless steel vent riser
- Owner’s manual & installation guide
- Eligibility for factory start-up service (additional fee, must be ordered with equipment)
Popular Options & Accessories (sold separately)
- Stainless steel stands – 5 ¾" to 33" heights, with or without undershelf
- 4" legs or 6" locking casters
- High-output 7.5 kW heating elements
- SimpleTouch touchscreen or digital cook-and-hold controls
- Hoodini ventless hood system
- Extra oven racks or stainless steel interior liner
- Right-hand door swing
