Blodgett (Middleby) CNVX-14G DBL Blodgett Combi Convection Ovens
Description

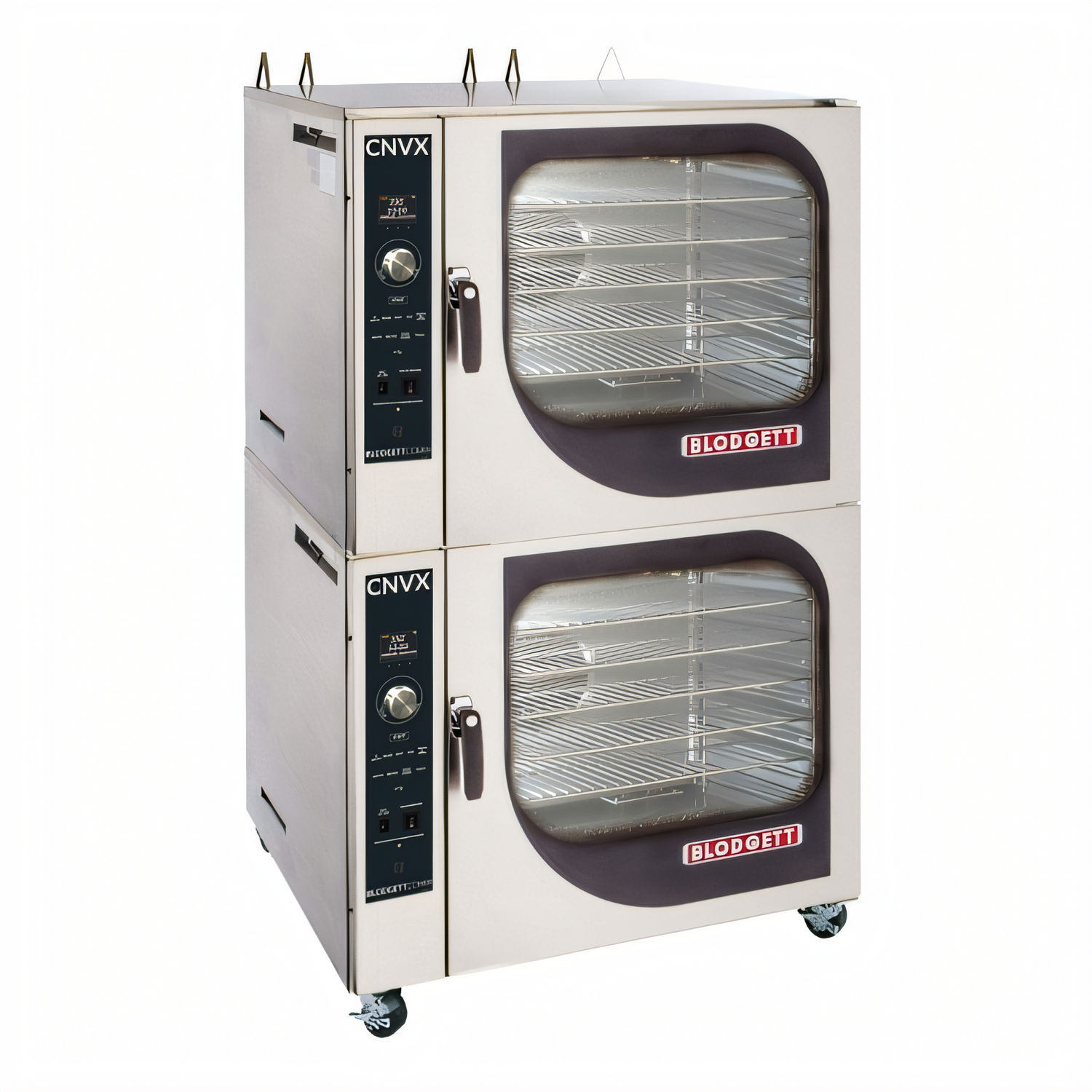

Blodgett Combi CNVX-14G Double-Stack Gas Convection Oven
130,000 BTU | 14 hotel pans or 7 sheet pans per deckMaximize throughput without surrendering a single extra inch of floor space. The Blodgett Combi CNVX-14G stacked oven delivers twice the production of a single deck while giving you the legendary reliability, uniform bake and quick-clean features that put Blodgett at the top of every chef’s wish list.
Key advantages

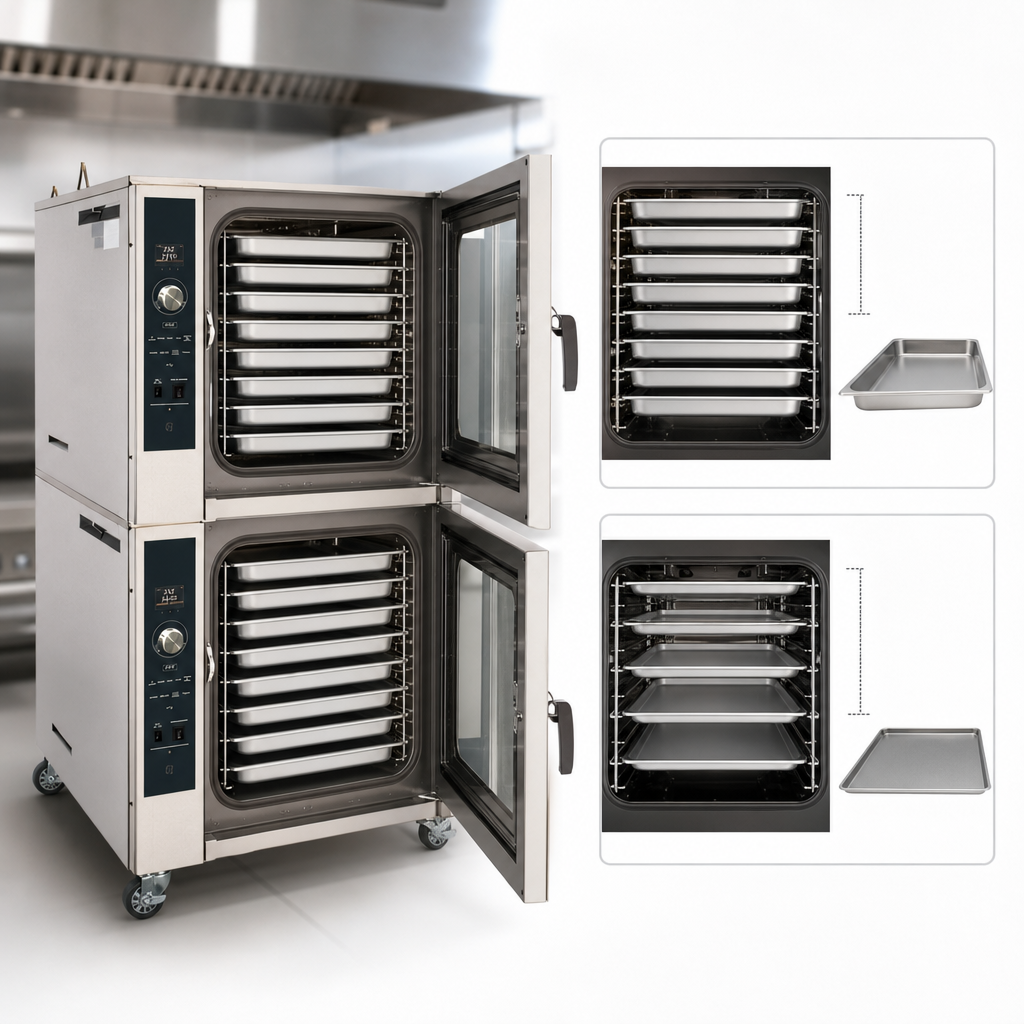

- Serious capacity – each deck fits (14) 12" × 20" × 2.5" hotel pans or (7) full-size 18" × 26" sheet pans.
- 4-speed reversing fan circulates hot air in both directions for remarkably even browning—even on delicate bakes.
- Programmable manual control stores up to 100 recipes; USB port for effortless uploads & downloads.
- Removable 4" core-temperature probe for precise cook-and-hold results.
- Hydroburst™ on-demand steam injection (shot of 100 % humidity) keeps proteins juicy and pastries flaky.
- Built-in hand shower & drain-lined cavity—the industry’s only “washable” convection oven for fast, mess-free clean-up.
- Double-pane hinged glass doors stay cool to the touch and swing open wide for safe loading.
- Factory-installed 4" casters (front locking) plus stacking hardware included.
- cETLus & NSF listed for guaranteed code compliance.
What’s in the box
- (2) CNVX-14G oven sections (stacked)
- (14) stainless-steel wire racks – 7 per deck
- Retractable hose reel with front water shut-off
- 4" removable temperature probe
- Hardware & 4" heavy-duty casters (pre-installed)
- Owner’s manual & quick-start guide
Technical specifications
| Cooking modes | Hot air (140 °F – 500 °F) | Hydroburst humidity injection |
|---|---|
| Total BTU | 130,000 BTU/hr (65,000 BTU per deck) |
| Gas connection | 3/4" NPT; Natural 7" W.C. | Propane 14" W.C. |
| Electrical | 115 V, 1-phase, 12 A (per deck) • NEMA 5-20R dedicated circuit Optional 208-240 V, 1-phase, 6 A |
| Horsepower | (2) ½ HP motors – one per deck |
| Water | ¾" garden hose cold water, 40-50 PSI TDS 40-125 ppm, pH 7-8.5 |
| Drain | 2" connection, max 140 °F effluent |
| Overall dimensions (W × D × H) | 33" × 40" × 69" (840 × 1016 × 1758 mm) |
| Shipping weight | 1,225 lb (556 kg) |
| Certifications | cETLus, NSF |
Peace-of-mind warranty
Every Blodgett Combi oven ships with a 1-year parts & labor warranty (6-month gasket warranty) and complimentary factory start-up by an authorized service agent.
Registration required. Water quality outside Blodgett’s recommendations may void coverage.
