Blodgett (Middleby)

Blodgett Combi CNVX-14E SGL Single Deck Electric Full-Size Convection Oven with Open Base Stand

SKU: CNVX-14E SGL
$22,268.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Blodgett Combi CNVX-14E SGL Single Deck Electric Full-Size Convection Oven with Open Base Stand

14 Hotel Pan / 7 Sheet Pan Capacity, 19 kW, 3-Phase

Built for high-volume kitchens, this stack-ready electric convection oven combines 14-pan capacity, programmable control, and easy-clean washdown features.

  • Single-deck floor model with an open base stand and stack-ready footprint.
  • Holds up to 14 12 x 20 x 2-1/2 inch hotel pans or 7 full-size sheet pans per section.
  • Programmable manual controls store up to 100 recipes and support USB recipe upload/download.
  • 4-speed reversible fan and Hydroburst humidity help deliver even baking and roasting results.
  • Built-in hand shower, retractable hose reel, and stainless steel liner with drain simplify cleanup.
  • Includes 7 stainless steel wire shelves, a removable 4-inch core probe, and halogen cavity lights.

Overall Dimensions:

40.19"W x 45.13"D x 63.99"H

Product Weight:

735.0 lb

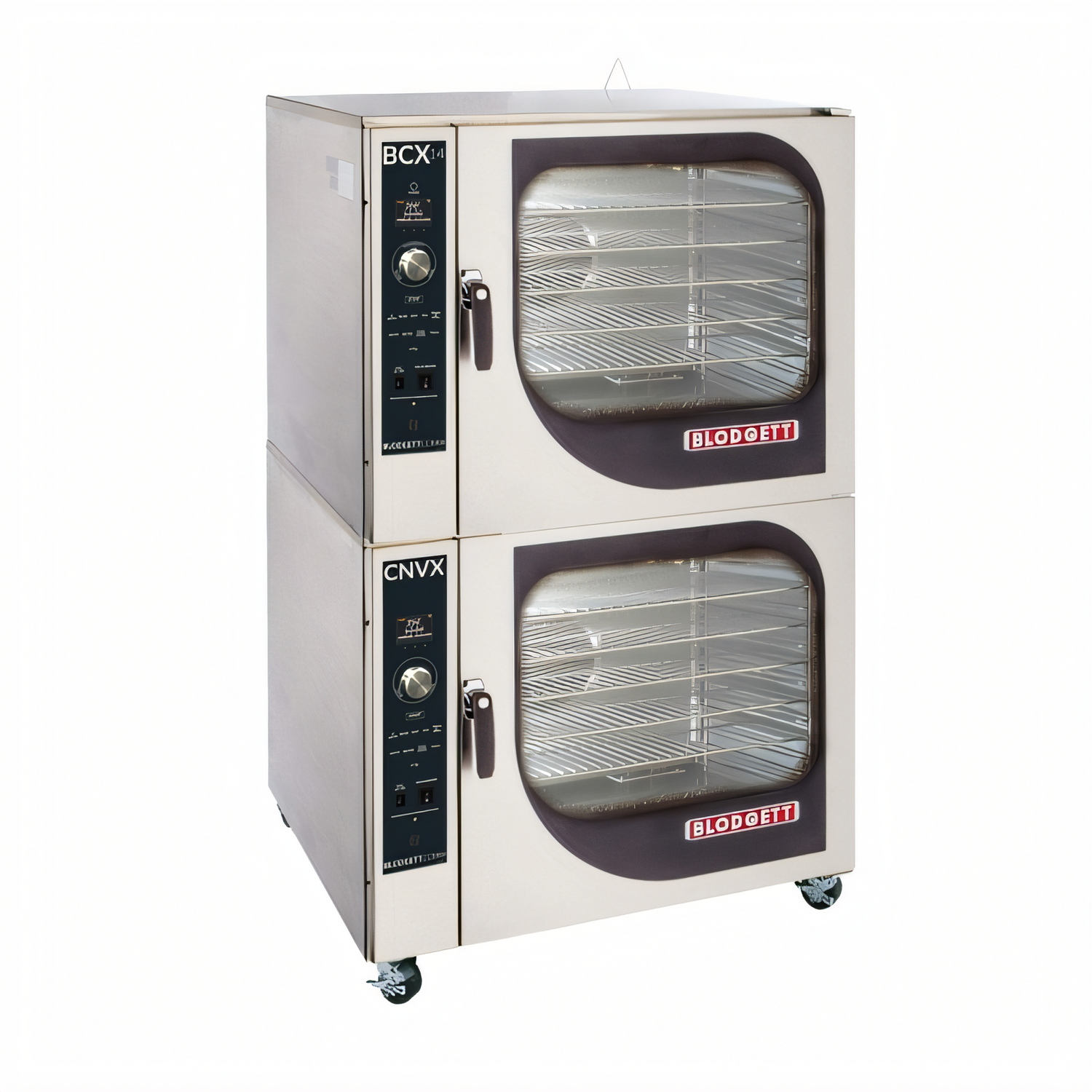

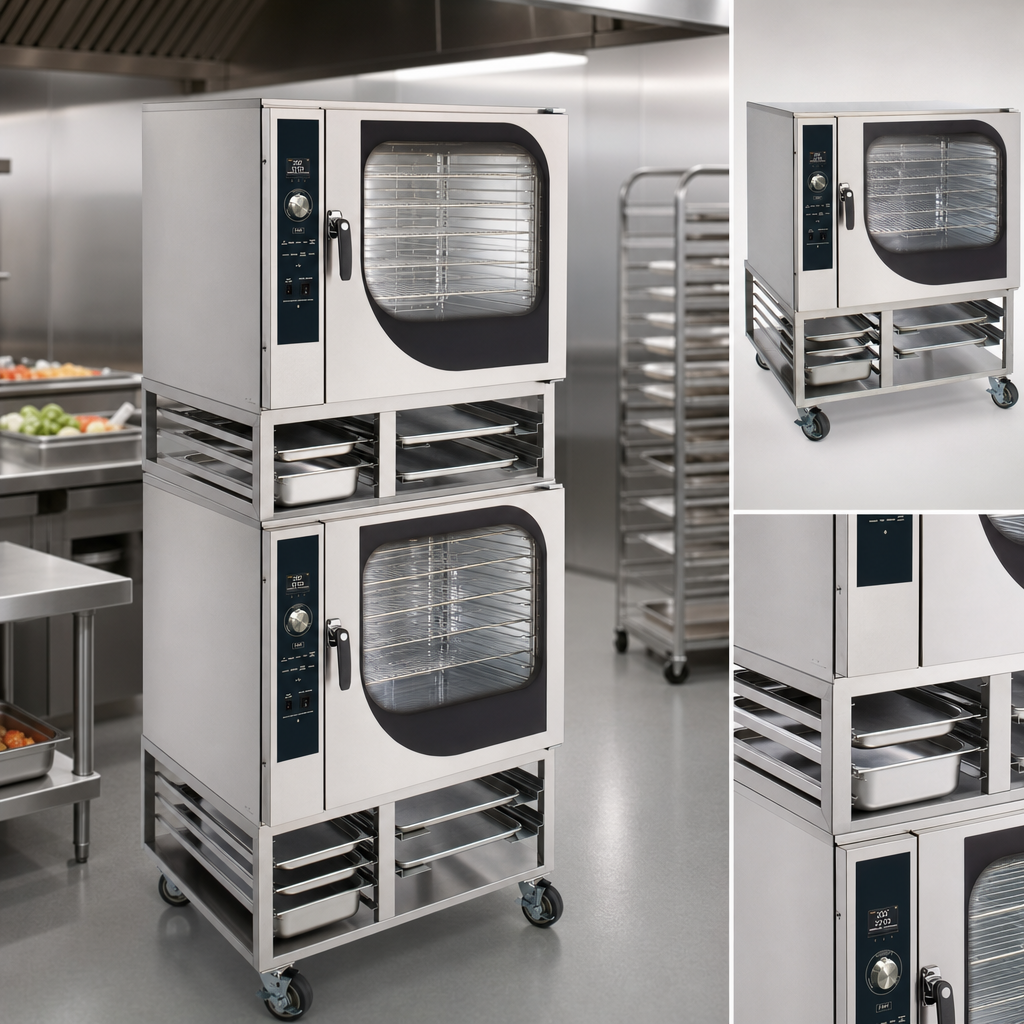

Stack-Ready Design

Designed to match the footprint and styling of BCX/BX combi ovens so units can be stacked to increase capacity without taking more floor space.

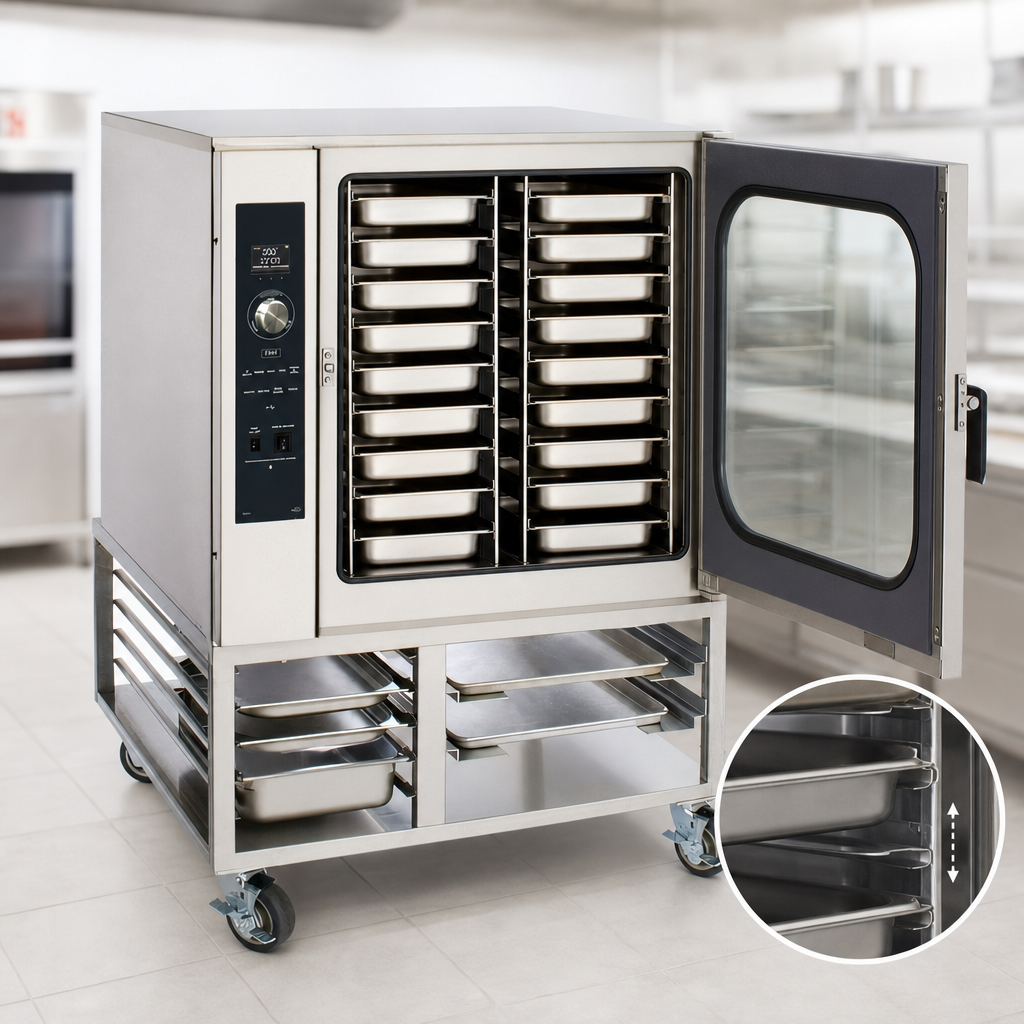

High Pan Capacity

Each section holds 14 hotel pans or 7 full-size sheet pans at 3-1/4 inch spacing.

Programmable Manual Control

Stores up to 100 recipes and includes USB recipe upload/download capability.

4-Speed Reversible Fan

Multi-speed, bi-directional airflow helps provide even heat distribution and better results on delicate baked goods.

Hydroburst Humidity Injection

Adds a shot of 100% humidity during the cook cycle when additional moisture is needed.

Washdown Cleaning Features

Includes a built-in hand shower, retractable hose reel with front water shutoff, stainless steel liner with drain, and pressure spray bottle for easier cleaning.

Double-Pane Viewing Door

Dual-pane tempered glass door with hinged inner glass, dual-stage latch, and integral door switch improves visibility and usability.

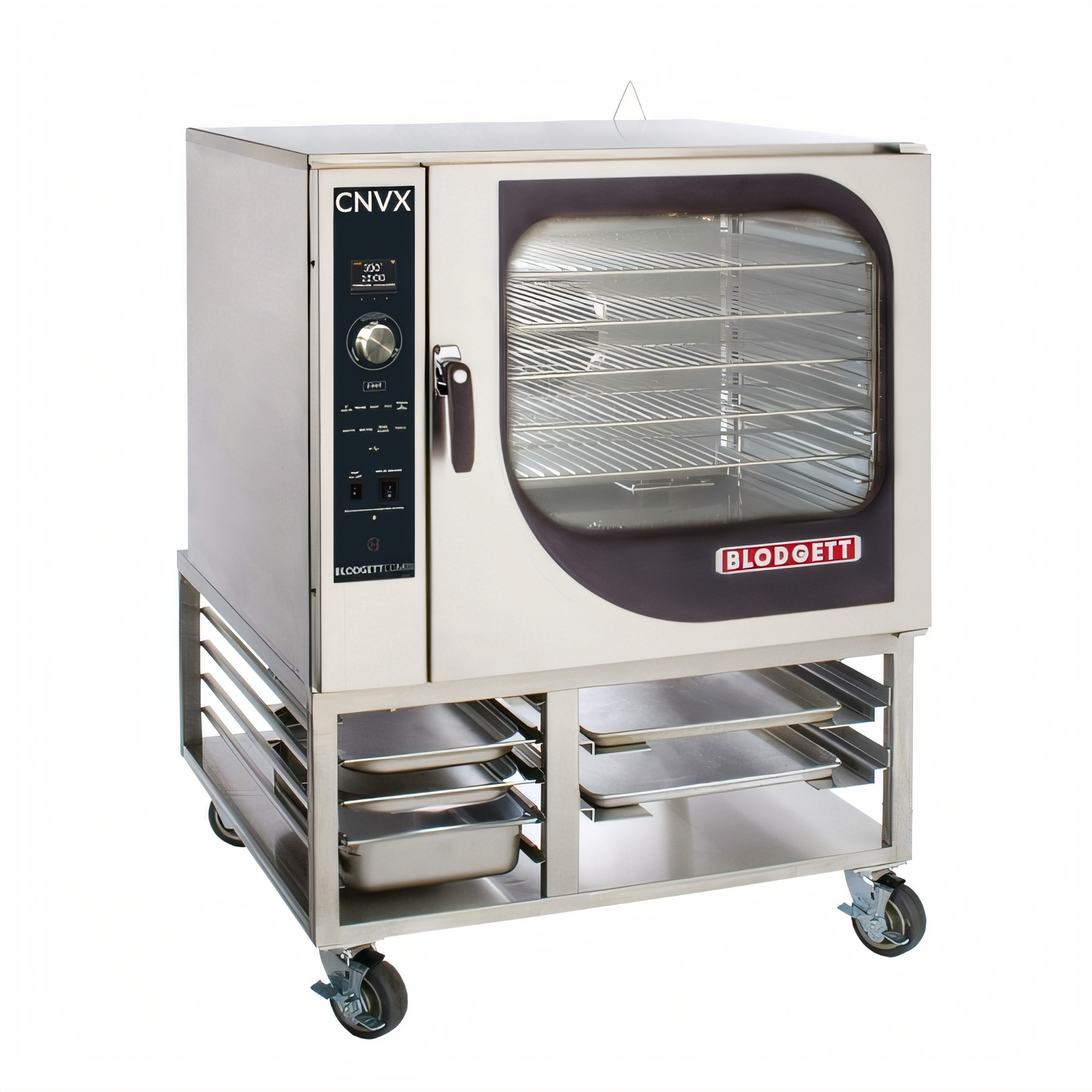

Included Floor Stand

Open base stand with rack supports and adjustable feet provides a stable floor installation.

Halogen Lighting And Core Probe

Halogen cavity lights improve visibility, and the removable 4-inch core temperature probe supports precise cooking.

Type Convection Oven
Style Standard
Installation Type Floor Model (With Stand)
Compartments 1
Pan Capacity 14 12 x 20 x 2-1/2 Inch Pans or 7 Full-Size Sheet Pans
Controls Programmable Manual
Temperature Range 140°F to 500°F
Watts 19 kW
Phase 3-Phase
Voltage 208/240/480 Volts
Amps 53/46/23 Amps
Water Connection Required
Water Inlet Size 3/4 Inch Garden Hose
Drain Connection Required
Drain Connection Size 2 Inches
Material Stainless Steel
Interior Finish Stainless Steel
Selling Unit Each
Units Per Case 1
Shipping Width 41 Inches
Shipping Depth 46 Inches
Shipping Height 64 Inches
Shipping Weight 735 lb.

Frequently Asked Questions

Each section holds 14 12 x 20 x 2-1/2 inch hotel pans or 7 full-size sheet pans at 3-1/4 inch spacing.
It comes with programmable manual controls that store up to 100 recipes and support USB recipe upload/download.
Available power options are 208V, 240V, or 480V, all 3-phase, with a 19 kW rating.
Yes. The Hydroburst system can add a shot of 100% humidity during the cook cycle.
It requires a 3/4 inch garden hose cold water connection and a 2 inch drain connection, and backflow protection is required by code.
Blodgett lists a 1-year parts and labor warranty for combi ovens, with a 6-month limited warranty on gaskets.
