Arctic Air  |  SKU: ARCB72

Arctic Air ARCB72 Undercounter & Worktop Refrigeration

$4,799.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Pan capacity Owner's manual Product catalog Video Warranty Diagram
Related Searches
Commercial Work Tables Equipment Stands Kitchen Equipment Tables Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

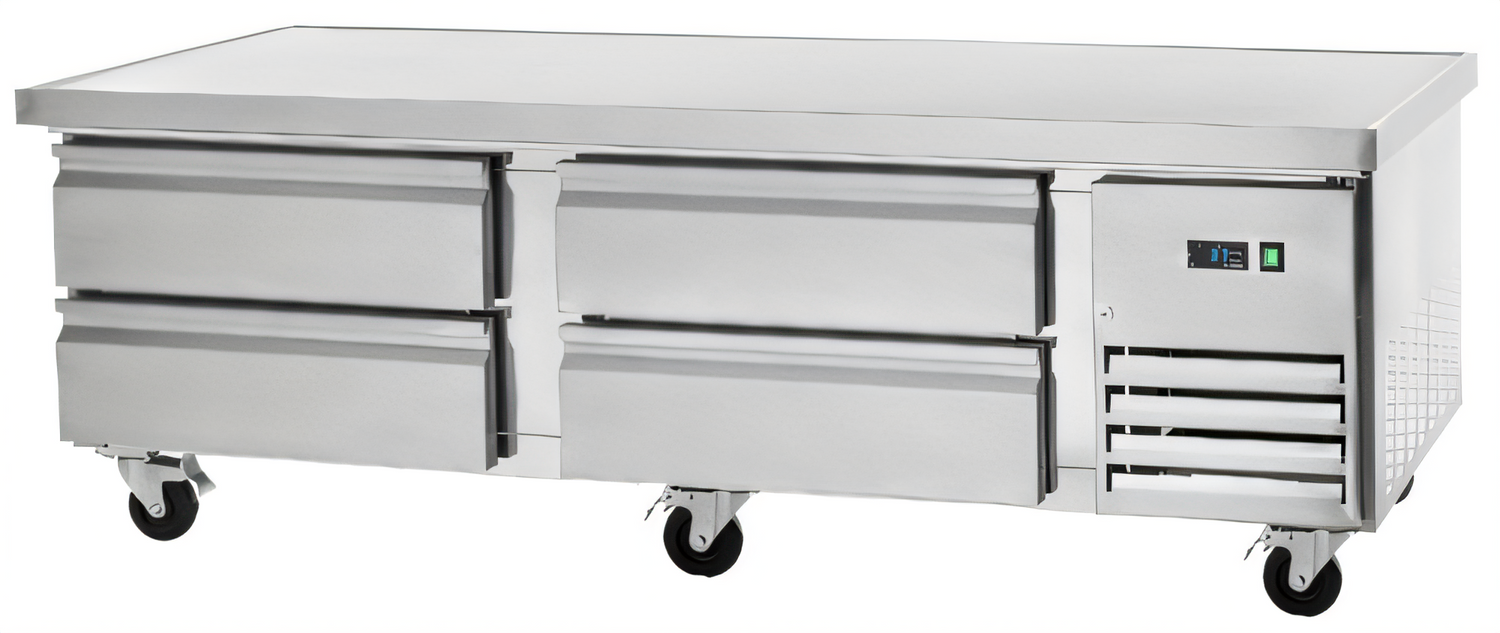

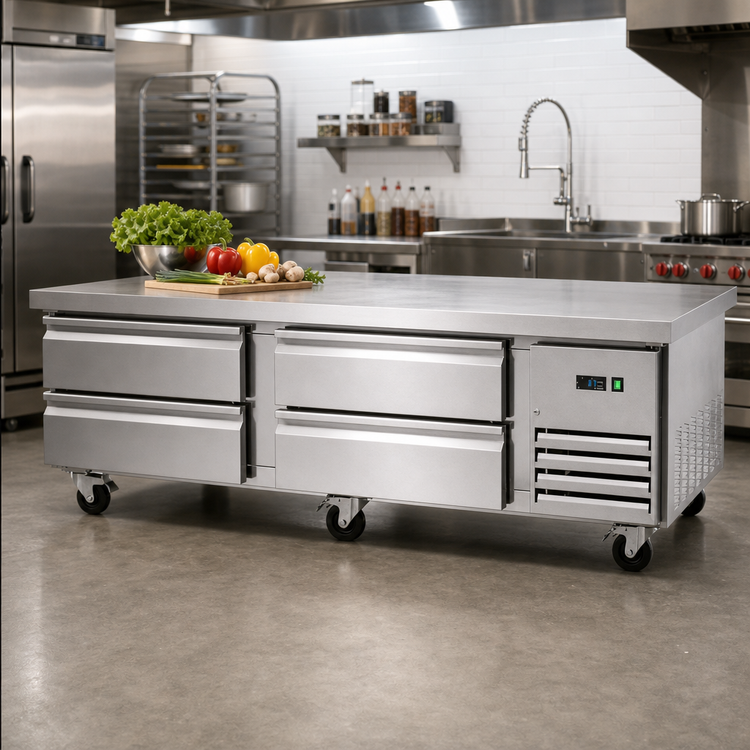

Arctic Air ARCB72 Refrigerated Chef Base – 74"

4-Drawer | 6 Full-Size Pan Capacity | 33°F – 41°F

Engineered for today’s busy kitchens, the Arctic Air ARCB72 combines a heavy-duty equipment stand with precise, NSF-approved refrigeration. Keep proteins, sauces, and mise en place ice-cold right under your grill, griddle, or charbroiler while reclaiming valuable line space.

Why You’ll Love It

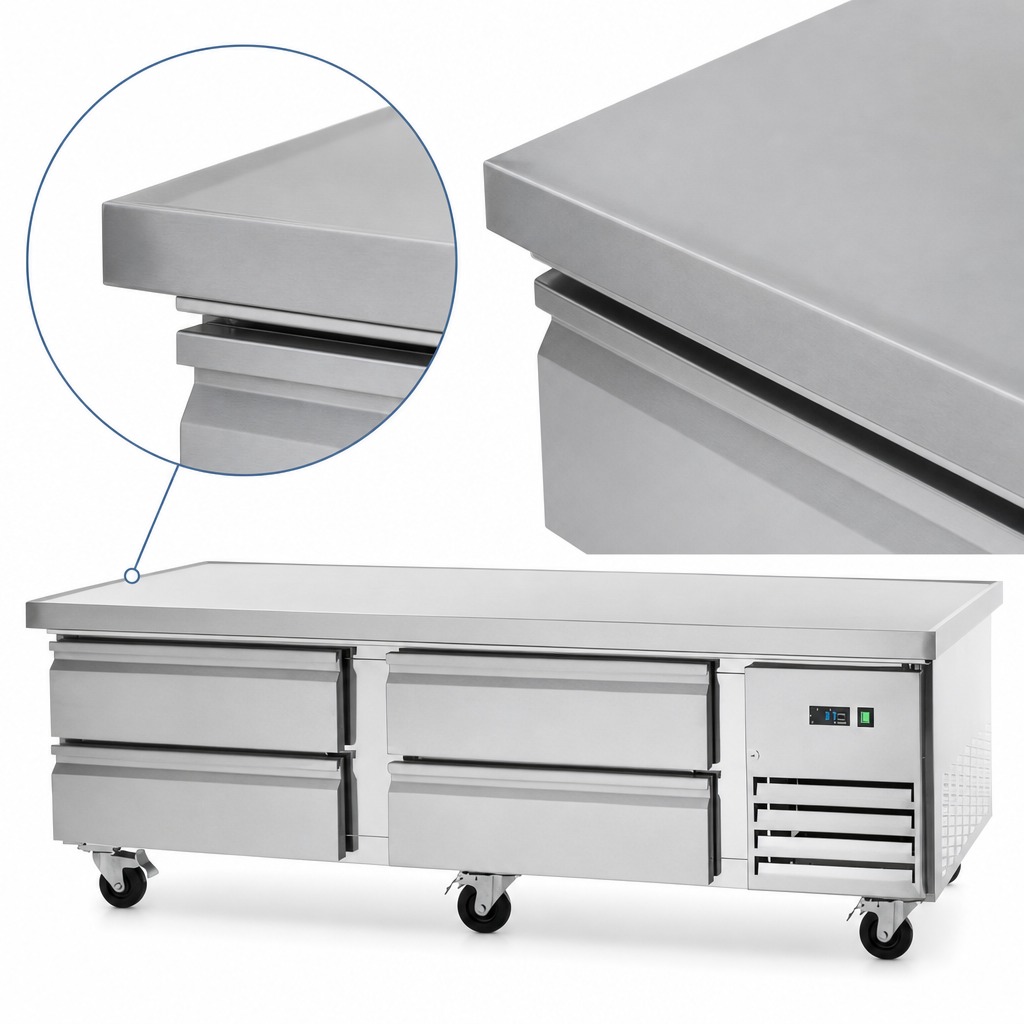

  • Heavy-duty stainless steel top with marine edge & 1" extension on all sides – cooking equipment sits flat without overhang.
  • Ceramic-fabric insulated top blocks heat transfer to the refrigerated cavity.
  • (4) full-extension Fulterer telescoping drawers for effortless loading/unloading – no pan tipping.
  • Holds 6 full-size (1/1) hotel pans up to 6" deep  •  also accepts 1/3 pans (adapter bars included).
  • Side-mounted, front-breathing capillary-tube refrigeration – install flush against walls or equipment.
  • Eco-friendly R290 hydrocarbon refrigerant  |  1/3 HP compressor, 492 BTU/h heat rejection.
  • Electronic thermostat with external LED – quick, at-a-glance temperature checks.
  • (6) 5" plate casters – 3 locking – roll it out for easy cleaning.
  • Removable magnetic drawer gaskets simplify sanitation.
  • Durable, reinforced mounting points built to handle heavy countertop equipment.

Technical Specifications

Model ARCB72
Exterior dimensions (W × D × H) 74" × 32" × 27.625" (incl. 5" casters)
Drawer count / system 4 / full-extension telescoping cartridge
Pan capacity 6 × full-size (1/1) x 6" deep  |  also fits 1/3 pans
Temperature range 33°F – 41°F (0.5 – 5°C)
Refrigerant R290 Hydrocarbon
Compressor / BTU 1/3 HP  |  492 BTU/h heat rejection
Electrical 115 V / 60 Hz / 1-phase  •  2.1 amps  •  8' cord, NEMA 5-15P
Construction Stainless steel front, sides, drawer facings, linings & frames
Casters (6) 5" plate casters, 3 locking
Certifications cETLus, ETL-Sanitation, NSF 7
Warranty 2-year parts & labor + 5-year compressor
Important: If the cooking surface placed on top of the chef base exceeds 280 °F, Arctic Air recommends installing an additional heat shield to prevent top warping.

Need extra peace of mind? Optional extended parts & labor coverage is available for up to five years total. Contact us for details.

Features & Specs

Manufacturer

Arctic Air

Certifications

cETLus, ETL-Sanitation

Height

27.62in

Width

74.0in

Depth

32.0in

Shipping Weight

355.0lbs

Drawer Qty

4 drawers

Top Finish

stainless steel top

Exterior Finish

all stainless steel exterior

Width

73" - 84" wide

Refrigeration

self-contained, side mounted

Compressor HP

1/3 HP

Specifications

Refrigerated Chef Base, 74"W, marine edge top with 1" extension per side, (4) full-extension telescoping cartridge drawers, top & bottom drawers accommodate 6" deep pans, (6) full size pan capacity (accommodates 1/3 pans), side mounted self-contained capillary tube refrigeration, front breathing, electronic thermostat with external LED display, 33°F to 41°F temperature range, reinforced mounting points, stainless steel hook adapter bars, drawer facings, linings & frames, stainless steel front & sides, heavy duty stainless steel top with insulated ceramic fabric layer, (6) 5" plate casters (3 locking), R290 Hydrocarbon refrigerant, 492 BTU/h rejected heated air gain, 1/3 HP, 2.1 amps, cord, NEMA 5-15P, cETLus, ETL-Sanitation
