Arctic Air ARCB48 Undercounter & Worktop Refrigeration
$2,879.00
Unit price
/
Unavailable
Description

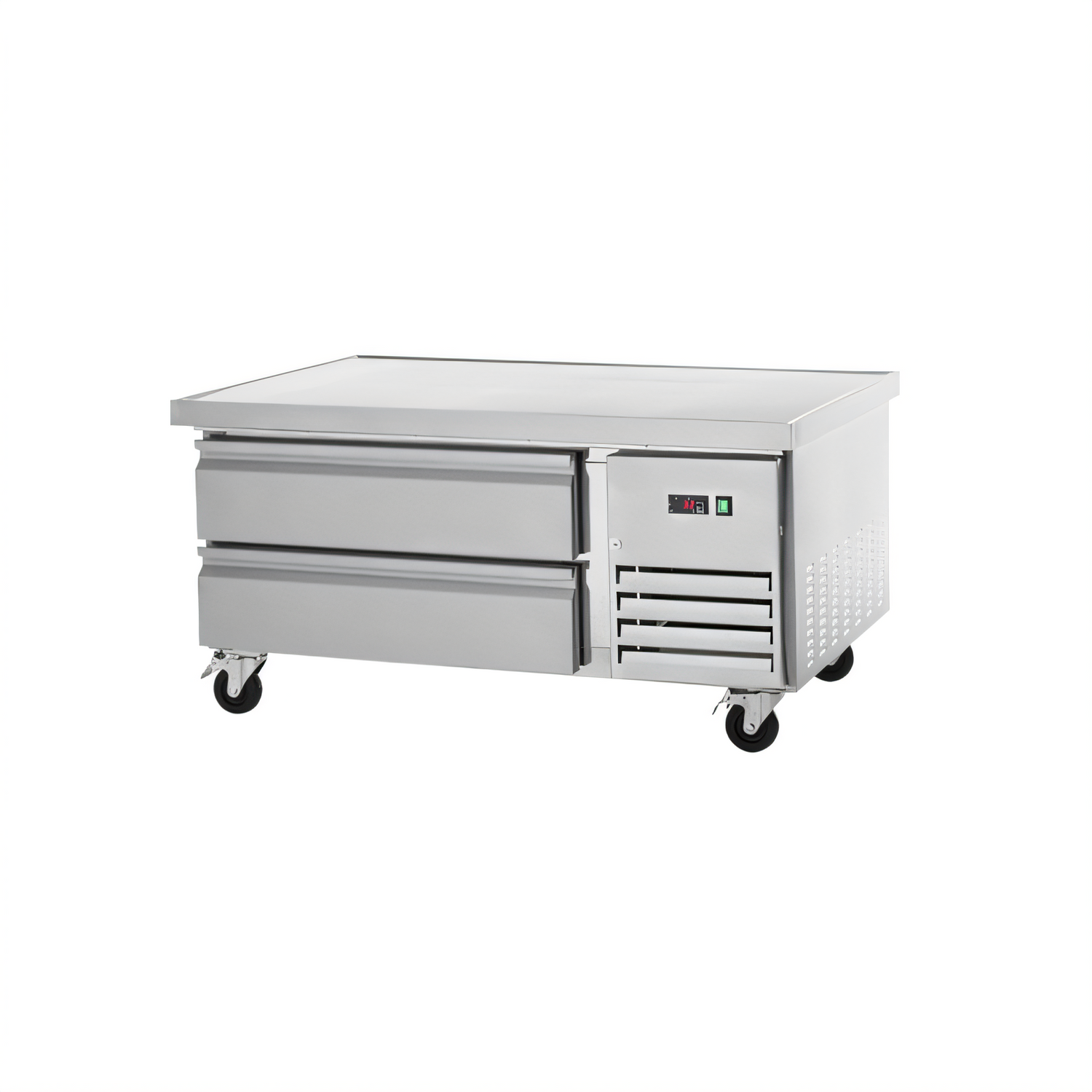

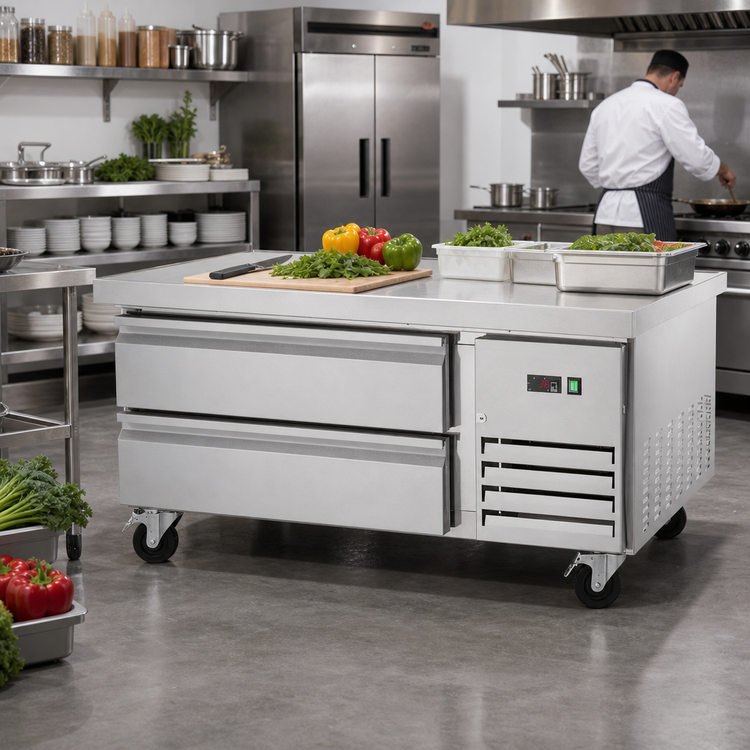

Arctic Air ARCB48 Refrigerated Chef Base – 50" Wide, 2-Drawer
Chilled storage right where the cooking happensKeep proteins, garnishes, and mise en place safely chilled directly beneath your countertop equipment. The ARCB48 combines rugged chef-base construction with precise refrigeration, streamlining workflow on even the busiest cooklines.
Key features

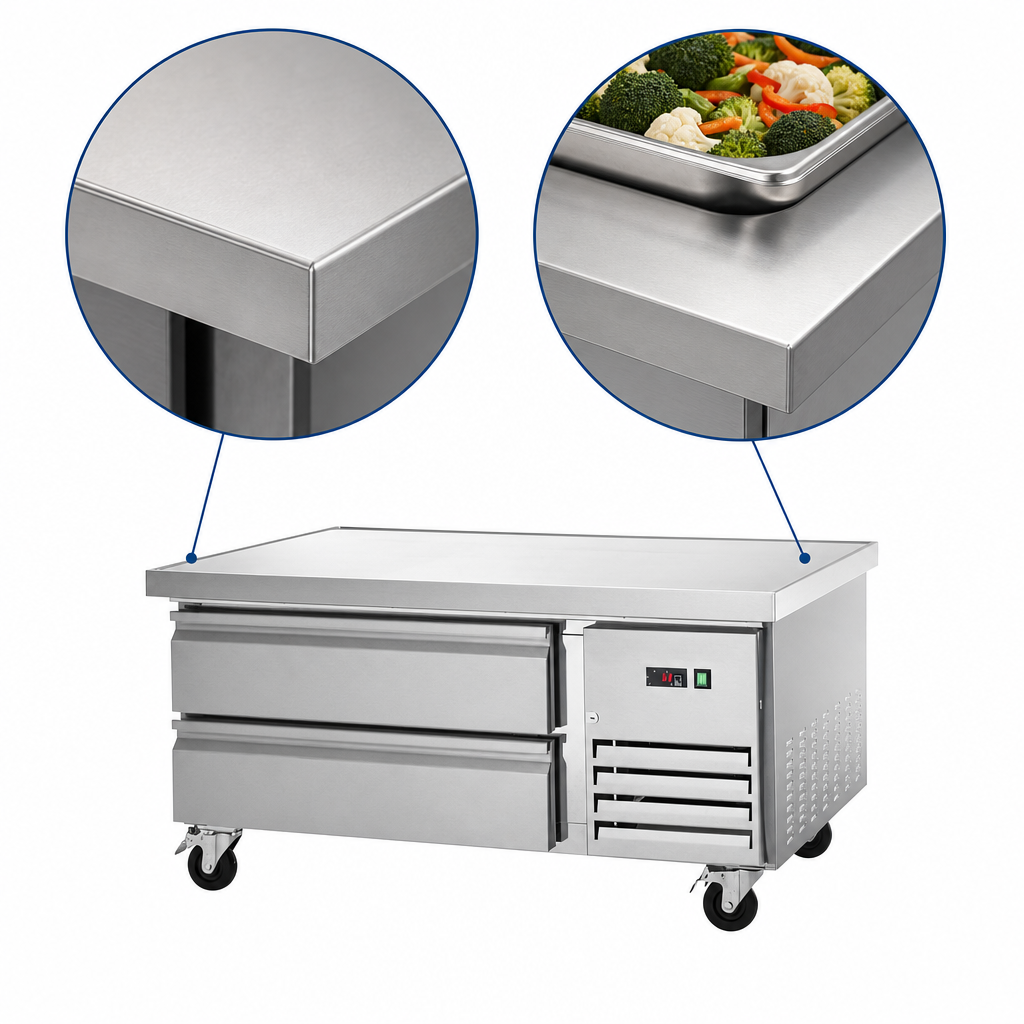

- Heavy-duty stainless steel top with marine edge & 1" overhang on all sides—protects floors and lets equipment sit flush.
- Ceramic fiber insulation above the foam layer stops heat transfer from griddles, charbroilers, or fryers.
- (2) full-extension Fulterer ® telescoping drawers for easy, tip-free loading and unloading.
- Each drawer holds (2) full-size 6" pans (4 pans total); stainless steel hook adapter bars included.
- Side-mounted, front-breathing capillary-tube refrigeration with eco-friendly R290 hydrocarbon.
- Electronic thermostat with external LED display maintains 33 °F – 41 °F and is readable at a glance.
- Stainless steel facings, liners, and frames plus reinforced mounting points for years of demanding service.
- (4) 5" plate casters—two locking—for effortless cleaning and repositioning.
Specification table
| Model | ARCB48 |
|---|---|
| Exterior dimensions (W × D × H) | 50" × 32" × 27.625" (includes 5" casters) |
| Drawers / System | 2 full-extension cartridge drawers (Fulterer) |
| Pan capacity | 4 full-size (12" × 20") pans, 6" deep |
| Temperature range | 33 °F – 41 °F |
| Refrigerant | R290 Hydrocarbon |
| Compressor / HP | Side-mounted, 1/3 HP |
| Heat rejection | 492 BTU/h |
| Electrical | 115 V / 60 Hz / 1 ph, 2.1 amps, NEMA 5-15P, 8' cord |
| Casters | (4) 5" plate casters (2 locking) |
| Certifications | cETLus, ETL-Sanitation; conforms to NSF 7 |
| Crated weight | 250 lb |
Warranty & peace of mind
- 2-year parts & labor coverage on the entire unit.
- Additional 3-year compressor parts warranty (5 years total).
- Backed by Arctic Air’s nationwide service network—call 1-855-431-5558 for support.
Need longer coverage? Extended 1-, 2-, or 3-year parts & labor plans can be added at the time of purchase.
Important: If the cooking surface above this unit exceeds 280 °F, an approved heat shield is recommended to prevent top warping and maintain warranty coverage.
Features & Specs
Features & Specs
Manufacturer
Arctic Air
Certifications
cETLus, ETL-Sanitation
Height
27.62in
Width
50.0in
Depth
32.0in
Shipping Weight
250.0lbs
Refrigeration
self-contained, side mounted
Compressor HP
1/3 HP
Exterior Finish
all stainless steel exterior
Width
49" - 60" wide
Top Finish
stainless steel top
Drawer Qty
2 drawers
Specifications
Refrigerated Chef Base, 50"W, marine edge top with 1" extension per side, (2) full-extension telescoping cartridge drawers, top & bottom drawers accommodate 6" deep pans, (4) full size pan capacity, side mounted self-contained capillary tube refrigeration, front breathing, electronic thermostat with external LED display, 33°F to 41°F temperature range, reinforced mounting points, stainless steel hook adapter bars, drawer facings, linings & frames, stainless steel front & sides, heavy duty stainless steel top with insulated ceramic fabric layer, (4) 5" plate casters (2 locking), R290 Hydrocarbon refrigerant, 492 BTU/h rejected heated air gain, 1/3 HP, 2.1 amps, cord, NEMA 5-15P, cETLus, ETL-Sanitation
