Arctic Air ARCB36 Undercounter & Worktop Refrigeration
Description

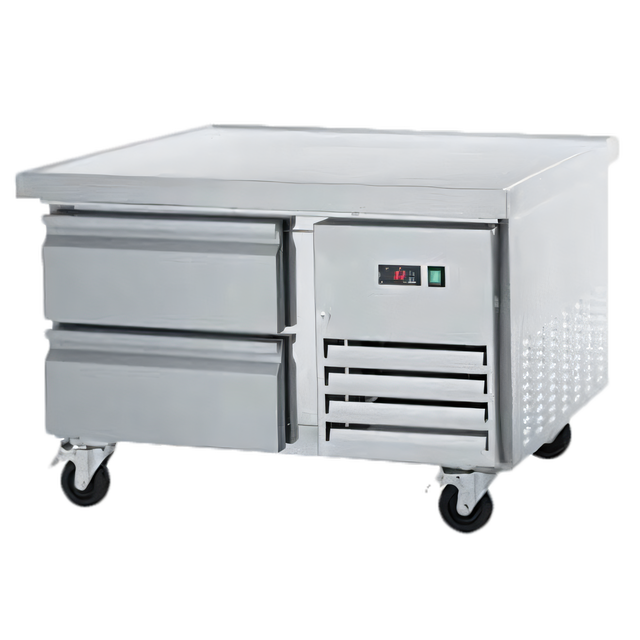

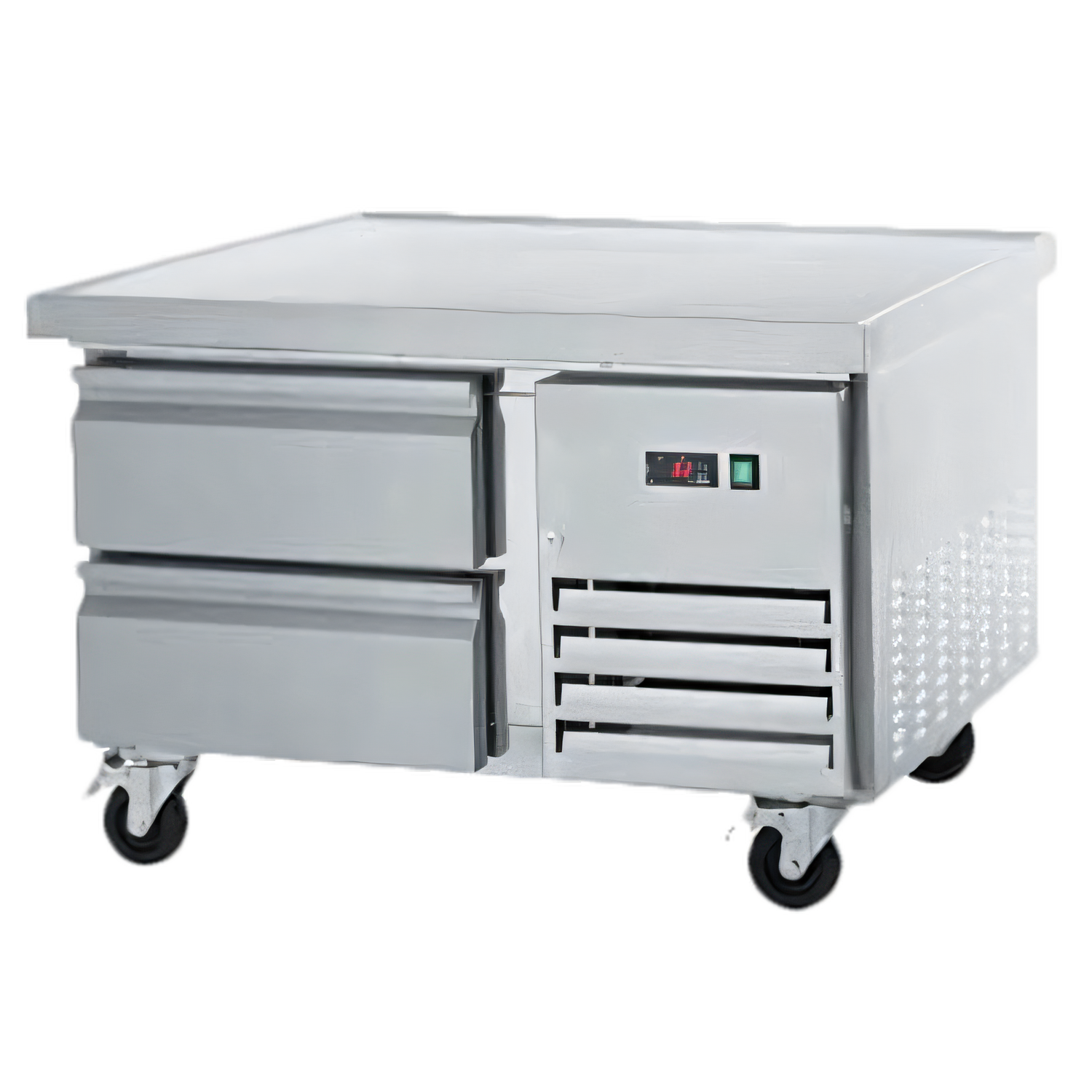

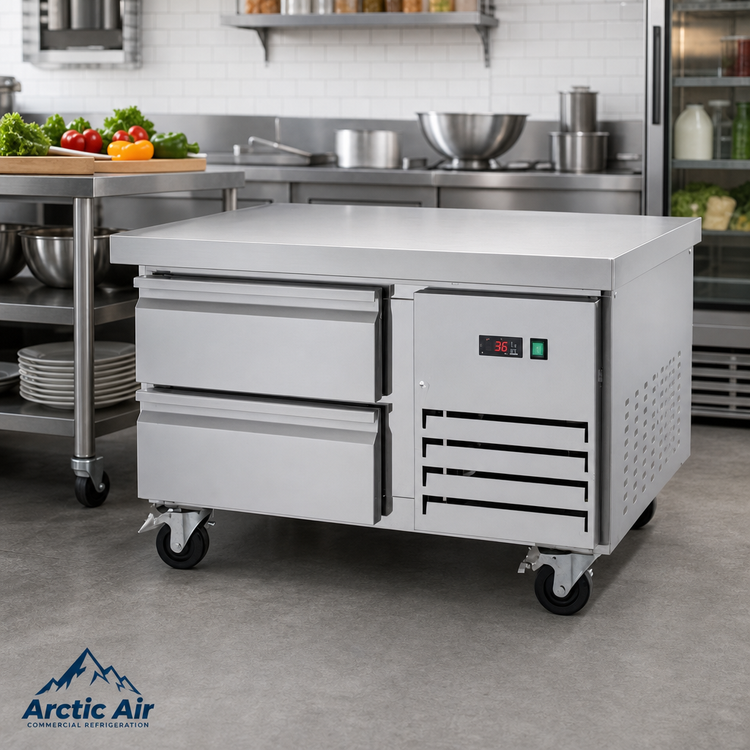

Arctic Air ARCB36 Refrigerated Chef Base – 38" Two-Drawer
Keep pans perfectly chilled directly beneath your countertop cooking equipmentBuilt for demanding commercial kitchens, the 38 inch wide Arctic Air ARCB36 gives chefs quick, ergonomic access to cold ingredients without ever leaving the cook line. A reinforced, marine-edge stainless top supports up to 6 inch tall cooking equipment, while the front-breathing refrigeration system maintains a food-safe 33 °F – 41 °F cabinet temperature—even in the hottest environments.
Top reasons chefs choose the ARCB36
- Heavy-duty stainless steel top with ceramic-fabric insulation minimizes heat transfer to the drawers.

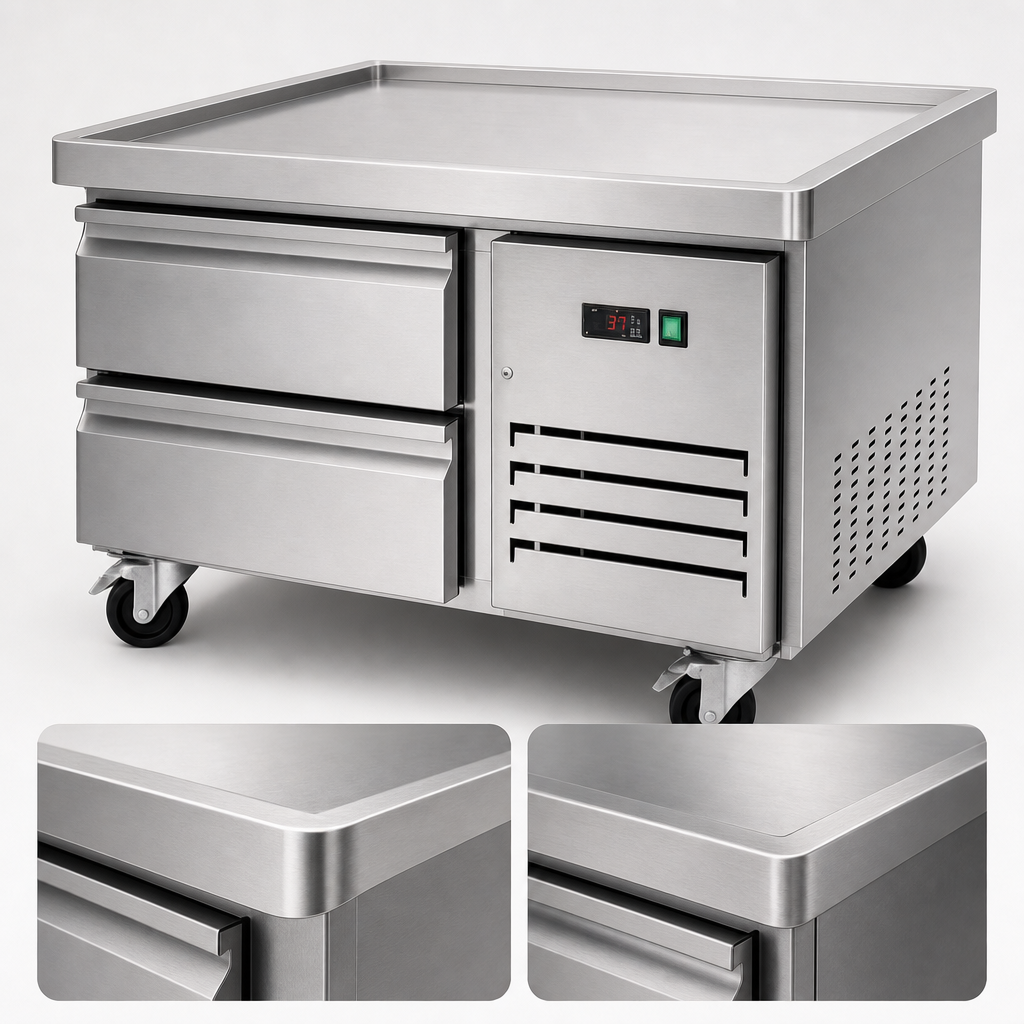

- Full marine edge & 1" extension on all sides lets 6" cooking equipment sit flat and secure.
- (2) Fulterer full-extension telescoping cartridge drawers—load and unload pans without tipping.
- Holds (2) full-size 6" deep pans per drawer (1/3 size pans also fit; pans sold separately).
- Side-mounted, self-contained R290 refrigeration is front breathing & front serviceable for easy cleaning.
- Electronic thermostat with external LED display for quick, accurate temperature checks.
- Four 5" plate casters (2 locking) for effortless mobility during cleaning or kitchen re-layout.
- Removable magnetic drawer gaskets and stainless steel hook adapter bars for fast sanitation.
- cETLus & ETL-Sanitation listed; tested to NSF 7 for open food storage.
Technical specifications
| Model | ARCB36 |
|---|---|
| Exterior dimensions (W × D × H) | 38" × 32" × 27.625" (height includes 5" casters) |
| Drawer count / pan capacity | 2 drawers | 2 full-size (1/1) 6" deep pans per drawer |
| Temperature range | 33 °F – 41 °F |
| Refrigeration system | Side-mounted, capillary tube / R290 hydrocarbon Heat rejection: 492 BTU hr |
| Horsepower | 1/3 HP |
| Electrical | 115 V / 60 Hz / 1-phase • 2.1 A • NEMA 5-15P • 8 ft cord |
| Construction | Stainless steel front, sides, drawers & top; reinforced mounting points |
| Casters | (4) 5" plate casters – 2 locking |
| Certifications | cETLus, ETL-Sanitation, NSF 7 compliant |
| Warranty | 2 years parts & labor + 3 year additional compressor coverage (total 5 years) |
Warranty service is performed by Arctic Air’s nationwide network of authorized technicians. Keep proof of purchase and contact 1-855-431-5558 for support.
Pans, heat shield, and countertop equipment shown in marketing images are sold separately.
