APW Wyott (Middleby) TM-43DULS Steam Tables & Food Wells
Description

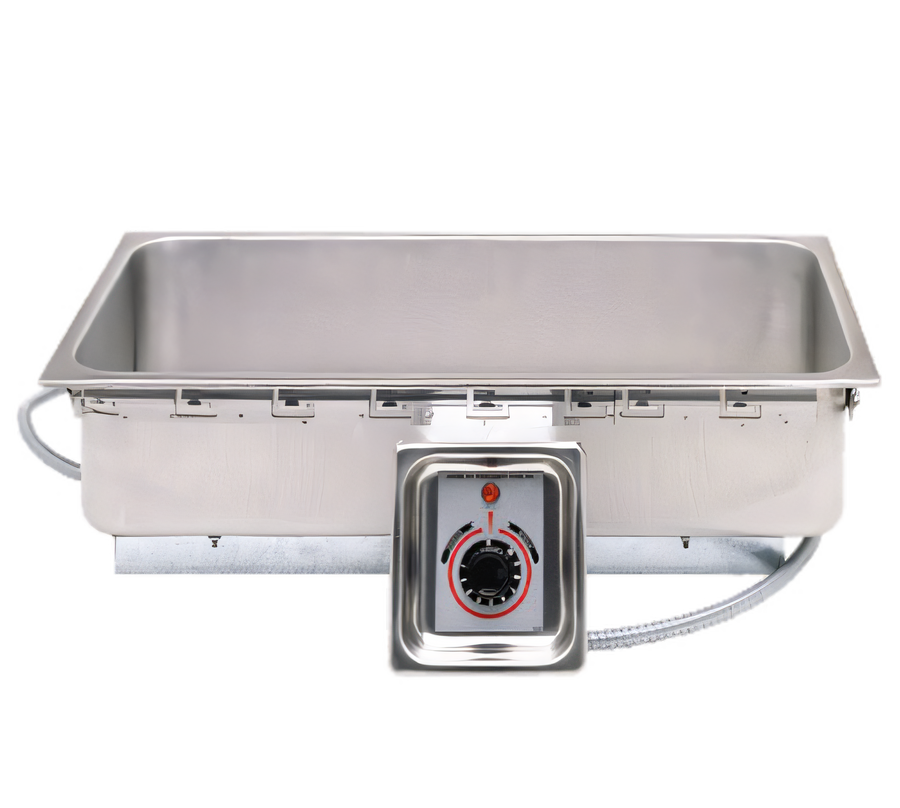

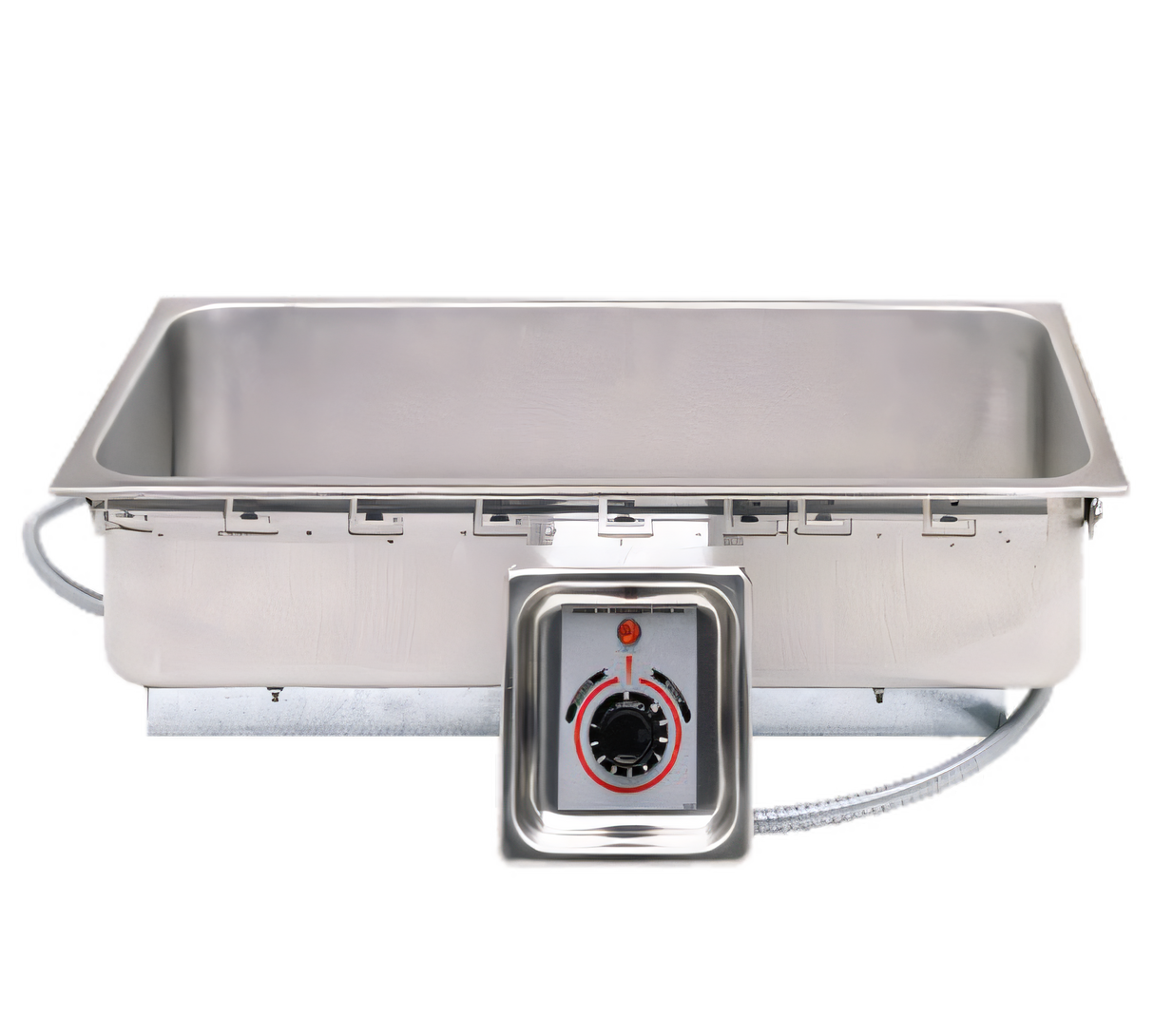

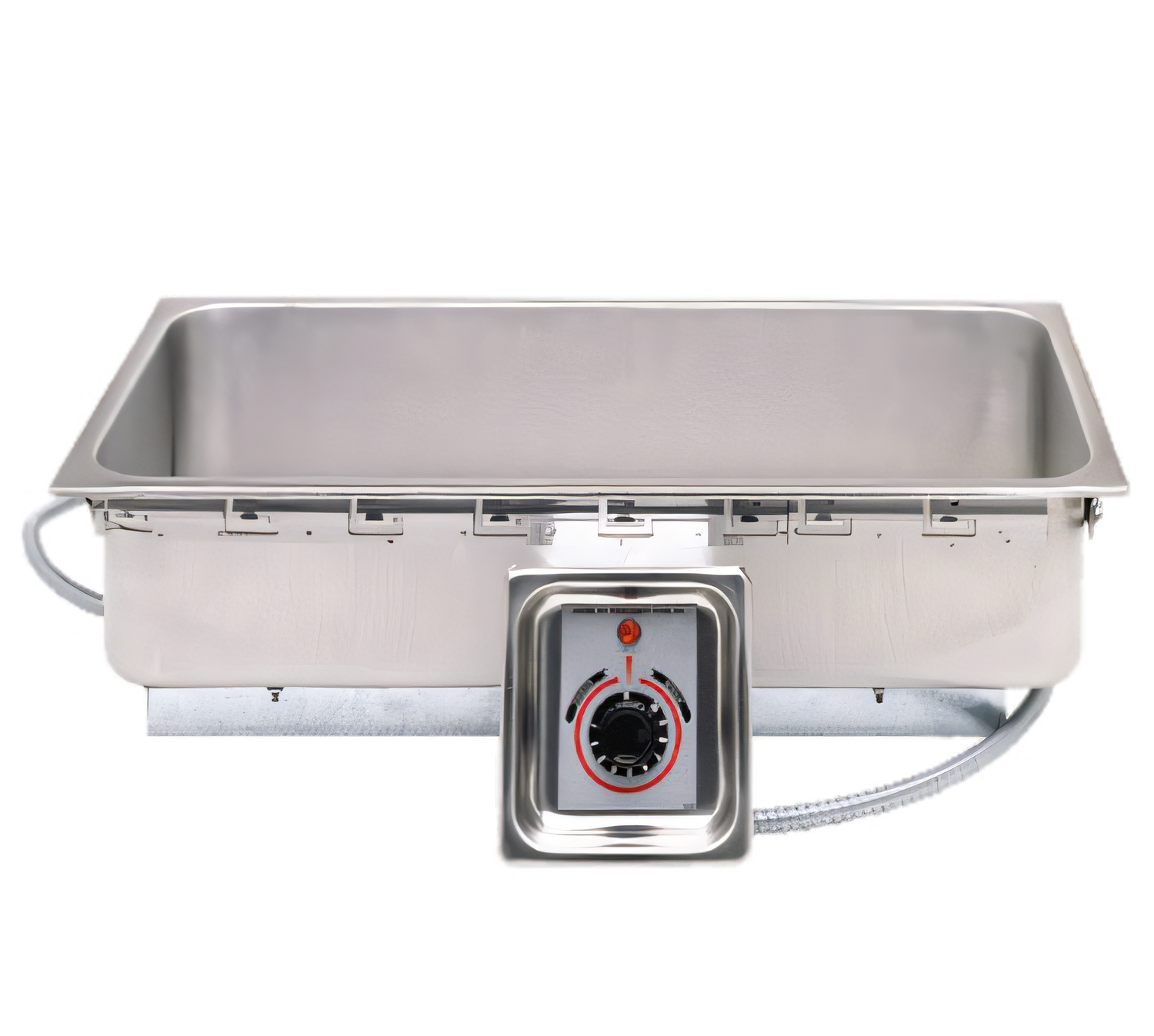

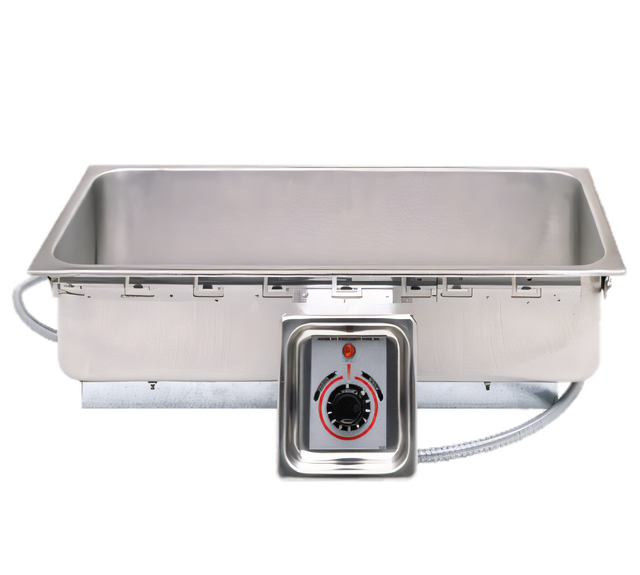

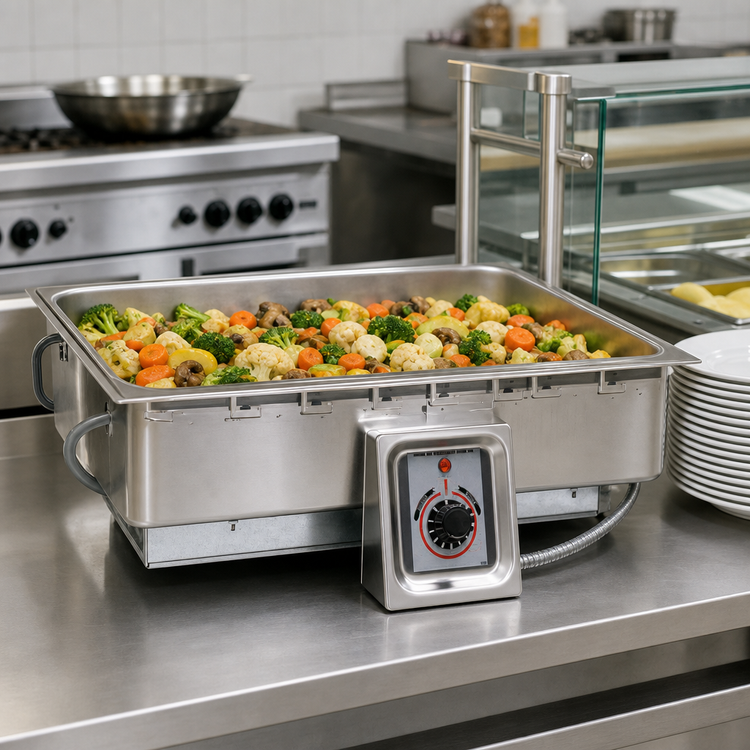

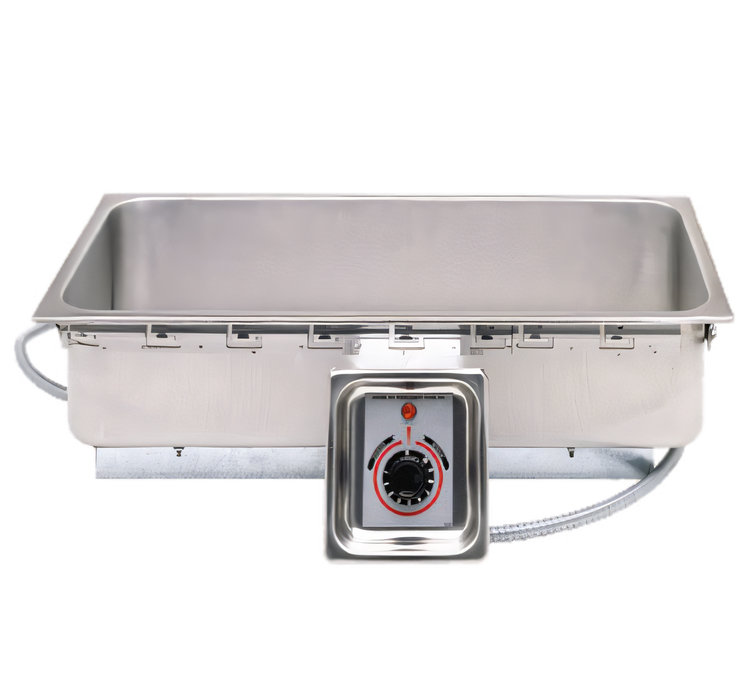

APW Wyott TM-43DULS Drop-In Food Warmer
1 Well • 12" × 27" pan opening • Thermostatic control with drain • Wet / dryGive every serving the just-cooked appeal your guests expect. Built for heavy-duty commercial use, the APW Wyott TM-43DULS keeps soups, sauces, proteins, and sides at safe holding temperatures— whether you prefer wet bath operation for maximum moisture or fast, convenient dry use. Designed for simple drop-in installation, the unit’s E-Z Lock clamps, front-mounted controls, and included ½" drain make both set-up and clean-up effortless.
Why you’ll love it
- Extra-deep 12" × 27" rectangular well holds up to four 1/3-size hotel pans (or fractional equivalents).
- Thermostatic control with temperature-ready indicator light guarantees consistent, food-safe holding.
- Powerful 1,650 W tubular element delivers fast heat-up and even distribution.
- Suitable for wet or dry operation (wet recommended for best results and product quality).
- One-piece stainless-steel top flange & heavy-gauge, deep-drawn well resist corrosion and simplify wipe-downs.
- Front ½" NPT drain speeds water removal; optional extension kit routes valve to counter front if desired.

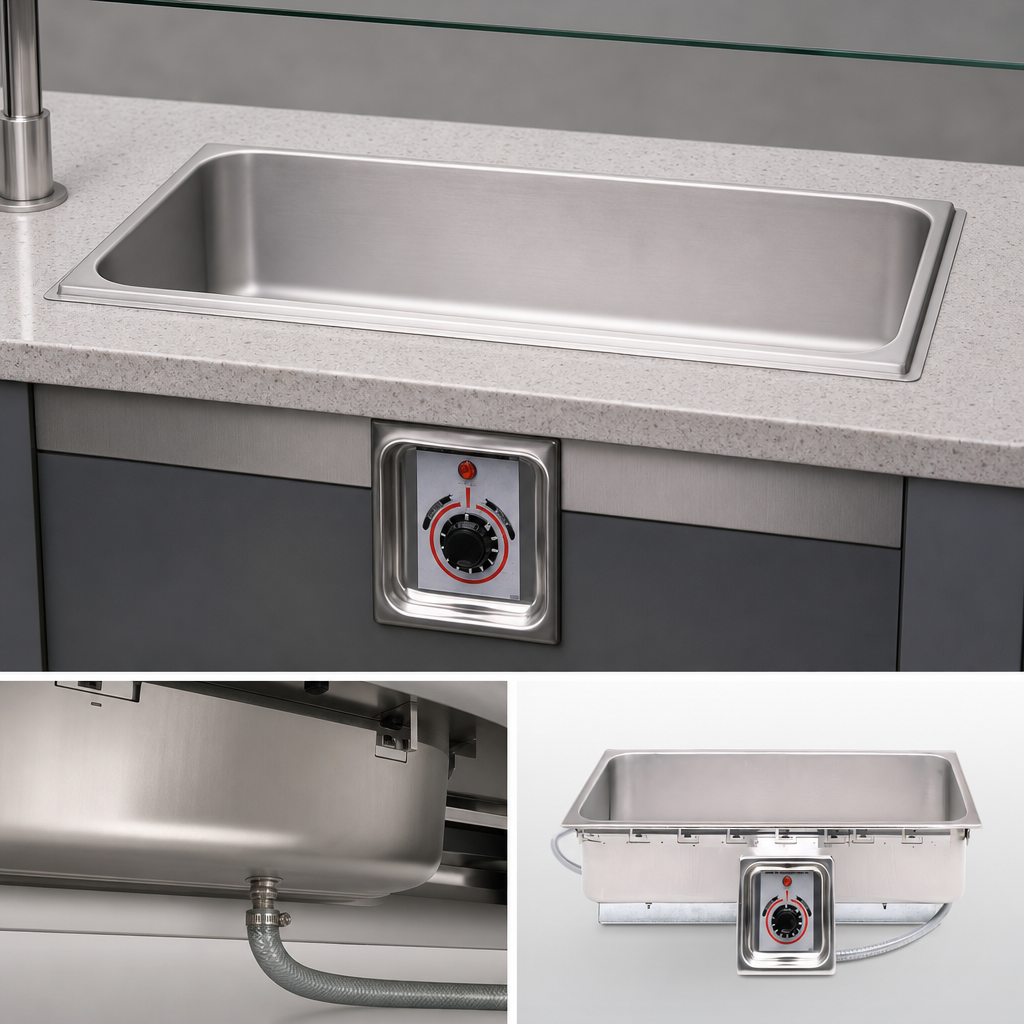

- E-Z Lock self-clamping system secures the warmer flush to the countertop in seconds—no special tools.
- Built-in high-limit safety protects the element from accidental run-dry overheating.
- Uninsulated design is ideal for operations that value rapid heat-up and lower upfront cost.
- Includes UL-approved electrical kit; completely UL-listed for the U.S. and Canada.
Specifications
| Model | TM-43DULS |
|---|---|
| Pan capacity | 4 × 1/3-size pans (6" deep) or equivalent fractional pans |
| Well opening | 12" W × 27" L (305 mm × 686 mm) |
| Overall dimensions | 13.6" W × 28.6" L × 8.8" H (346 mm × 726 mm × 223 mm) |
| Control panel cut-out | 5.88" W × 6.25" H (149 mm × 159 mm) |
| Countertop cut-out | 12 13/16" W × 27 13/16" L (325 mm × 706 mm) |
| Electrical (standard) | 120 V / 1 ph / 1,650 W / 13.8 A Also available: 208 V, 240 V |
| Drain | ½" NPT bottom drain with interior screen |
| Construction | 304 stainless-steel well & top flange; aluminized steel housing |
| Clearances (min.) | Sides & back: 2" • Bottom: 6 ¾" • Front: 4 ⅛" |
| Shipping weight | ≈ 22 lb (10 kg) |
| Certifications | UL, cUL |
| Warranty | 1-Year limited parts & labor |
For optimum performance, operate the warmer with water in the well. Always maintain the recommended clearances and connect to a dedicated branch circuit in accordance with local codes.
