APW Wyott (Middleby) TM-43 ULS Steam Tables & Food Wells
Description

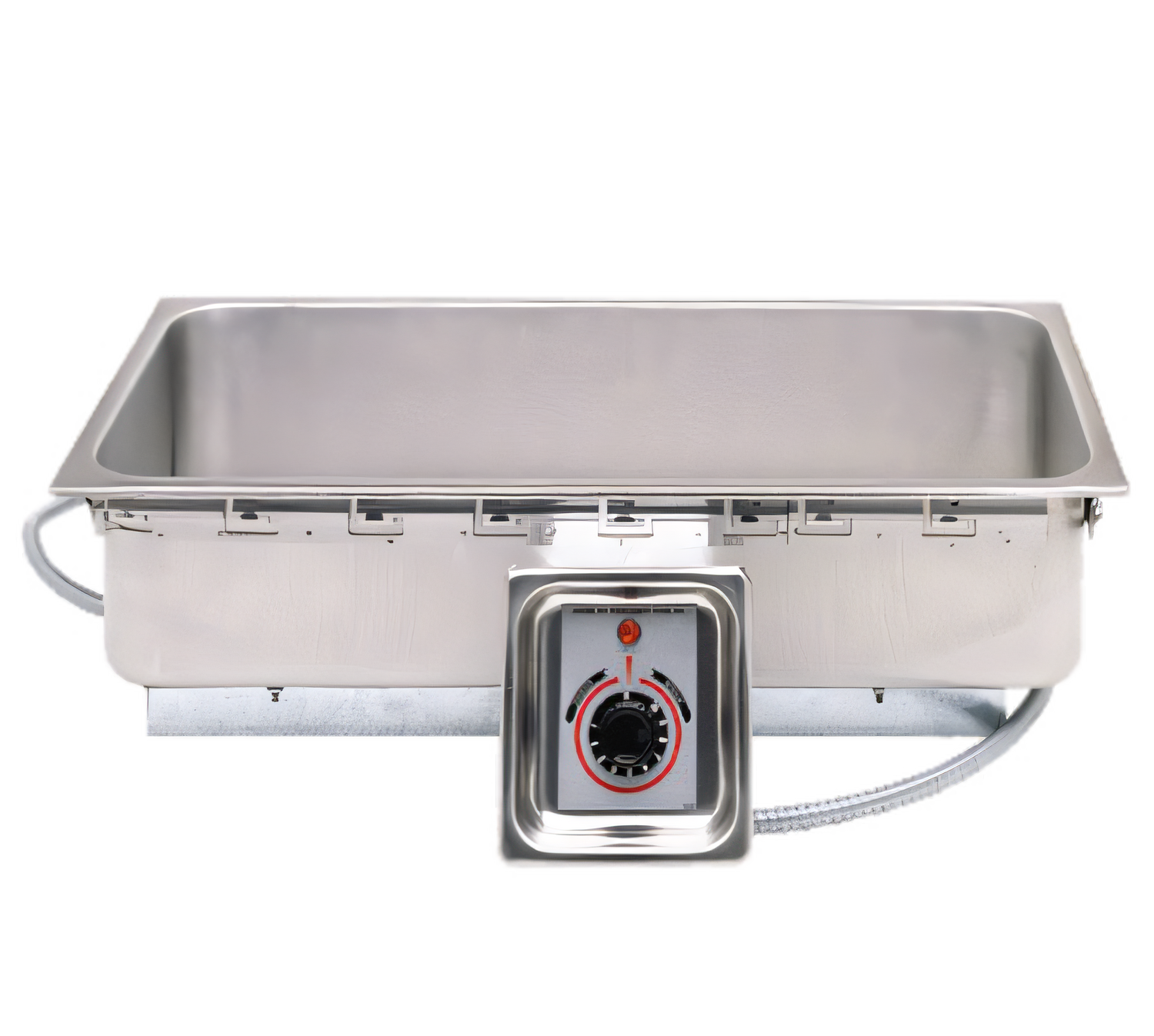

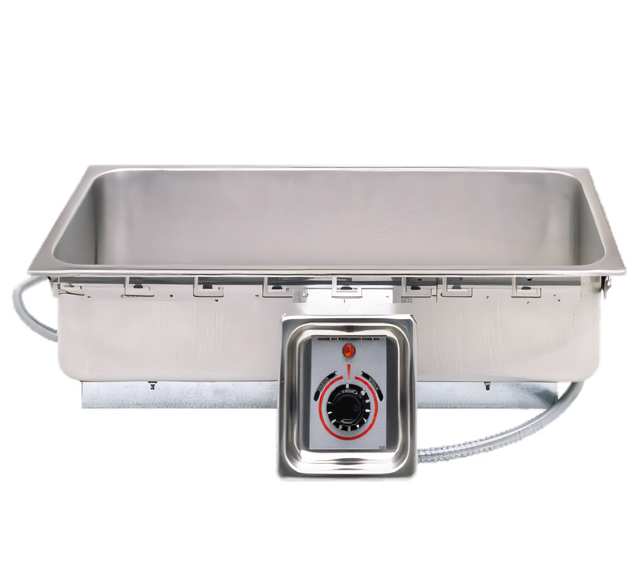

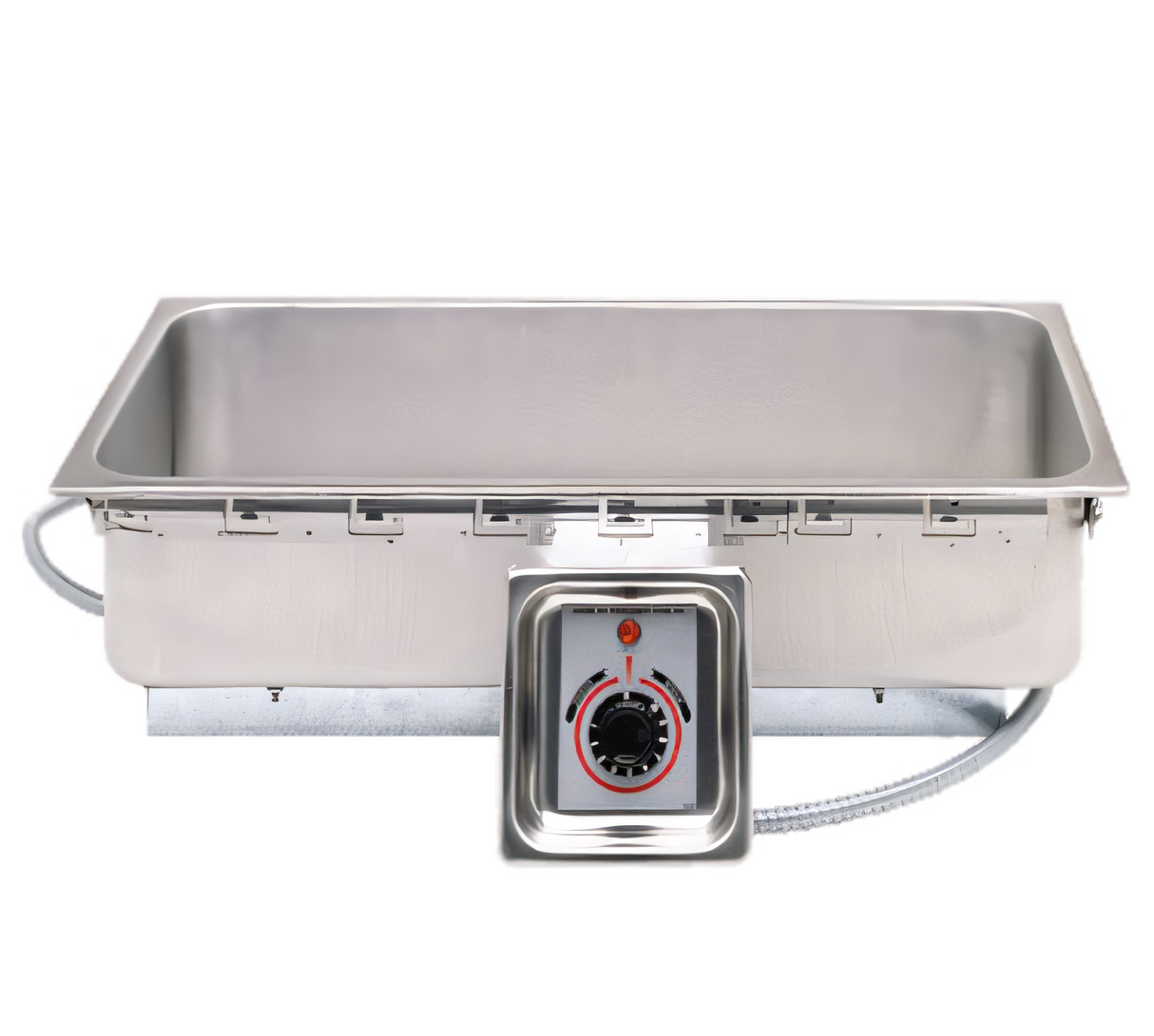

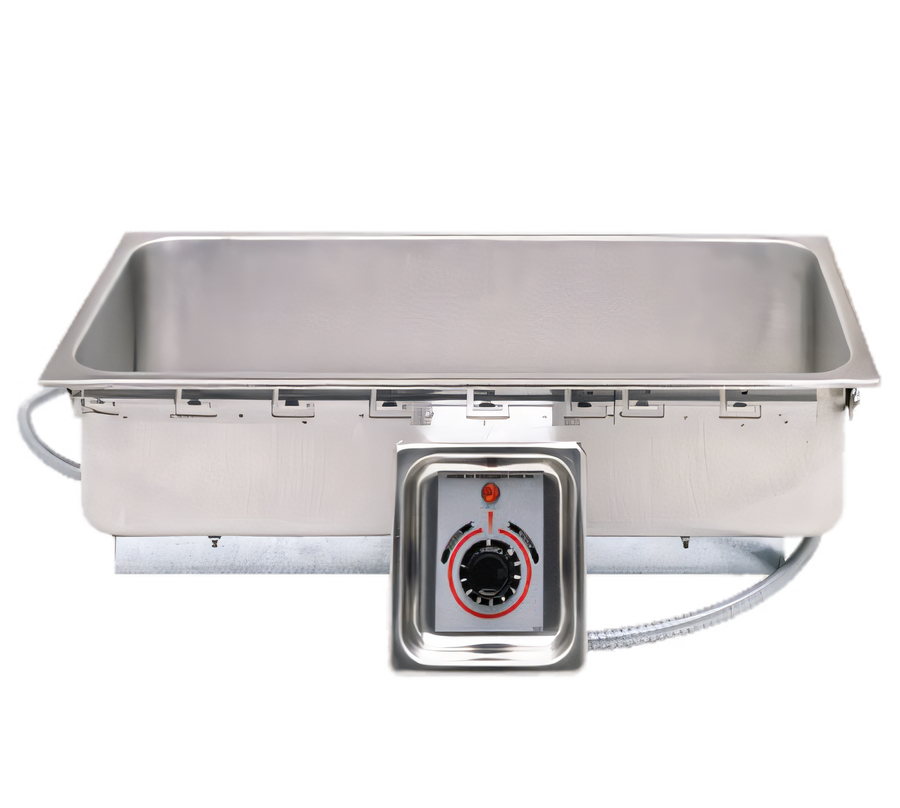

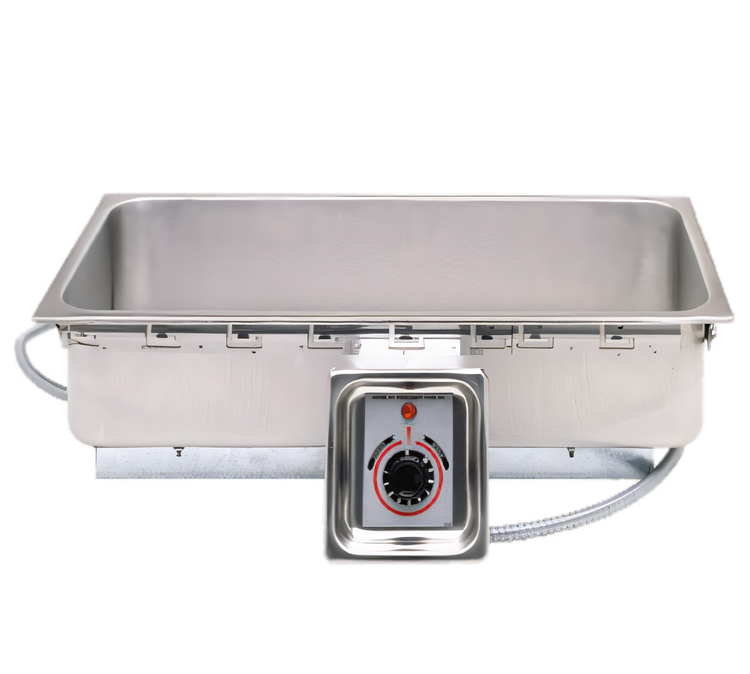

APW Wyott TM-43ULS Drop-In Rectangular Food Warmer
12" × 27" extra-deep well | thermostatic | wet or dry | UL-listedExpand your serving line with the reliability of APW Wyott’s heavy-duty TM-43ULS. This top-mount, electric warmer keeps entrées, sides and sauces at safe serving temperatures—without sacrificing installation speed or counter space.
Why You’ll Love It
- Holds four 1/3-size pans (4/3 pan capacity) in a single 12" × 27" extra-deep well.
- Wet or dry operation for maximum menu flexibility (water bath recommended for best results).
- Precision thermostatic control with high-limit safety prevents overheating.
- One-piece stainless-steel top flange & deep-drawn well resist corrosion and clean up fast.
- EZ Lock mounting system lets you drop, twist and secure the unit in seconds—no extra hardware required.
- Bright temperature-ready indicator light shows staff exactly when food is hot and safe to serve.
- UL-approved electrical kit and field-wired junction box simplify code compliance.
Built for Daily Commercial Use
- Powerful tubular elements deliver quick heat-up and even distribution across the entire well.
- Uninsulated design warms rapidly and is perfect for counters with existing under-counter ventilation.
- Separate model numbers cover 120 V or 240 V single-phase service to fit almost any kitchen.
- No-drain configuration eliminates plumbing runs and potential leak points.
Technical Specifications
| Model | TM-43ULS (no drain, UL-Listed) |
|---|---|
| Well size | 12" × 27" (305 mm × 686 mm) |
| Pan capacity | 4 × 1/3-size, 6" deep (or equivalents) |
| Overall dimensions | 13.6" W × 28.6" D × 8.8" H (346 mm × 726 mm × 223 mm) |
| Voltage / wattage | 120 V, 1650 W, 13.8 A 240 V, 1240 W, 6 A |
| Phase | Single |
| Controls | Recessed thermostatic knob with indicator light |
| Construction | 18-gauge stainless steel well & top flange; aluminized control housing |

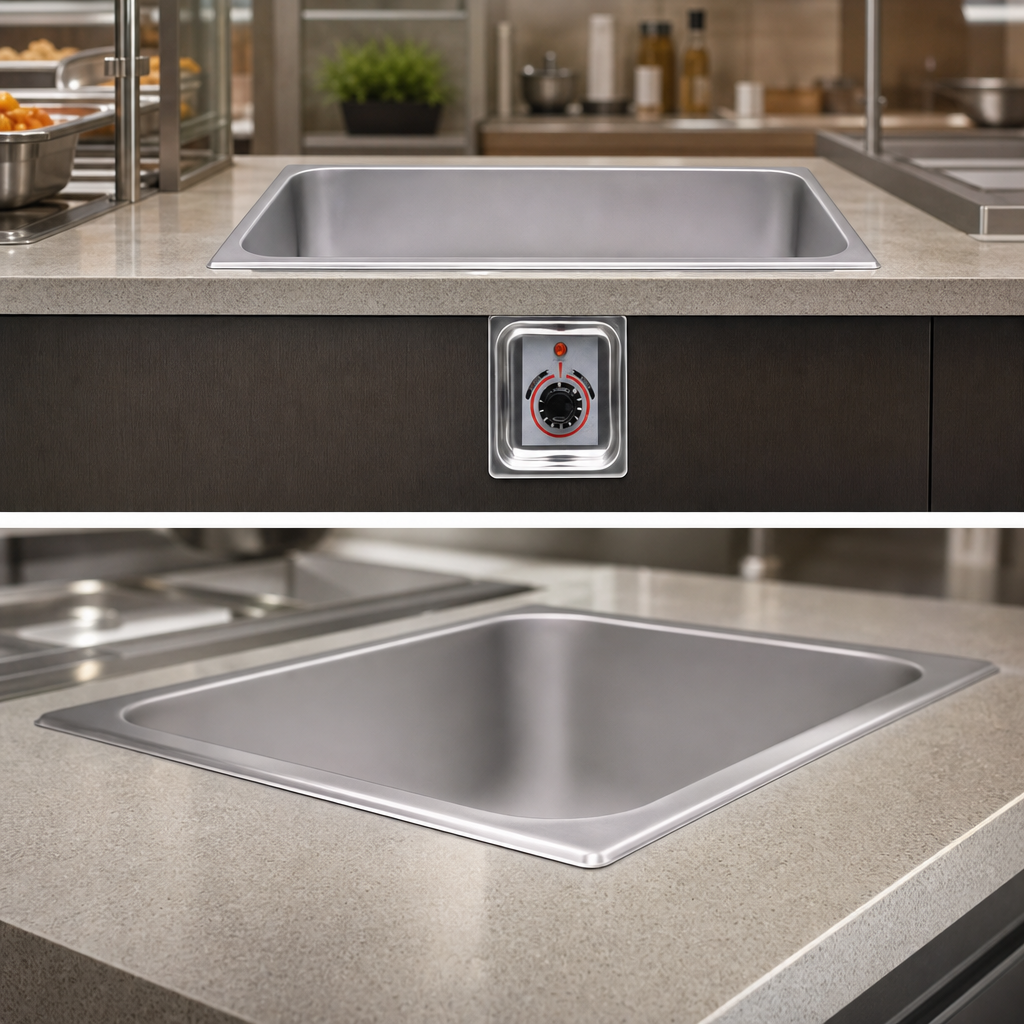

| Installation | Top-mount with EZ Lock; field-wired junction box |
| Ship weight | 22 lb / 10 kg |
| Agency approvals | UL, UL EPH |
| Warranty | 1-year limited parts & labor |
Required Clearances
- Back & sides: 2" (51 mm)
- Front: 4 1/8" (105 mm)
- Bottom: 6 3/4" (171 mm) (allow additional space if control box is mounted below the unit)
Pans, adapter bars and water not included.
Looking for the same warmer with an integrated ½" drain? See model TM-43DULS.
