APW Wyott (Middleby)  |  SKU: HFW-5S

APW Wyott (Middleby) HFW-5S Steam Tables & Food Wells

$5,520.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Manual_sm_hfw_s Middleby financial flyer Instructions_hfw_5ds Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

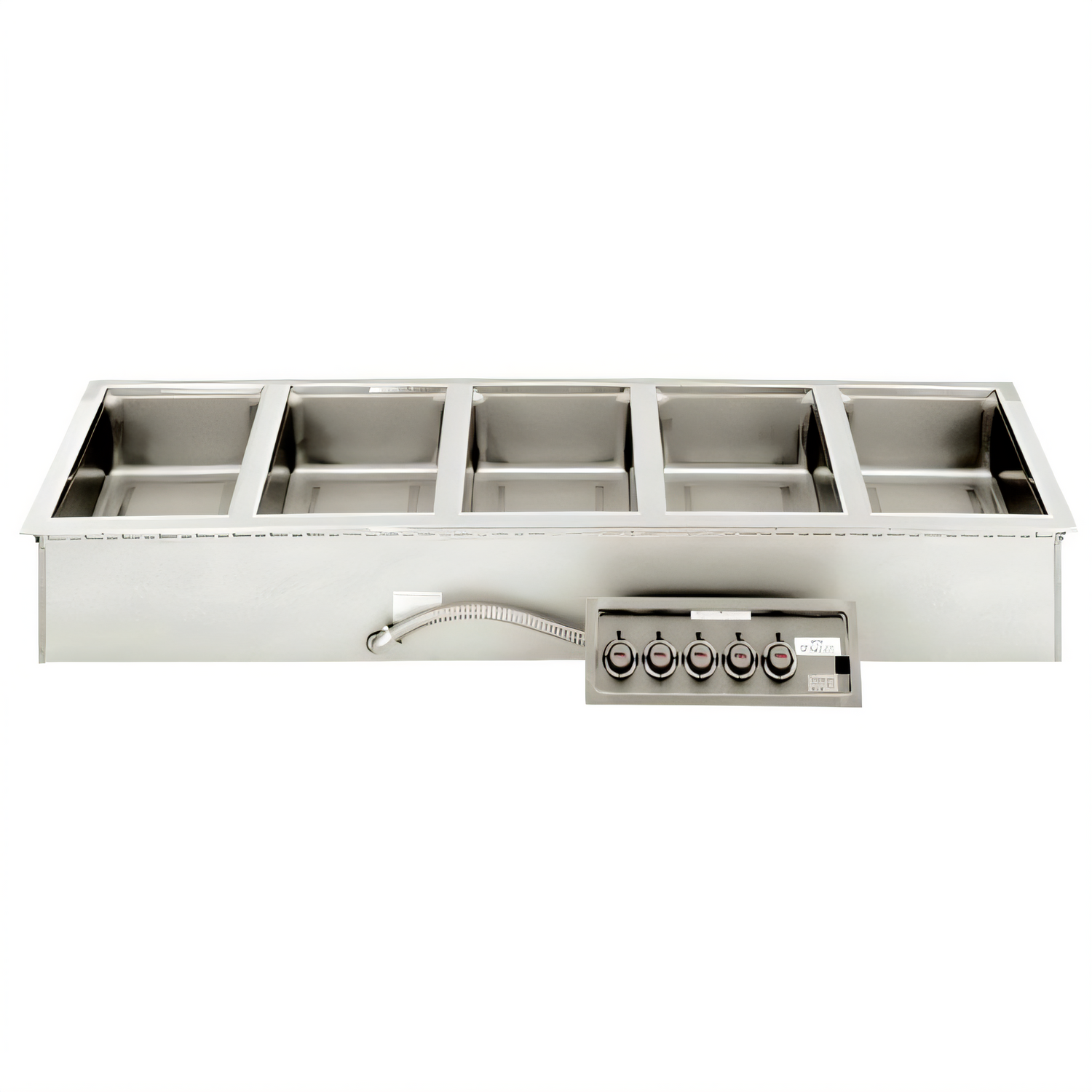

APW Wyott HFW-5S Drop-In Hot Food Well, 5 Wells

Infinite controls • Wet or dry operation • Stainless steel construction

Designed for high-volume cafeterias, buffets and catering lines, the APW Wyott HFW-5S keeps foods at safe, appetizing serving temperatures without sacrificing counter space. Five individually-controlled wells accommodate standard 12 × 20 inch pans, giving you maximum menu flexibility in a single, heavy-duty, top-mount unit that installs in minutes with the built-in E-Z Lock system.

Key features

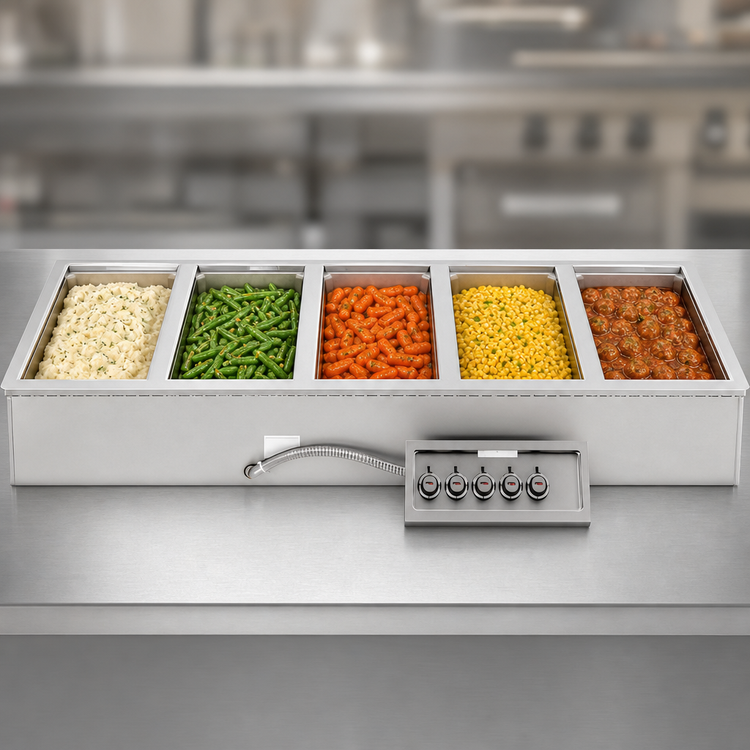

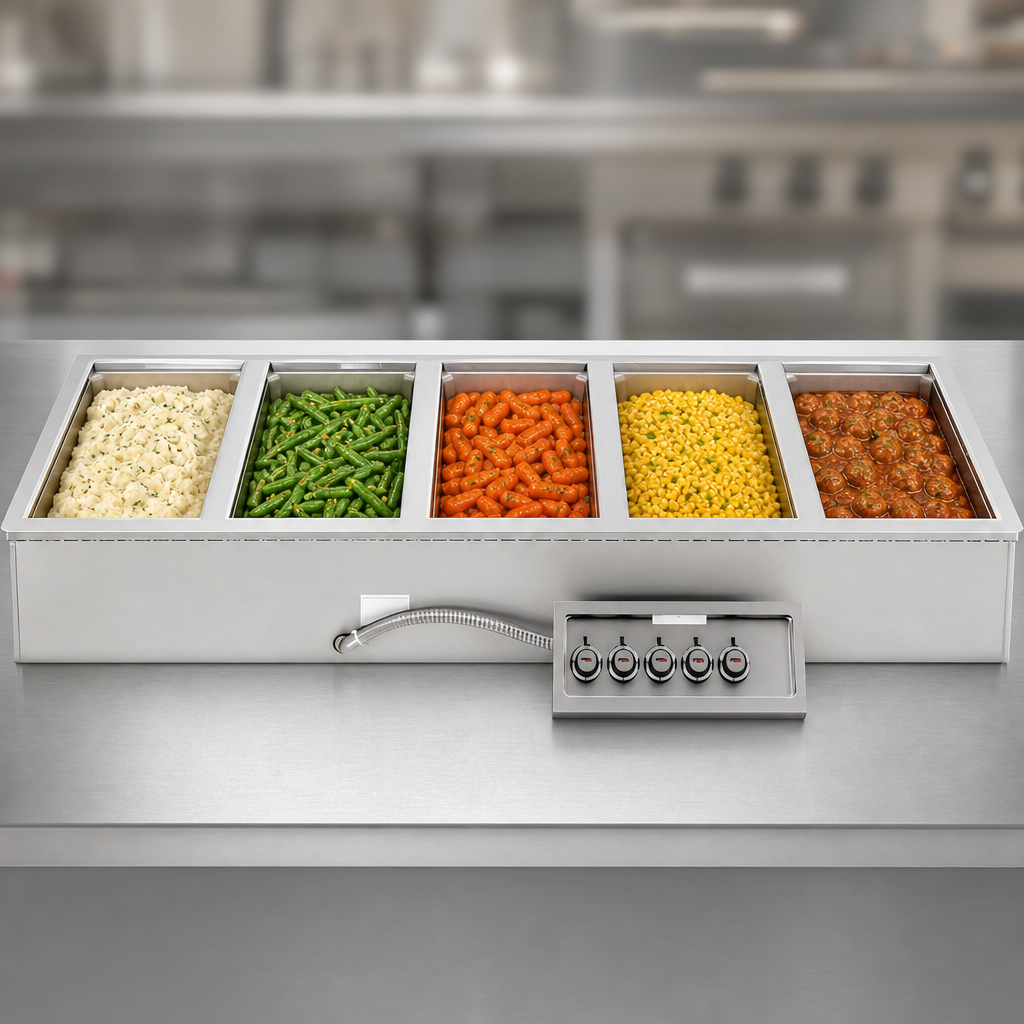

  • Holds five full-size (12" × 20") pans or fractional equivalents
  • Infinite control knobs—independent heat for each well
  • Wet or dry operation (water bath recommended for best moisture retention)
  • One-piece stainless steel top flange and deep-drawn wells for fast clean-up
  • Powerful tubular elements mounted under each pan for even heat distribution
  • Fully insulated sides, front, back and bottom for quicker pre-heat and energy savings—ideal for non-metal counters
  • E-Z Lock mounting clips included for quick, tool-free drop-in installation
  • High-limit protection and “temperature ready” indicator lights on each control
  • Field-convertible: ships 3-phase, easily switched to single-phase on site
  • UL & NSF certified; 1-year parts & labor warranty

At-a-glance specifications

Model HFW-5S (no drain, infinite controls)
Capacity (5) 12" × 20" full-size pans, up to 6 1/4" (159 mm) deep
Operation Wet or dry (wet recommended)
Overall dimensions 71.5" W × 23.63" D × 9.75" H
(1 816 × 600 × 248 mm)
Electrical 208 V / 3-ph (4.5 kW, 12 A per line)
240 V / 3-ph (6.0 kW, 13 A per line)
Field convertible to 1-phase
Clearances 1" sides & back • 6 3/4" bottom • 4 1/8" front
Shipping weight ≈ 105 lb / 48 kg
Certifications UL, NSF
Warranty 1-year limited parts & labor

Pans, adapter plates and drain kits (if required) are sold separately.

Features & Specs

Manufacturer

APW Wyott (Middleby)

Certifications

NSF, UL

Height

9.75in

Width

71.5in

Depth

23.63in

Shipping Weight

105.0lbs

Controls

infinite controls

Drain

without drain

Wet or Dry operation

wet or dry

Style

individual pans

Insulated or Non-Insulated

insulated

Pan Capacity

(5) full size (12" x 20")

Construction

stainless steel top, corrosion resistant steel exterior

Specifications

Hot Food Well Unit, drop-in, electric, (5) 12" x 20" wells, wet or dry operation, infinite controls, EZ lock, insulated, without drain, stainless steel wells, UL, NSF
