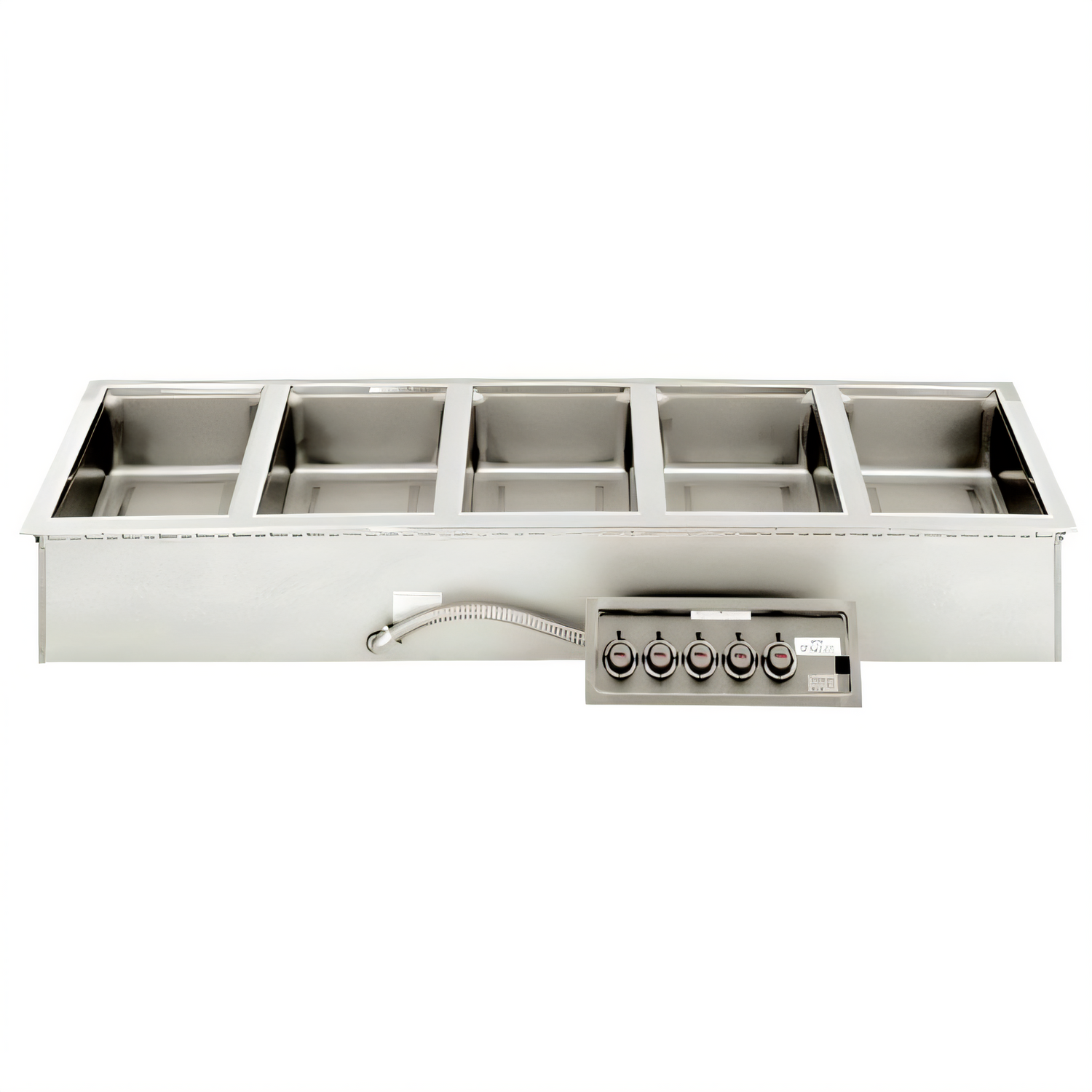

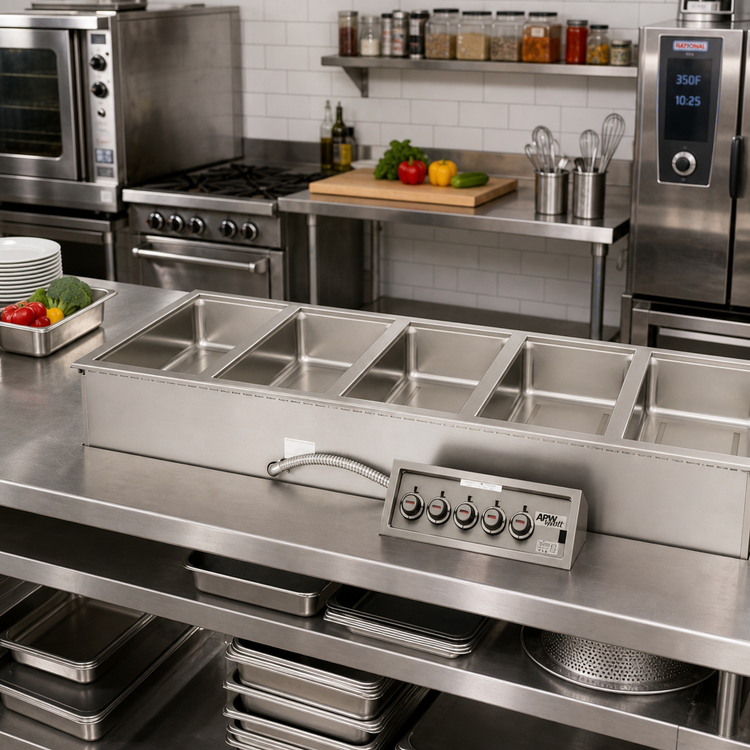

APW Wyott HFW-5DS Heavy-Duty Drop-In Hot Food Well

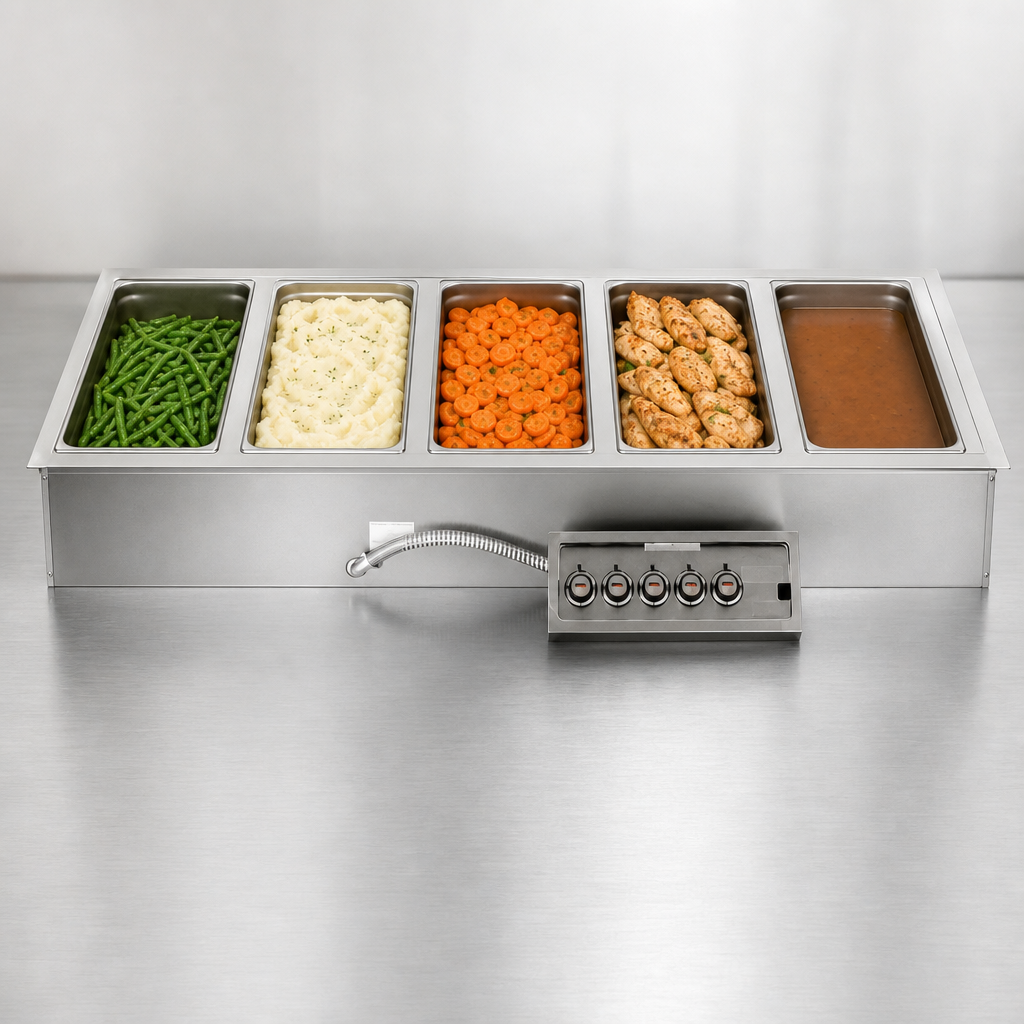

5-well, electric, wet or dry operation with drain | UL & NSF ListedKeep entrées, sides, and sauces hot, fresh, and ready for service with APW Wyott’s top-mount, commercial-grade warmer. The HFW-5DS accommodates five full-size 12" × 20" pans and delivers the installation ease, energy efficiency, and durability busy foodservice operations demand.
Why You’ll Love It
- Wet or dry versatility – operate with or without water; wet mode recommended for peak moisture retention.
- Individual infinite controls allow precise holding temperatures for each well independently.
- E-Z Lock mounting system speeds up installation and ensures a snug, flush counter fit.
- Built-in drain manifold with ½" NPT connection simplifies water removal and cleaning.
- All-stainless construction – one-piece top flange and deep-drawn wells resist corrosion and stand up to daily use.
- Fully insulated housing conserves energy, shortens pre-heat time, and protects non-metal counters.
- High-limit safety & “ready” lights guard against overheating and give instant visual status.
- Powerful tubular elements below each pan deliver fast, even heat distribution.
Specifications at a Glance
| Model | HFW-5DS (with drain, infinite controls) |
|---|---|
| Capacity | (5) full-size 12" × 20" pans (or fractional equivalents) |
| Overall Dimensions | 71.5" W × 23.63" D × 9.75" H (1816 × 600 × 248 mm) |
| Control Panel Dimensions | 18" W × 6.25" H (457 × 159 mm) |
| Electrical | 208 V / 6000 W / 3 ph 240 V / 6000 W / 3 ph (Ships 3-phase; field convertible to 1-phase) |
| Drain | ½" internal NPT with valve (factory installed) |
| Clearances | 1" sides & back · 6¾" bottom · 4⅛" front |
| Ship Weight | Approx. 105 lb (47.7 kg) | Freight Class 100 |
| Certifications | UL • NSF |
| Warranty | 1-year parts & labor |
Perfect For
- Buffets, cafeterias, and all-you-can-eat concepts
- QSR & fast-casual service lines
- Convenience stores and delis
- Hotels, catered events, and banqueting
Popular Accessories (sold separately)
- Adaptor tops for round insets
- Drain valve extension kit & drain screens
- E-Z Lock extension kits for wood counters
- 72" wiring harness
Always follow local electrical and plumbing codes. Wet operation yields best food quality and heat distribution.
$6,444.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
APW Wyott HFW-5DS electric drop-in steam table: five 12"x20" stainless wells, wet/dry, infinite controls, insulated, EZ-lock, drain, UL/NSF certified.
Manufacturer
APW Wyott (Middleby)
Certifications
NSF, UL
Height
9.75in
Width
71.5in
Depth
23.63in
Shipping Weight
105.0lbs
Controls
infinite controls
Wet or Dry operation
wet or dry
Pan Capacity
(5) full size (12" x 20")
Insulated or Non-Insulated
insulated
Construction
stainless steel top, corrosion resistant steel exterior
Drain
with drain
Style
individual pans
Specifications
Hot Food Well Unit, drop-in, electric, (5) 12" x 20" wells, wet or dry operation, infinite controls, EZ lock, insulated, with drain, stainless steel wells, UL, NSF
