APW Wyott (Middleby)

APW Wyott HFW-4S 4-Well Rectangular Drop-In Electric Hot Food Well

SKU: HFW-4S
$4,499.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

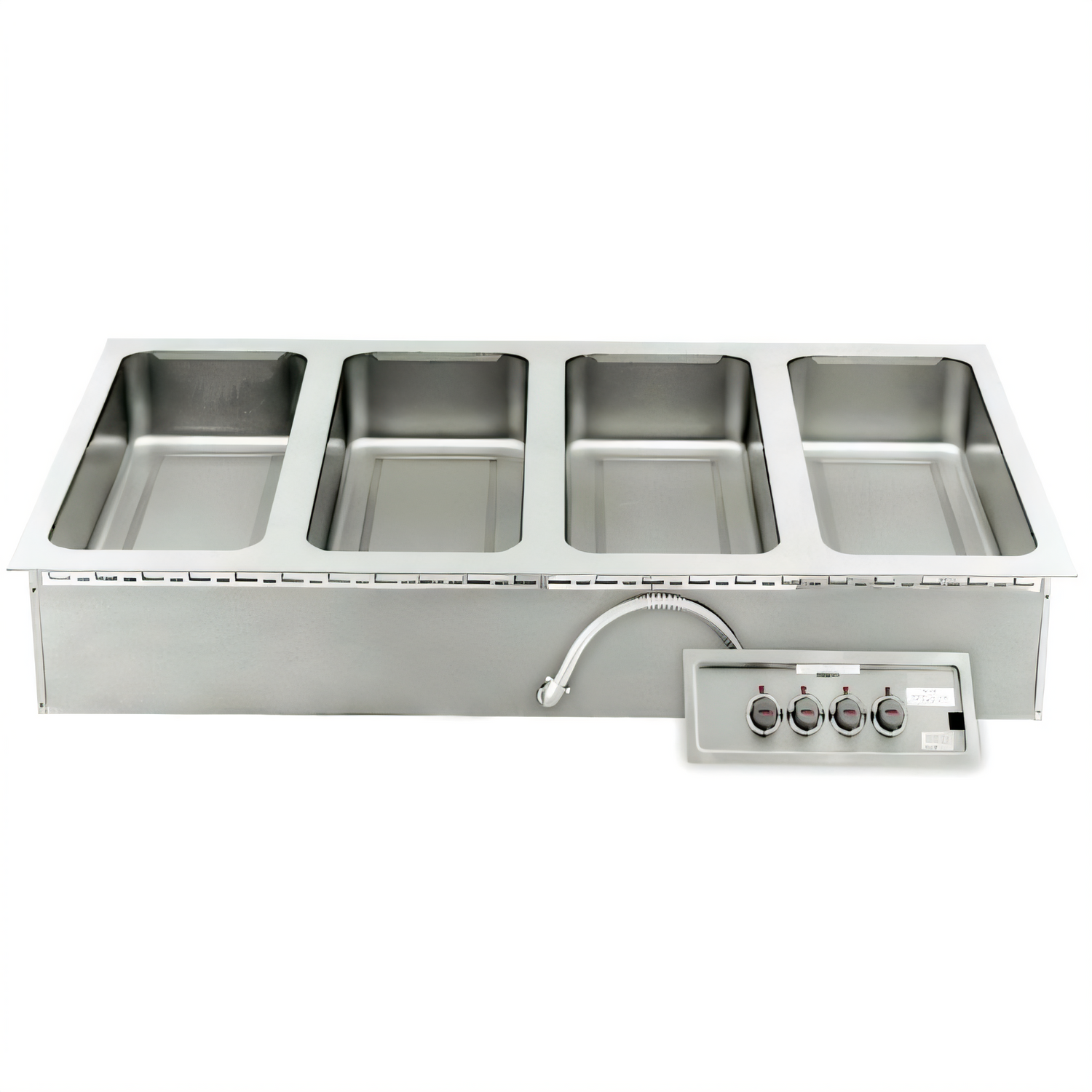

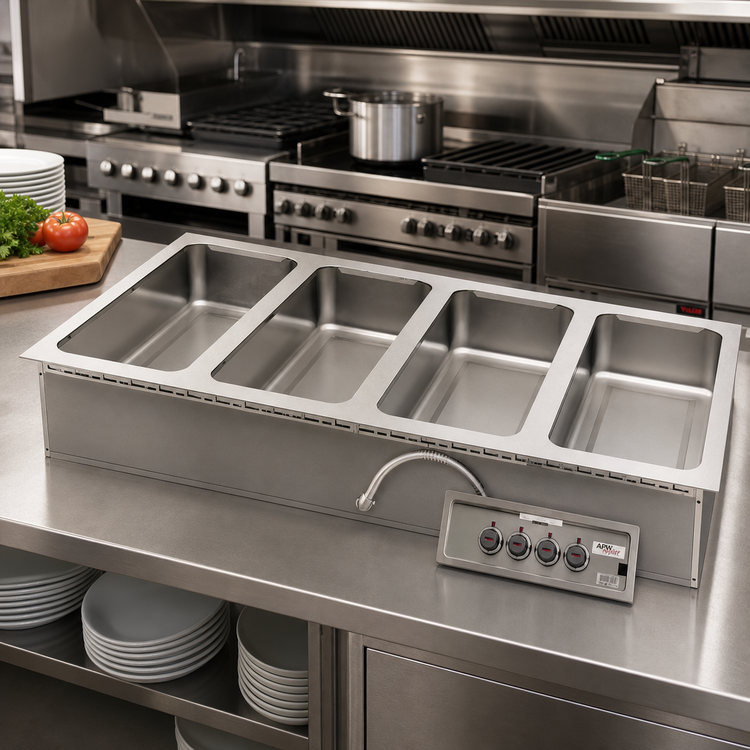

APW Wyott HFW-4S 4-Well Rectangular Drop-In Electric Hot Food Well

Wet or Dry Operation, Infinite Controls, Insulated, No Drain

Keep four full-size pans hot and ready with a fully insulated drop-in well that offers independent infinite controls and wet-or-dry flexibility.

  • Holds four 12 x 20 full-size pans or equivalent fractional inset pans.
  • Wet or dry operation provides installation flexibility; wet operation is recommended for best results.
  • Separate infinite controls for each well allow precise temperature management.
  • Fully insulated sides, front, back, and bottom help reduce heat loss and speed recovery.
  • Standard E-Z Lock mounting simplifies secure countertop installation.
  • The HFW-4S is the no-drain version and ships 3-phase with field conversion to single phase.

Overall Dimensions:

57.5"W x 23.63"D x 9.75"H

Product Weight:

95.0 lb

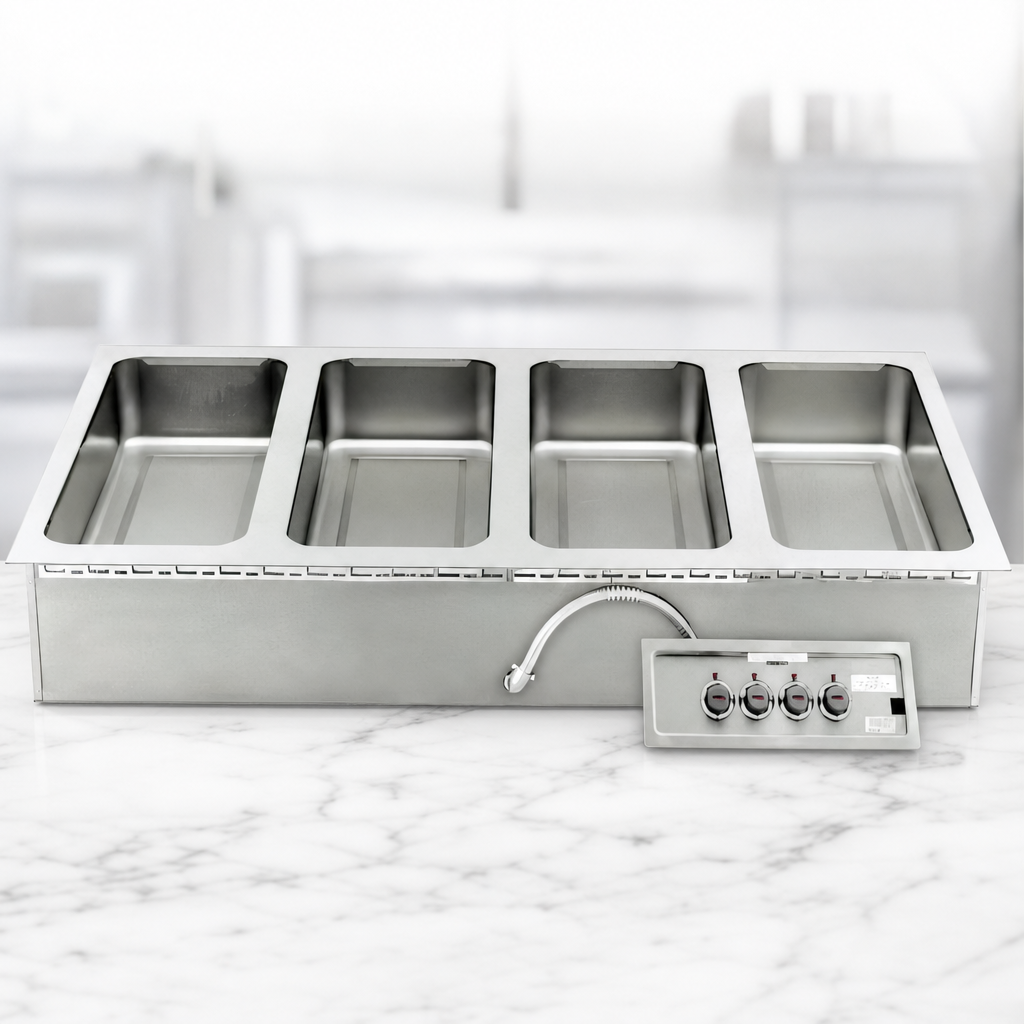

Four-Well Pan Capacity

Accommodates four full-size 12 x 20 pans or equivalent fractional inset pans.

Wet or Dry Operation

Designed for wet or dry use, with wet operation recommended for best results.

Infinite Individual Controls

Each well has its own infinite control for flexible, independent temperature control.

Fully Insulated Construction

Sides, front, back, and bottom are fully insulated to help improve energy efficiency and recovery time.

E-Z Lock Mounting System

Standard E-Z Lock hardware supports fast, secure installation in a countertop opening.

Stainless Steel Warming Surfaces

One-piece stainless steel top flange and deep-drawn stainless steel warming pans support heavy-duty use.

High-Limit and Indicator Protection

High limits help prevent overheating, and temperature-ready indicator lights are standard.

Powerful Tubular Heating Elements

Heating elements are positioned under the pans for quick warm-up and even heat distribution.

No-Drain Design

This HFW-4S model is supplied without a drain.

Type Hot Food Well
Installation Type Drop-In
Style Individual Pans
Pan Capacity 4
Pan Size 12 x 20 Inches
Controls Infinite
Drain Connection Not Required
Material Stainless Steel
Interior Finish Stainless Steel
Finish Corrosion Resistant Steel
Voltage 208/240 Volts
Watts 3.6/4.8 kW
Phase 3-Phase
Shipping Width 58 Inches
Shipping Depth 24 Inches
Shipping Height 10 Inches
Shipping Weight 95 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1-year limited parts and 1-year limited labor

Frequently Asked Questions

It accommodates four full-size 12 x 20 pans or equivalent fractional inset pans.
Yes. The HFW-4S is designed for wet or dry operation, and wet use is recommended for best results.
No. The HFW-4S is the no-drain version.
It has infinite controls, with separate control for each well.
All HFW-4S units ship 3-phase and are field convertible to single phase. The series is shown in 208V and 240V versions.
The cutsheet lists a 1-year limited parts and 1-year limited labor warranty.

Need Help Deciding?

Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
