APW Wyott (Middleby) HFW-43DS Steam Tables & Food Wells
Description

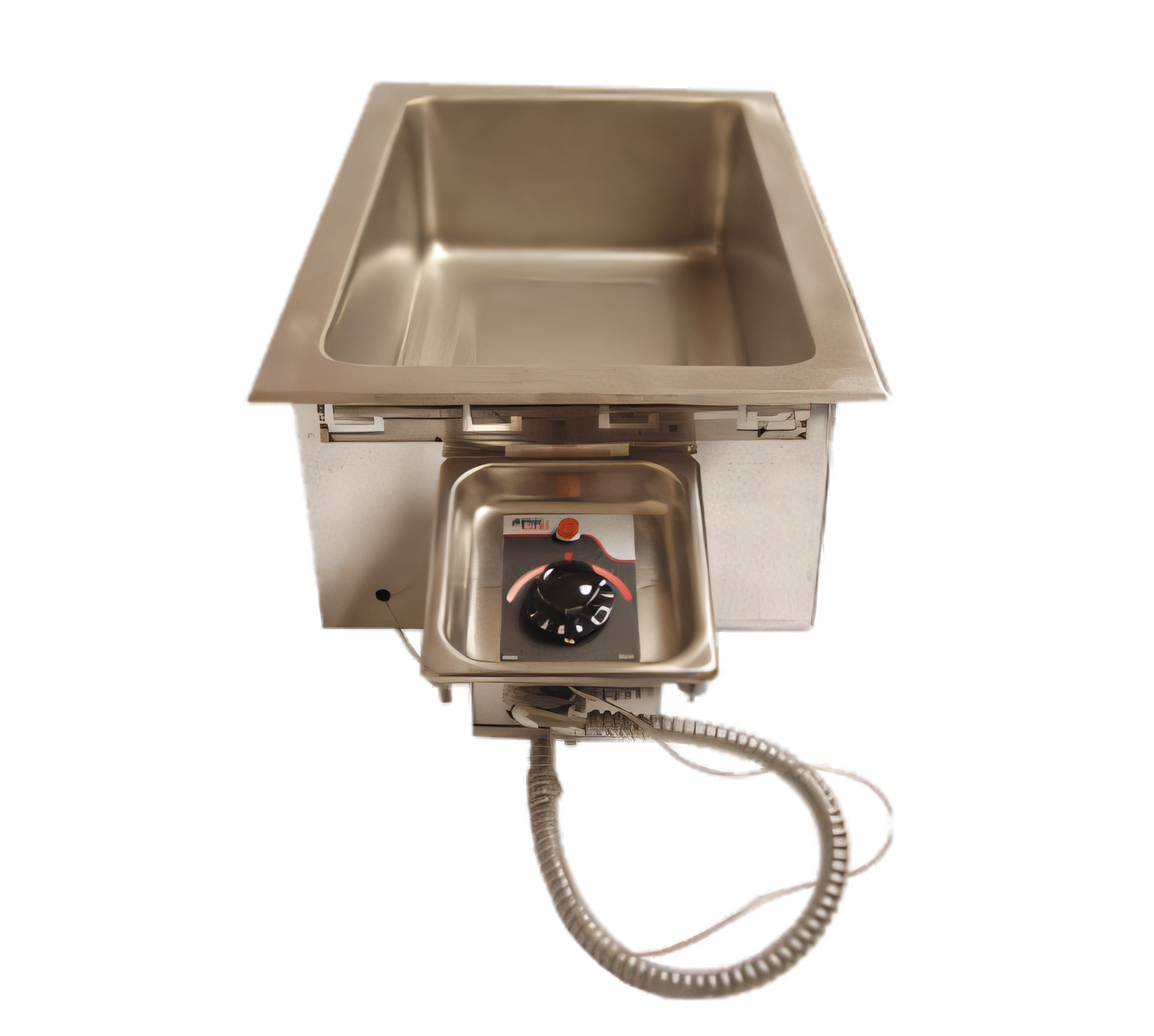

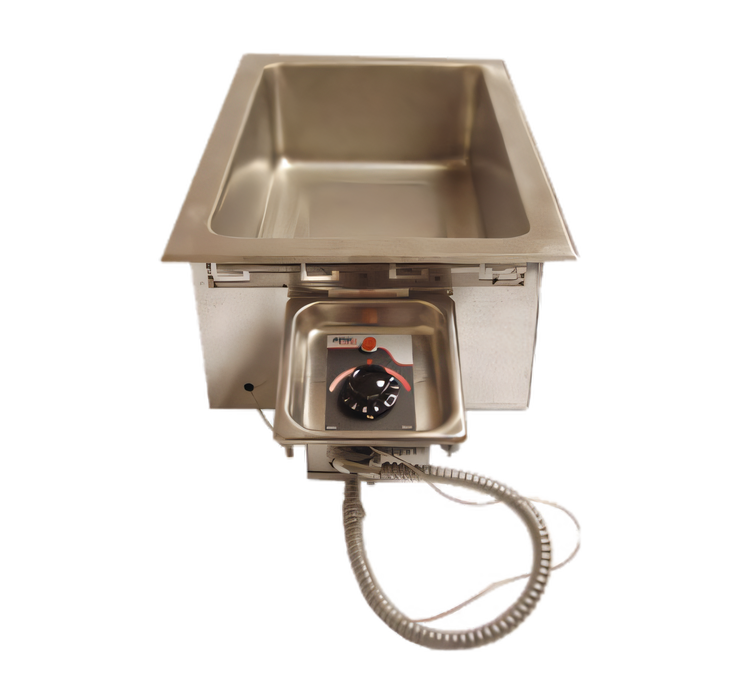

APW Wyott HFW-43DS Drop-In Hot Food Well
Single 12" × 27" Rectangular Well • Electric • Wet or Dry OperationKeep entrées, sides, and sauces at safe serving temperatures without sacrificing counter space. The heavy-duty APW Wyott HFW-43DS drops straight into your counter with an E-Z Lock clamp system, delivering consistent, energy-efficient holding power shift after shift.
Key Benefits
- Extra-deep 12" × 27" well fits 4 × 1/3-size hotel pans (4/3 capacity) or equivalent fractional inserts.

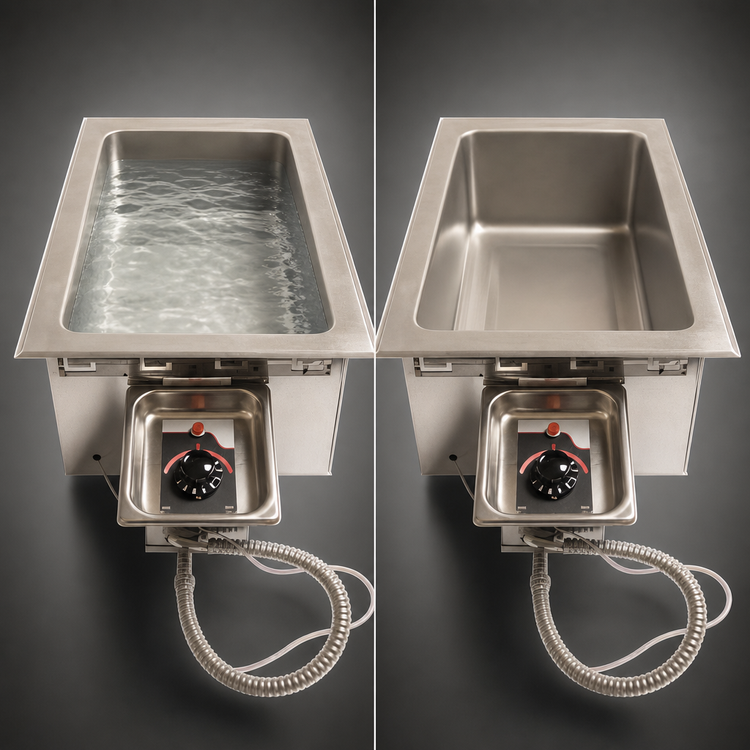

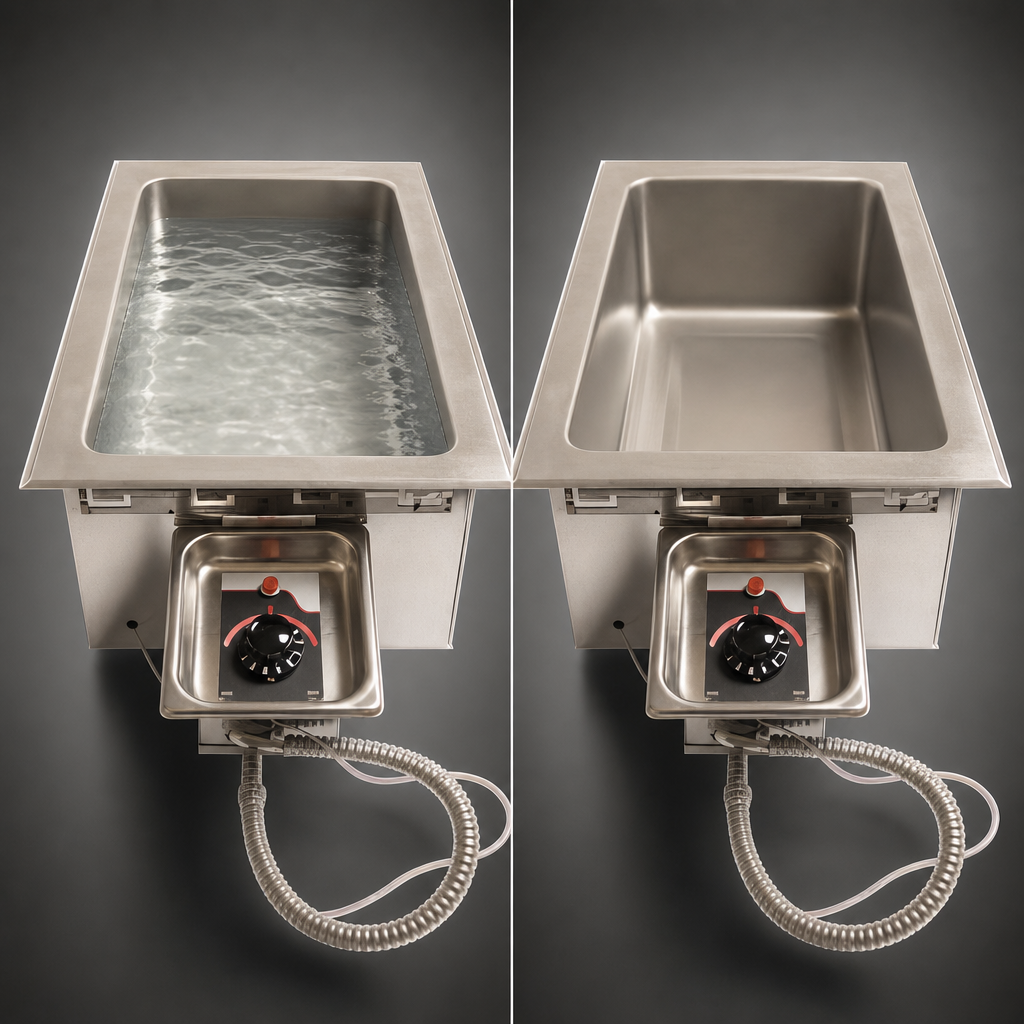

- Wet or dry operation—use with water for maximum food quality or dry for quick applications.
- Precision thermostatic control with temperature-ready indicator light.
- Powerful tubular heating element under the pan for fast pre-heat and even heat distribution.
- Fully insulated sides, back, and bottom reduce heat loss and speed recovery.
- One-piece stainless steel top flange and deep-drawn well resist corrosion and make cleanup easy.
- Integrated ½" NPT drain simplifies water removal; optional extension kits available.
- High-limit safety guards against overheating for worry-free operation.
- UL & NSF listed for sanitation and electrical safety.
- Backed by a 1-year parts & labor warranty from APW Wyott.
Specifications
| Model | HFW-43DS |
|---|---|
| Well size | 12" × 27" (4/3-size) |
| Capacity | 4 × 1/3-size pans or fractional equivalents |
| Control type | Thermostatic, recessed panel |
| Heating mode | Wet or dry |
| Drain | ½" NPT with manual valve |
| Overall dimensions | 14.75" W × 30.50" L × 9.75" H (375 × 775 × 248 mm) |
| Usable well depth | 6.25" (159 mm) |
| Electrical | 208 V / 1 ph / 1,240 W • 240 V / 1 ph / 1,650 W |
| Amperage | 6.0 A (both voltages) |
| Cord & plug | 4 ft. cord, NEMA 6-20P straight plug |
| Shipping weight | 25 lb. (12 kg) |
| Certifications | UL, NSF |
| Warranty | 1-Year limited parts & labor |
Cut-Out & Clearance
- Countertop cut-out: 14 7/8" W × 29 3/4" L
- Minimum clearances — Left/Right/Back: 1" (25 mm) • Front: 4 1/8" (105 mm) • Bottom: 6 3/4" (171 mm)
Looking for adaptor tops, drain extensions, or other accessories? Contact our team via chat or phone and we’ll be happy to help.
