APW Wyott (Middleby)  |  SKU: HFW-3DTS

APW Wyott (Middleby) HFW-3DTS Steam Tables & Food Wells

$3,670.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Instructions_hfw_3ds Middleby financial flyer Manual_sm_hfw_s Warranty sheet
Related Searches
APW Wyott (Middleby) Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well Restaurant Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

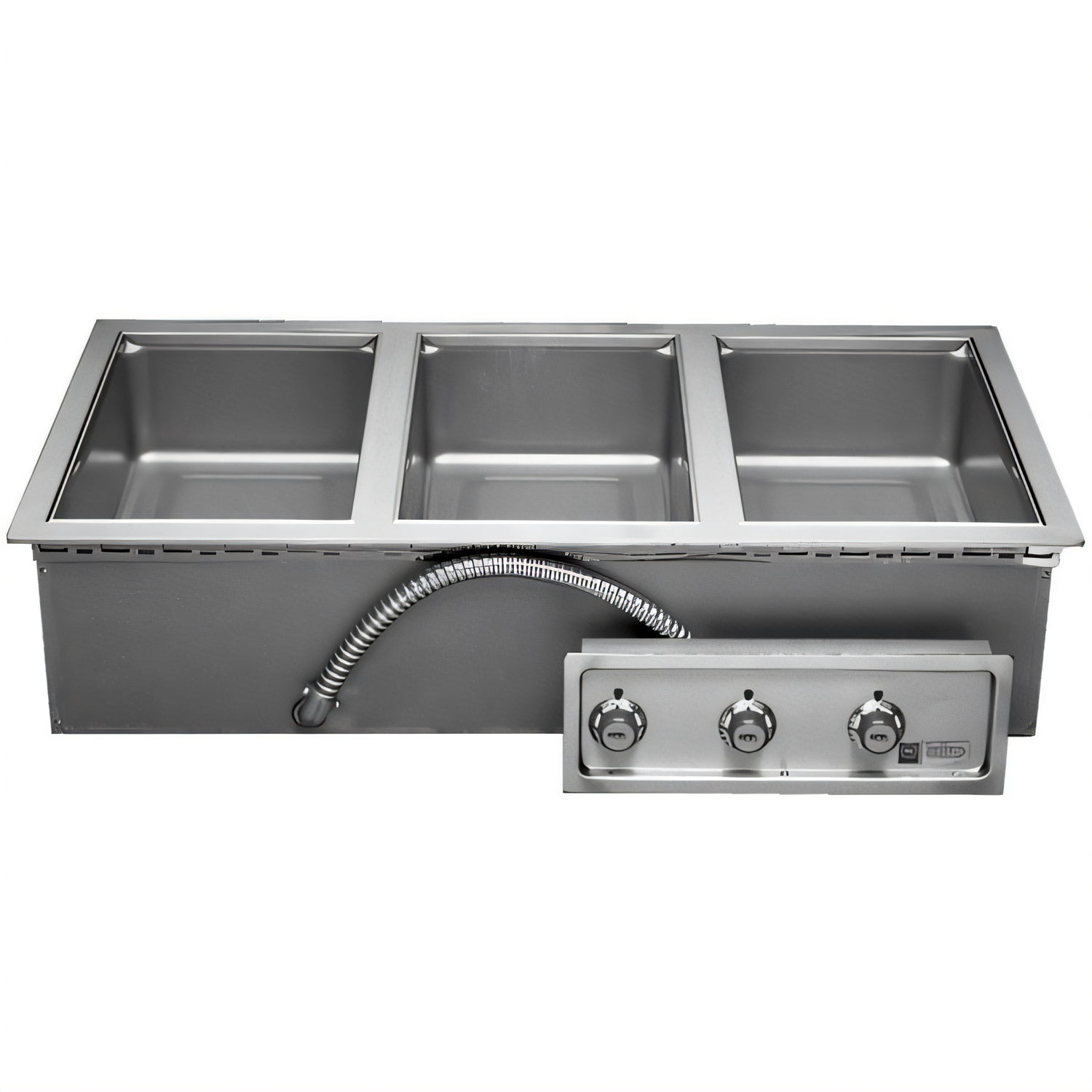

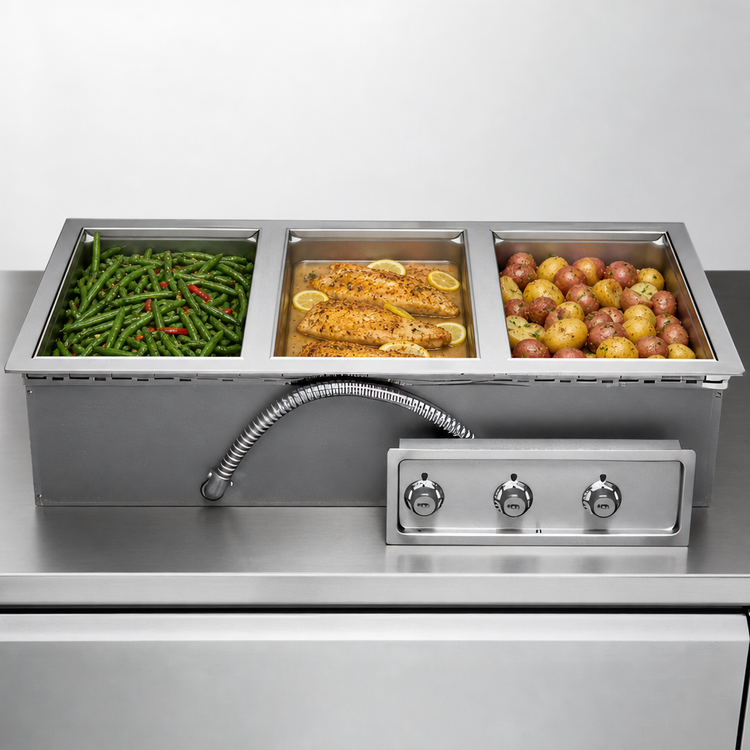

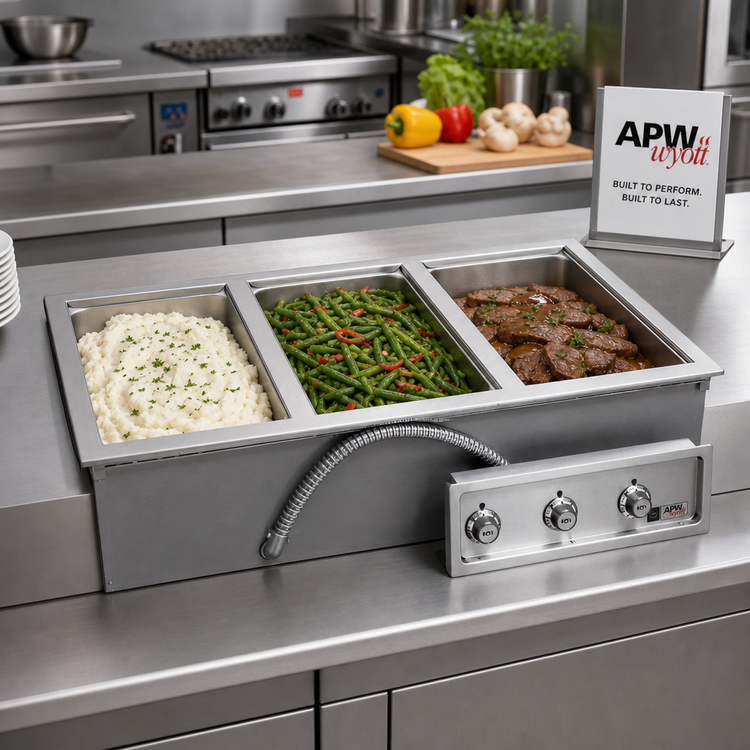

APW Wyott HFW-3DTS Drop-In 3-Well Hot Food Well, Electric

Stainless steel | Thermostatic controls | Wet or dry operation with drain

Keep entrees, sides and sauces at food-safe temperatures without compromising flavor or texture. The APW Wyott HFW-3DTS is a heavy-duty, top-mount hot well that drops seamlessly into your counter and delivers dependable holding performance service after service.

Why You’ll Love It

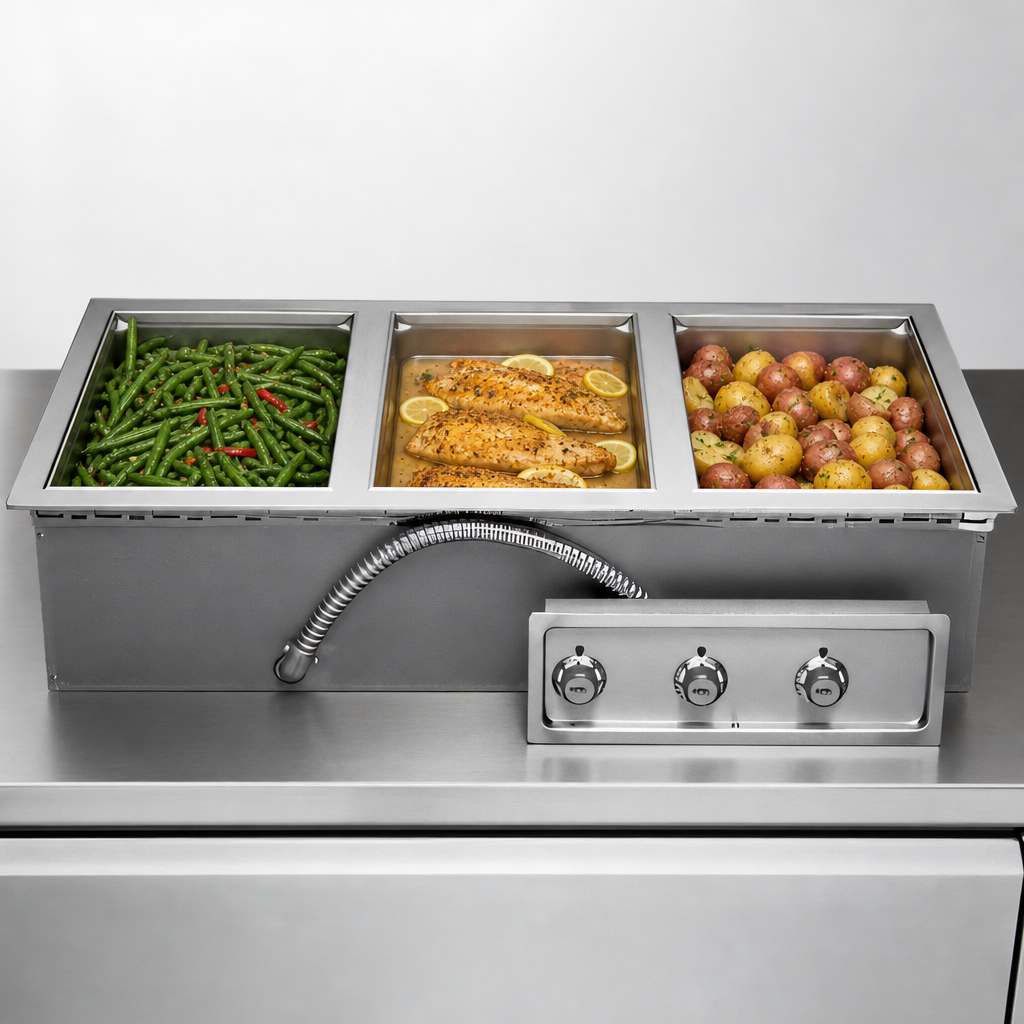

  • Three full-size 12" × 20" wells handle hotel pans or fractional insets with ease.
  • Suitable for wet or dry use—add water for maximum moisture retention.
  • Independent recessed thermostatic controls let you tailor heat for each menu item.
  • E-Z Lock system speeds up installation in stainless, wood or solid-surface counters.
  • Fully insulated sides, front, back and bottom conserve energy and shorten pre-heat times.
  • One-piece top flange and deep-drawn stainless wells resist corrosion and wipe clean fast.
  • 1/2" NPT drain manifold with valve makes water removal quick and mess-free.
  • High-limit protection and “temperature-ready” indicator lights add peace of mind.
  • Durable tubular heating elements provide even, reliable heat distribution across each well.

Technical Specs

Model HFW-3DTS
Pan Capacity (3) 12" × 20" full-size pans (6" deep) or fractional equivalents
Overall Dimensions 43.5" W × 23.63" D × 9.75" H (1105 × 600 × 248 mm)
Recommended Cut-Out 42.5" W × 22.5" D
Wattage / Voltage 1240 W @ 208 V or 1650 W @ 240 V, single-phase hard-wire
Drain Integrated 1/2" NPT manifold with valve
Ship Weight Approx. 73 lb (33.2 kg)
Construction One-piece top flange & deep-drawn stainless steel wells
Certifications UL Listed, NSF Certified
Warranty 1-Year Limited Parts & Labor
Installation Note: Maintain at least 1" (25 mm) clearance on sides & back and 6-3/4" (171 mm) below the unit for proper ventilation. Follow all local electrical and plumbing codes.

Questions about cut-outs, wiring or accessories? Our foodservice specialists are ready to help you get the perfect fit for your line.

Features & Specs

Manufacturer

APW Wyott (Middleby)

Certifications

NSF, UL

Height

9.75in

Width

43.5in

Depth

23.63in

Shipping Weight

73.0lbs

Insulated or Non-Insulated

insulated

Style

individual pans

Wet or Dry operation

wet or dry

Construction

stainless steel top, corrosion resistant steel exterior

Drain

with drain

Pan Capacity

(3) full size (12" x 20")

Controls

thermostatic controls

Specifications

Hot Food Well Unit, drop in, electric, (3) 12" x 20" wells, wet or dry operation, thermostat controls, EZ lock, insulated, with drain, stainless steel wells, UL, NSF
