APW Wyott (Middleby)  |  SKU: HFW-3DS

APW Wyott (Middleby) HFW-3DS Steam Tables & Food Wells

$3,670.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Manual_sm_hfw_s Middleby financial flyer Instructions_hfw_3ds Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

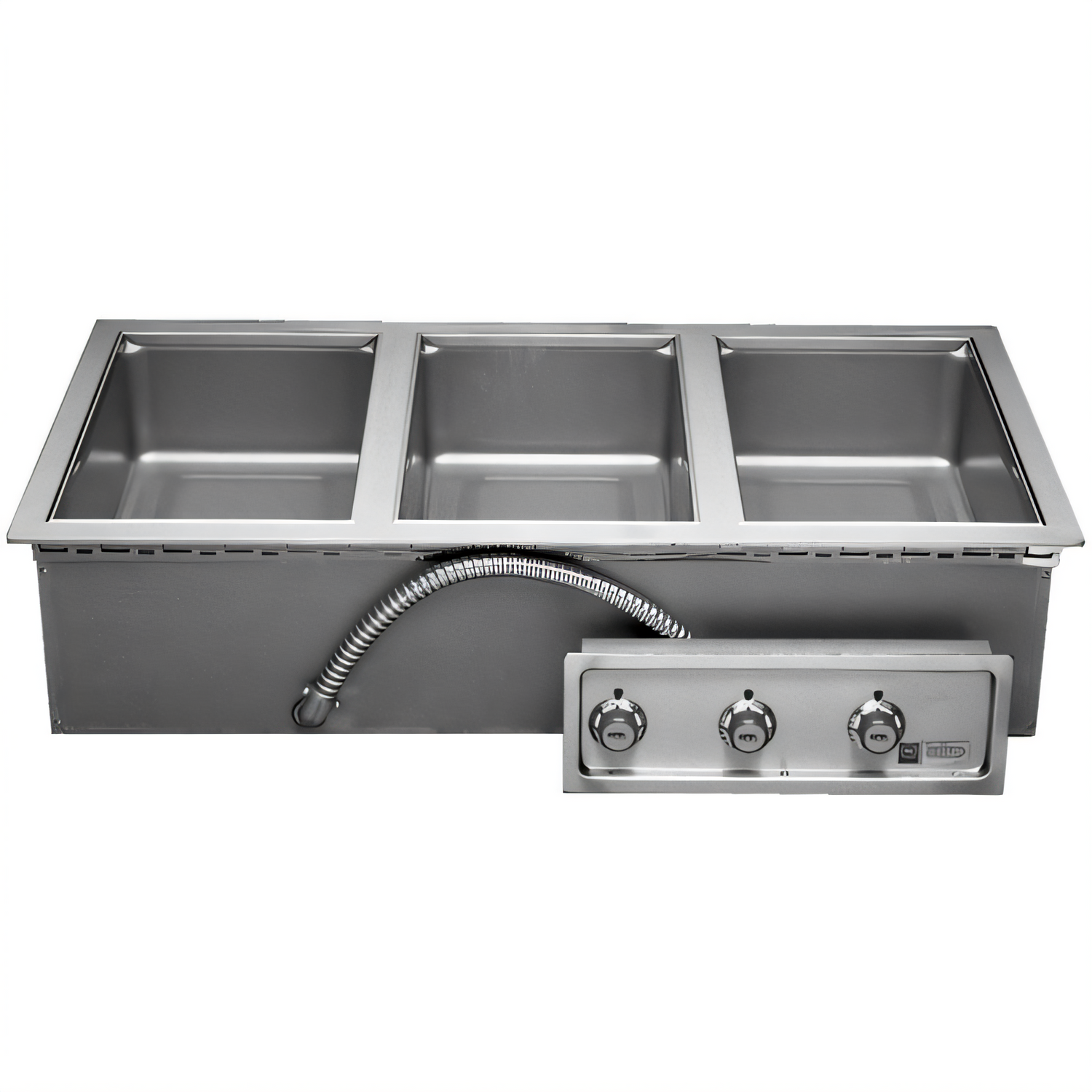

APW Wyott HFW-3DS 3-Well Drop-In Hot Food Well

Electric | Wet or Dry | Infinite Controls  •  With Drain Manifold

Serve everything from mashed potatoes to mac-n-cheese at perfect holding temperature with the heavy-duty APW Wyott HFW-3DS. Designed for top-mount installation, this drop-in warmer delivers the speed, flexibility and food-safe performance a busy service line demands—without sacrificing counter space or energy dollars.

Key Features

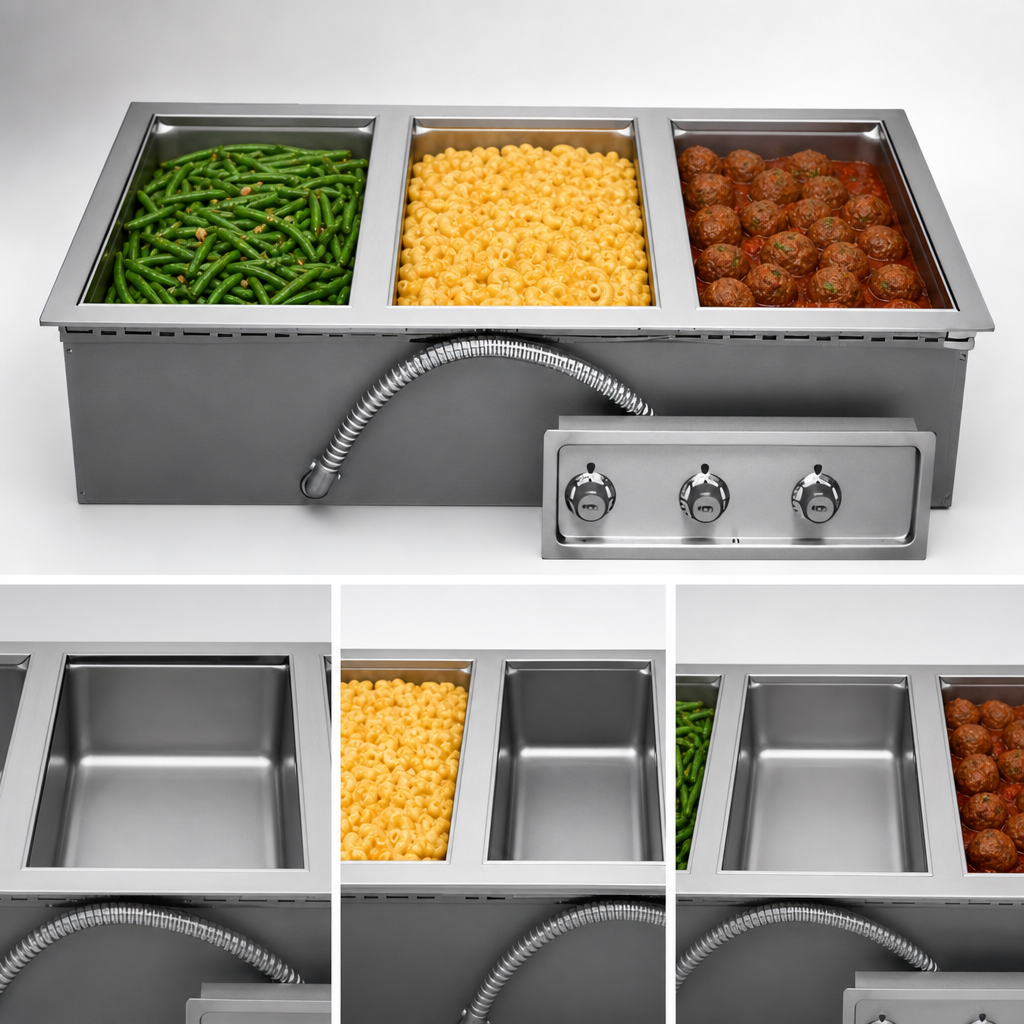

  • Three full-size 12" × 20" wells accept pans up to 6" deep or fractional inserts.
  • Wet or dry operation (wet recommended) lets you hold soups, sauces, proteins and sides in the same station.
  • Individual infinite controls and temperature-ready indicator lights for precise, per-well adjustment.
  • Deep-drawn, heavy-gauge stainless steel wells with seamless one-piece top flange for superior sanitation.
  • Built-in drain manifold with valve—drain each well through a single ½" NPT connection for fast cleanup.
  • Fully insulated sides, front, back and bottom conserve energy and protect non-metal counters.
  • E-Z Lock mounting system drops in and tightens from above the counter—no extra hardware needed.
  • High-limit safety thermostat prevents overheating and extends element life.
  • UL  and  NSF listed; 1-year parts & labor warranty included.
Specifications
Model HFW-3DS
Number of Wells 3 (full-size)
Operation Wet or Dry
Controls Infinite, individual per well
Total Wattage 2700 W @ 208 V  |  3600 W @ 240 V
Voltage / Phase 208 V or 240 V, 1- or 3-phase
Amps (3-phase) 6.3 A @ 208 V  |  8.7 A @ 240 V (per line)
Overall Dimensions 43.5" W × 23.63" D × 9.75" H (1105 × 600 × 248 mm)
Control Panel Size 18" W × 6.25" H (457 × 159 mm)
Clearances 1" sides & back, 4 ⅛" front, 6 ¾" bottom
Drain Connection ½" female NPT manifold
Ship Weight 73 lb (33.2 kg)
Certifications UL, NSF
Warranty 1-Year Parts & Labor
Perfect For
  • Cafeterias & buffet lines
  • Hotel breakfast & banquet service
  • Convenience stores & delis
  • Catering and concession stands
Optional Accessories (sold separately)
  • Adaptor tops for round insets
  • Drain valve extension kit
  • Drain screens
  • E-Z Lock extension kits for wood countertops
  • Factory-installed 72" wiring harness
Installation Notice: This unit must be hard-wired by a qualified electrician. Maintain the listed clearances and connect only to a circuit not exceeding 150 V to ground. Follow all local plumbing and electrical codes.

Questions? Our foodservice specialists are ready to help you choose options, arrange installation and keep your kitchen running smoothly.

Features & Specs

Manufacturer

APW Wyott (Middleby)

Certifications

NSF, UL

Height

9.75in

Width

43.5in

Depth

23.63in

Shipping Weight

73.0lbs

Style

individual pans

Insulated or Non-Insulated

insulated

Construction

stainless steel top, corrosion resistant steel exterior

Pan Capacity

(3) full size (12" x 20")

Drain

with drain

Controls

thermostatic controls

Wet or Dry operation

wet or dry

Specifications

Hot Food Well Unit, drop-in, electric, (3) 12" x 20" wells, wet or dry operation, infinite controls, EZ lock, insulated, with drain, stainless steel wells, UL, NSF
