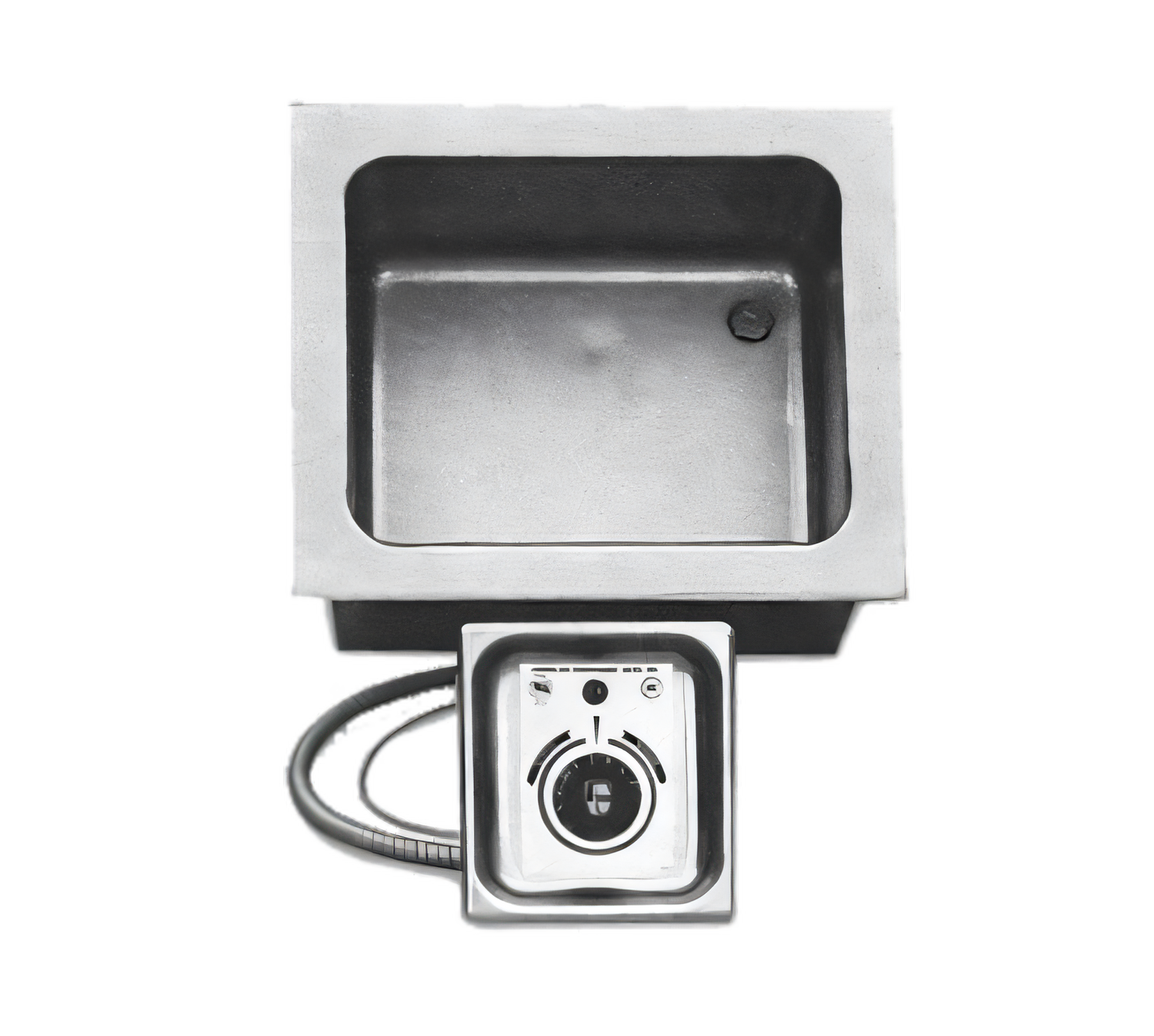

APW Wyott HFW-12DS Drop-In Half-Size Hot Food Well

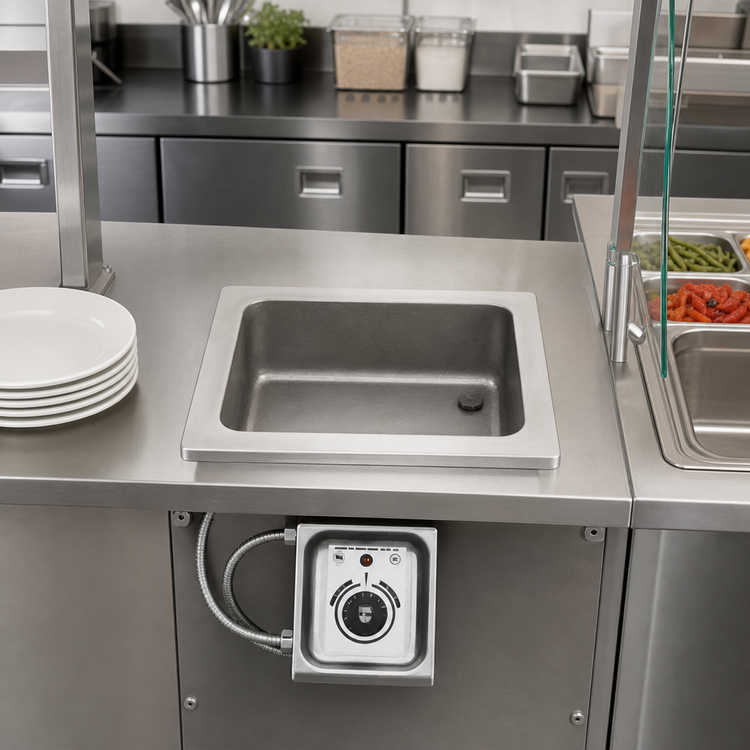

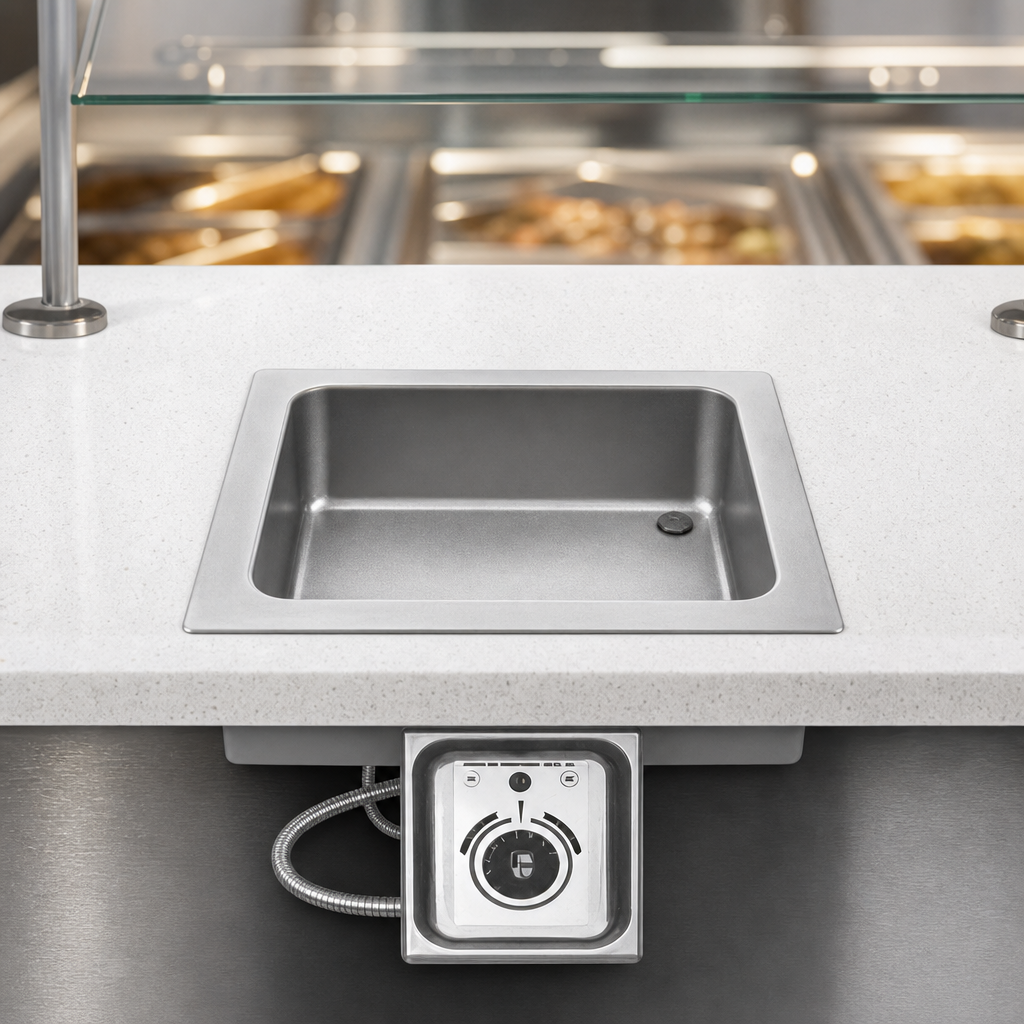

Single 12" × 10" well • Wet or dry • 120 V electricHold soups, sides, sauces, and toppings at safe serving temperatures without giving up valuable counter space. Designed for heavy-duty commercial use, the HFW-12DS installs flush into any countertop and keeps one half-size steam-table pan consistently hot—whether you run it wet for gentle, moist heat or dry for quick convenience.
Key Features & Benefits
- Flexible wet or dry operation lets you match humidity to the menu.
- 825 W tubular element pre-heats rapidly and distributes heat evenly.
- Individual thermostatic dial with temperature-ready indicator for precise control.
- E-Z Lock self-clamping flange secures the unit in seconds—no mounting hardware required.
- Deep-drawn stainless steel well with fully insulated aluminized outer housing cuts energy loss.
- 1/2" NPT drain speeds water removal and cleanup; optional extension kit reaches counter front.
- Built-in high-limit safety protects against overheating and extends component life.
- UL listed and backed by a 1-year parts & labor warranty for peace of mind.
Specifications
| Model | HFW-12DS |
|---|---|
| Capacity | One 12" × 10" half-size pan, up to 6" deep (or fractional equivalents) |
| Overall Dimensions | 11.63" W × 13.88" D × 7.19" H (295 × 352 × 183 mm) |
| Countertop Cutout | 10 7/8" W × 13 3/8" D (276 × 340 mm) |
| Electrical | 120 V / 1-phase / 3.75 A / 825 W • Field wire #14 AWG Cu 90 °C min. |
| Controls | Recessed thermostatic dial with power & ready lights |
| Drain | Yes – 1/2" NPT (bottom outlet) |
| Construction | Stainless steel well & flange, aluminized steel exterior, fully insulated |
| Ship Weight | 18 lb (8 kg) |
| Certifications | UL, cULus |
| Warranty | 1-year limited parts & labor |
Required Clearances
- Left / Right: 2" (51 mm)
- Back: 1" (25 mm)
- Front: 2 5/8" (67 mm)
- Bottom: 9" (229 mm)
Installation Note: The control panel must be mounted to the front of the fixture and remain
accessible from below. Always have a qualified professional perform electrical connections and follow local
codes.
Looking for multiple wells or a different size? Explore the full APW Wyott drop-in series to outfit every holding station in your kitchen.
$1,541.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
APW Wyott electric 12" drop-in steam table well — wet/dry, thermostatic control, insulated stainless well, EZ-lock drain, 825W, UL listed.
Manufacturer
APW Wyott (Middleby)
Certifications
UL
Height
13.88in
Width
11.63in
Depth
7.19in
Shipping Weight
18.0lbs
Style
individual pans
Insulated or Non-Insulated
insulated
Construction
stainless steel top, corrosion resistant steel exterior
Pan Capacity
(1) 1/2 size short (6" x 12")
Drain
with drain
Wet or Dry operation
wet or dry
Controls
thermostatic controls
Specifications
Hot Food Well Unit, drop-in, electric, (1) 12" x 10" well, 1/2 pan size, wet or dry operation, individual thermostatic controls, EZ lock, insulated, with drain, stainless steel well, aluminized outer housing, 825 watts, 120v/1-ph, 3.75 amps, UL
